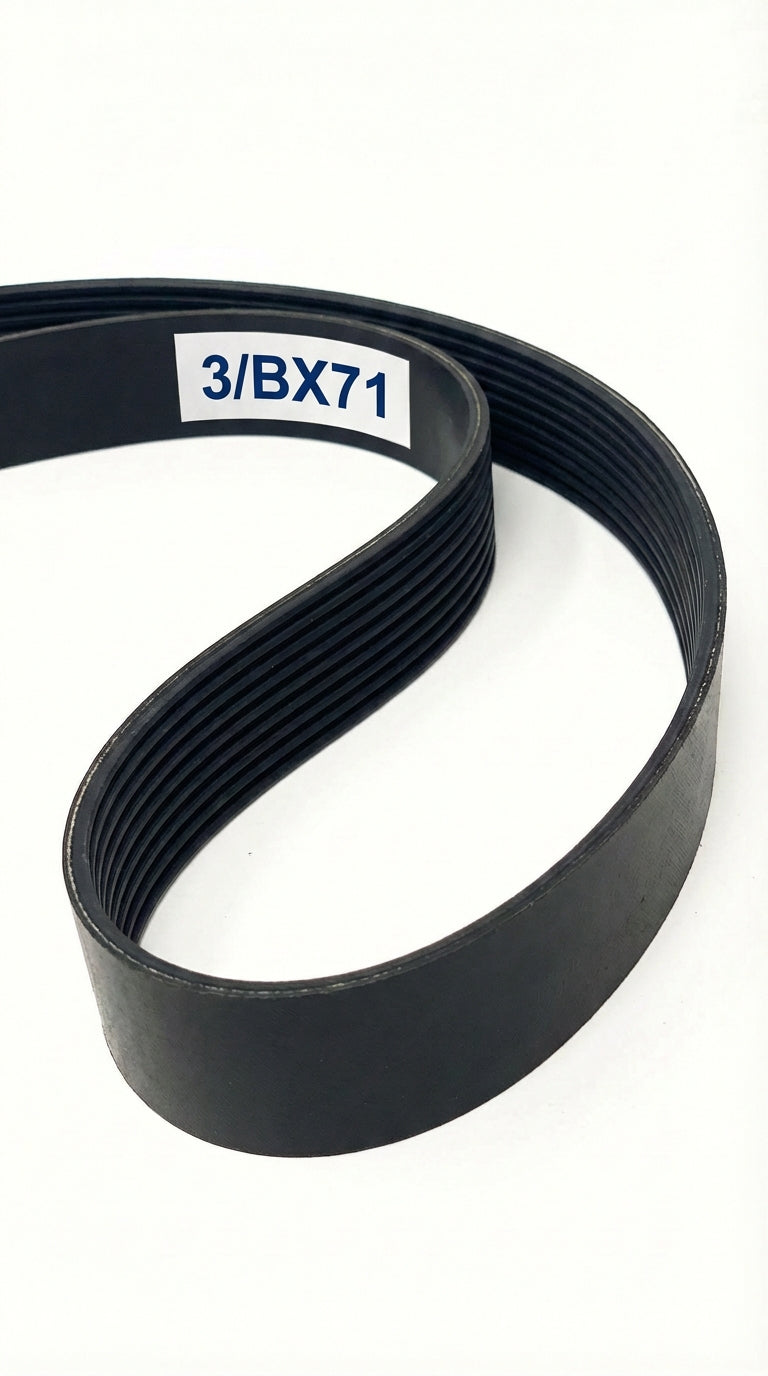

The 3/BX71 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 72.8" long, offering improved flexibility around smaller pulleys.

3/BX71 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 72.8" (1849.1mm)
• Inside Length: 71" (1803.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX71 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

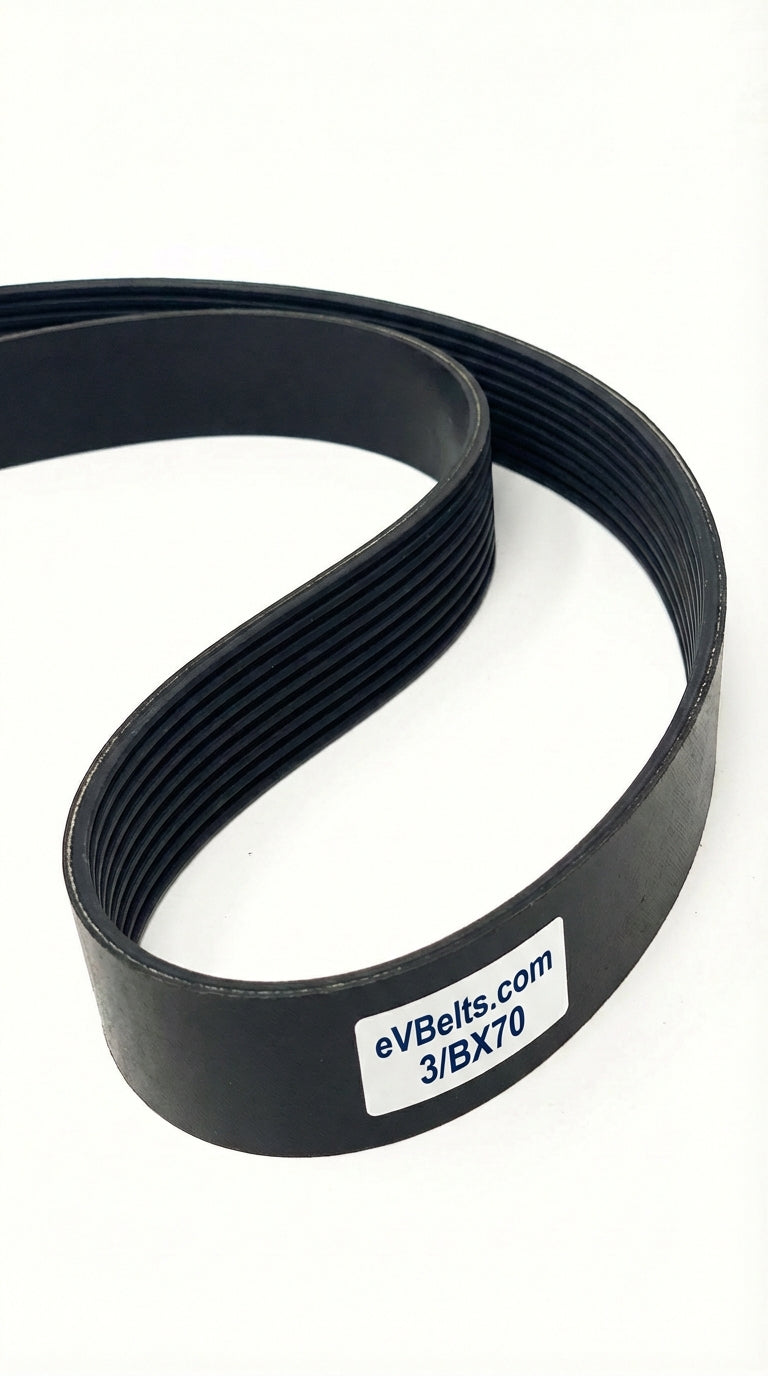

The 3/BX70 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 71.8" long, offering improved flexibility around smaller pulleys.

3/BX70 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 71.8" (1823.7mm)
• Inside Length: 70" (1778mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX70 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

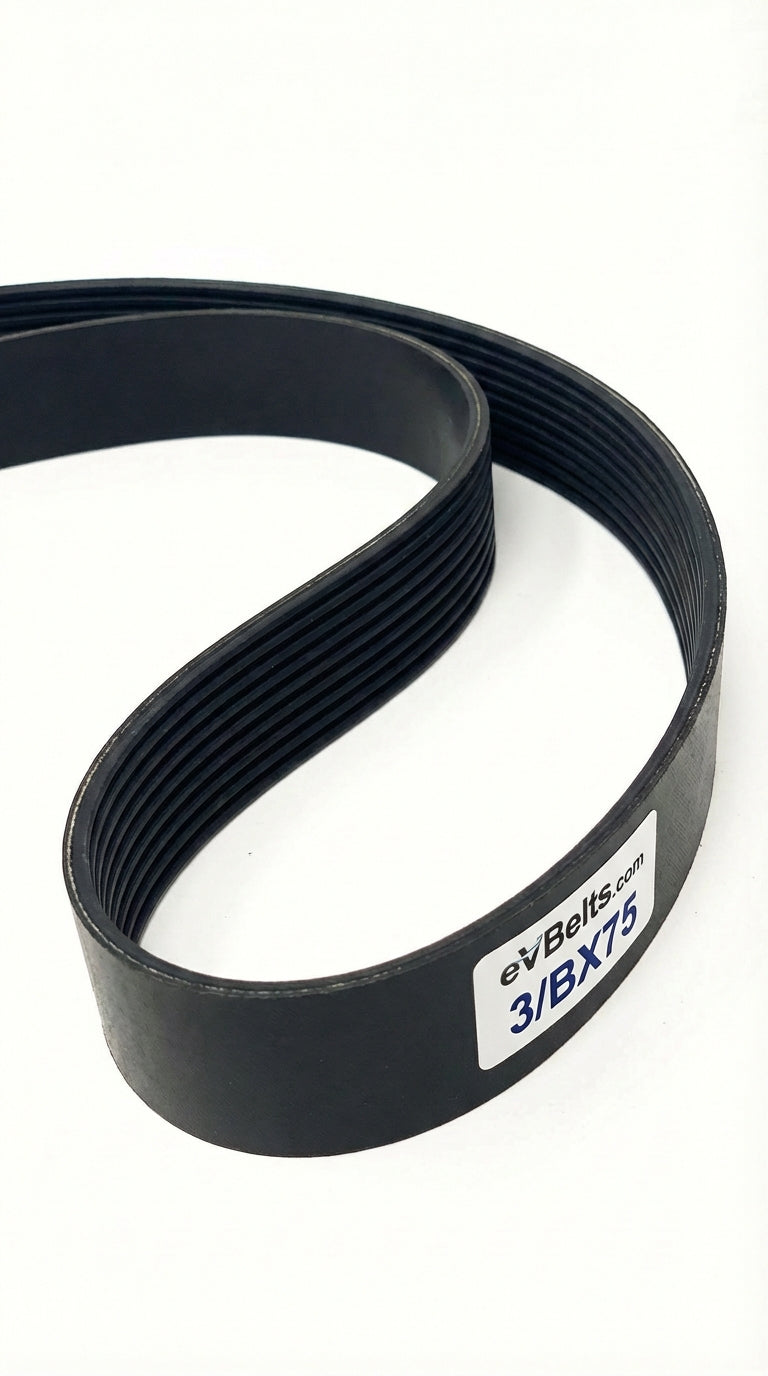

The 3/BX75 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 76.8" long, offering improved flexibility around smaller pulleys.

3/BX75 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 76.8" (1950.7mm)
• Inside Length: 75" (1905mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX75 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

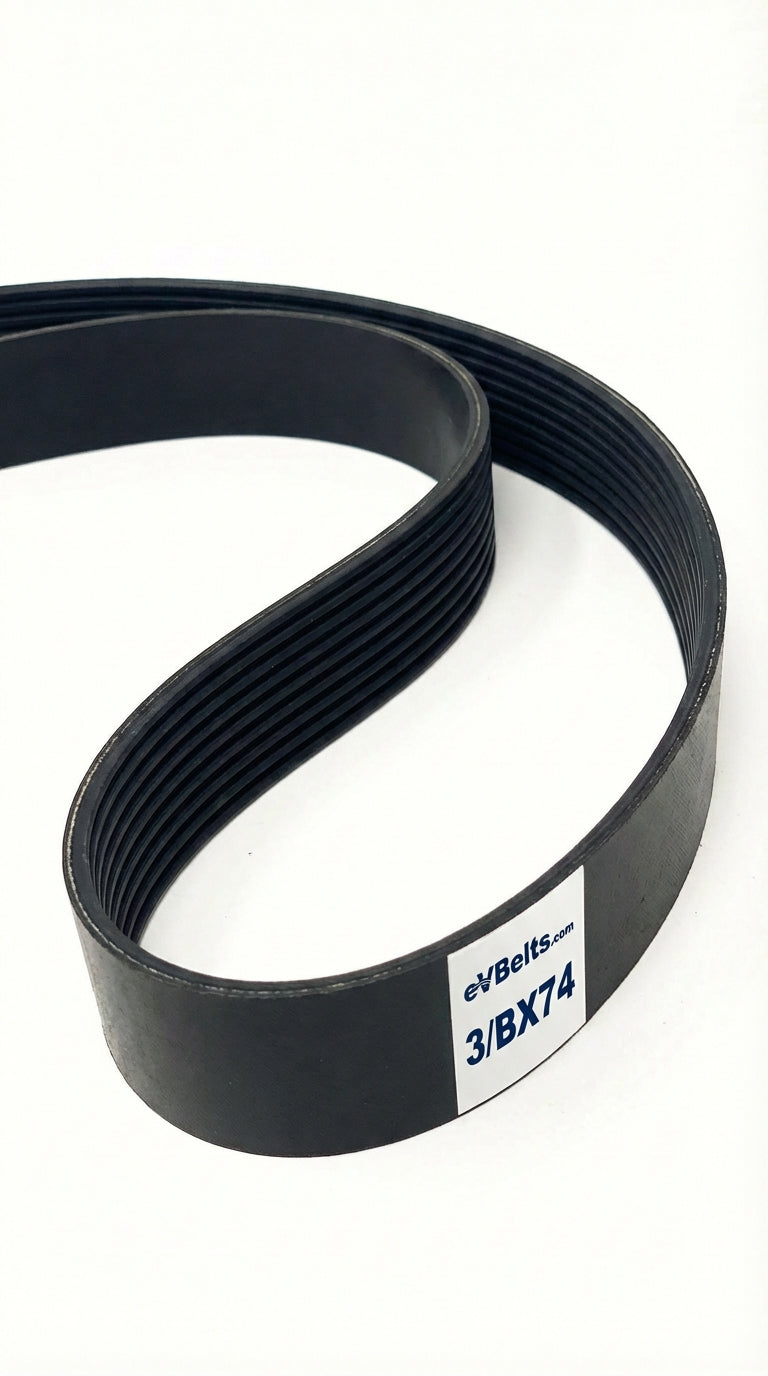

The 3/BX74 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 75.8" long, offering improved flexibility around smaller pulleys.

3/BX74 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 75.8" (1925.3mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX74 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX77 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 78.8" long, offering improved flexibility around smaller pulleys.

3/BX77 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 78.8" (2001.5mm)
• Inside Length: 77" (1955.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX77 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

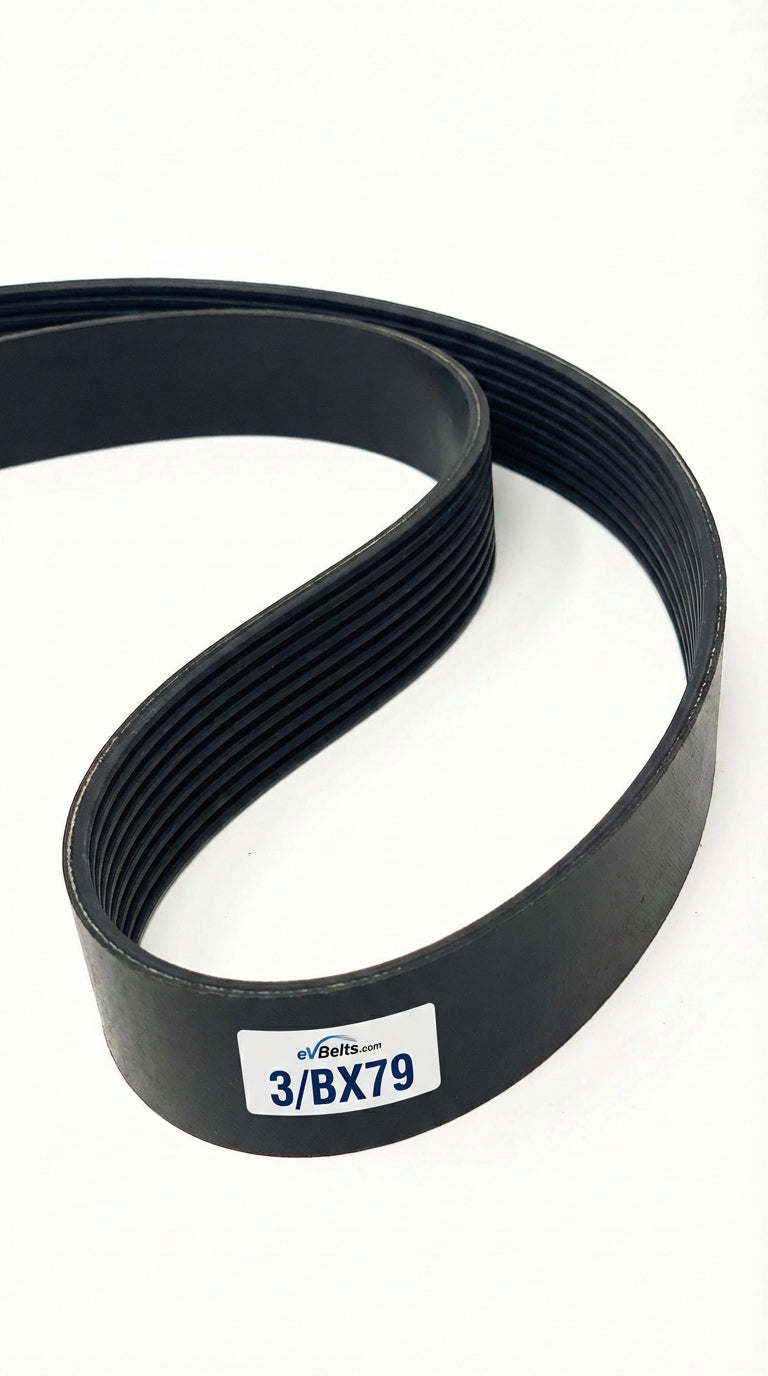

The 3/BX79 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 80.8" long, offering improved flexibility around smaller pulleys.

3/BX79 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 80.8" (2052.3mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX79 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX81 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 82.8" long, offering improved flexibility around smaller pulleys.

3/BX81 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 82.8" (2103.1mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX81 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX83 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 84.8" long, offering improved flexibility around smaller pulleys.

3/BX83 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 84.8" (2153.9mm)
• Inside Length: 83" (2108.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX83 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX85 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 86.8" long, offering improved flexibility around smaller pulleys.

3/BX85 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 86.8" (2204.7mm)
• Inside Length: 85" (2159mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX85 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

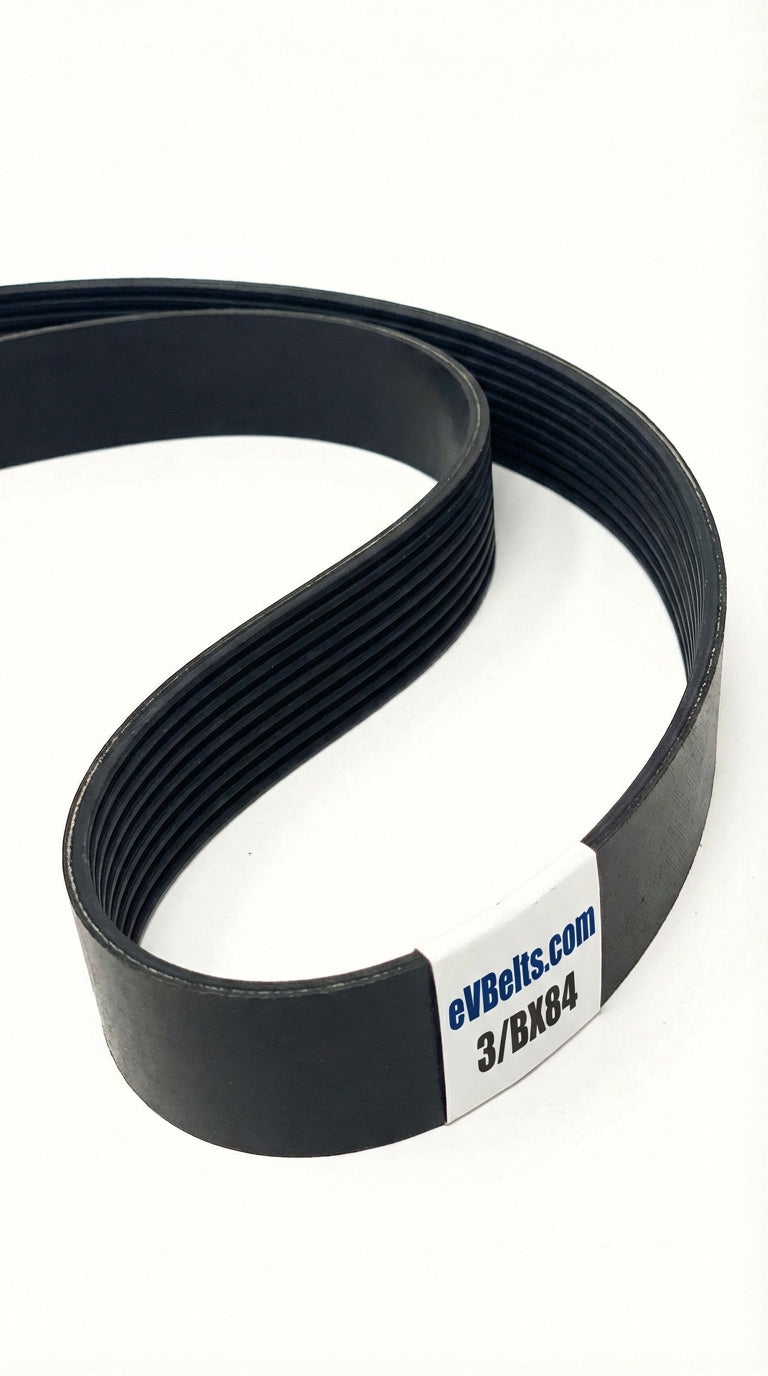

The 3/BX84 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 85.8" long, offering improved flexibility around smaller pulleys.

3/BX84 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 85.8" (2179.3mm)
• Inside Length: 84" (2133.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX84 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

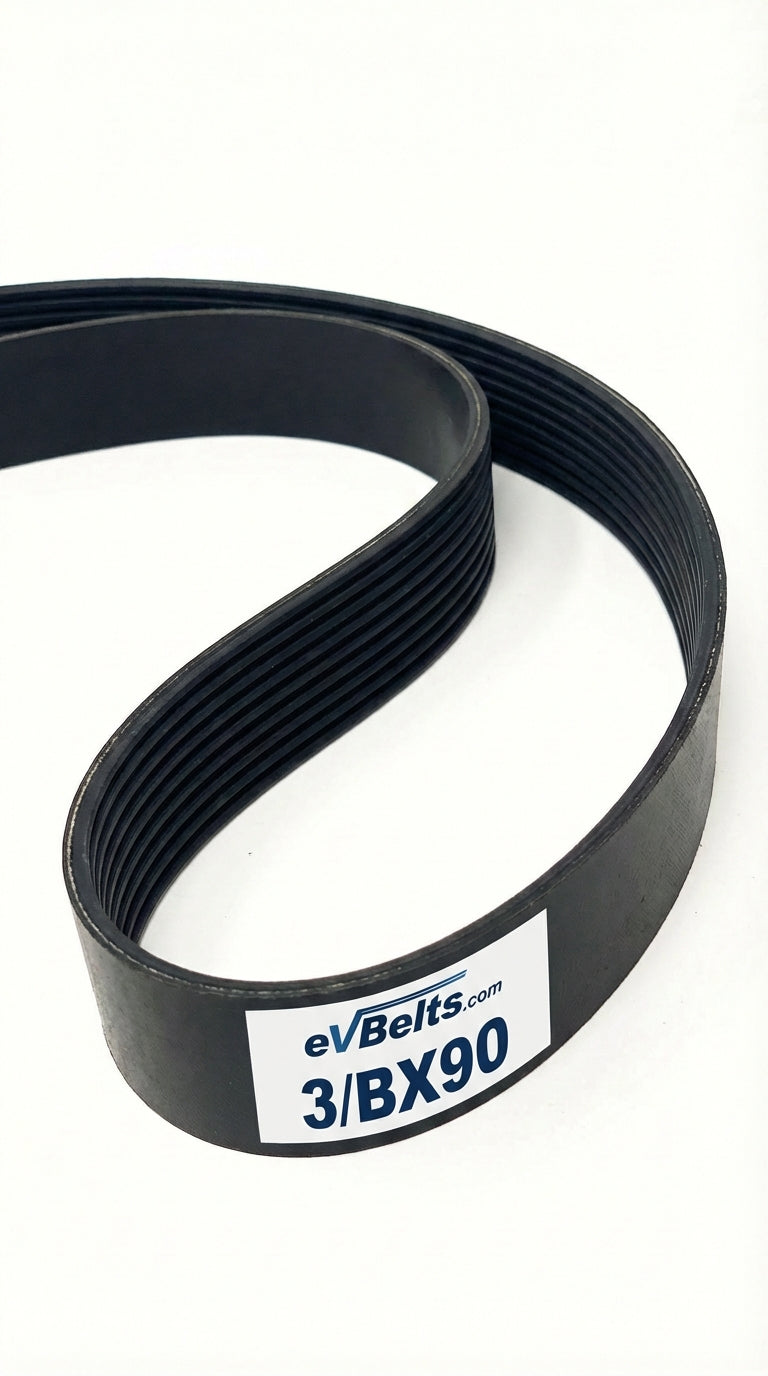

The 3/BX90 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 91.8" long, offering improved flexibility around smaller pulleys.

3/BX90 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 91.8" (2331.7mm)
• Inside Length: 90" (2286mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX90 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

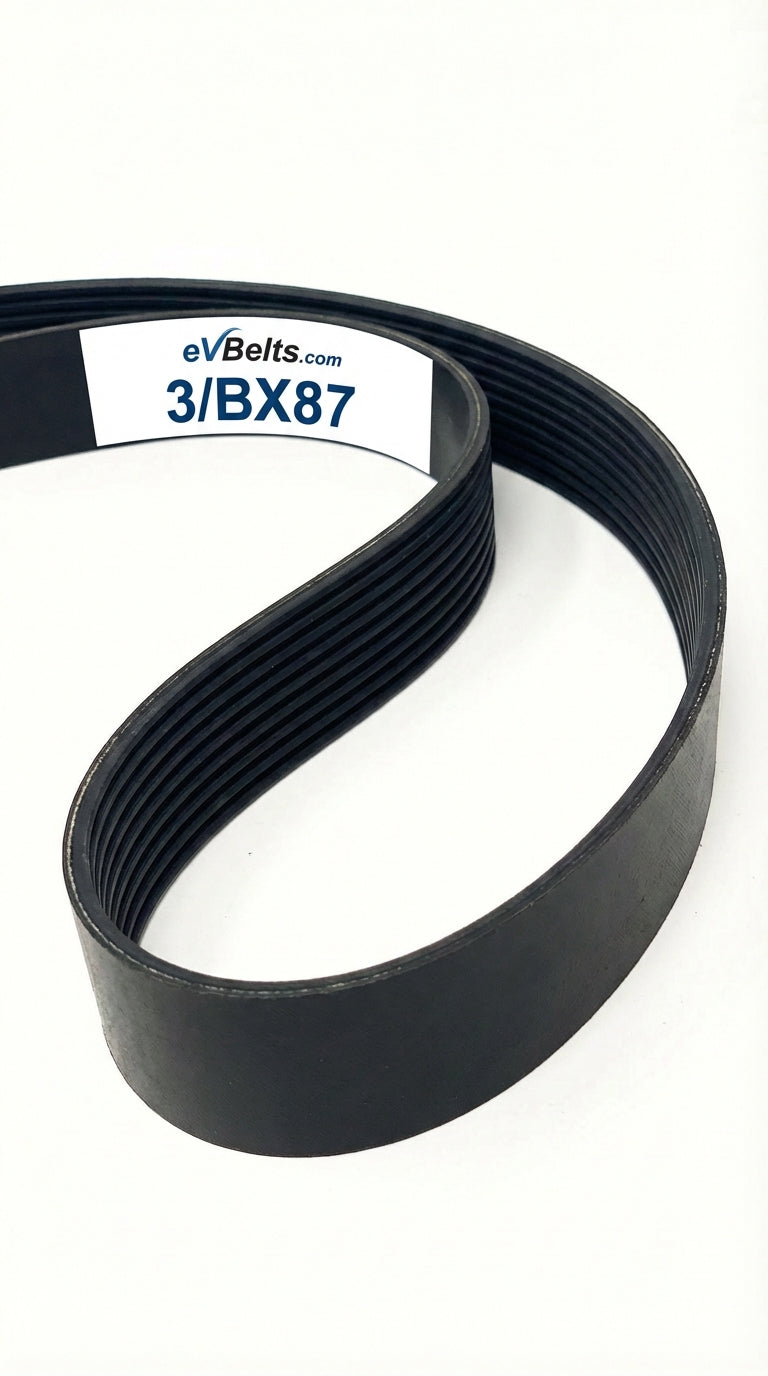

The 3/BX87 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 88.8" long, offering improved flexibility around smaller pulleys.

3/BX87 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 88.8" (2255.5mm)
• Inside Length: 87" (2209.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX87 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX96 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 97.8" long, offering improved flexibility around smaller pulleys.

3/BX96 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 97.8" (2484.1mm)
• Inside Length: 96" (2438.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX96 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

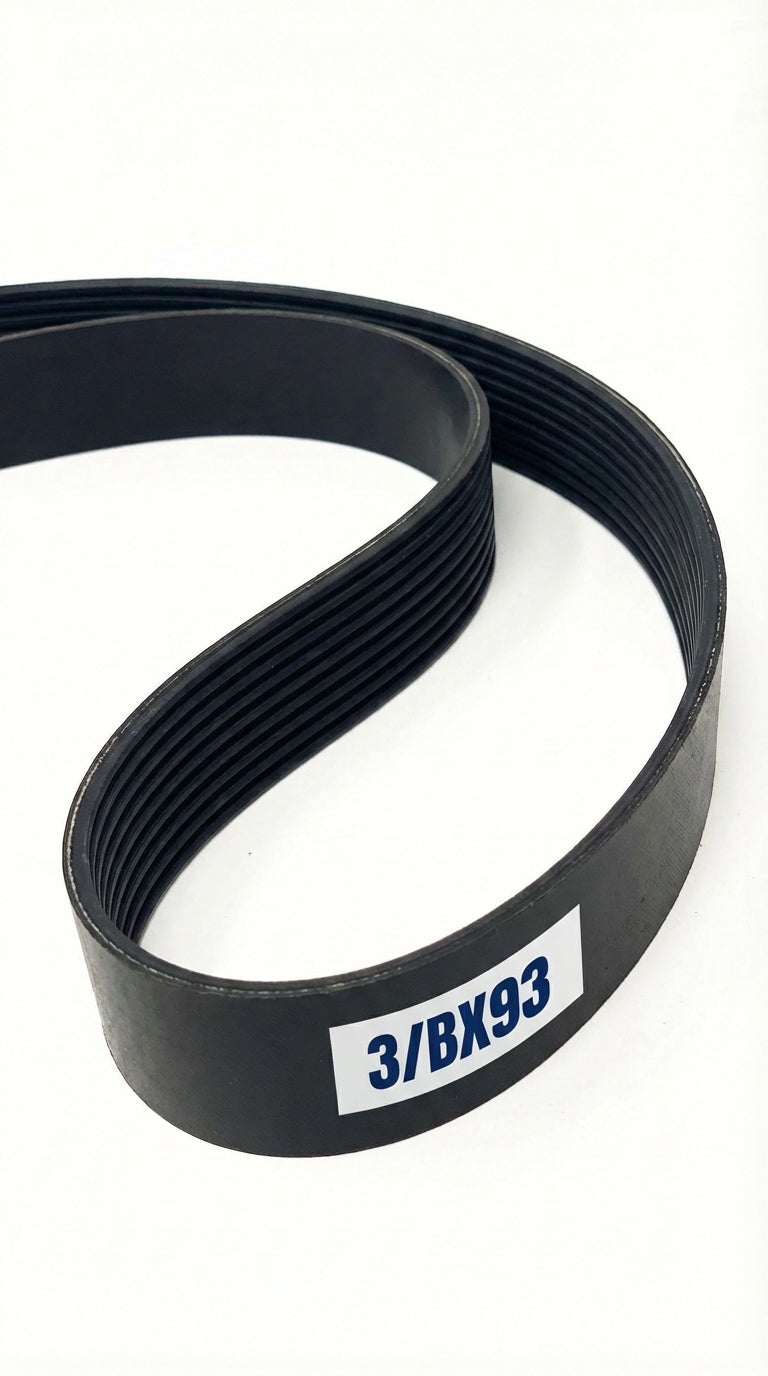

The 3/BX93 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 94.8" long, offering improved flexibility around smaller pulleys.

3/BX93 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 94.8" (2407.9mm)
• Inside Length: 93" (2362.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX93 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

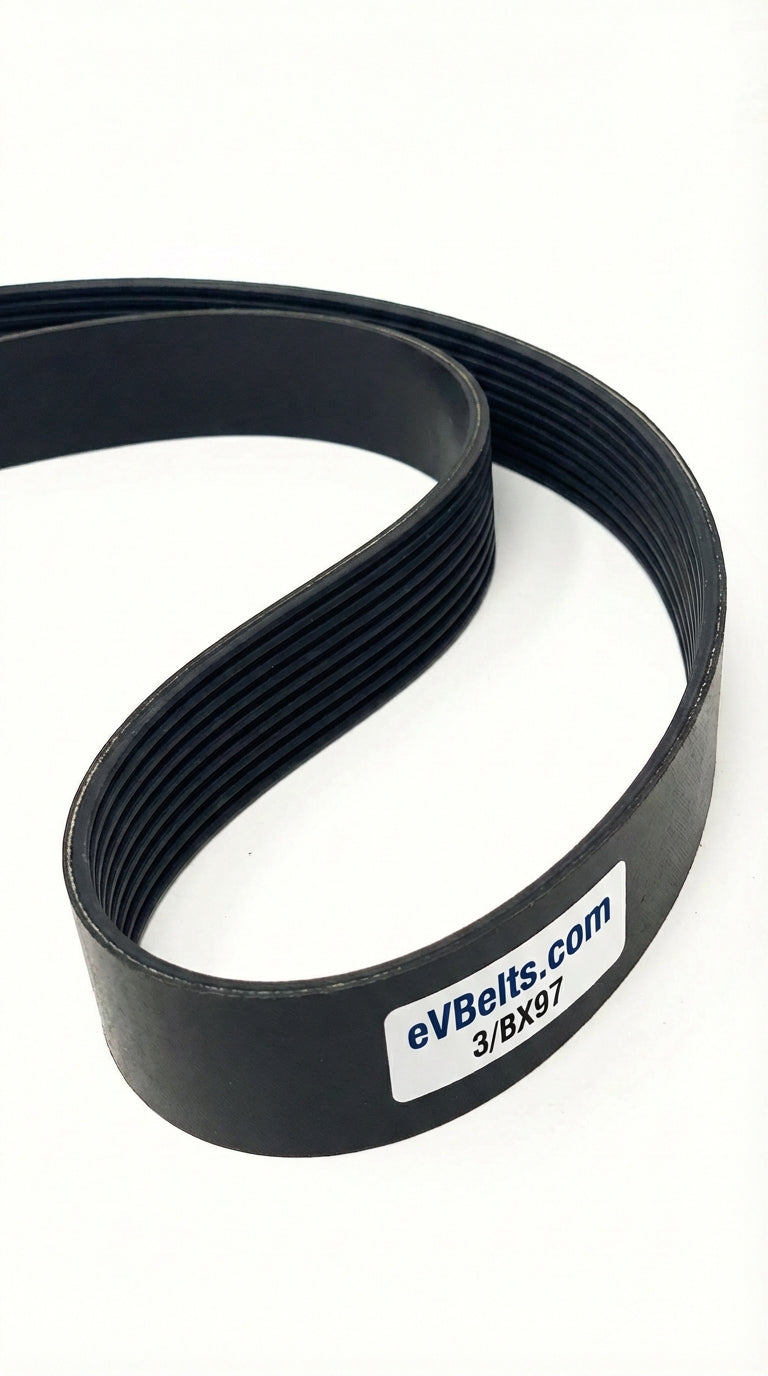

The 3/BX97 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 98.8" long, offering improved flexibility around smaller pulleys.

3/BX97 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 98.8" (2509.5mm)
• Inside Length: 97" (2463.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX97 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

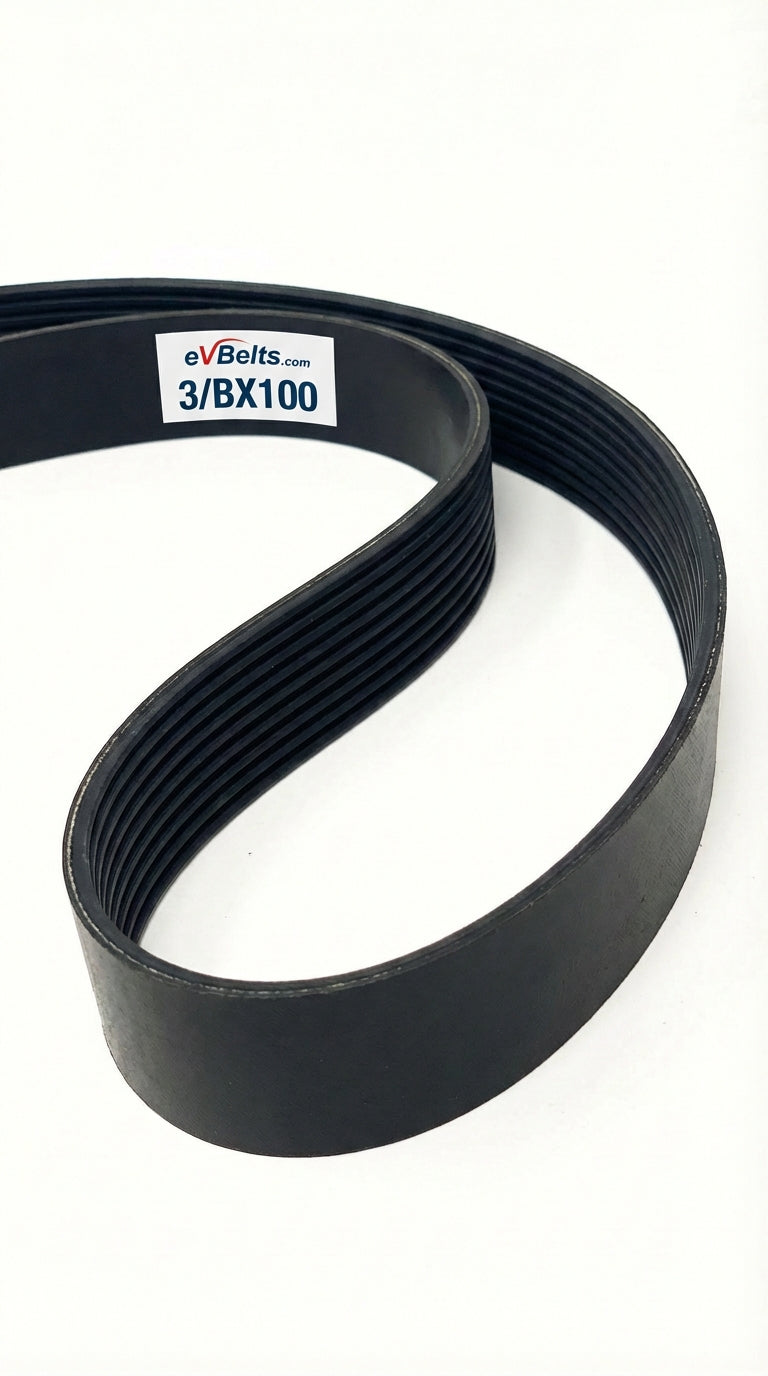

The 3/BX100 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 101.8" long, offering improved flexibility around smaller pulleys.

3/BX100 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 101.8" (2585.7mm)
• Inside Length: 100" (2540mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX100 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

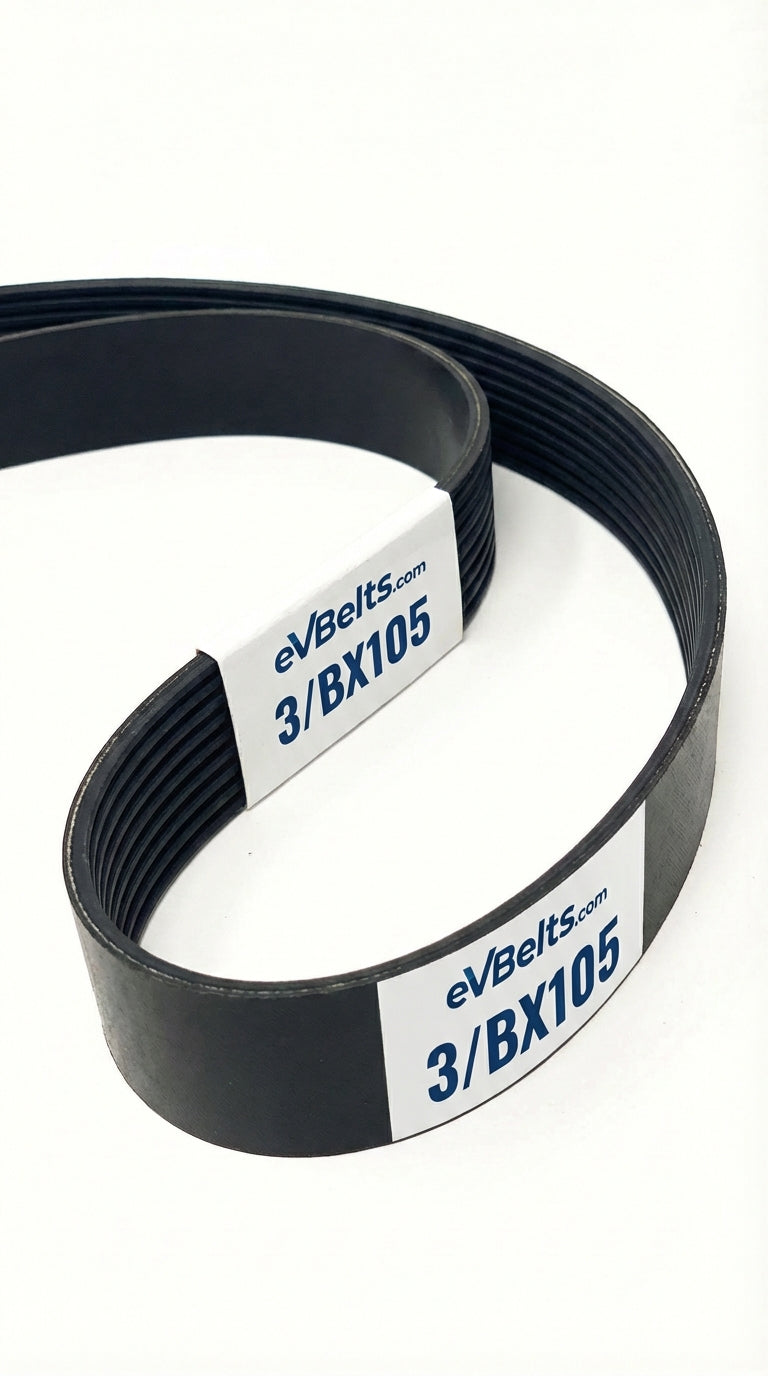

The 3/BX105 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 106.8" long, offering improved flexibility around smaller pulleys.

3/BX105 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 106.8" (2712.7mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX105 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX103 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 104.8" long, offering improved flexibility around smaller pulleys.

3/BX103 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 104.8" (2661.9mm)
• Inside Length: 103" (2616.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX103 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX112 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 113.8" long, offering improved flexibility around smaller pulleys.

3/BX112 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 113.8" (2890.5mm)
• Inside Length: 112" (2844.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX112 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX128 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 129.8" long, offering improved flexibility around smaller pulleys.

3/BX128 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 129.8" (3296.9mm)
• Inside Length: 128" (3251.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX128 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX131 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 132.8" long, offering improved flexibility around smaller pulleys.

3/BX131 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 132.8" (3373.1mm)
• Inside Length: 131" (3327.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX131 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

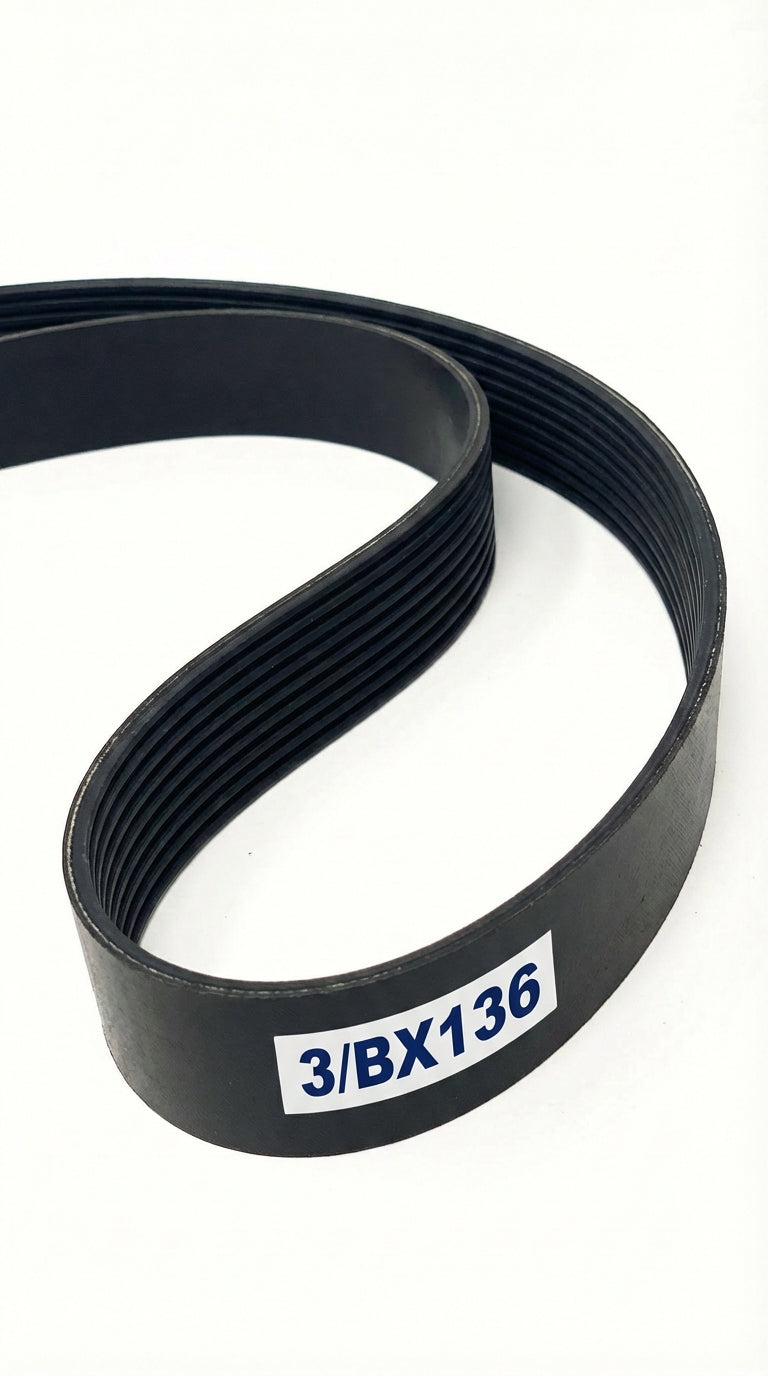

The 3/BX136 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 137.8" long, offering improved flexibility around smaller pulleys.

3/BX136 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 137.8" (3500.1mm)
• Inside Length: 136" (3454.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX136 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

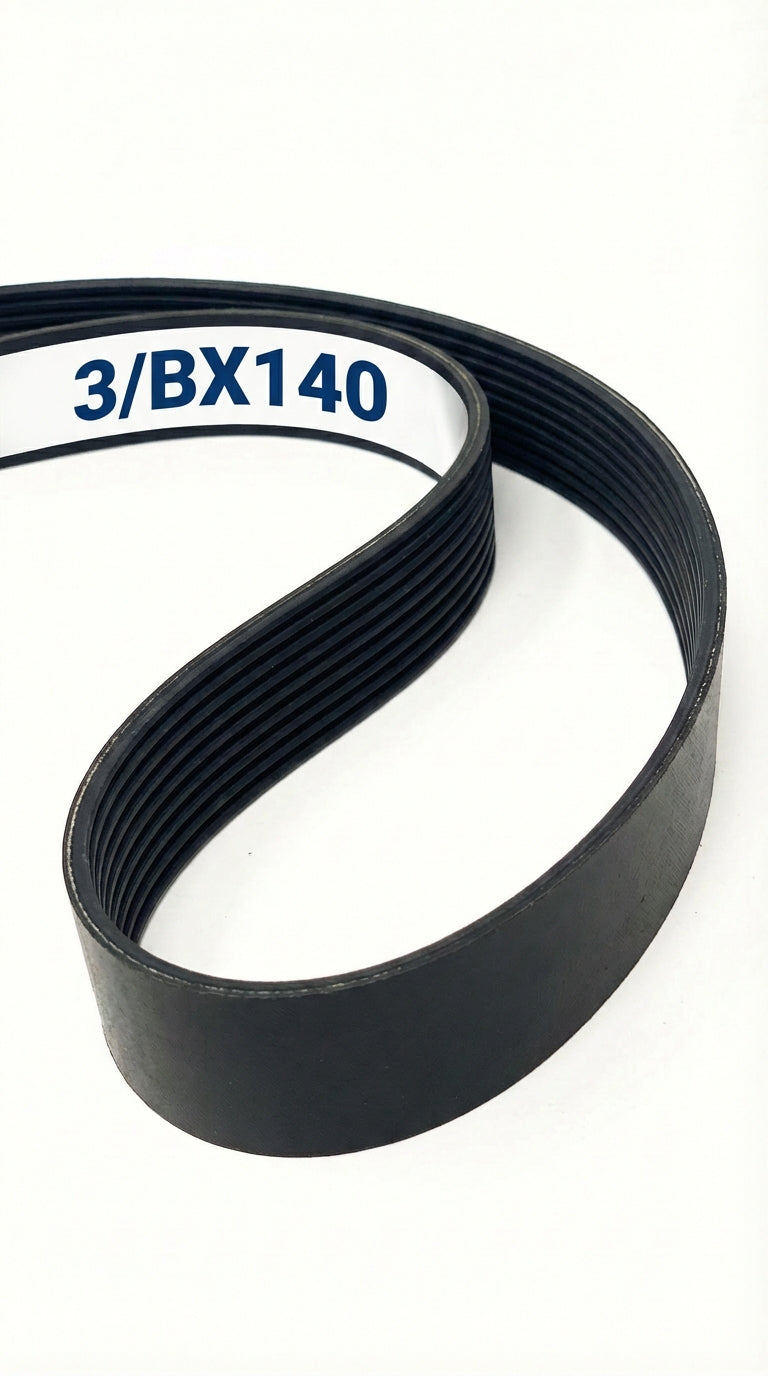

The 3/BX140 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 141.8" long, offering improved flexibility around smaller pulleys.

3/BX140 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 141.8" (3601.7mm)
• Inside Length: 140" (3556mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX140 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

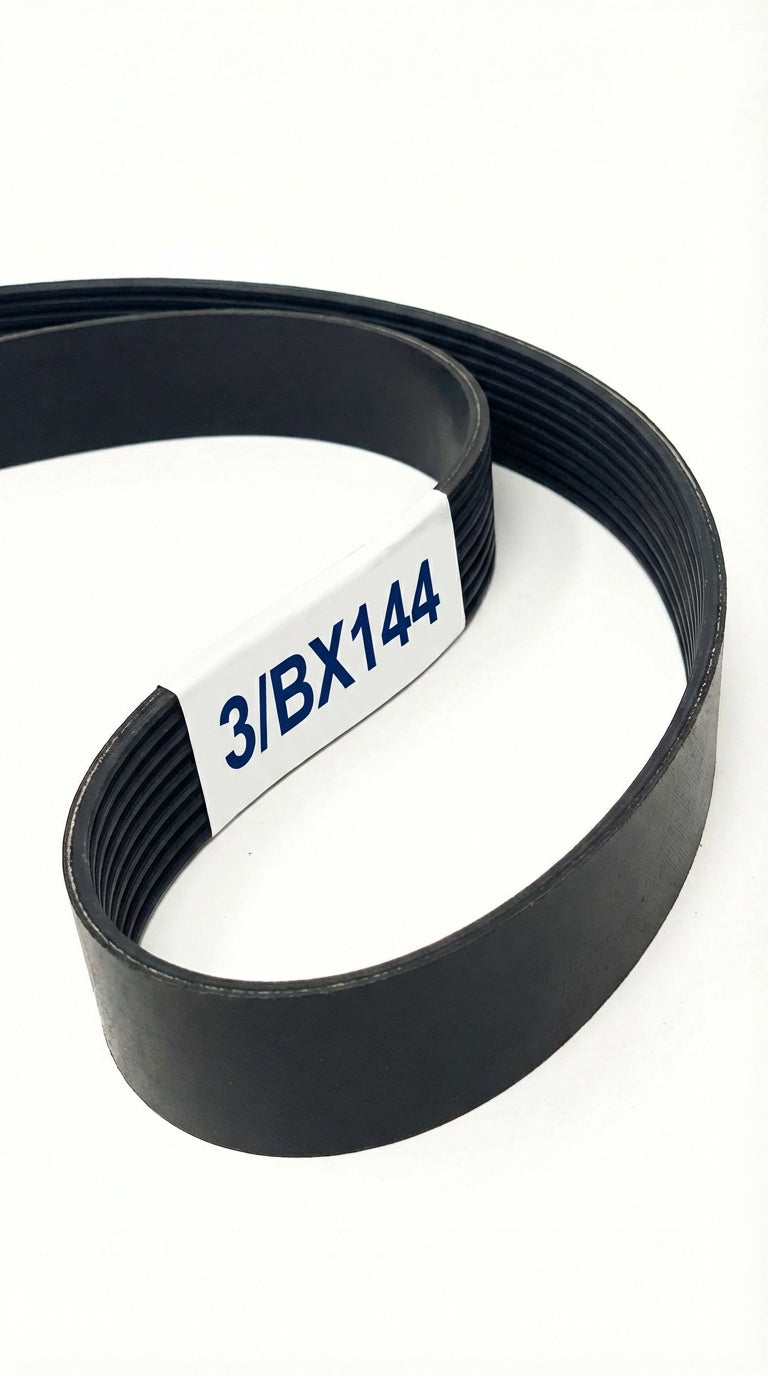

The 3/BX144 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 145.8" long, offering improved flexibility around smaller pulleys.

3/BX144 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 145.8" (3703.3mm)
• Inside Length: 144" (3657.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX144 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX158 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 159.8" long, offering improved flexibility around smaller pulleys.

3/BX158 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 159.8" (4058.9mm)
• Inside Length: 158" (4013.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX158 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/BX42 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 43.8" long, offering improved flexibility around smaller pulleys.

4/BX42 Specifications

• Top Width: 2.714" (68.94mm)
• Outside Length: 43.8" (1112.5mm)
• Inside Length: 42" (1066.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/BX42 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

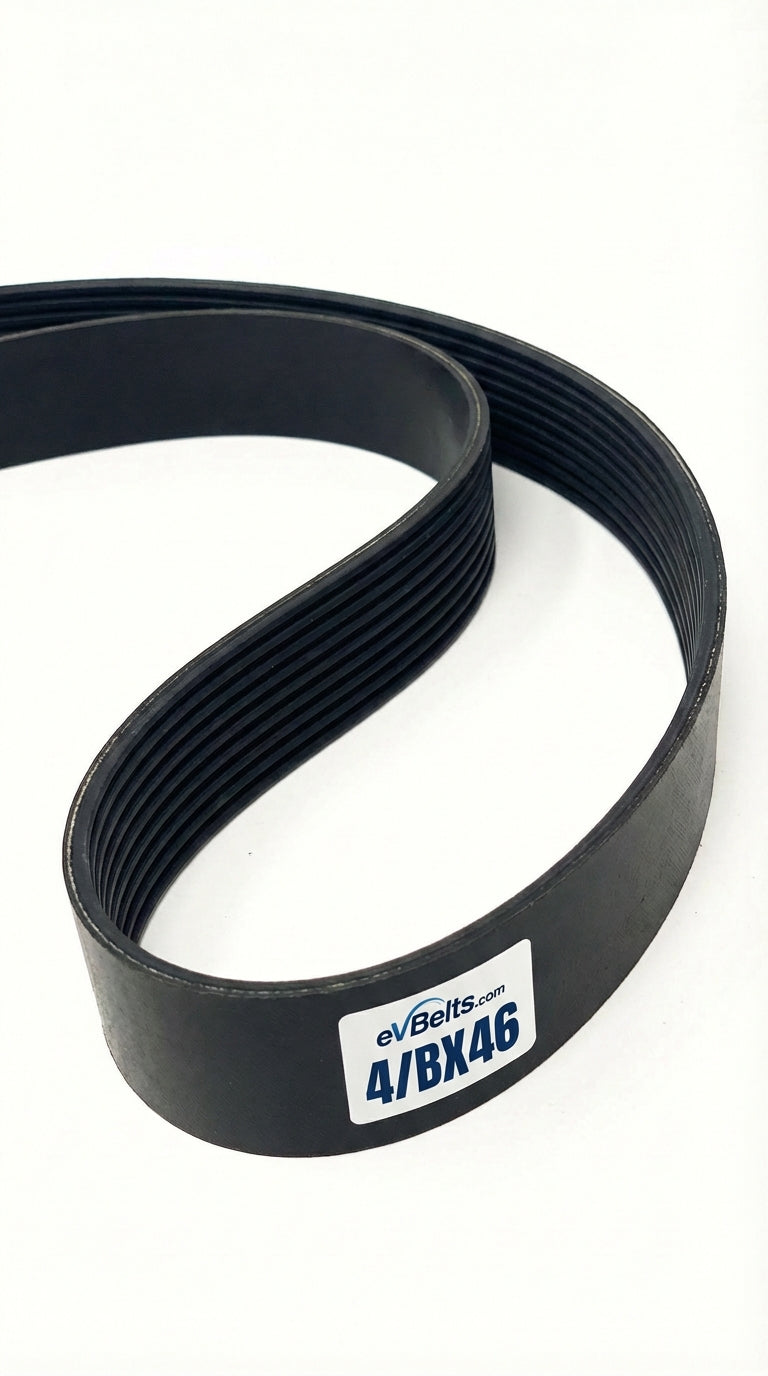

The 4/BX46 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 47.8" long, offering improved flexibility around smaller pulleys.

4/BX46 Specifications

• Top Width: 2.714" (68.94mm)
• Outside Length: 47.8" (1214.1mm)
• Inside Length: 46" (1168.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/BX46 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

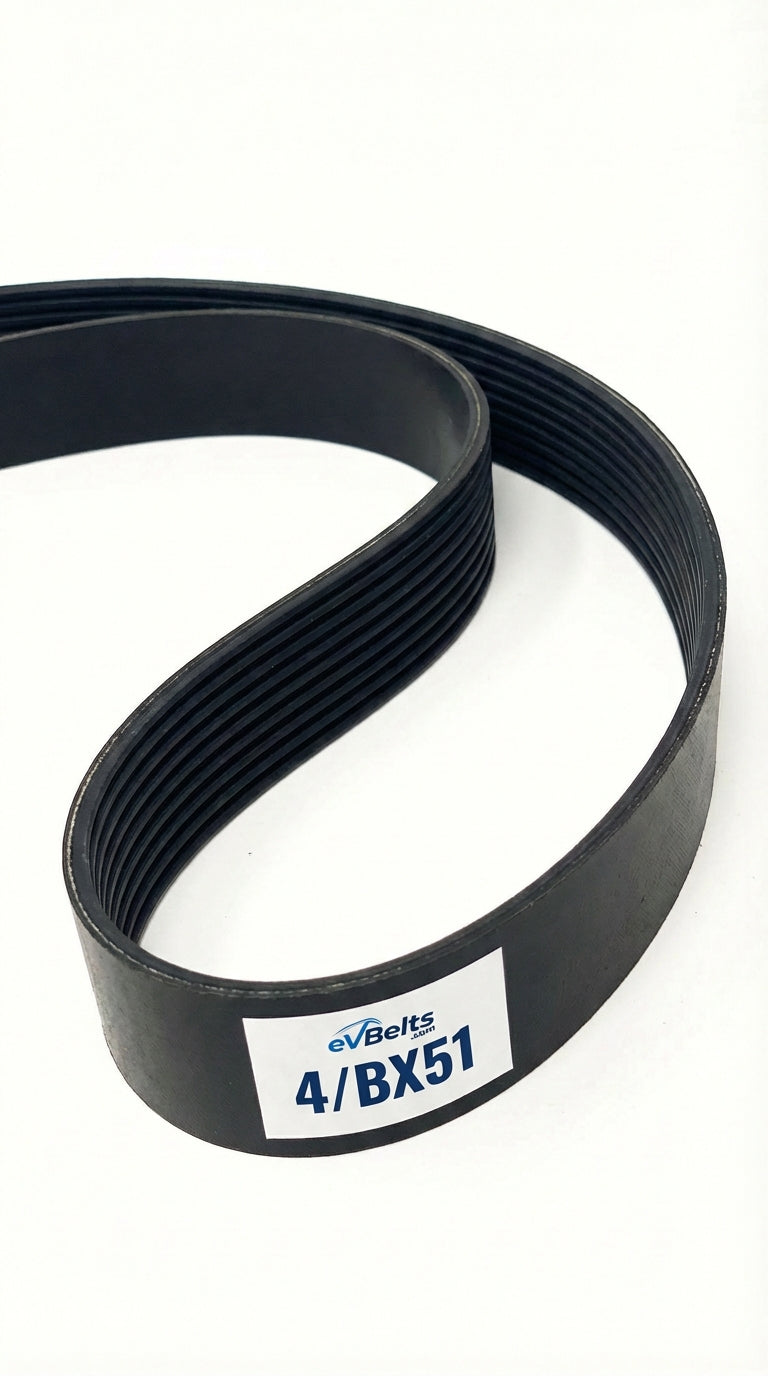

The 4/BX51 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 52.8" long, offering improved flexibility around smaller pulleys.

4/BX51 Specifications

• Top Width: 2.714" (68.94mm)
• Outside Length: 52.8" (1341.1mm)
• Inside Length: 51" (1295.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/BX51 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

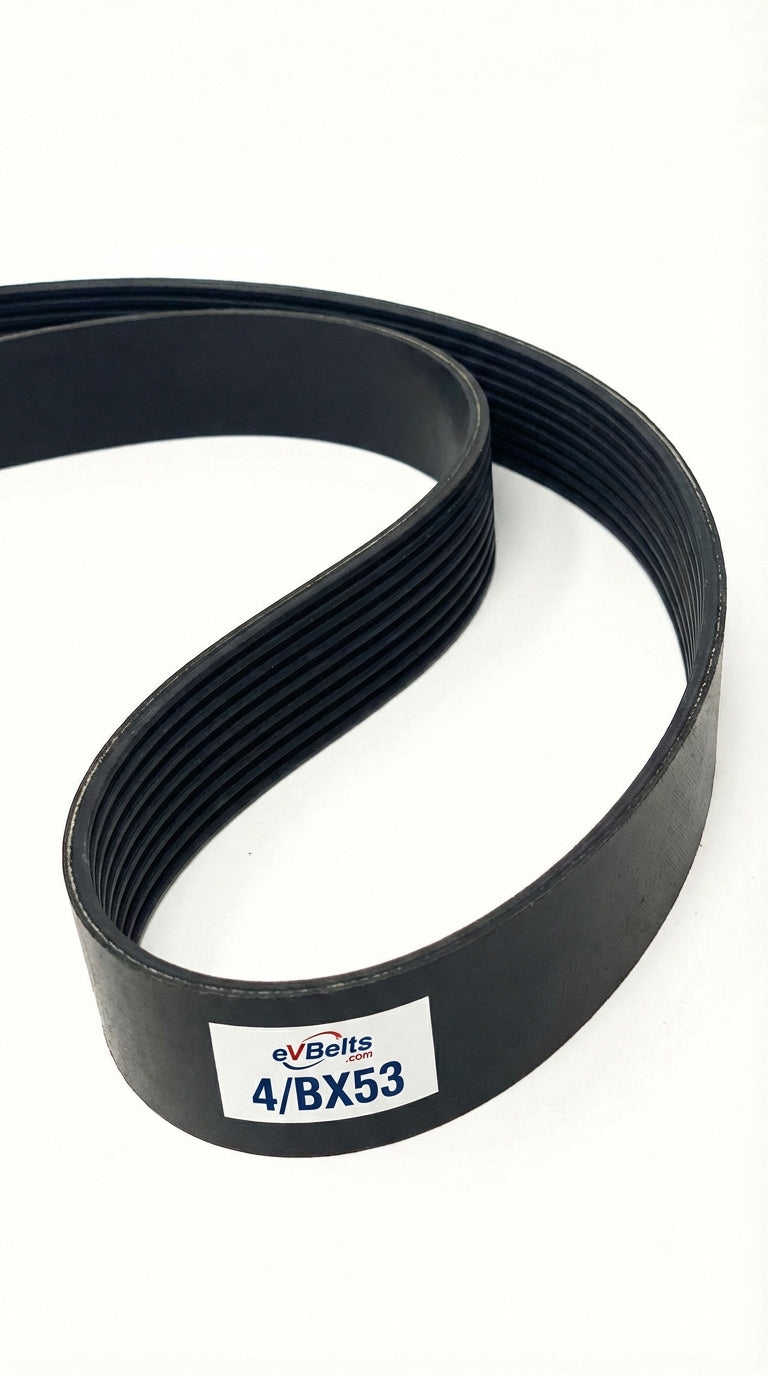

The 4/BX53 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 54.8" long, offering improved flexibility around smaller pulleys.

4/BX53 Specifications

• Top Width: 2.714" (68.94mm)
• Outside Length: 54.8" (1391.9mm)
• Inside Length: 53" (1346.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/BX53 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

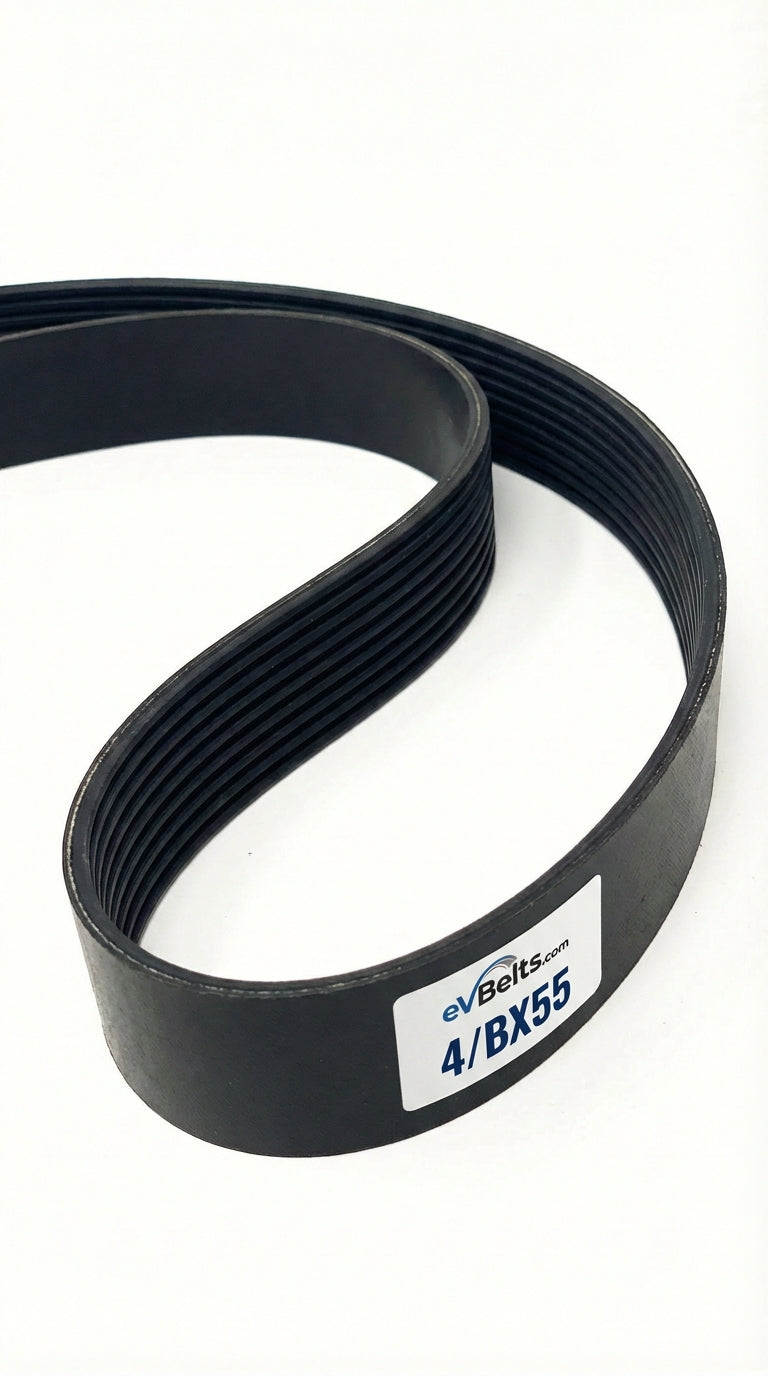

The 4/BX55 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 56.8" long, offering improved flexibility around smaller pulleys.

4/BX55 Specifications

• Top Width: 2.714" (68.94mm)
• Outside Length: 56.8" (1442.7mm)
• Inside Length: 55" (1397mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/BX55 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
