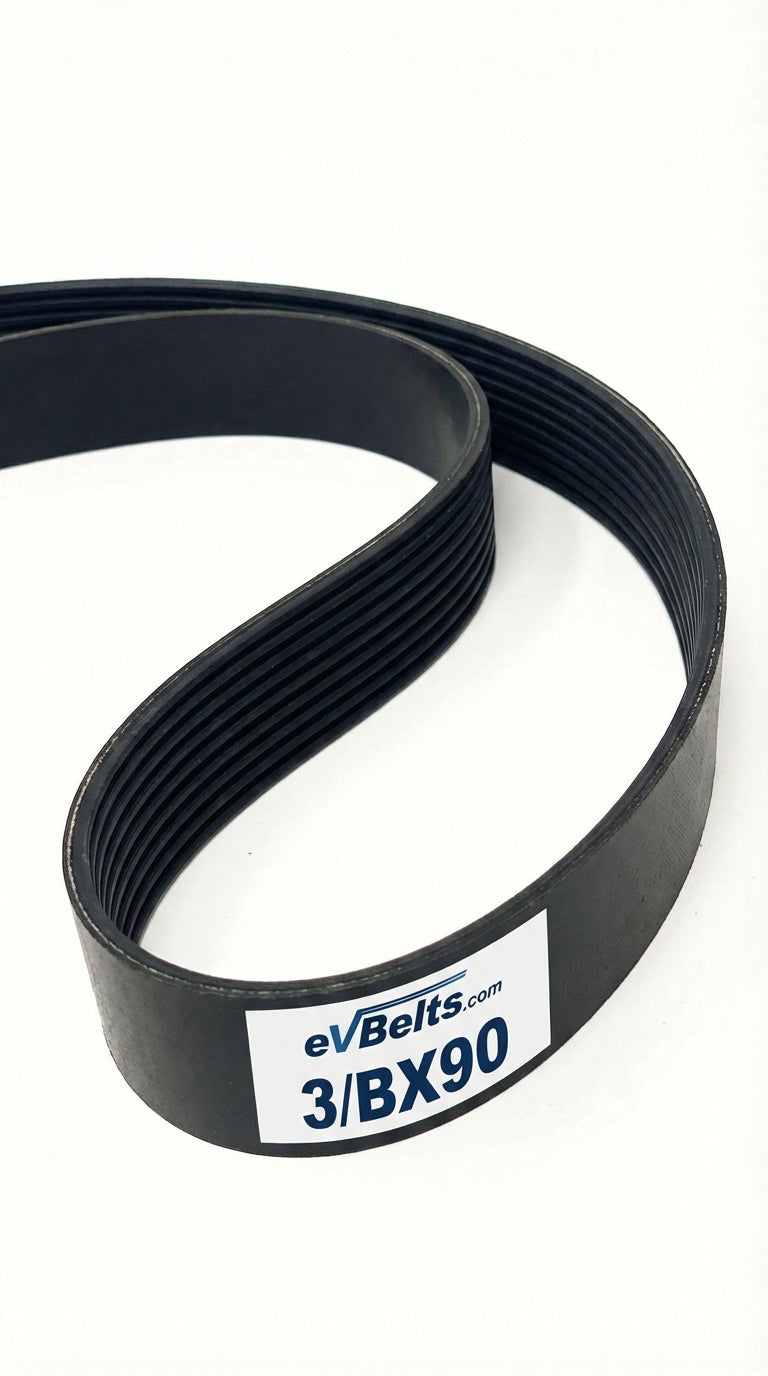

3/BX90

Top Width: 2.028" (51.51mm)
Outside Length: 91.8" (2331.7mm)
Inside Length: 90" (2286mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/BX90 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 91.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216463

$87.72

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	3/BX90
Top Width	2.028 in / 51.51 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	90.0 in / 2286.0 mm
Outside Length	91.8 in / 2331.7 mm
Effective Length	91.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	3
Cogged	Yes
