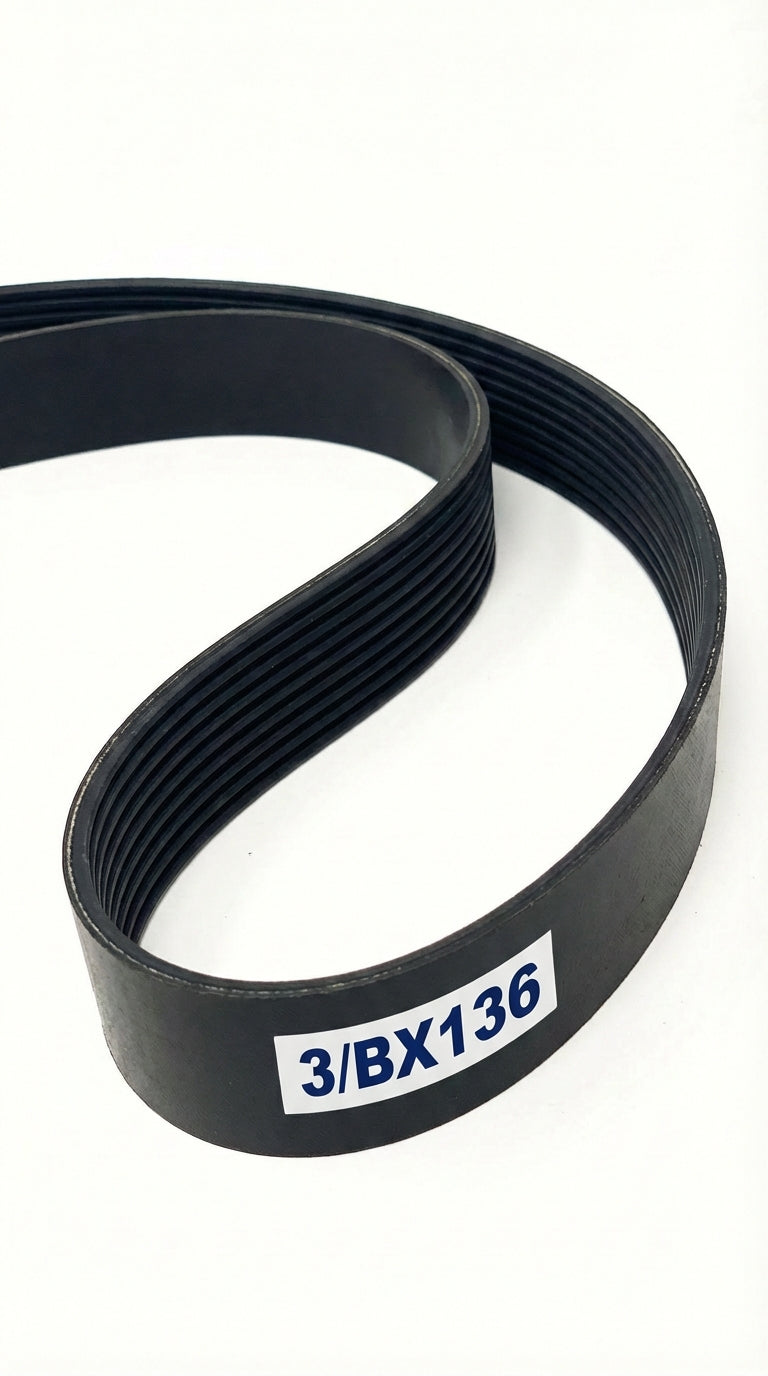

3/BX136

Top Width: 2.028" (51.51mm)
Outside Length: 137.8" (3500.1mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/BX136 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 137.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216474

$118.19

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	3/BX136
Top Width	2.028 in / 51.51 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	137.8 in / 3500.1 mm
Effective Length	137.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	3
Cogged	Yes
