3/BX93

Top Width: 2.028" (51.51mm)
Outside Length: 94.8" (2407.9mm)
Inside Length: 93" (2362.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 3-Band Set

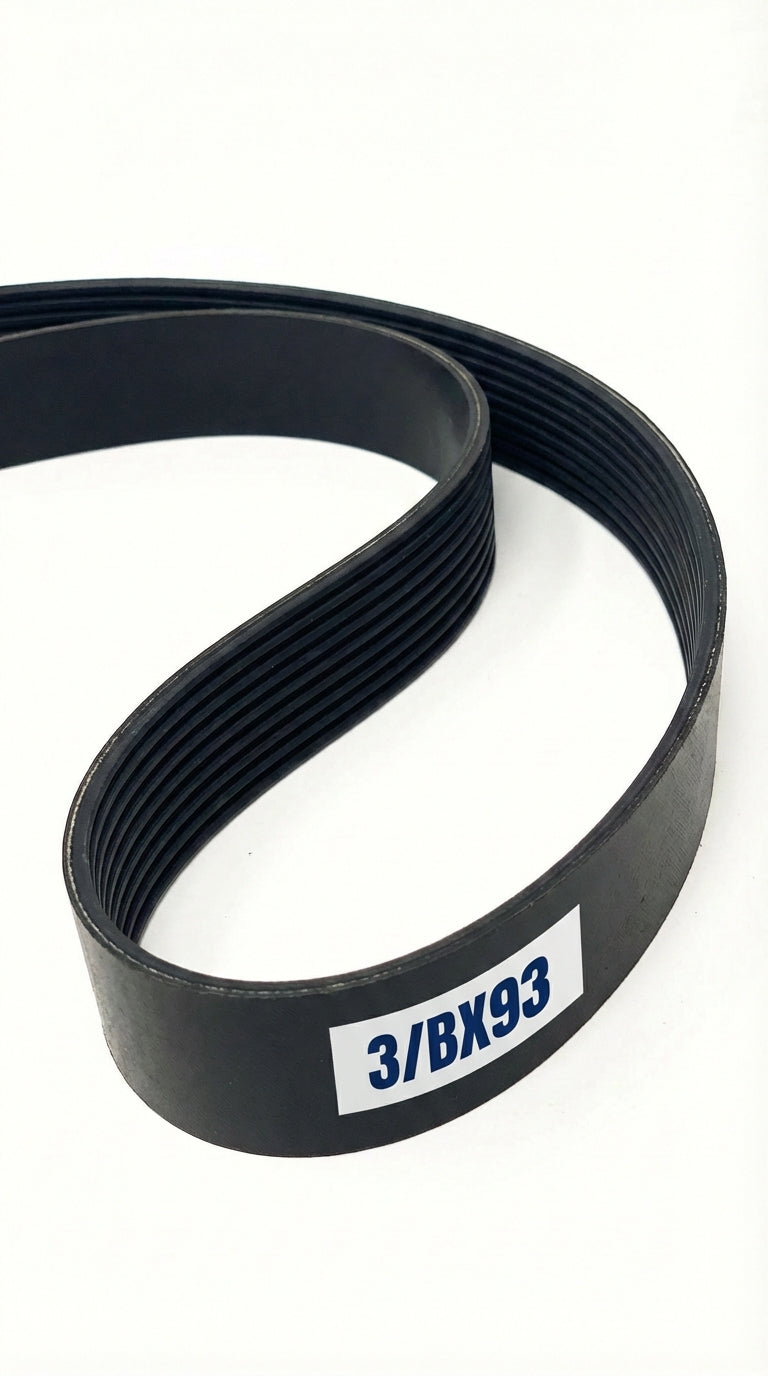

The 3/BX93 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 94.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216466

$95.75

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	3/BX93
Top Width	2.028 in / 51.51 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	93.0 in / 2362.2 mm
Outside Length	94.8 in / 2407.9 mm
Effective Length	94.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	3
Cogged	Yes
