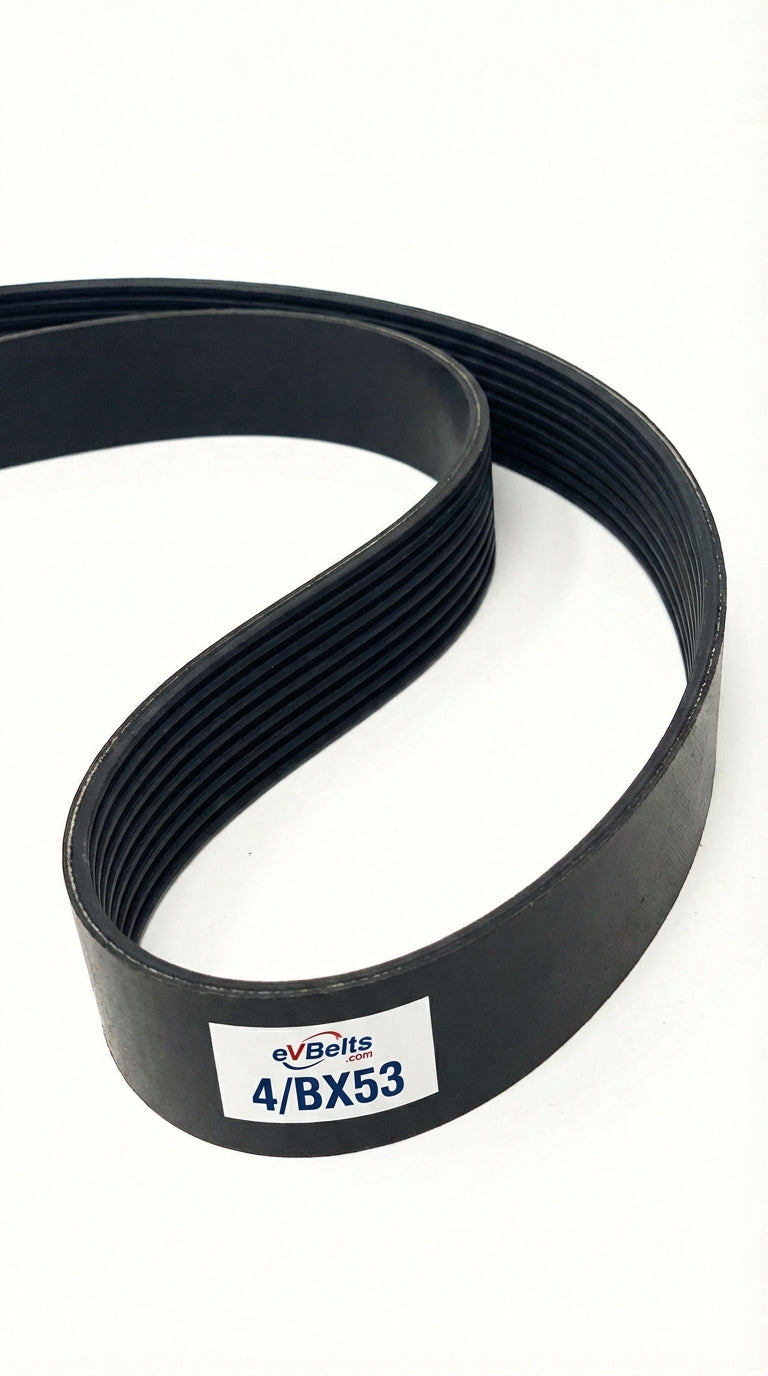

4/BX53

Top Width: 2.714" (68.94mm)
Outside Length: 54.8" (1391.9mm)
Inside Length: 53" (1346.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/BX53 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 54.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216481

$97.07

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	4/BX53
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	53.0 in / 1346.2 mm
Outside Length	54.8 in / 1391.9 mm
Effective Length	54.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	4
Cogged	Yes
