4/BX46

Top Width: 2.714" (68.94mm)
Outside Length: 47.8" (1214.1mm)
Inside Length: 46" (1168.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 4-Band Set

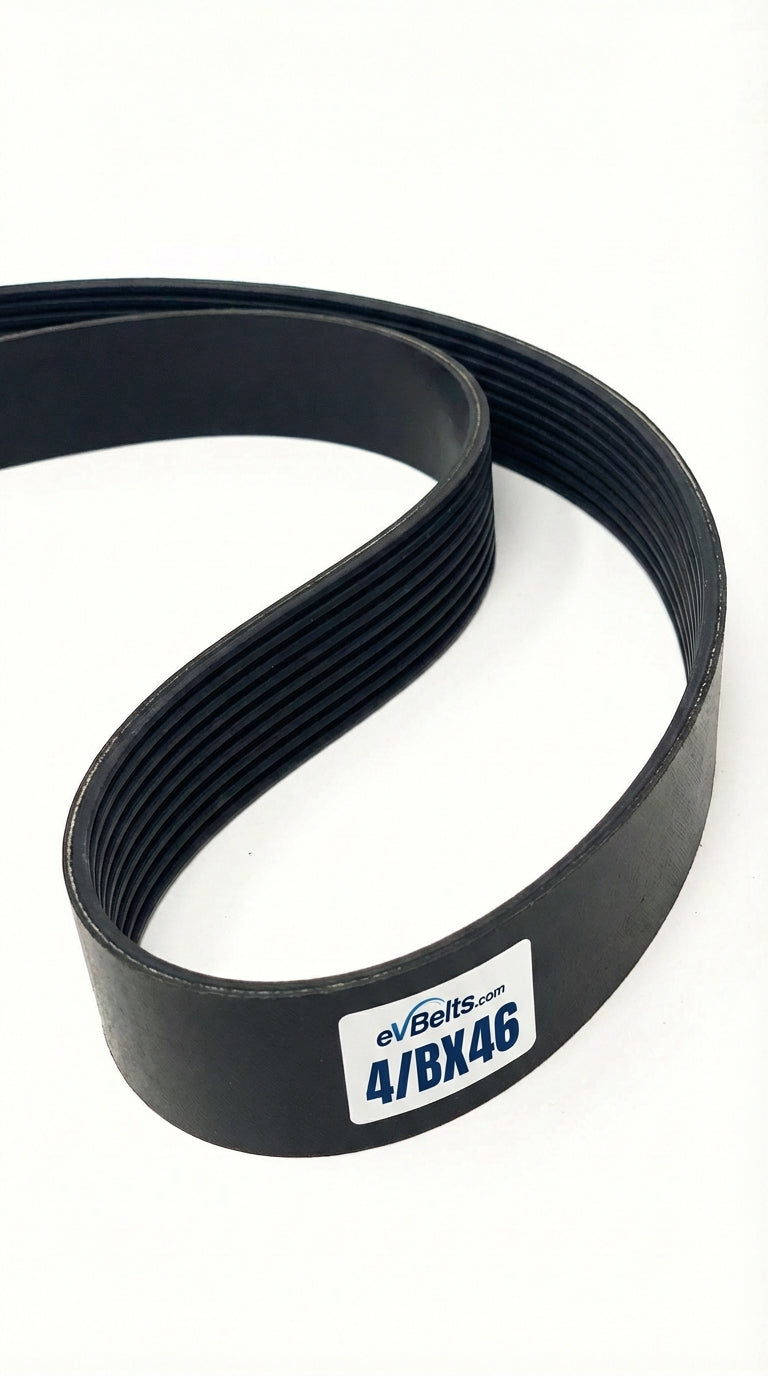

The 4/BX46 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 47.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216479

$73.80

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	4/BX46
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	46.0 in / 1168.4 mm
Outside Length	47.8 in / 1214.1 mm
Effective Length	47.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	4
Cogged	Yes
