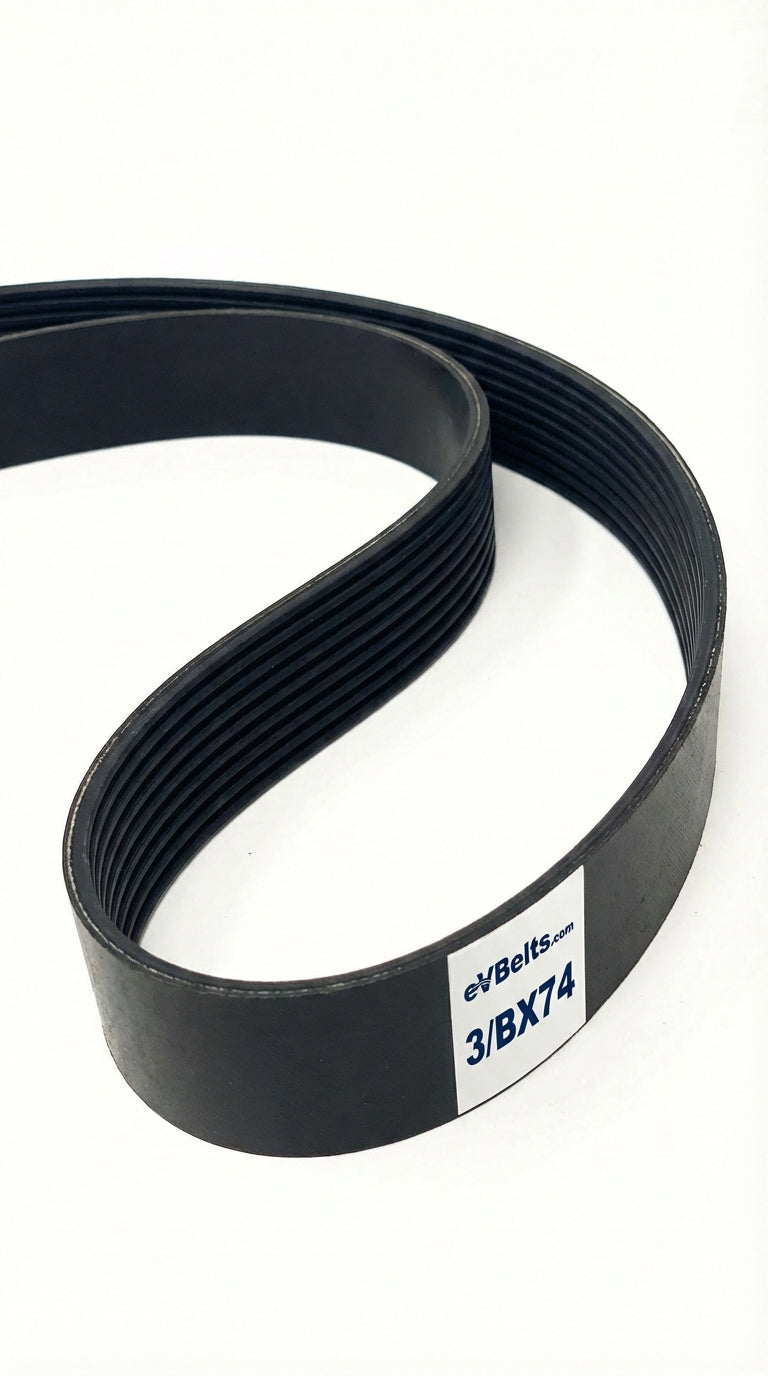

3/BX74

Top Width: 2.028" (51.51mm)
Outside Length: 75.8" (1925.3mm)
Inside Length: 74" (1879.6mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/BX74 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 75.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216456

$76.08

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	3/BX74
Top Width	2.028 in / 51.51 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	74.0 in / 1879.6 mm
Outside Length	75.8 in / 1925.3 mm
Effective Length	75.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	3
Cogged	Yes
