4/BX42

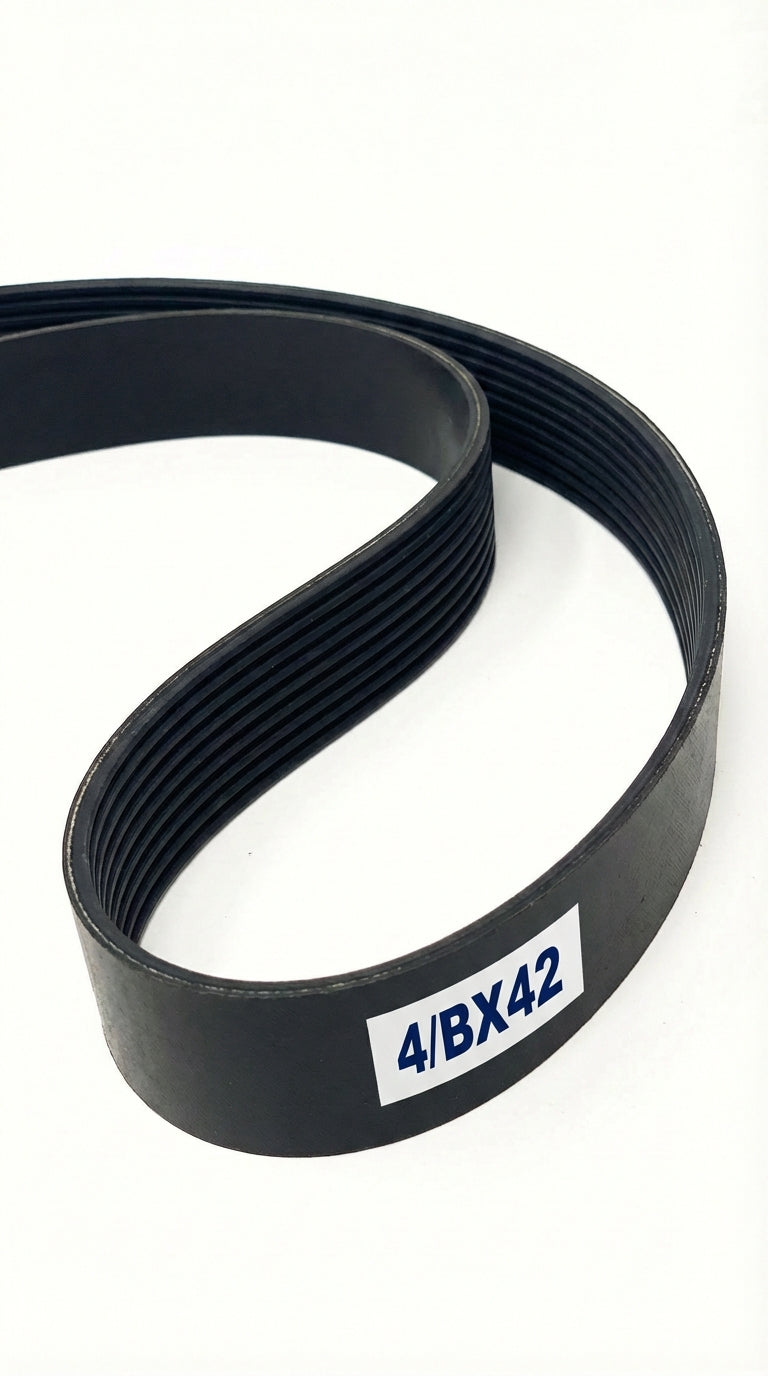

The 4/BX42 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 43.8" long, offering improved flexibility around smaller pulleys.
SKU: 1216478
$50.50
5050
0 In Stock
Estimated delivery between June 18 and June 20.
Technical Specifications
| Part Number | 4/BX42 |
| Top Width | 2.714 in / 68.94 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 42.0 in / 1066.8 mm |
| Outside Length | 43.8 in / 1112.5 mm |
| Effective Length | 43.4 in |
| Min Sheave Diameter | 4.0 in / 101.6 mm |
| Ribs | 4 |
| Cogged | Yes |
4/BX42
$50.50
5050
$50.50
5050
