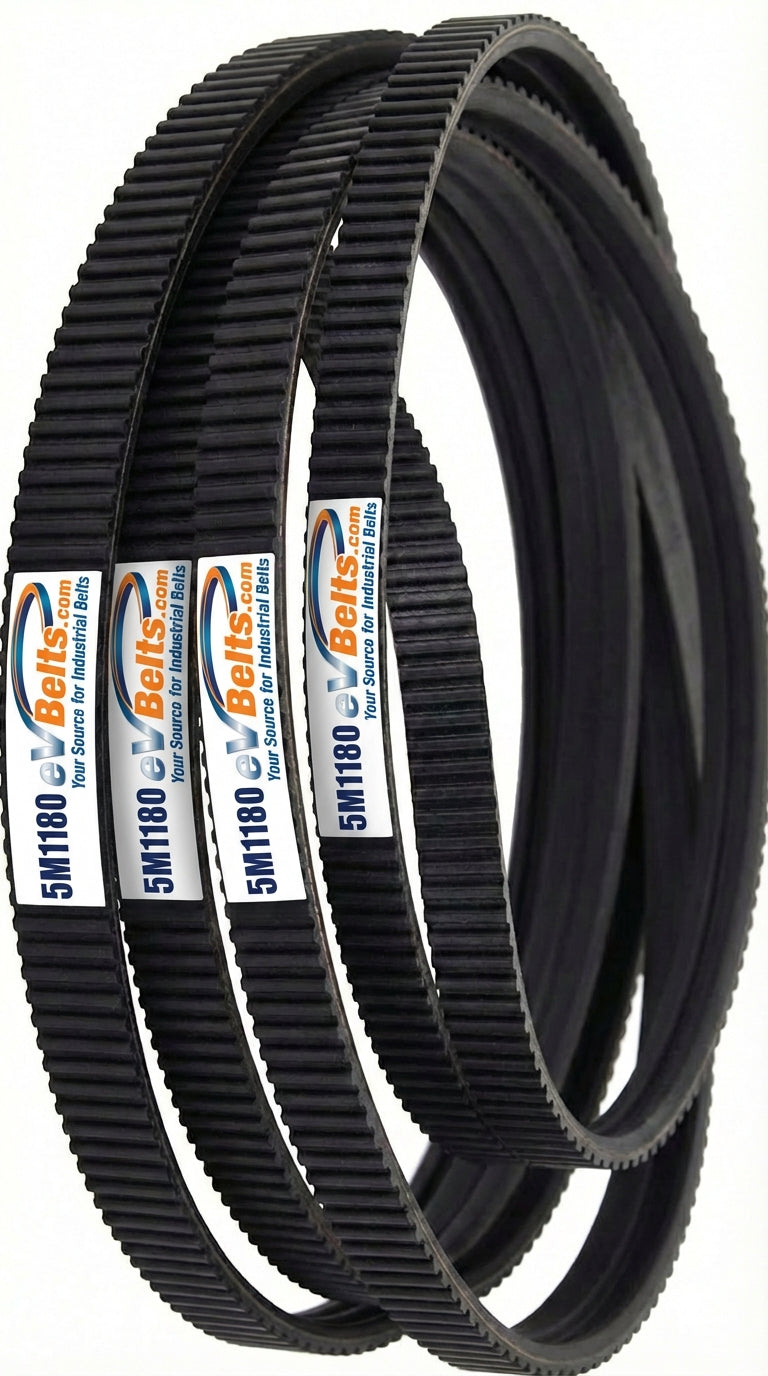

The 5M1180 is a premium Industrial V-belt measuring " wide x 46.46" long, featuring oil and heat resistant rubber construction.

5M1180 Specifications

• Top Width: " (mm)
• Outside Length: 46.46" (1180mm)
• Inside Length: 46.26" (1175mm)
• Min Pulley Diameter: 1.77"

The 5M1180 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5/5M950JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 37.4" long, featuring oil and heat resistant rubber construction.

5/5M950JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 37.4" (950mm)
• Inside Length: 37.2" (945mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M950JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M975JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 38.39" long, featuring oil and heat resistant rubber construction.

5/5M975JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 38.39" (975mm)
• Inside Length: 38.19" (970mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M975JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M925JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 36.42" long, featuring oil and heat resistant rubber construction.

5/5M925JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 36.42" (925mm)
• Inside Length: 36.22" (920mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M925JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M900JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 35.43" long, featuring oil and heat resistant rubber construction.

5/5M900JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 35.43" (900mm)
• Inside Length: 35.24" (895mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

OEM Part Numbers Replaced by 5/5M900JB

• FORD 343031
• GRAVELY 10860
• GRAVELY 10860P1
• TORO 674410
• TORO 70530

The 5/5M900JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M850JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 33.46" long, featuring oil and heat resistant rubber construction.

5/5M850JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 33.46" (850mm)
• Inside Length: 33.27" (845mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

OEM Part Numbers Replaced by 5/5M850JB

• JOHN DEERE M97340
• PROFESSIONAL HARDWARE 7540134
• SEARS ROEBUCK 3754H
• SEARS ROEBUCK 3754H1

The 5/5M850JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M875JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 34.45" long, featuring oil and heat resistant rubber construction.

5/5M875JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 34.45" (875mm)
• Inside Length: 34.25" (870mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M875JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M825JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 32.48" long, featuring oil and heat resistant rubber construction.

5/5M825JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 32.48" (825mm)
• Inside Length: 32.28" (820mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M825JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M800JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 31.5" long, featuring oil and heat resistant rubber construction.

5/5M800JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 31.5" (800mm)
• Inside Length: 31.3" (795mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M800JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M775JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 30.51" long, featuring oil and heat resistant rubber construction.

5/5M775JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 30.51" (775mm)
• Inside Length: 30.31" (770mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M775JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M750JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 29.53" long, featuring oil and heat resistant rubber construction.

5/5M750JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 29.53" (750mm)
• Inside Length: 29.33" (745mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M750JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M730JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 28.74" long, featuring oil and heat resistant rubber construction.

5/5M730JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 28.74" (730mm)
• Inside Length: 28.54" (725mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M730JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M710JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 27.95" long, featuring oil and heat resistant rubber construction.

5/5M710JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 27.95" (710mm)
• Inside Length: 27.76" (705mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M710JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M690JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 27.17" long, featuring oil and heat resistant rubber construction.

5/5M690JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 27.17" (690mm)
• Inside Length: 26.97" (685mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M690JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M670JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 26.38" long, featuring oil and heat resistant rubber construction.

5/5M670JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 26.38" (670mm)
• Inside Length: 26.18" (665mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M670JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M630JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 24.8" long, featuring oil and heat resistant rubber construction.

5/5M630JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 24.8" (630mm)
• Inside Length: 24.61" (625mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M630JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M650JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 25.59" long, featuring oil and heat resistant rubber construction.

5/5M650JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 25.59" (650mm)
• Inside Length: 25.39" (645mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M650JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M615JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 24.21" long, featuring oil and heat resistant rubber construction.

5/5M615JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 24.21" (615mm)
• Inside Length: 24.02" (610mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M615JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M600JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 23.62" long, featuring oil and heat resistant rubber construction.

5/5M600JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 23.62" (600mm)
• Inside Length: 23.43" (595mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M600JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M560JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 22.05" long, featuring oil and heat resistant rubber construction.

5/5M560JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 22.05" (560mm)
• Inside Length: 21.85" (555mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

OEM Part Numbers Replaced by 5/5M560JB

• SIMPLICITY 157230

The 5/5M560JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M580JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 22.83" long, featuring oil and heat resistant rubber construction.

5/5M580JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 22.83" (580mm)
• Inside Length: 22.64" (575mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M580JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M530JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 20.87" long, featuring oil and heat resistant rubber construction.

5/5M530JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 20.87" (530mm)
• Inside Length: 20.67" (525mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M530JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M545JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 21.46" long, featuring oil and heat resistant rubber construction.

5/5M545JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 21.46" (545mm)
• Inside Length: 21.26" (540mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M545JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M515JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 20.28" long, featuring oil and heat resistant rubber construction.

5/5M515JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 20.28" (515mm)
• Inside Length: 20.08" (510mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M515JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M500JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 19.69" long, featuring oil and heat resistant rubber construction.

5/5M500JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 19.69" (500mm)
• Inside Length: 19.49" (495mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M500JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M487JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 19.17" long, featuring oil and heat resistant rubber construction.

5/5M487JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 19.17" (487mm)
• Inside Length: 18.98" (482mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M487JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M475JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 18.7" long, featuring oil and heat resistant rubber construction.

5/5M475JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 18.7" (475mm)
• Inside Length: 18.5" (470mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M475JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M462JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 18.19" long, featuring oil and heat resistant rubber construction.

5/5M462JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 18.19" (462mm)
• Inside Length: 17.99" (457mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M462JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M450JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 17.72" long, featuring oil and heat resistant rubber construction.

5/5M450JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 17.72" (450mm)
• Inside Length: 17.52" (445mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M450JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/5M437JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 17.2" long, featuring oil and heat resistant rubber construction.

5/5M437JB Specifications

• Top Width: 0.701" (17.8mm)
• Outside Length: 17.2" (437mm)
• Inside Length: 17.01" (432mm)
• Min Pulley Diameter: 1.77"
• Configuration: 5-Band Set

The 5/5M437JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.
