5/5M580JB

Top Width: 0.701" (17.8mm)
Outside Length: 22.83" (580mm)
Inside Length: 22.64" (575mm)
Min Pulley Diameter: 1.77"
Configuration: 5-Band Set

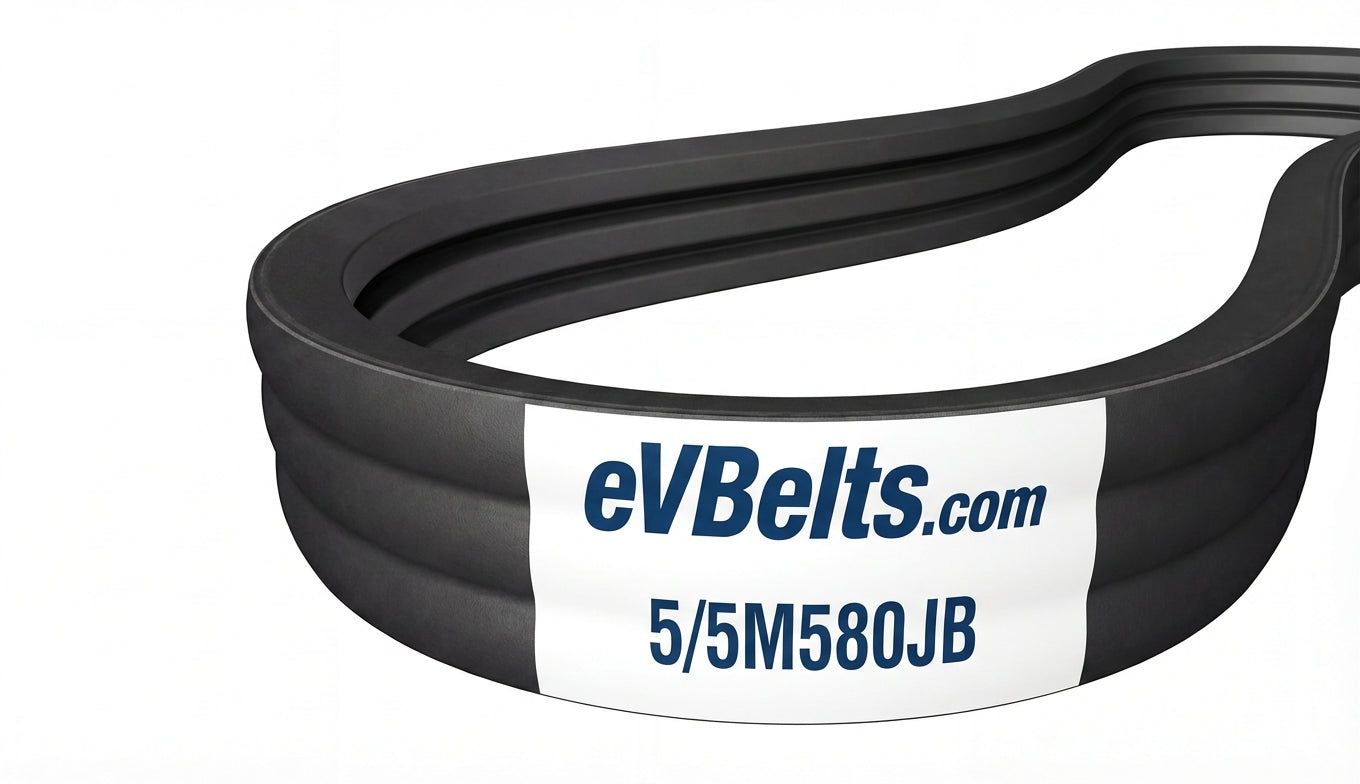

The 5/5M580JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 22.83" long, featuring oil and heat resistant rubber construction.

SKU: 1212548

$176.44

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	5/5M580JB
Top Width	0.701 in / 17.8 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	22.64 in / 575.0 mm
Outside Length	22.83 in / 580.0 mm
Effective Length	22.83 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	5
