5/5M800JB

Top Width: 0.701" (17.8mm)
Outside Length: 31.5" (800mm)
Inside Length: 31.3" (795mm)
Min Pulley Diameter: 1.77"
Configuration: 5-Band Set

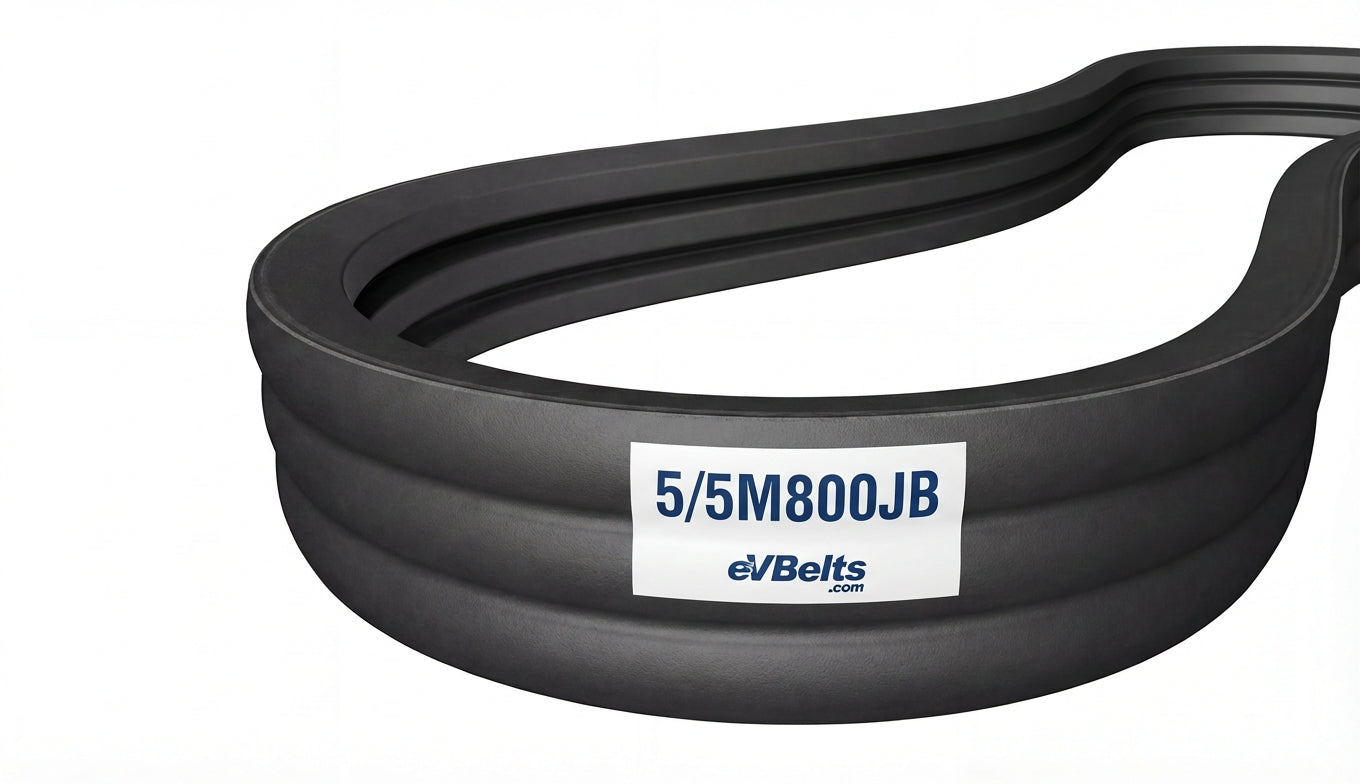

The 5/5M800JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 31.5" long, featuring oil and heat resistant rubber construction.

SKU: 1212560

$181.07

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	5/5M800JB
Top Width	0.701 in / 17.8 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	31.3 in / 795.0 mm
Outside Length	31.5 in / 800.0 mm
Effective Length	31.5 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	5
