5/5M730JB

Top Width: 0.701" (17.8mm)
Outside Length: 28.74" (730mm)
Inside Length: 28.54" (725mm)
Min Pulley Diameter: 1.77"
Configuration: 5-Band Set

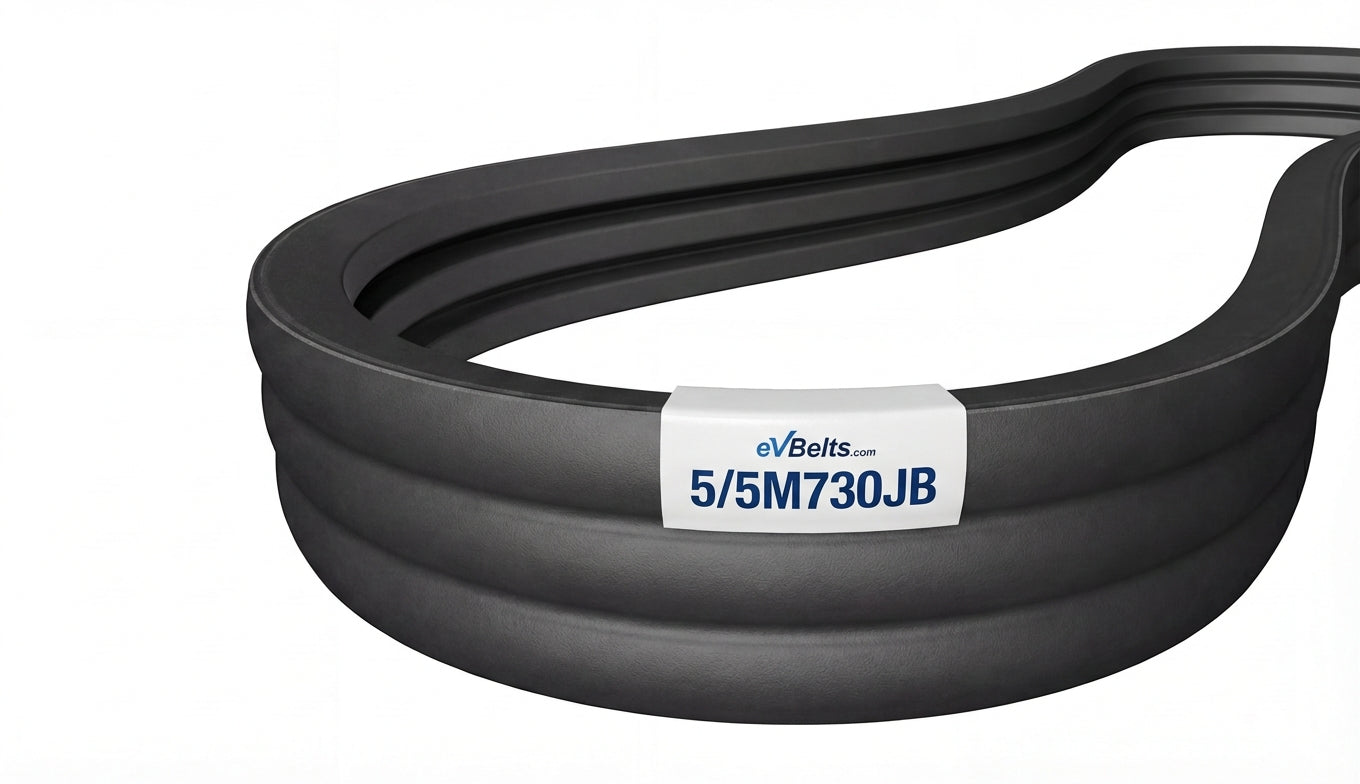

The 5/5M730JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 28.74" long, featuring oil and heat resistant rubber construction.

SKU: 1212557

$200.00

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	5/5M730JB
Top Width	0.701 in / 17.8 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	28.54 in / 725.0 mm
Outside Length	28.74 in / 730.0 mm
Effective Length	28.74 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	5
