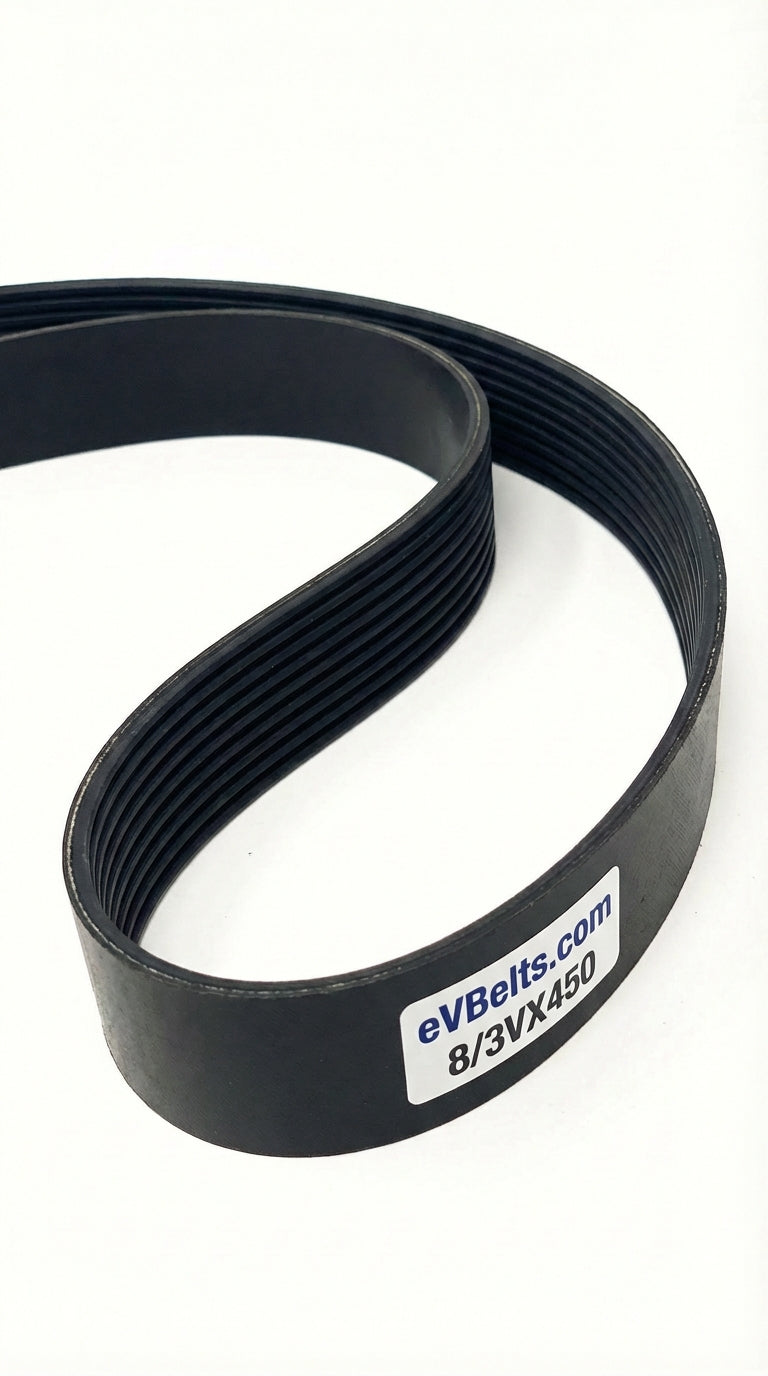

The 8/3VX450 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 45.3" long, offering improved flexibility around smaller pulleys.

8/3VX450 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 45.3" (1150.6mm)
• Inside Length: 44.5" (1130.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX450 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

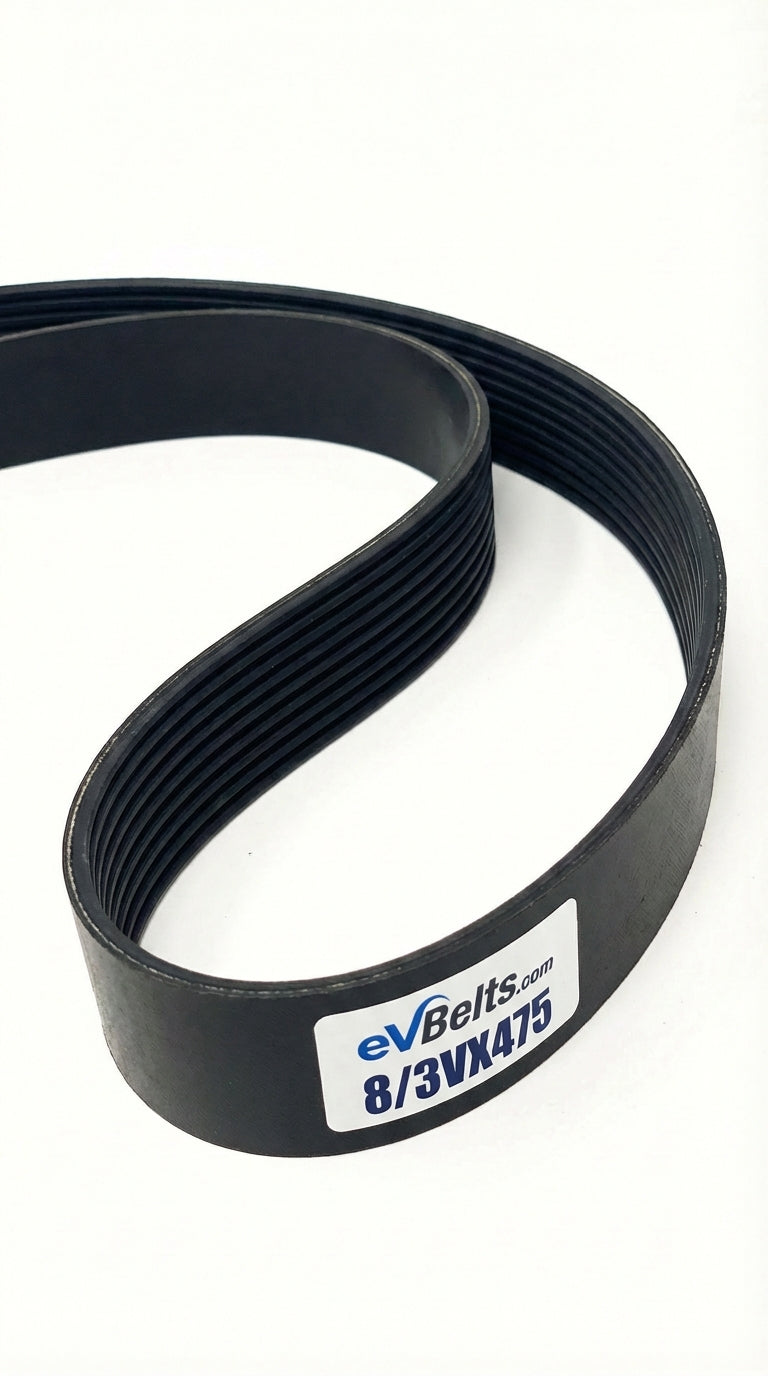

The 8/3VX475 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 47.8" long, offering improved flexibility around smaller pulleys.

8/3VX475 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 47.8" (1214.1mm)
• Inside Length: 47" (1193.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX475 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX500 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 50.3" long, offering improved flexibility around smaller pulleys.

8/3VX500 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 50.3" (1277.6mm)
• Inside Length: 49.5" (1257.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX500 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

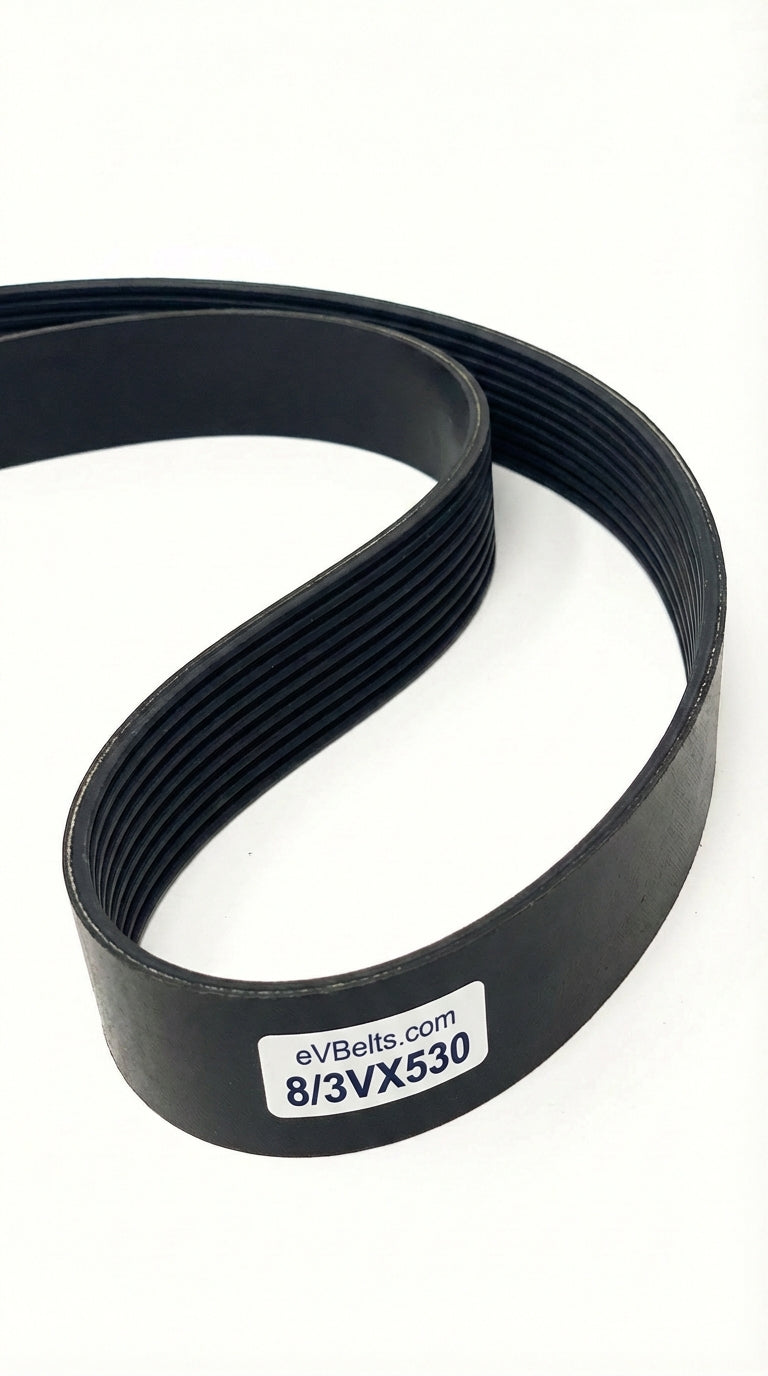

The 8/3VX530 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 53.3" long, offering improved flexibility around smaller pulleys.

8/3VX530 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 53.3" (1353.8mm)
• Inside Length: 52.5" (1333.5mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX530 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

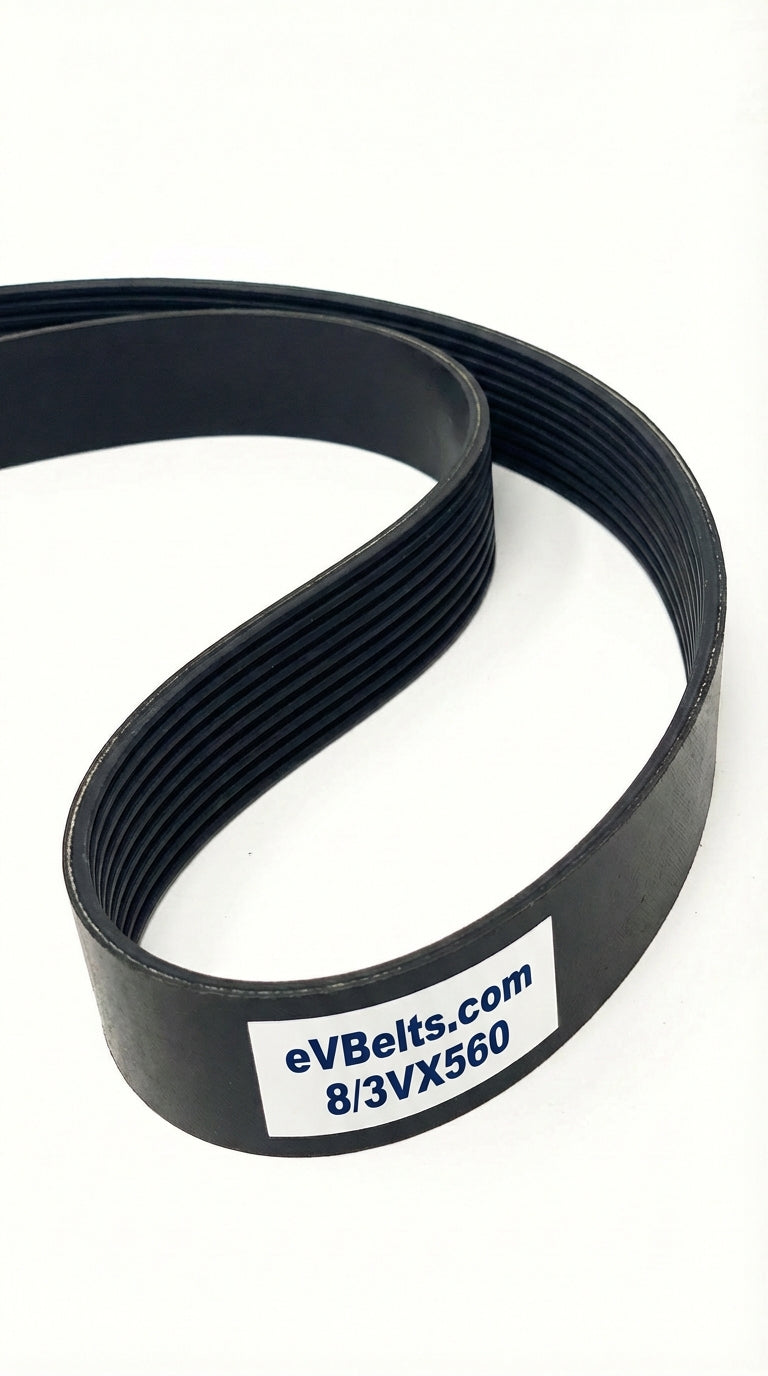

The 8/3VX560 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 56.3" long, offering improved flexibility around smaller pulleys.

8/3VX560 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 56.3" (1430mm)
• Inside Length: 55.5" (1409.7mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX560 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

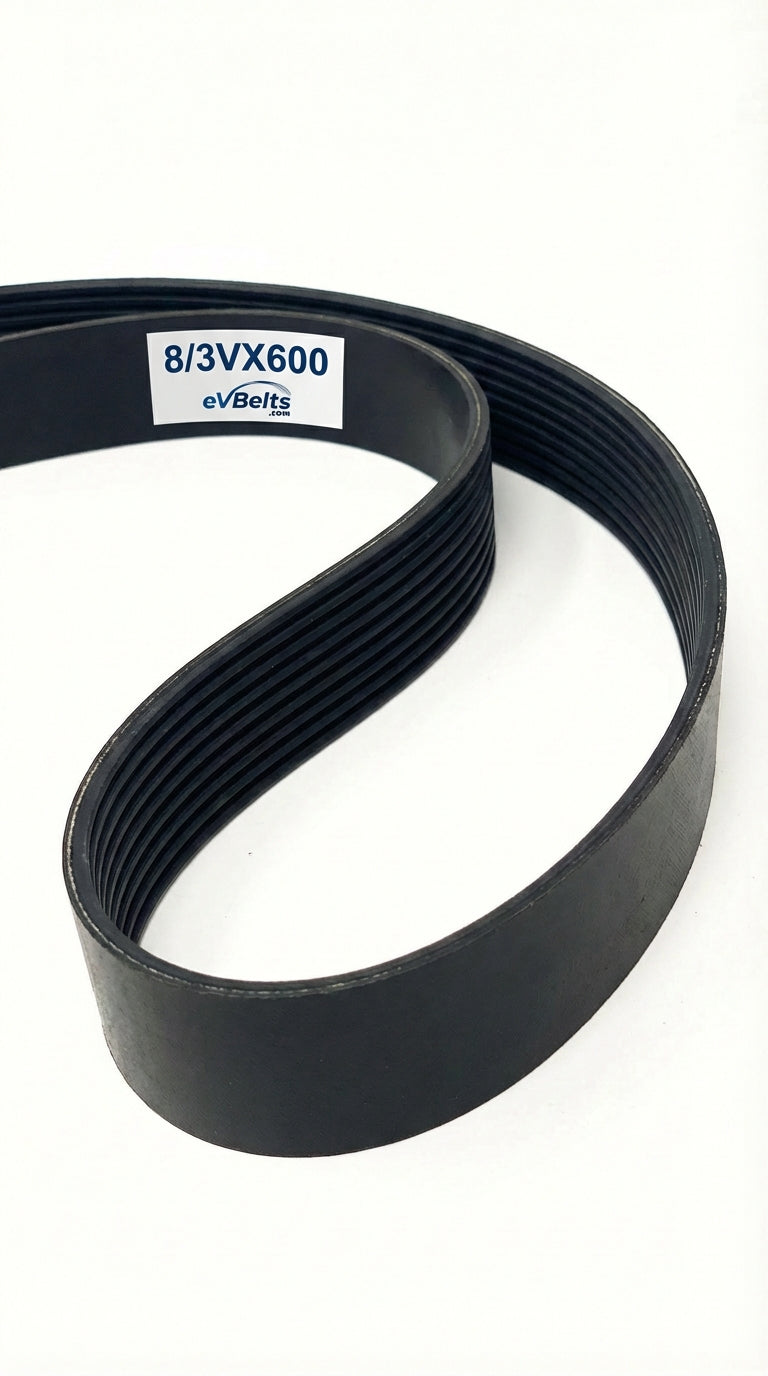

The 8/3VX600 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 60.3" long, offering improved flexibility around smaller pulleys.

8/3VX600 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 60.3" (1531.6mm)
• Inside Length: 59.5" (1511.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX600 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX630 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 63.3" long, offering improved flexibility around smaller pulleys.

8/3VX630 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 63.3" (1607.8mm)
• Inside Length: 62.5" (1587.5mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX630 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX670 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 67.3" long, offering improved flexibility around smaller pulleys.

8/3VX670 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 67.3" (1709.4mm)
• Inside Length: 66.5" (1689.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX670 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX750 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 75.3" long, offering improved flexibility around smaller pulleys.

8/3VX750 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 75.3" (1912.6mm)
• Inside Length: 74.5" (1892.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX750 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

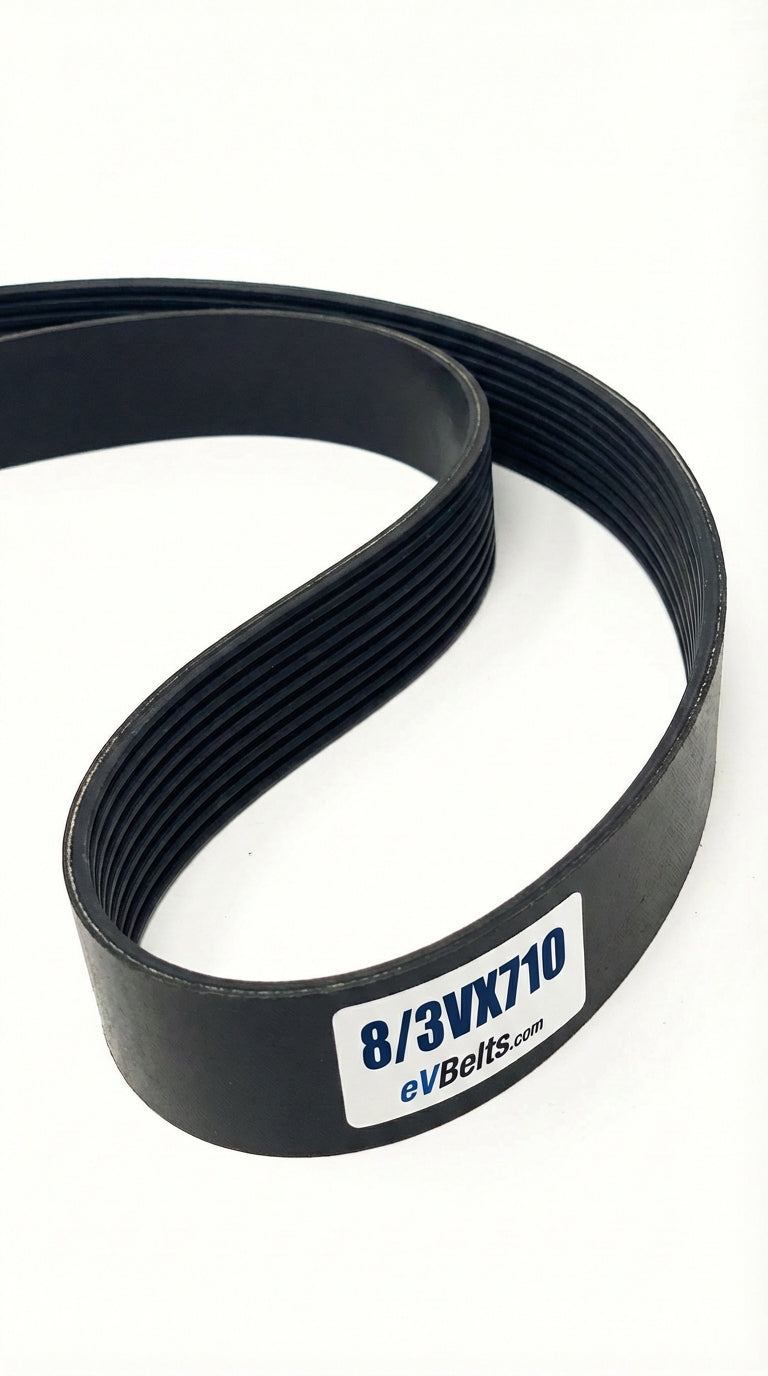

The 8/3VX710 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 71.3" long, offering improved flexibility around smaller pulleys.

8/3VX710 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 71.3" (1811mm)
• Inside Length: 70.5" (1790.7mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX710 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX800 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 80.3" long, offering improved flexibility around smaller pulleys.

8/3VX800 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 80.3" (2039.6mm)
• Inside Length: 79.5" (2019.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX800 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

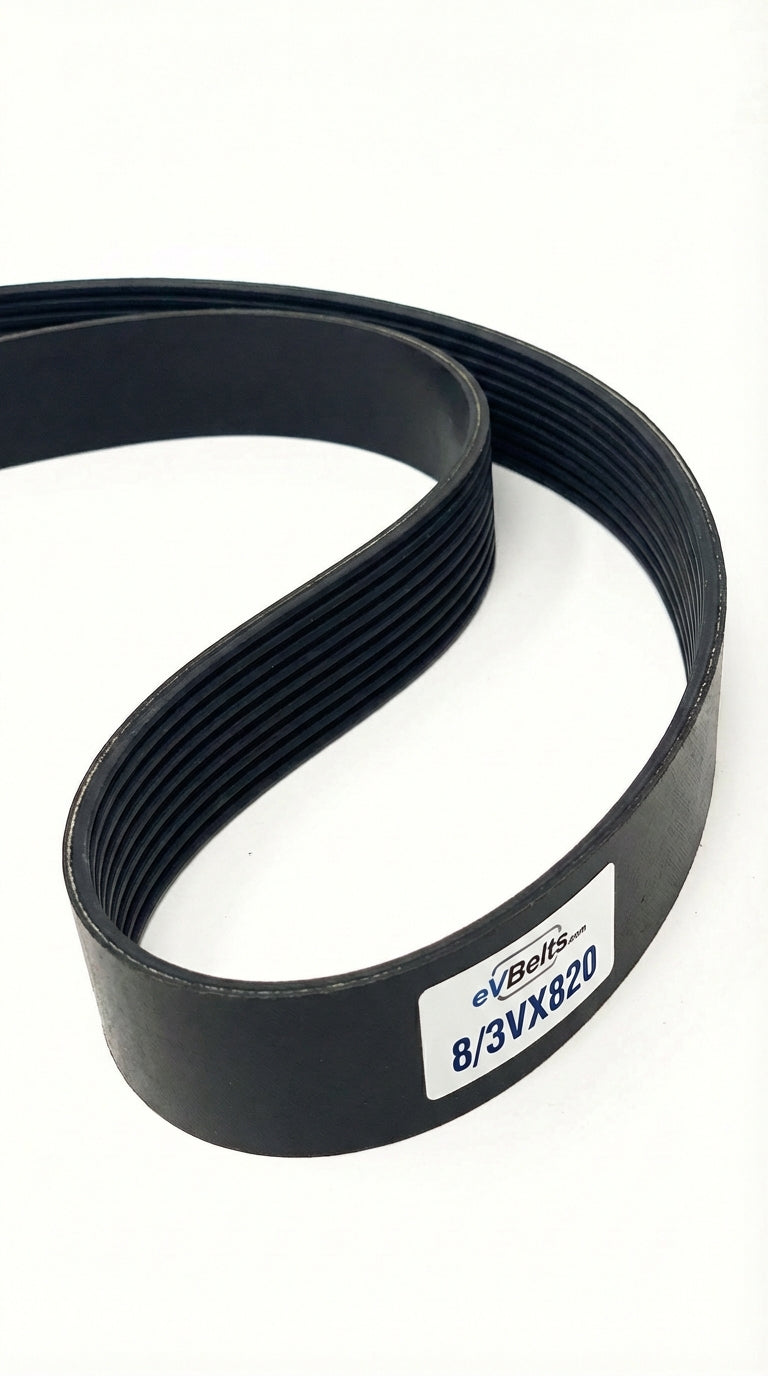

The 8/3VX820 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 82.3" long, offering improved flexibility around smaller pulleys.

8/3VX820 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 82.3" (2090.4mm)
• Inside Length: 81.5" (2070.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX820 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

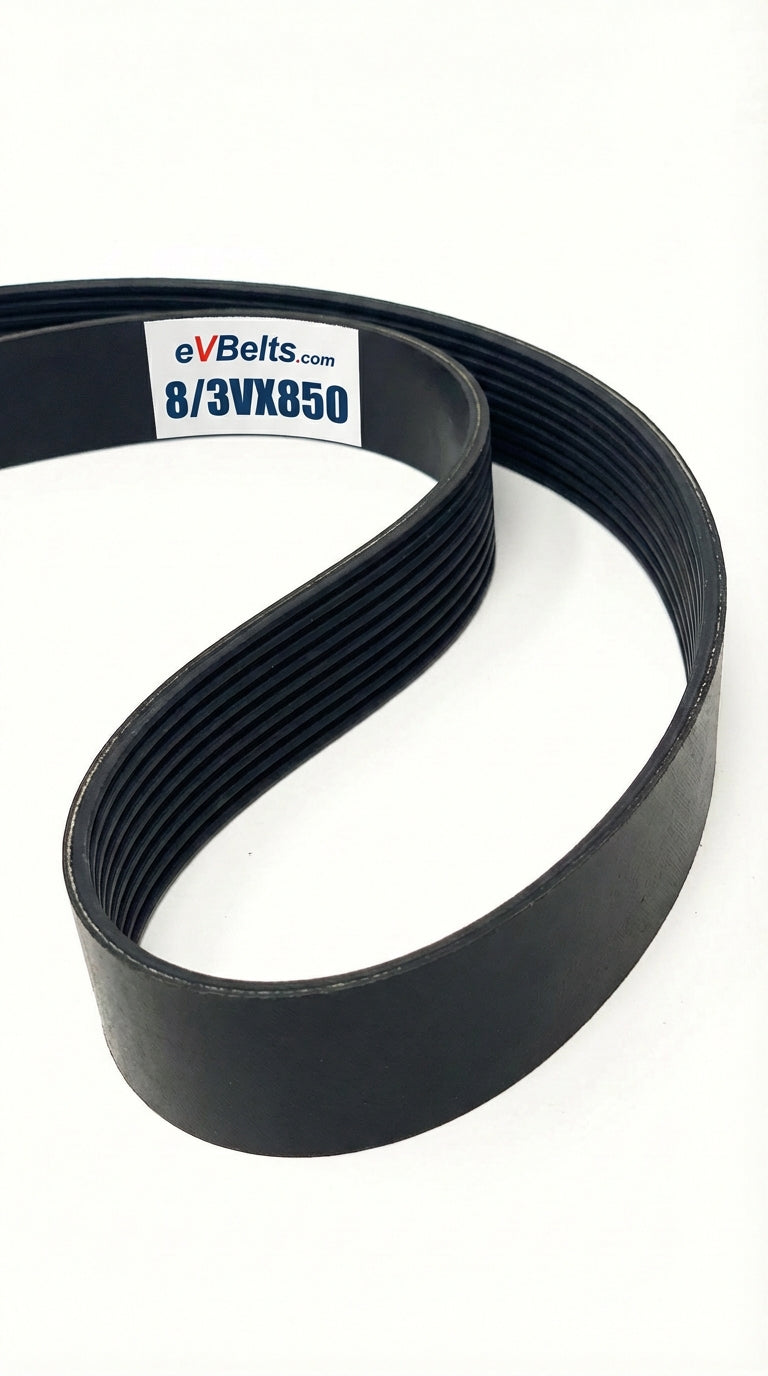

The 8/3VX850 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 85.3" long, offering improved flexibility around smaller pulleys.

8/3VX850 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 85.3" (2166.6mm)
• Inside Length: 84.5" (2146.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX850 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX900 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 90.3" long, offering improved flexibility around smaller pulleys.

8/3VX900 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 90.3" (2293.6mm)
• Inside Length: 89.5" (2273.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX900 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX1000 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 100.3" long, offering improved flexibility around smaller pulleys.

8/3VX1000 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 100.3" (2547.6mm)
• Inside Length: 99.5" (2527.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX1000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

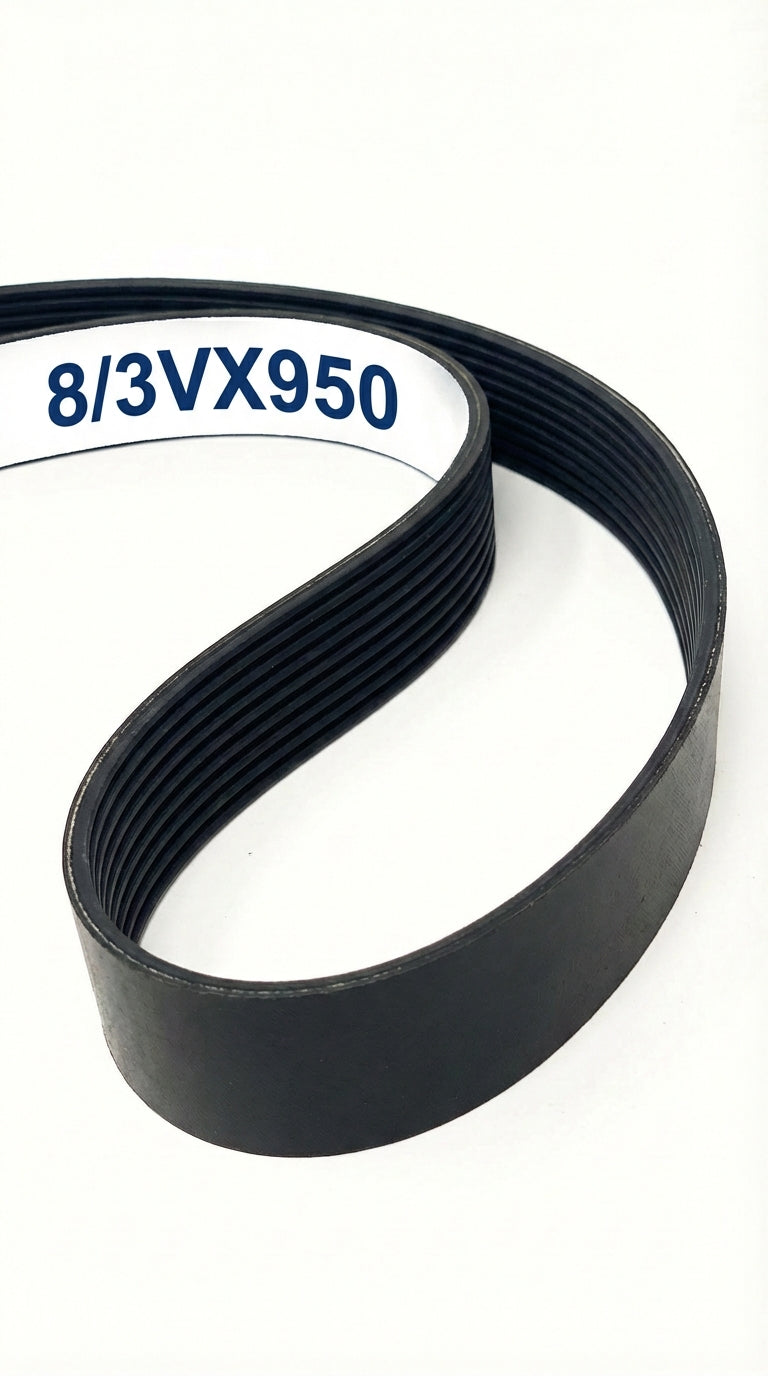

The 8/3VX950 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 95.3" long, offering improved flexibility around smaller pulleys.

8/3VX950 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 95.3" (2420.6mm)
• Inside Length: 94.5" (2400.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX950 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

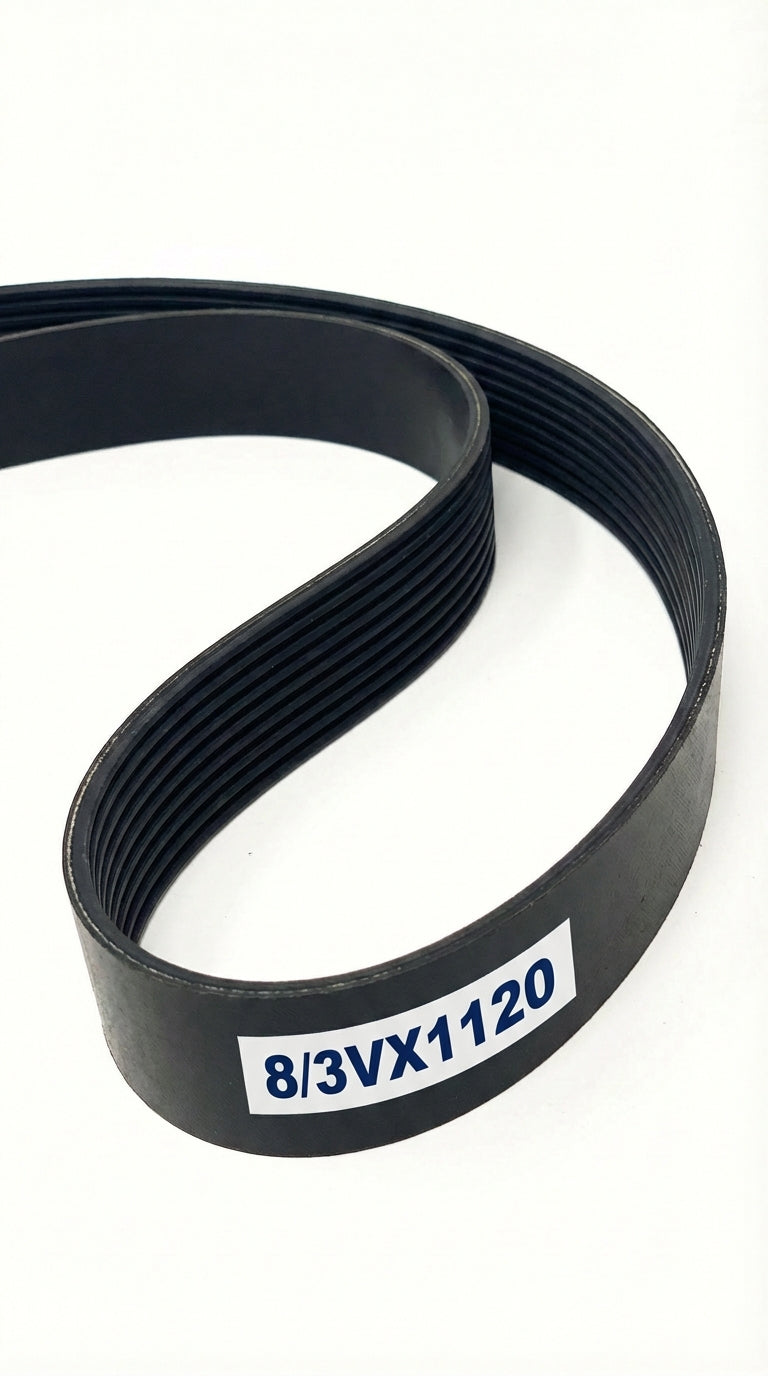

The 8/3VX1120 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 112.3" long, offering improved flexibility around smaller pulleys.

8/3VX1120 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 112.3" (2852.4mm)
• Inside Length: 111.5" (2832.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX1120 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX1060 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 106.3" long, offering improved flexibility around smaller pulleys.

8/3VX1060 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 106.3" (2700mm)
• Inside Length: 105.5" (2679.7mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX1060 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX1180 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 118.3" long, offering improved flexibility around smaller pulleys.

8/3VX1180 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 118.3" (3004.8mm)
• Inside Length: 117.5" (2984.5mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX1180 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX1250 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 125.3" long, offering improved flexibility around smaller pulleys.

8/3VX1250 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 125.3" (3182.6mm)
• Inside Length: 124.5" (3162.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX1250 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX1320 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 132.3" long, offering improved flexibility around smaller pulleys.

8/3VX1320 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 132.3" (3360.4mm)
• Inside Length: 131.5" (3340.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX1320 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8/3VX1400 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 140.3" long, offering improved flexibility around smaller pulleys.

8/3VX1400 Specifications

• Top Width: 3.21" (81.53mm)
• Outside Length: 140.3" (3563.6mm)
• Inside Length: 139.5" (3543.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 8-Band Set

The 8/3VX1400 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

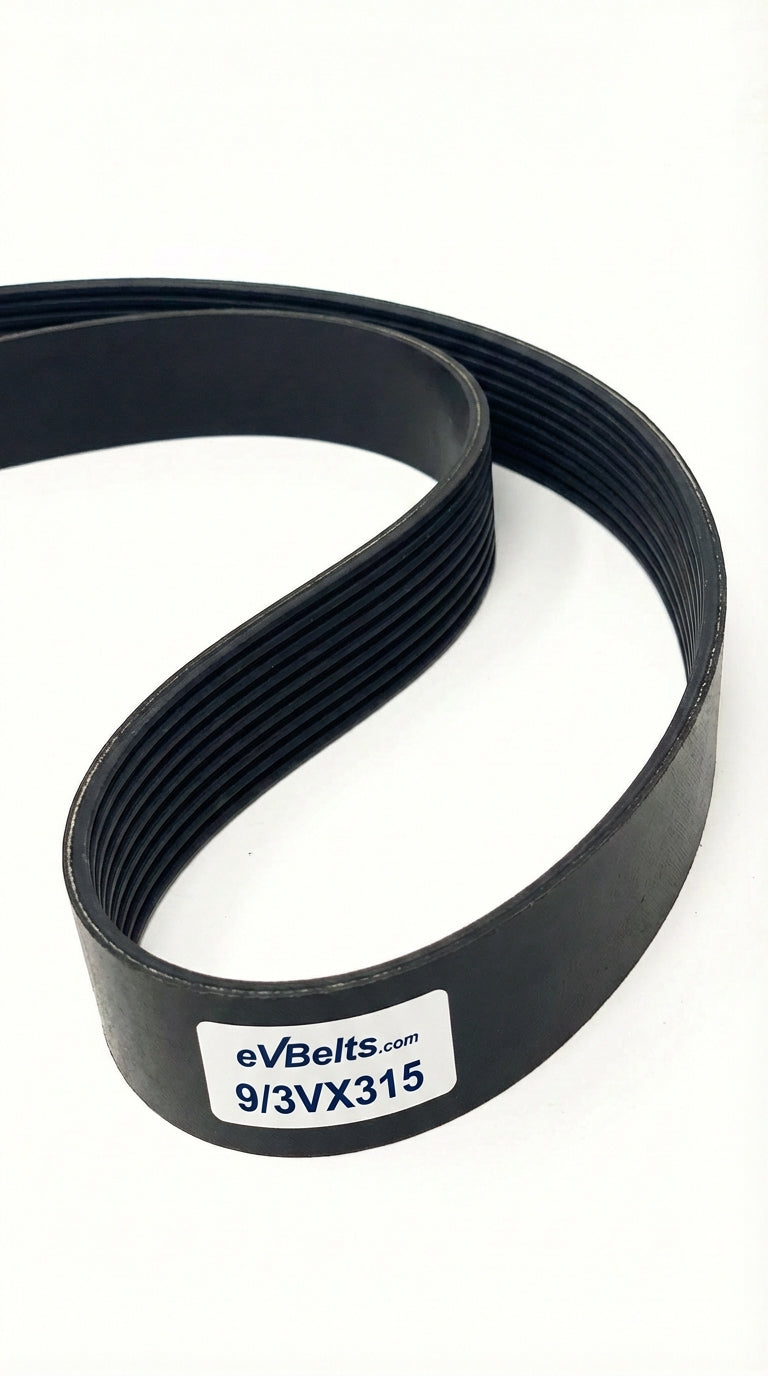

The 9/3VX315 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 31.8" long, offering improved flexibility around smaller pulleys.

9/3VX315 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 31.8" (807.7mm)
• Inside Length: 31" (787.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX315 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

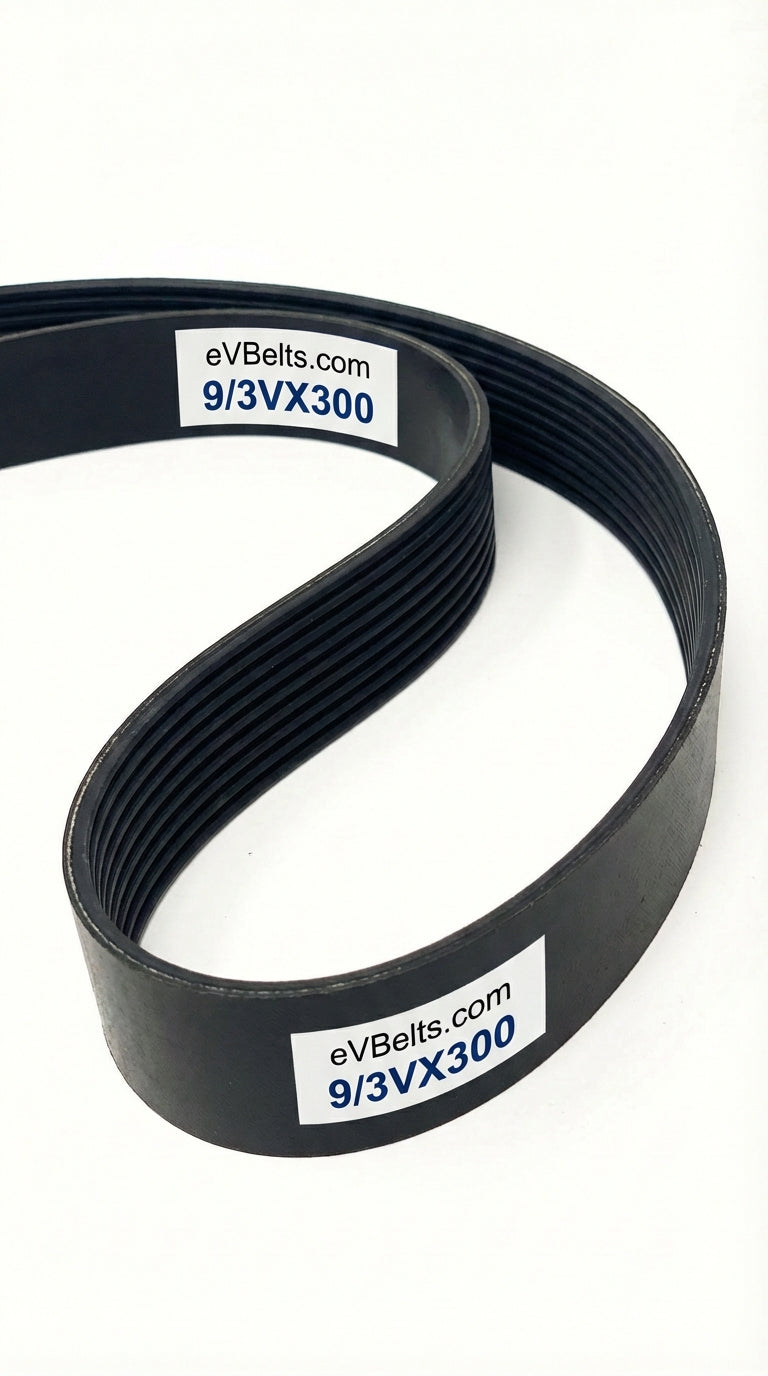

The 9/3VX300 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 30.3" long, offering improved flexibility around smaller pulleys.

9/3VX300 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 30.3" (769.6mm)
• Inside Length: 29.5" (749.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX300 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

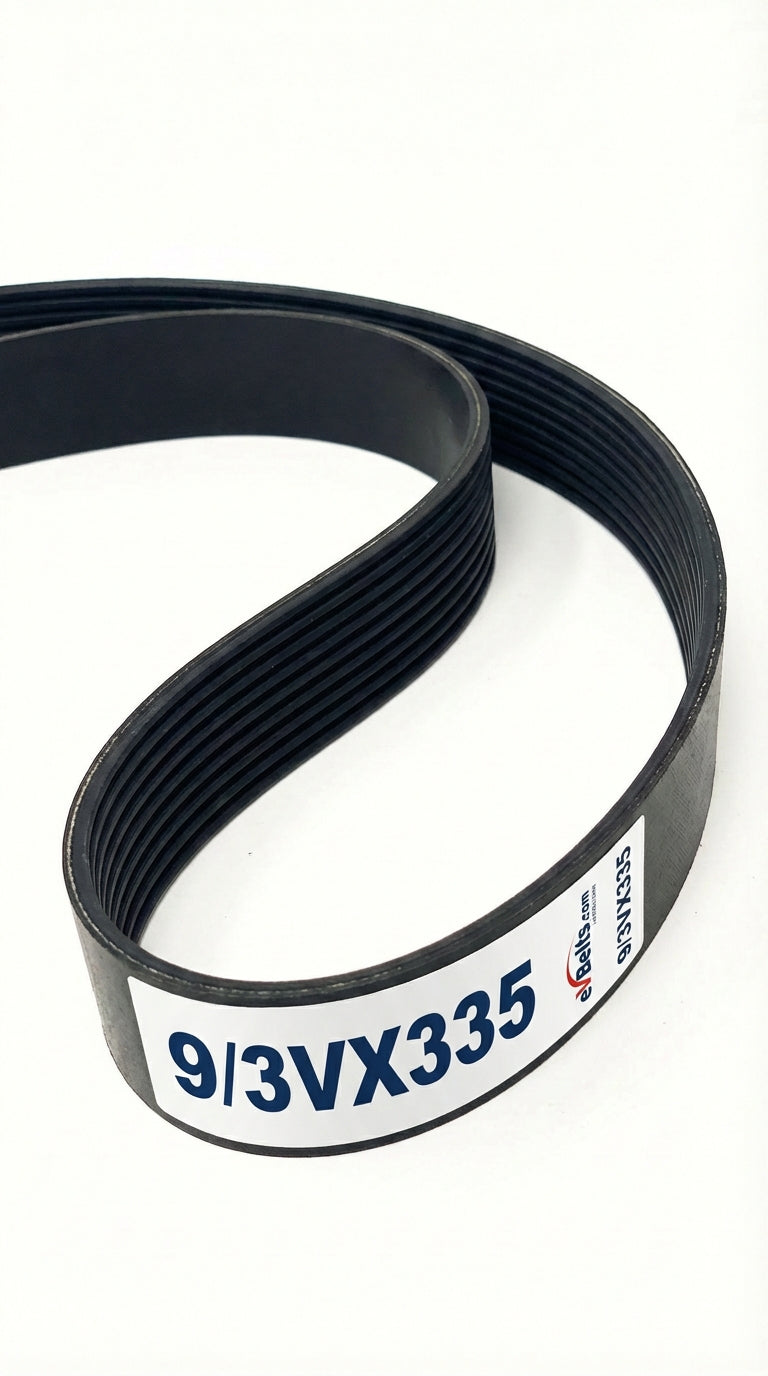

The 9/3VX335 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 33.8" long, offering improved flexibility around smaller pulleys.

9/3VX335 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 33.8" (858.5mm)
• Inside Length: 33" (838.2mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX335 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/3VX355 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 35.8" long, offering improved flexibility around smaller pulleys.

9/3VX355 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 35.8" (909.3mm)
• Inside Length: 35" (889mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX355 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/3VX400 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 40.3" long, offering improved flexibility around smaller pulleys.

9/3VX400 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 40.3" (1023.6mm)
• Inside Length: 39.5" (1003.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX400 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

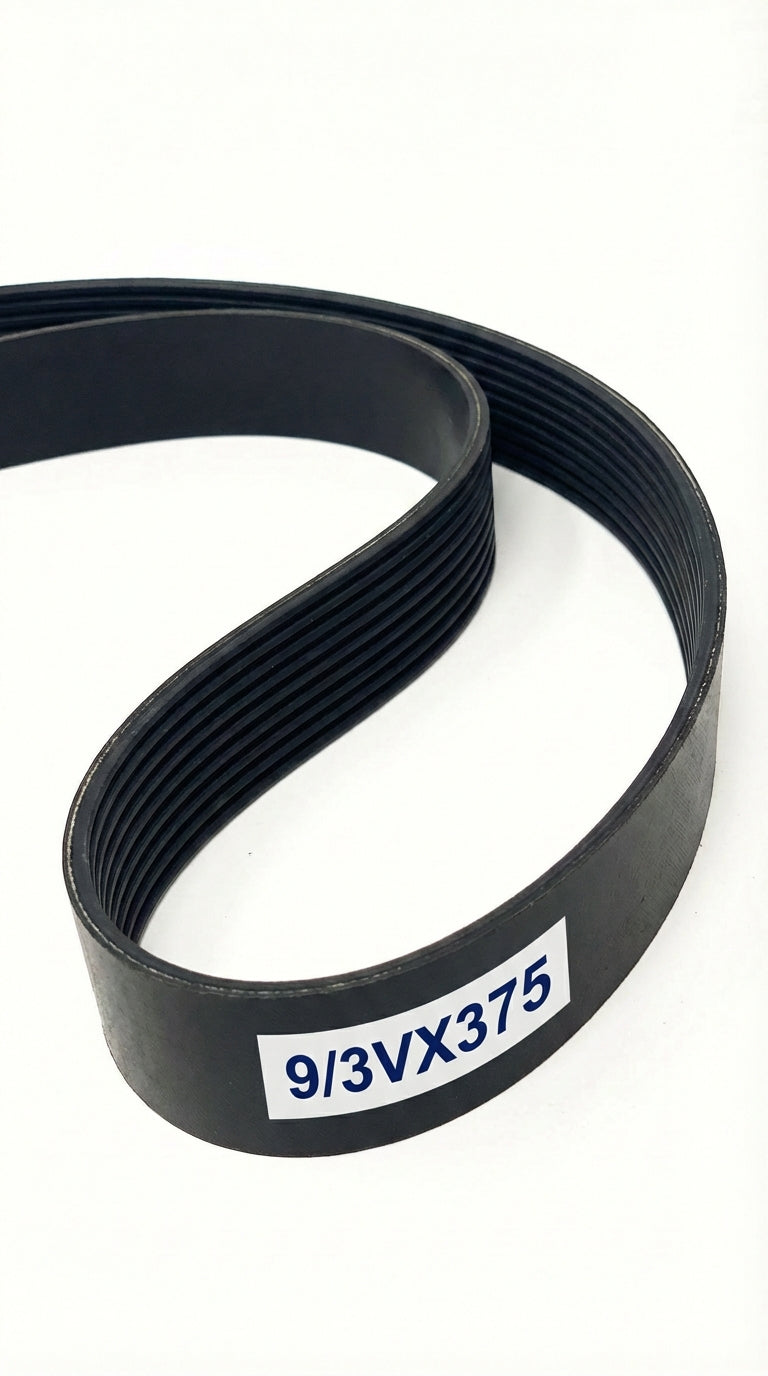

The 9/3VX375 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 37.8" long, offering improved flexibility around smaller pulleys.

9/3VX375 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 37.8" (960.1mm)
• Inside Length: 37" (939.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX375 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/3VX450 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 45.3" long, offering improved flexibility around smaller pulleys.

9/3VX450 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 45.3" (1150.6mm)
• Inside Length: 44.5" (1130.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX450 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/3VX425 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 42.8" long, offering improved flexibility around smaller pulleys.

9/3VX425 Specifications

• Top Width: 3.615" (91.82mm)
• Outside Length: 42.8" (1087.1mm)
• Inside Length: 42" (1066.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched
• Configuration: 9-Band Set

The 9/3VX425 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
