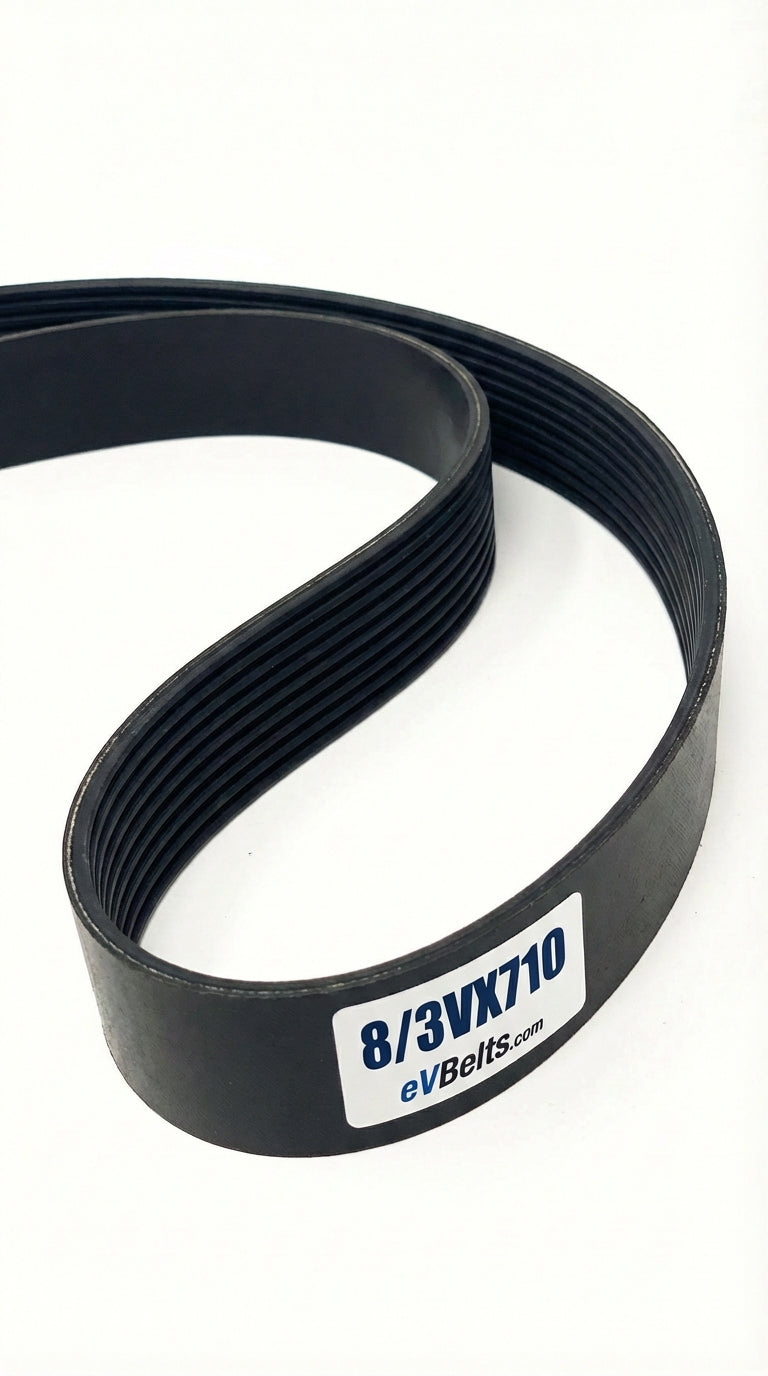

8/3VX710

Top Width: 3.21" (81.53mm)
Outside Length: 71.3" (1811mm)
Inside Length: 70.5" (1790.7mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 8-Band Set

The 8/3VX710 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 71.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225727

$104.29

Only 2 Left!

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/3VX710
Top Width	3.21 in / 81.53 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	70.5 in / 1790.7 mm
Outside Length	71.3 in / 1811.0 mm
Effective Length	71.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	8
Cogged	Yes
