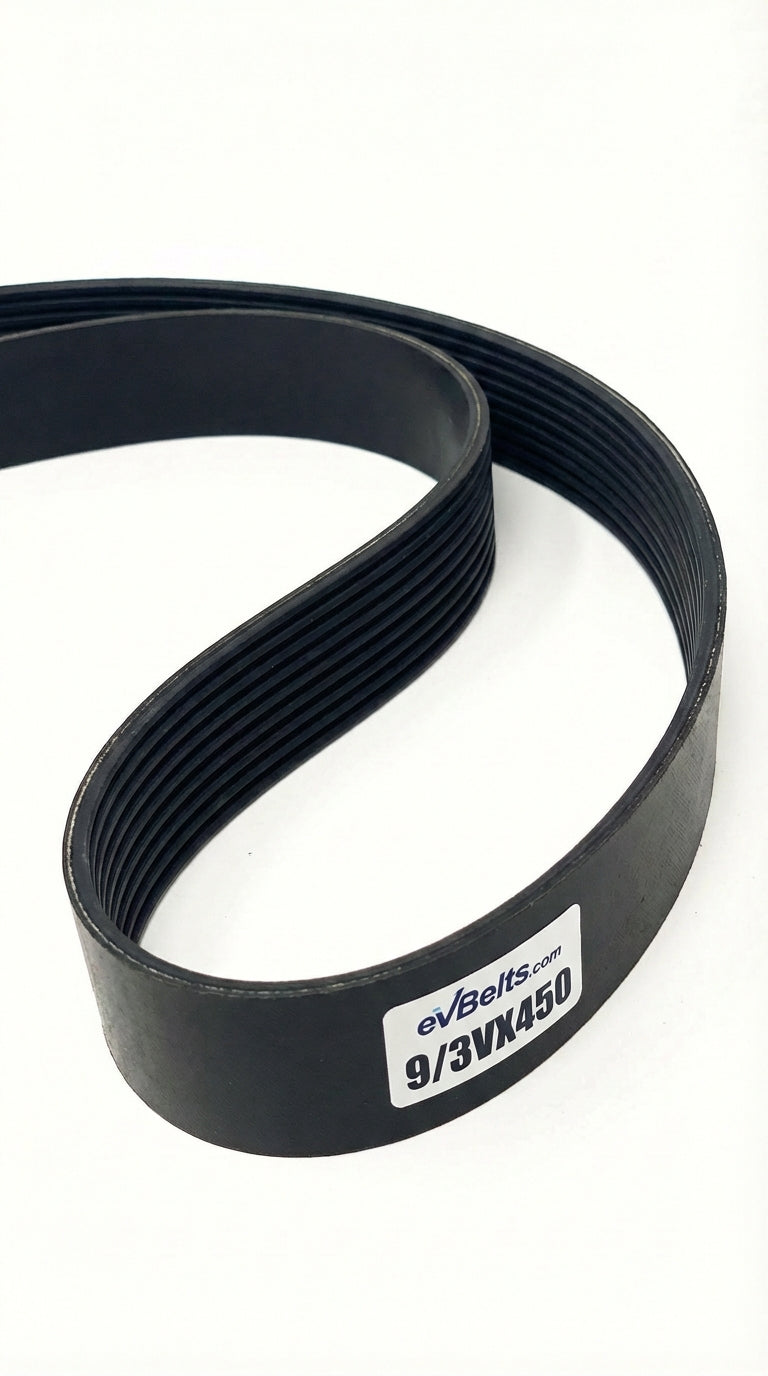

9/3VX450

Top Width: 3.615" (91.82mm)
Outside Length: 45.3" (1150.6mm)
Inside Length: 44.5" (1130.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 9-Band Set

The 9/3VX450 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 45.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225746

$87.15

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/3VX450
Top Width	3.615 in / 91.82 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	44.5 in / 1130.3 mm
Outside Length	45.3 in / 1150.6 mm
Effective Length	45.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	9
Cogged	Yes
