8/3VX530

Top Width: 3.21" (81.53mm)
Outside Length: 53.3" (1353.8mm)
Inside Length: 52.5" (1333.5mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 8-Band Set

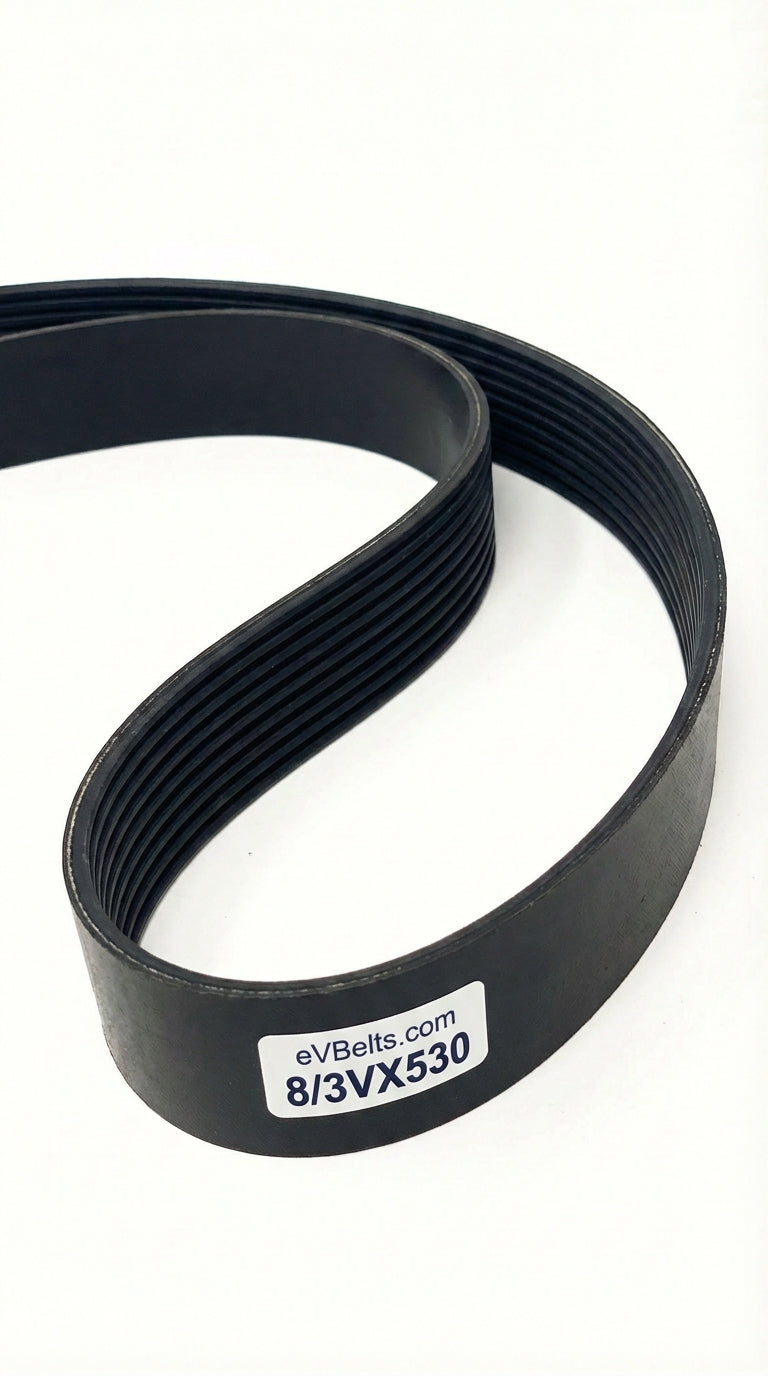

The 8/3VX530 is a factory-joined 8-band 3VX banded belt assembly measuring 3.21" wide x 53.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225721

$70.48

Only 1 Left!

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/3VX530
Top Width	3.21 in / 81.53 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	52.5 in / 1333.5 mm
Outside Length	53.3 in / 1353.8 mm
Effective Length	53.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	8
Cogged	Yes
