The 2/BX87 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 88.8" long, offering improved flexibility around smaller pulleys.

2/BX87 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 88.8" (2255.5mm)
• Inside Length: 87" (2209.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX87 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

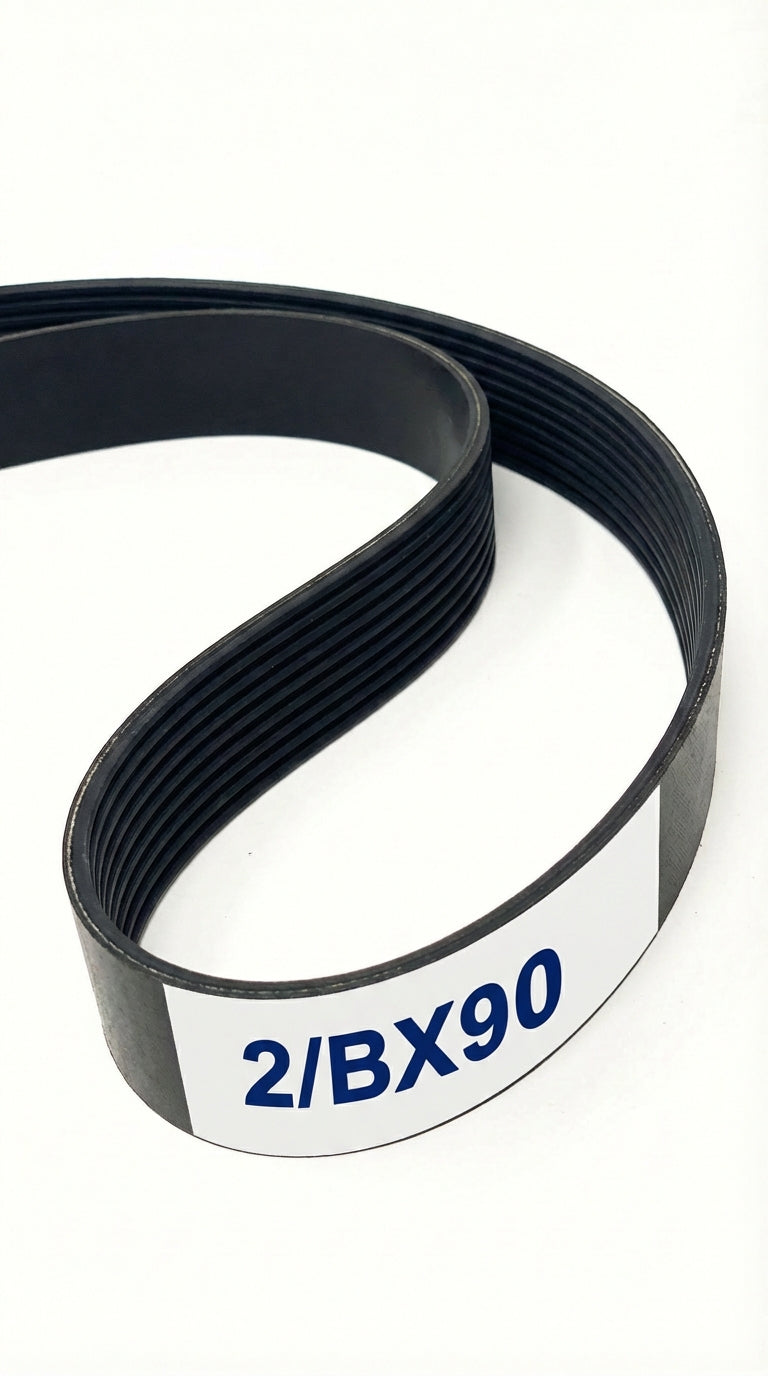

The 2/BX90 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 91.8" long, offering improved flexibility around smaller pulleys.

2/BX90 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 91.8" (2331.7mm)
• Inside Length: 90" (2286mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX90 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

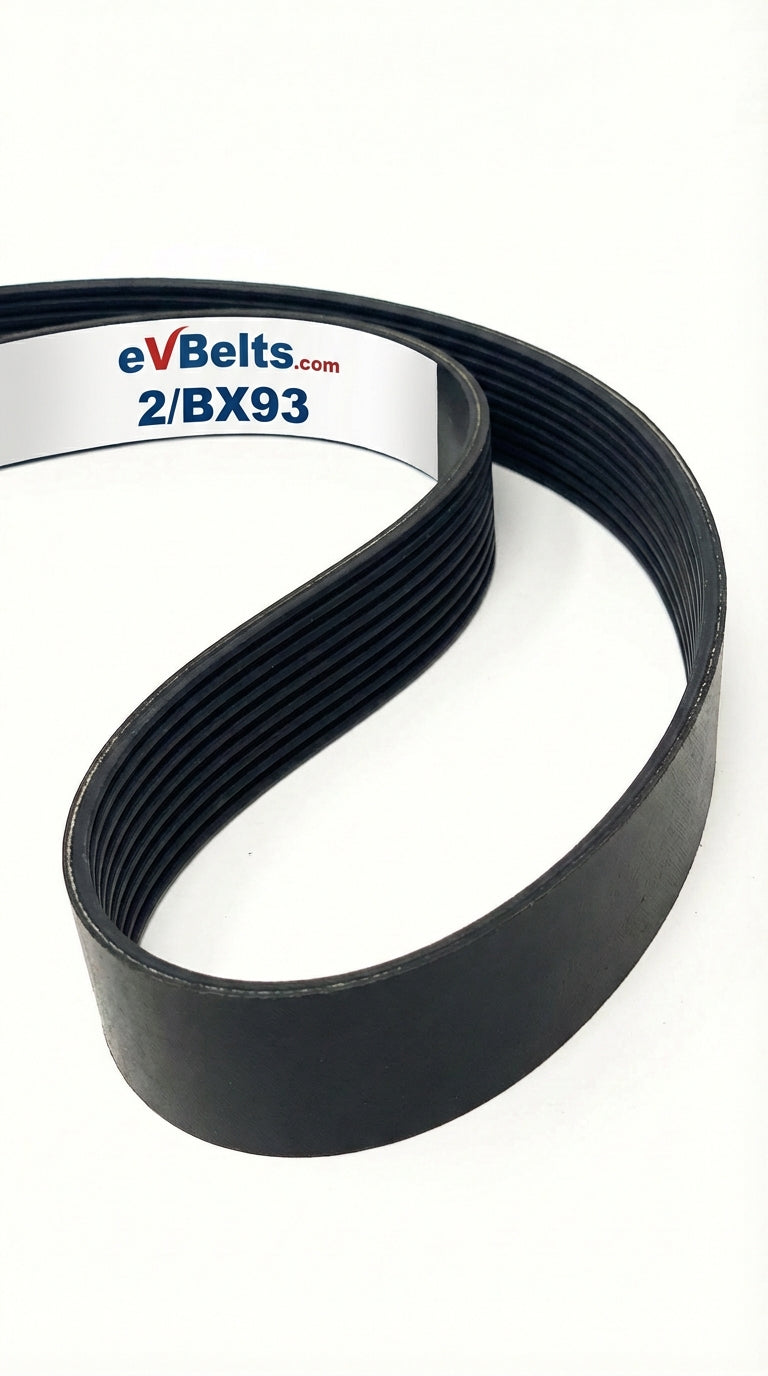

The 2/BX93 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 94.8" long, offering improved flexibility around smaller pulleys.

2/BX93 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 94.8" (2407.9mm)
• Inside Length: 93" (2362.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX93 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

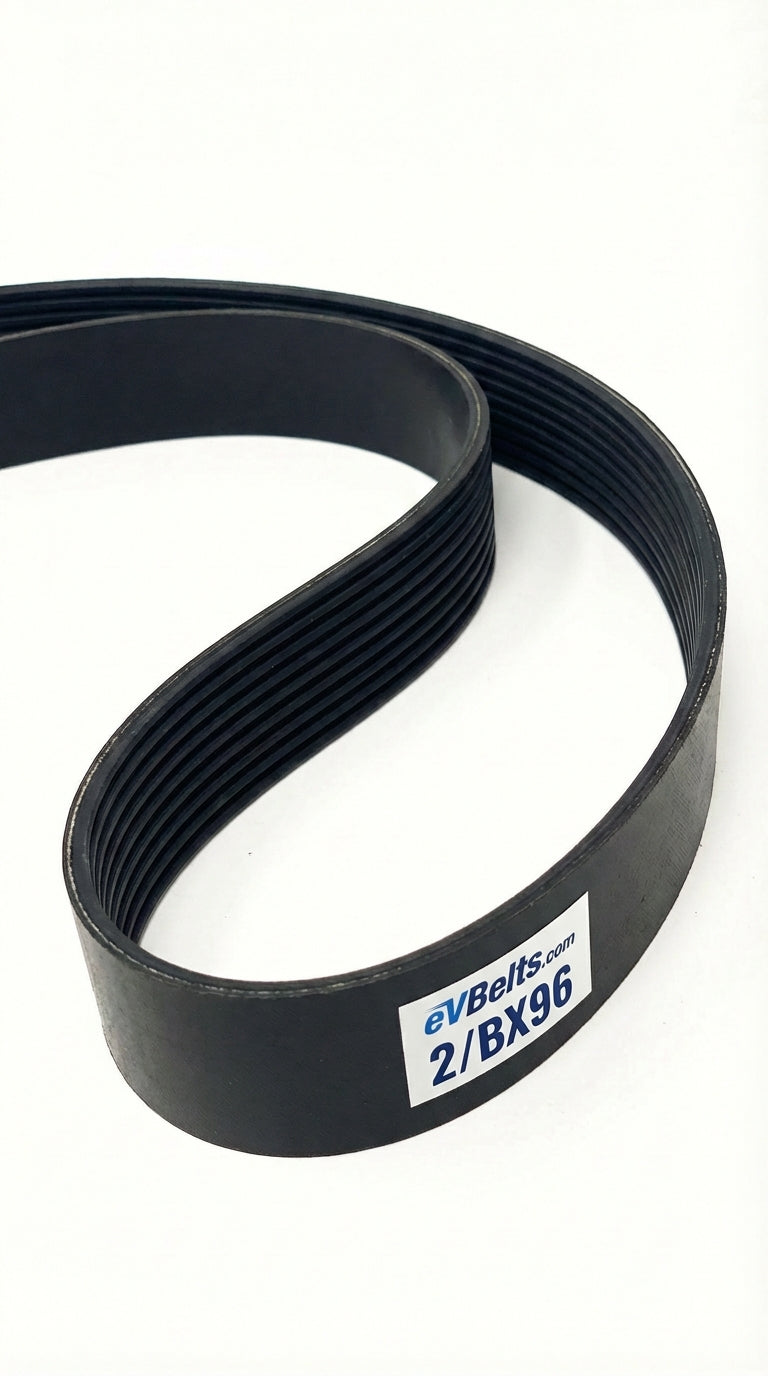

The 2/BX96 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 97.8" long, offering improved flexibility around smaller pulleys.

2/BX96 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 97.8" (2484.1mm)
• Inside Length: 96" (2438.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX96 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 2/BX100 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 101.8" long, offering improved flexibility around smaller pulleys.

2/BX100 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 101.8" (2585.7mm)
• Inside Length: 100" (2540mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX100 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

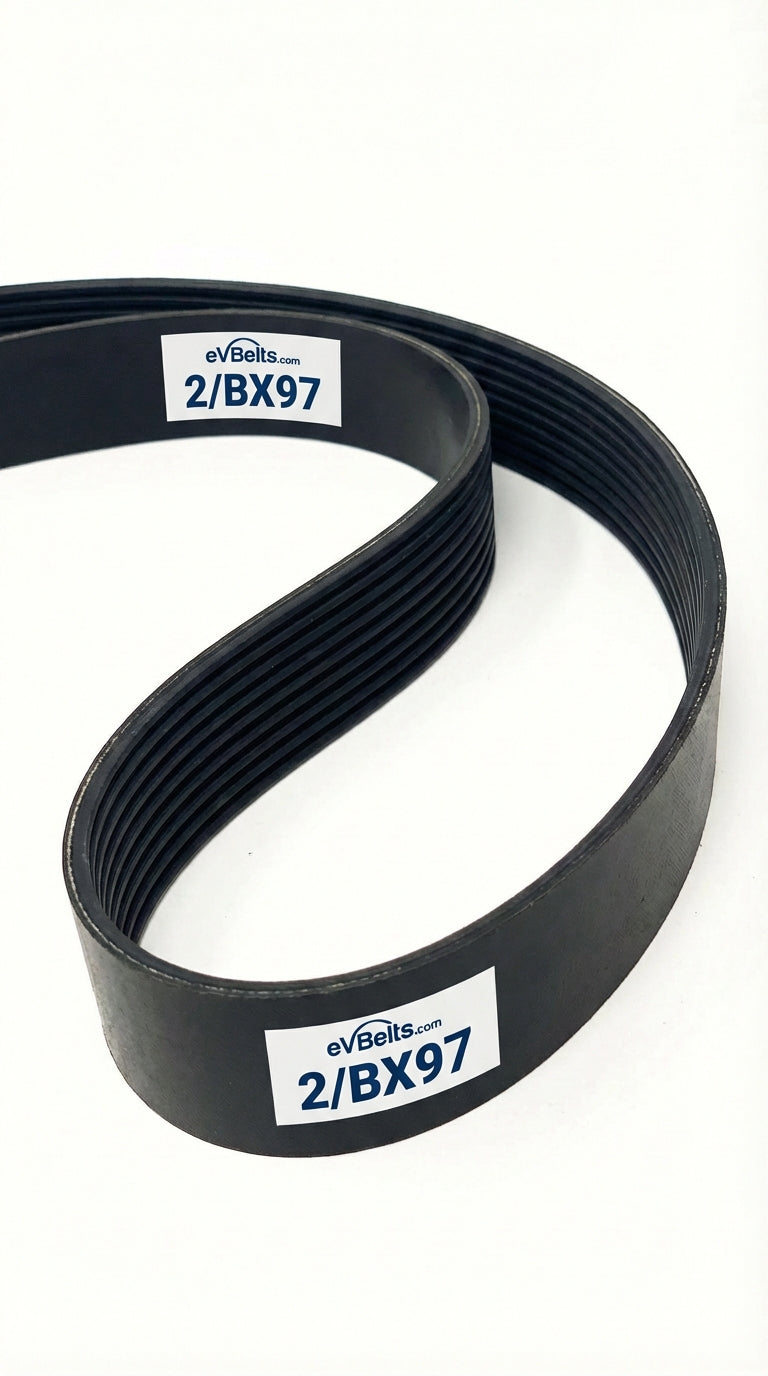

The 2/BX97 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 98.8" long, offering improved flexibility around smaller pulleys.

2/BX97 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 98.8" (2509.5mm)
• Inside Length: 97" (2463.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX97 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

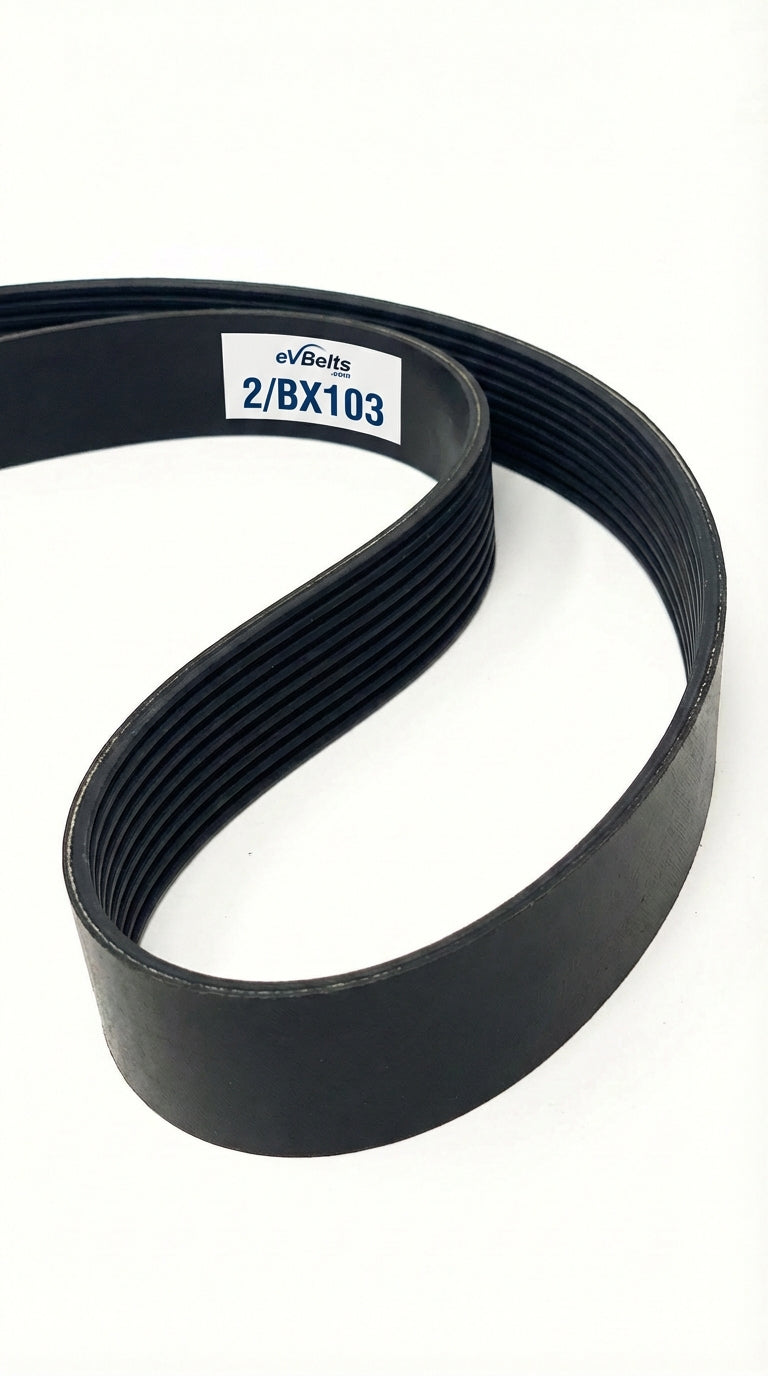

The 2/BX103 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 104.8" long, offering improved flexibility around smaller pulleys.

2/BX103 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 104.8" (2661.9mm)
• Inside Length: 103" (2616.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX103 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 2/BX105 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 106.8" long, offering improved flexibility around smaller pulleys.

2/BX105 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 106.8" (2712.7mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX105 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

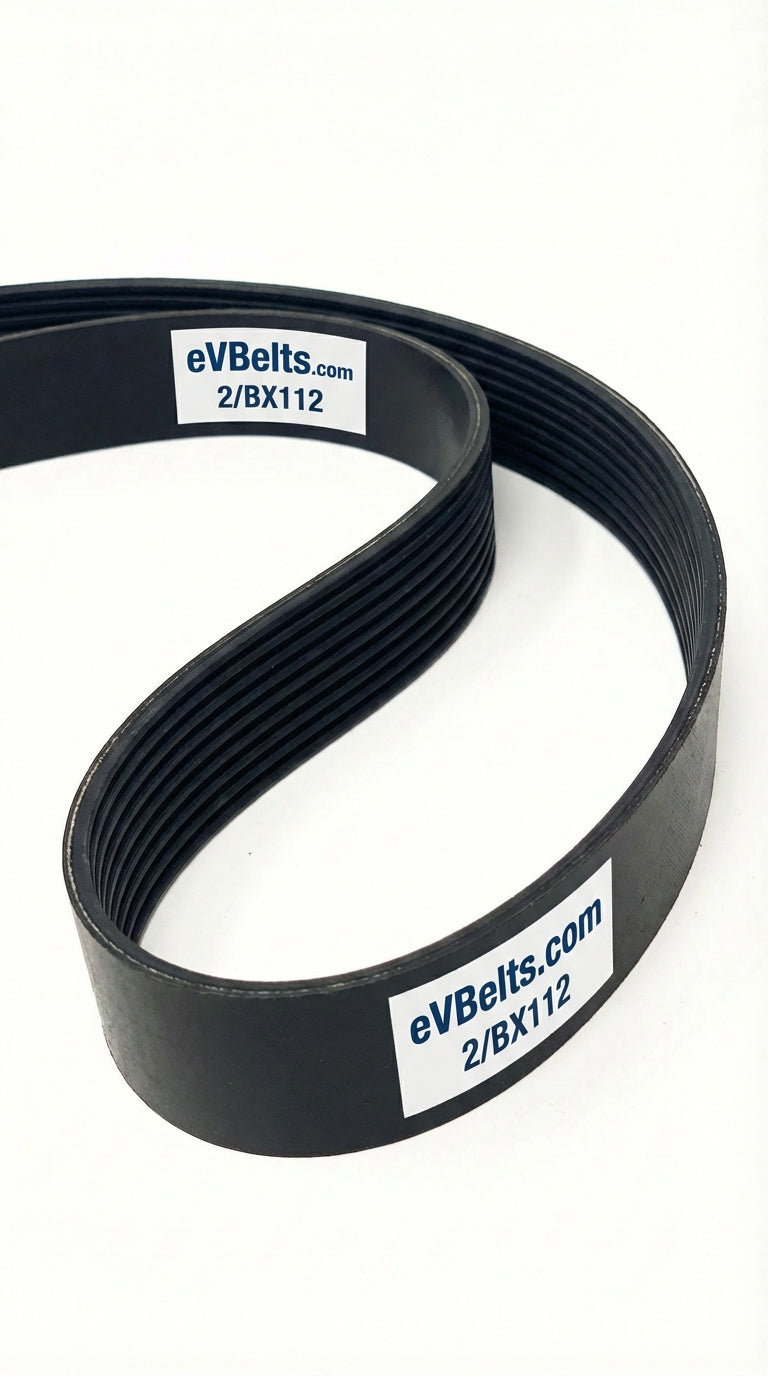

The 2/BX112 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 113.8" long, offering improved flexibility around smaller pulleys.

2/BX112 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 113.8" (2890.5mm)
• Inside Length: 112" (2844.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX112 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

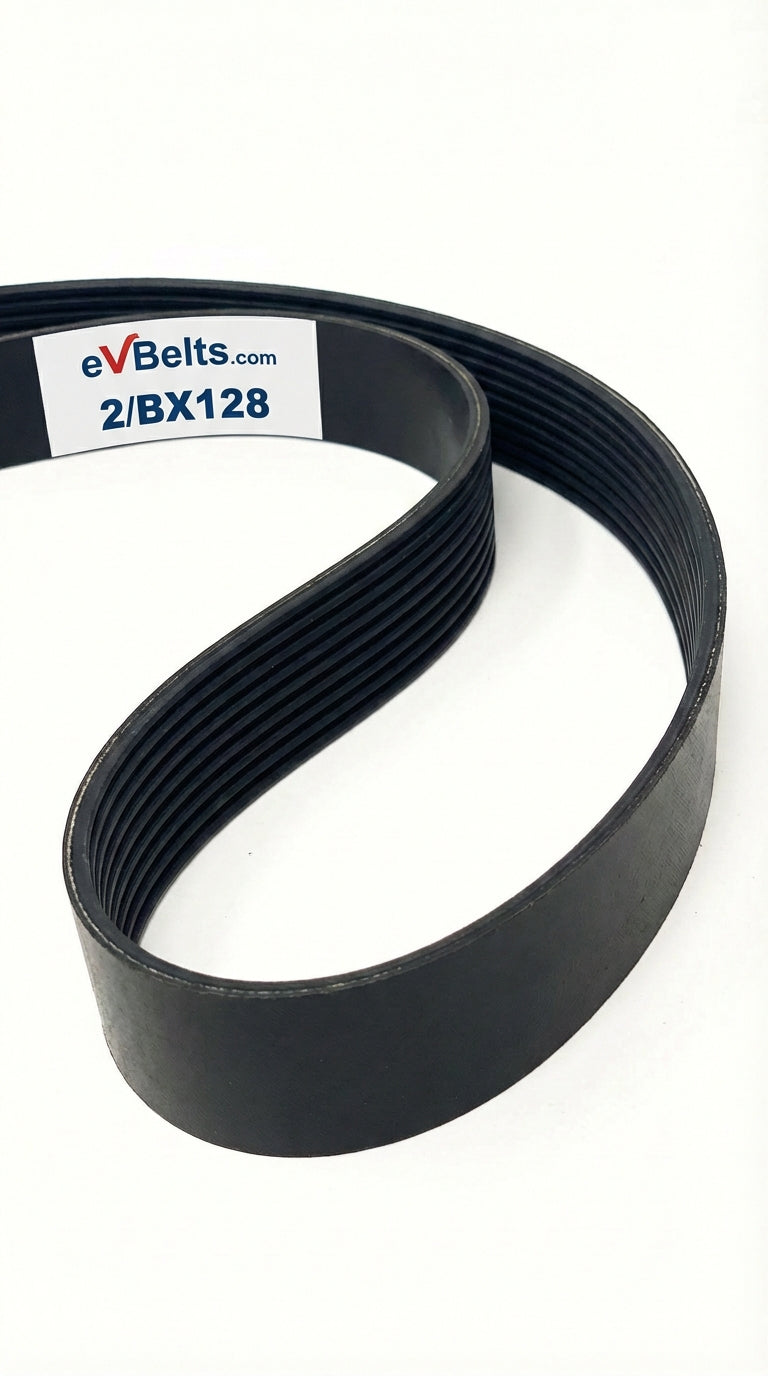

The 2/BX128 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 129.8" long, offering improved flexibility around smaller pulleys.

2/BX128 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 129.8" (3296.9mm)
• Inside Length: 128" (3251.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX128 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

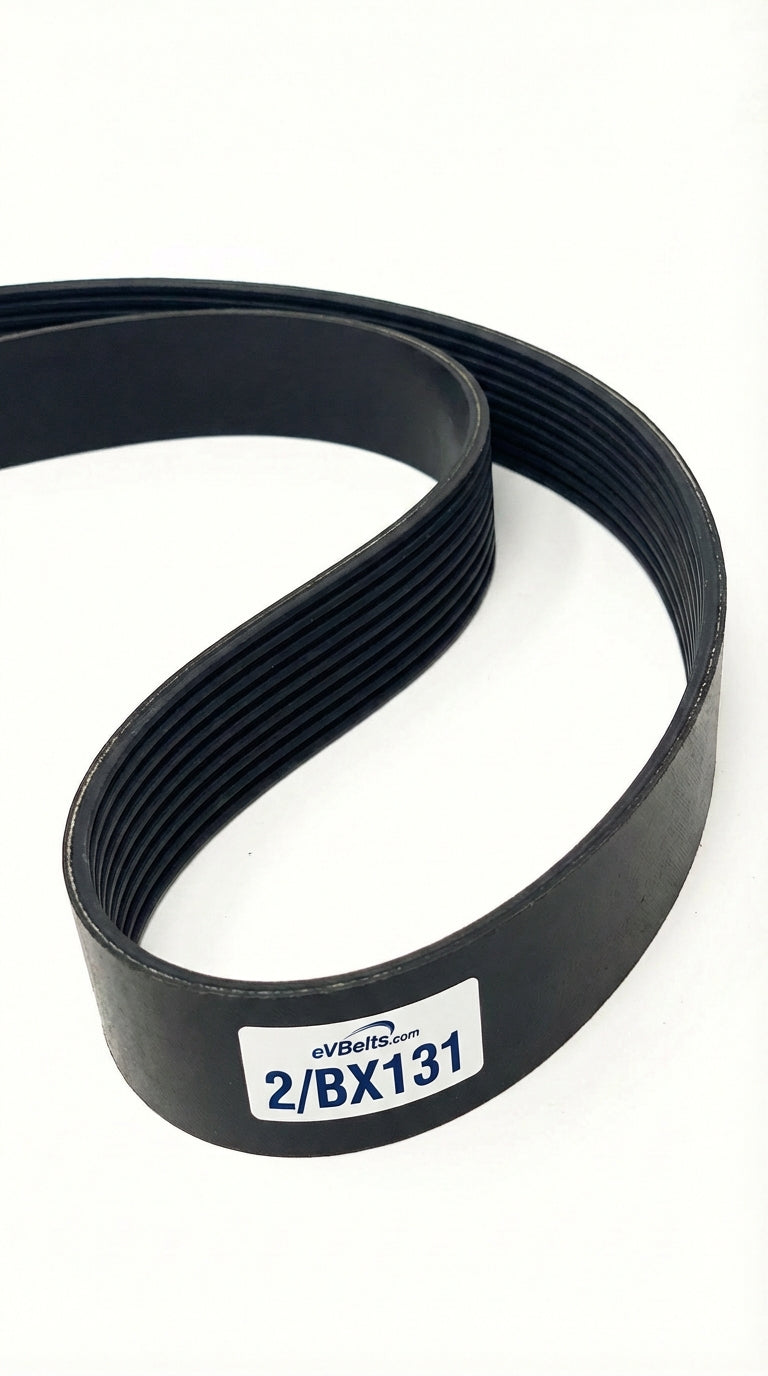

The 2/BX131 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 132.8" long, offering improved flexibility around smaller pulleys.

2/BX131 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 132.8" (3373.1mm)
• Inside Length: 131" (3327.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX131 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

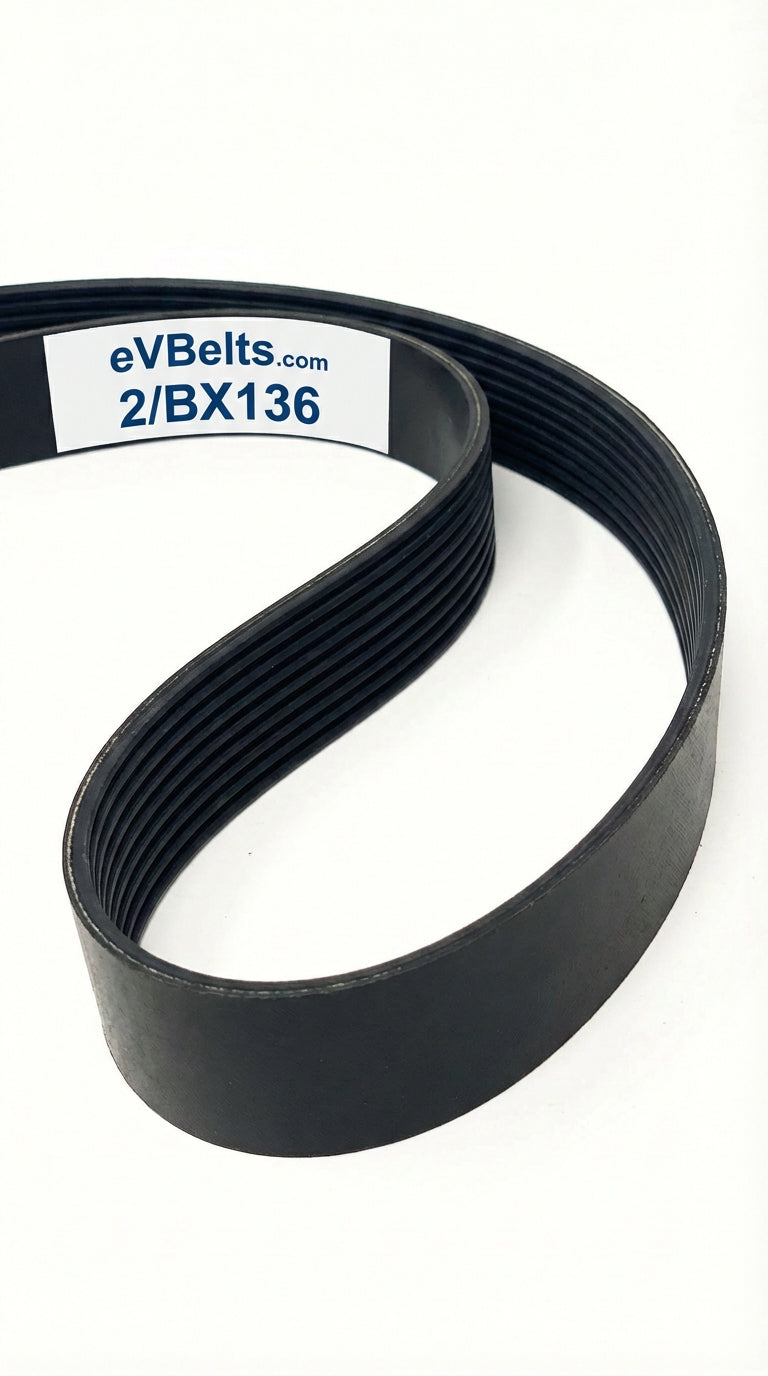

The 2/BX136 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 137.8" long, offering improved flexibility around smaller pulleys.

2/BX136 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 137.8" (3500.1mm)
• Inside Length: 136" (3454.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX136 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

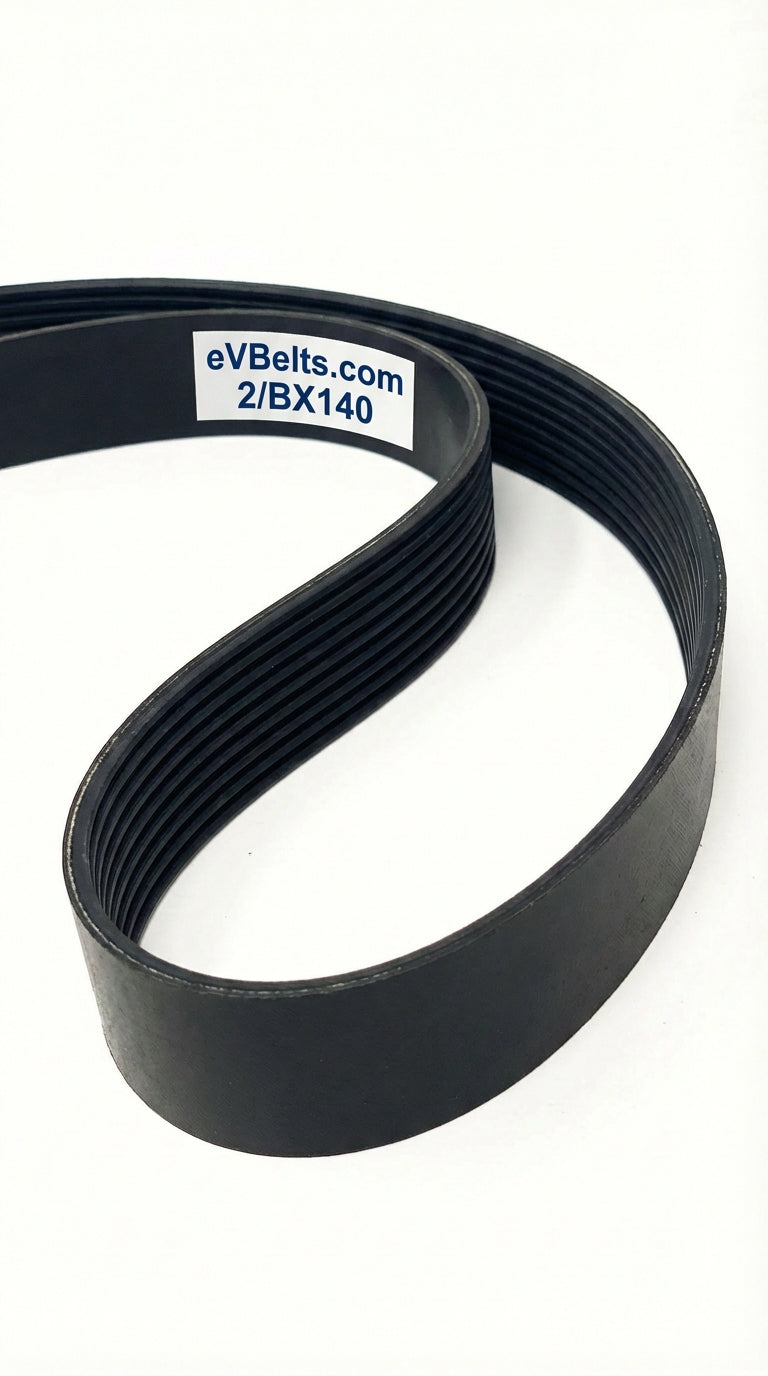

The 2/BX140 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 141.8" long, offering improved flexibility around smaller pulleys.

2/BX140 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 141.8" (3601.7mm)
• Inside Length: 140" (3556mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX140 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

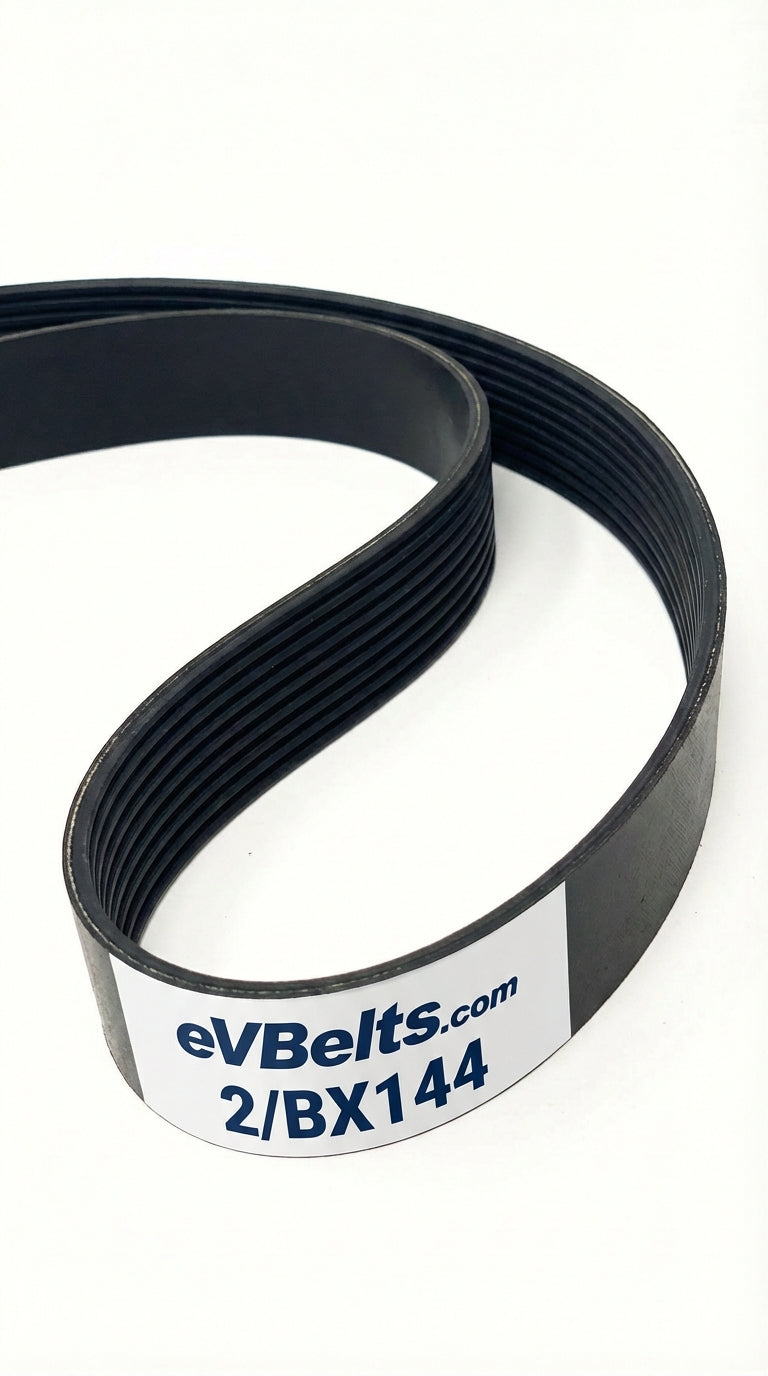

The 2/BX144 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 145.8" long, offering improved flexibility around smaller pulleys.

2/BX144 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 145.8" (3703.3mm)
• Inside Length: 144" (3657.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX144 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

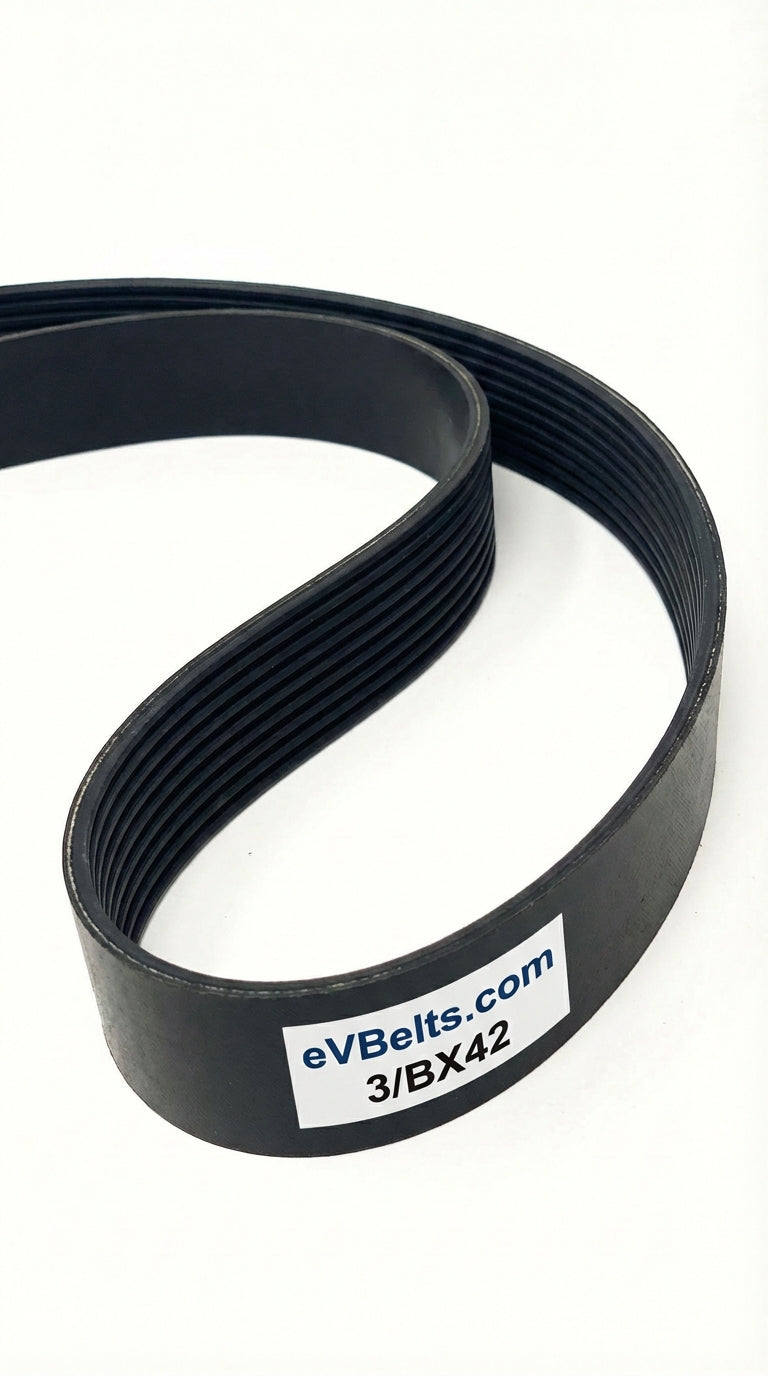

The 3/BX42 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 43.8" long, offering improved flexibility around smaller pulleys.

3/BX42 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 43.8" (1112.5mm)
• Inside Length: 42" (1066.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX42 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

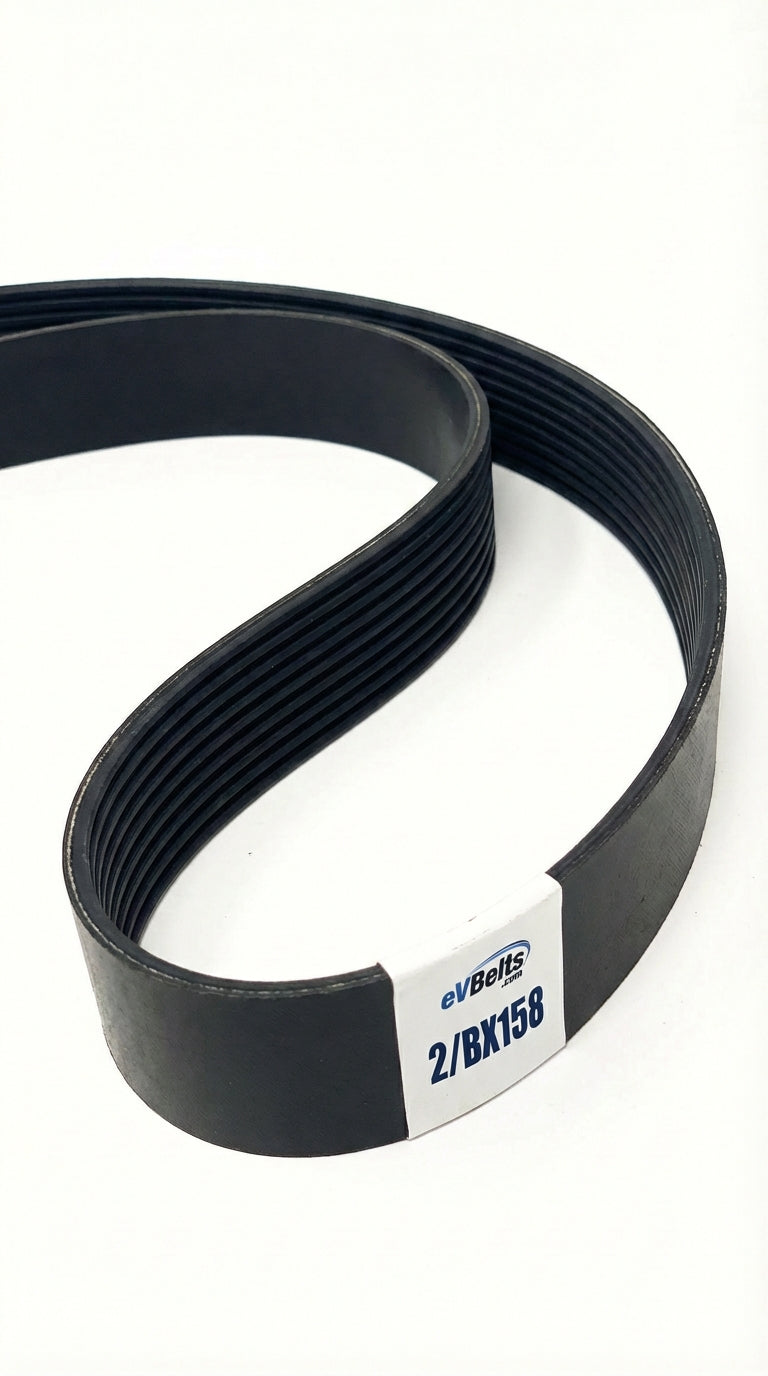

The 2/BX158 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 159.8" long, offering improved flexibility around smaller pulleys.

2/BX158 Specifications

• Top Width: 1.342" (34.09mm)
• Outside Length: 159.8" (4058.9mm)
• Inside Length: 158" (4013.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 2-Band Set

The 2/BX158 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

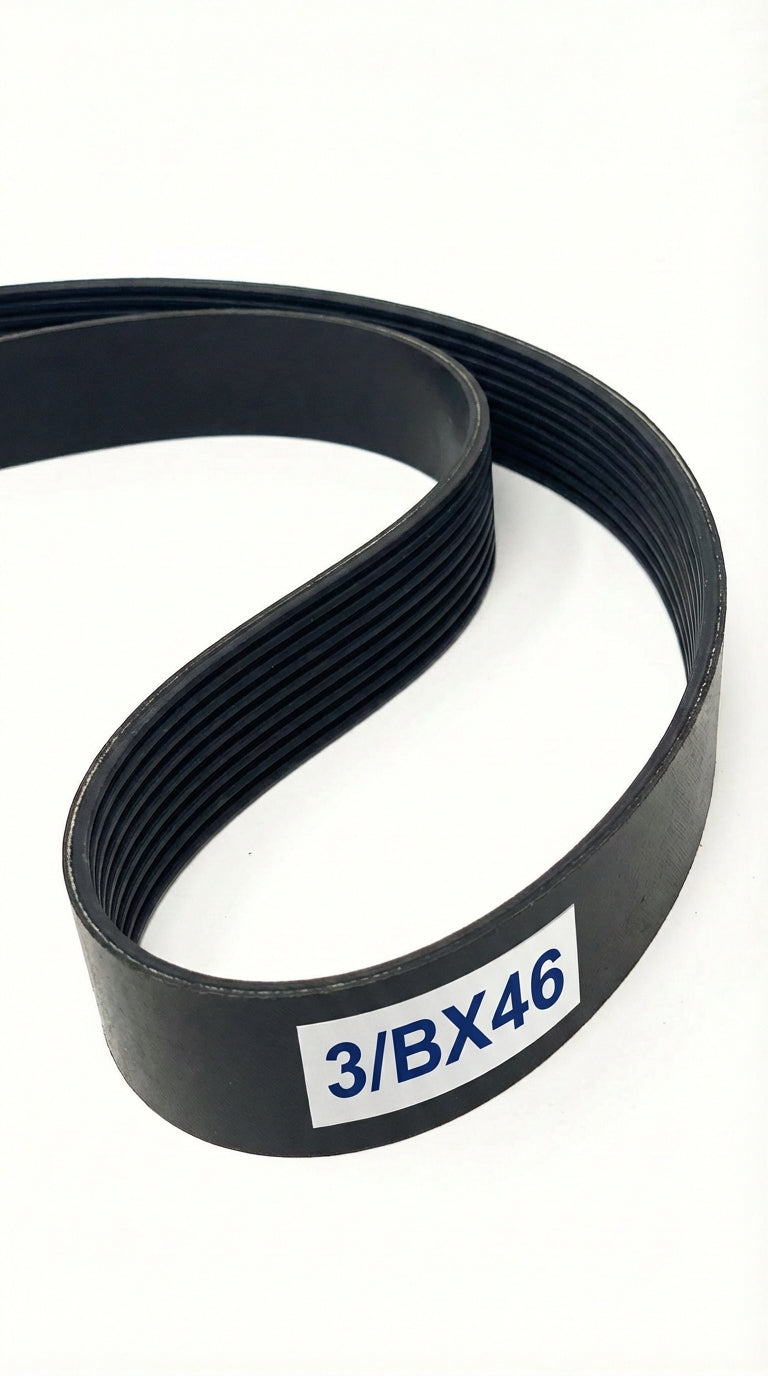

The 3/BX46 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 47.8" long, offering improved flexibility around smaller pulleys.

3/BX46 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 47.8" (1214.1mm)
• Inside Length: 46" (1168.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX46 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

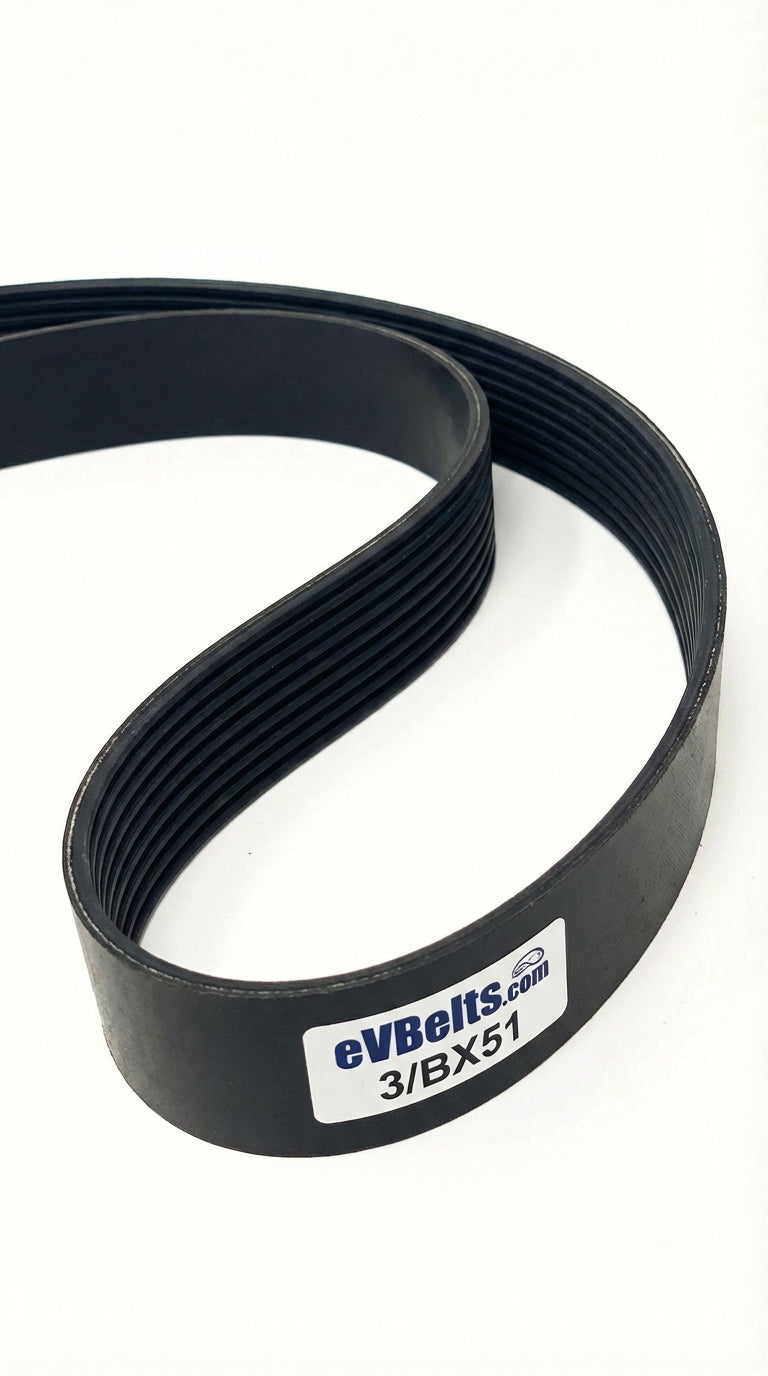

The 3/BX51 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 52.8" long, offering improved flexibility around smaller pulleys.

3/BX51 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 52.8" (1341.1mm)
• Inside Length: 51" (1295.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX51 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

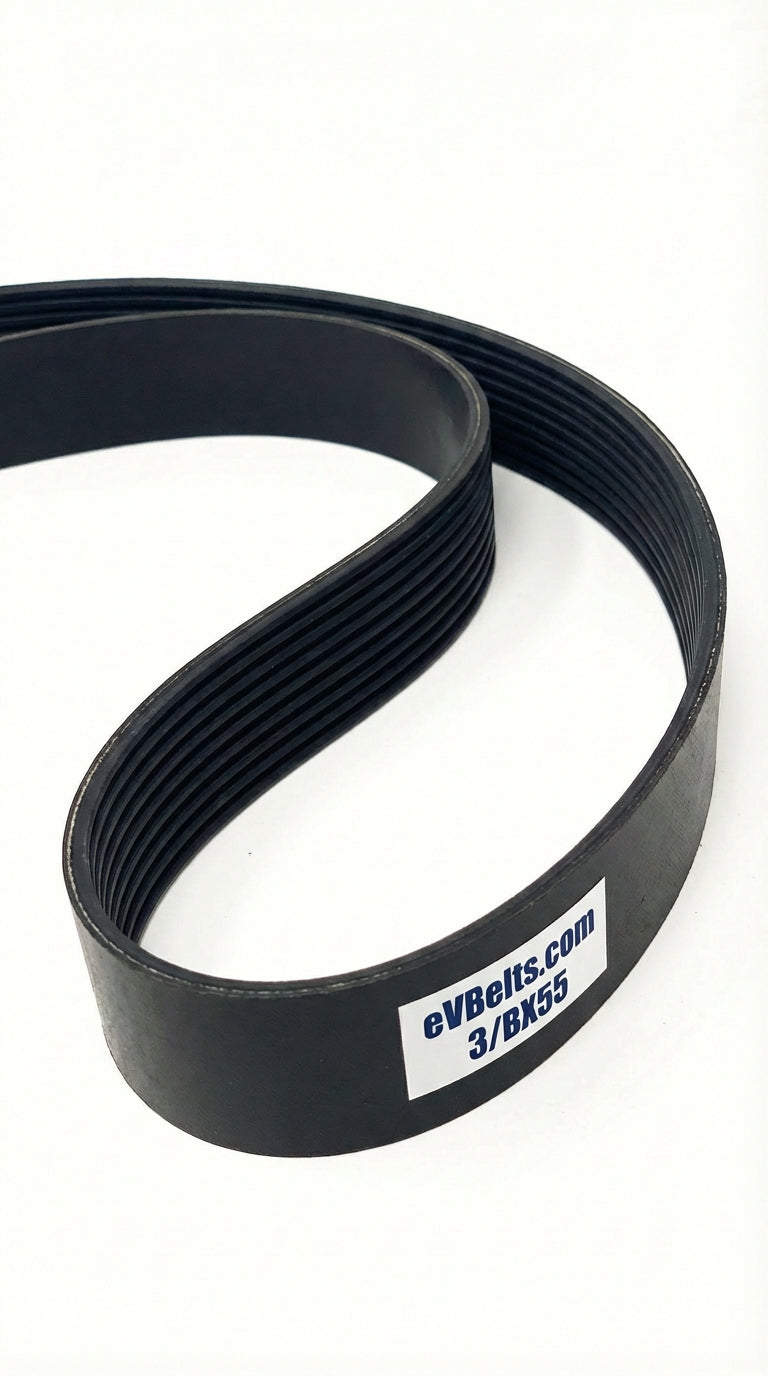

The 3/BX55 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 56.8" long, offering improved flexibility around smaller pulleys.

3/BX55 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 56.8" (1442.7mm)
• Inside Length: 55" (1397mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX55 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX53 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 54.8" long, offering improved flexibility around smaller pulleys.

3/BX53 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 54.8" (1391.9mm)
• Inside Length: 53" (1346.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX53 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

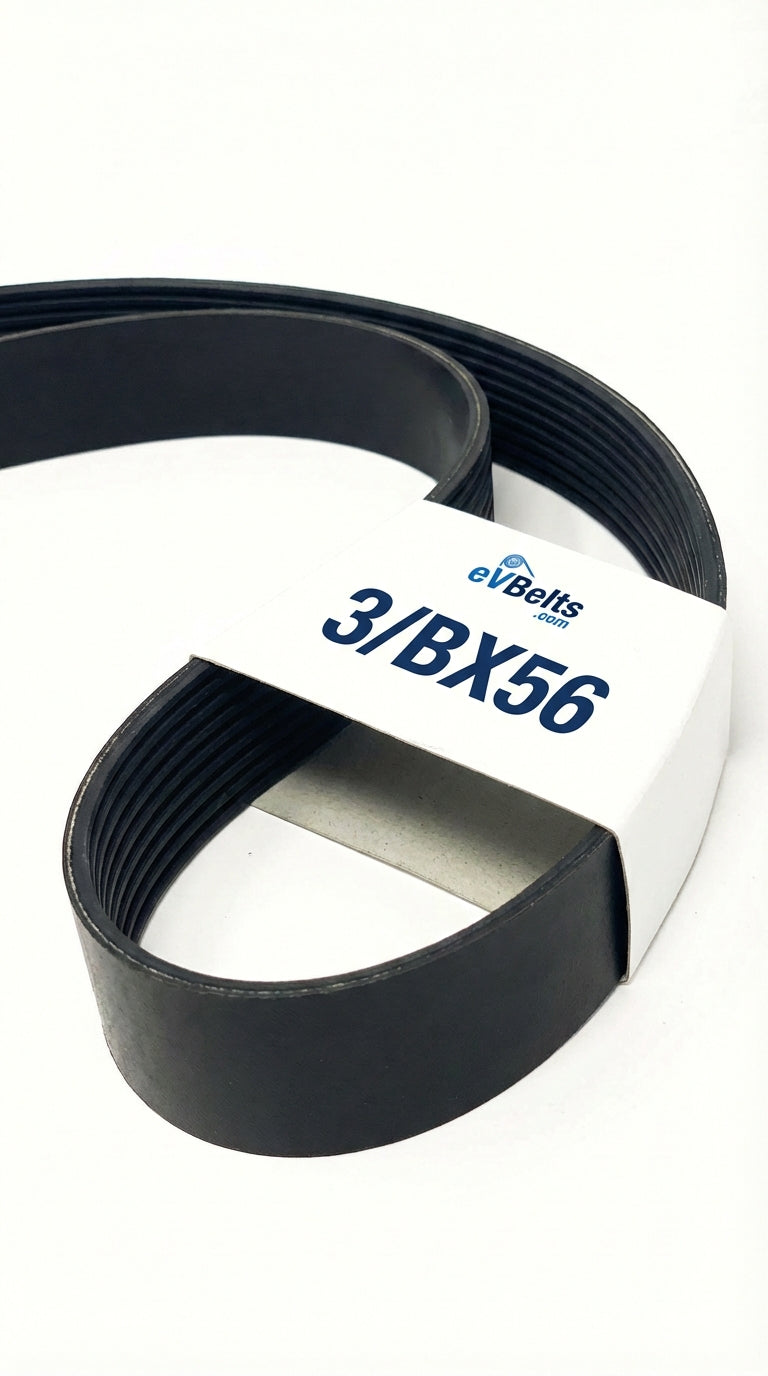

The 3/BX56 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 57.8" long, offering improved flexibility around smaller pulleys.

3/BX56 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 57.8" (1468.1mm)
• Inside Length: 56" (1422.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX56 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

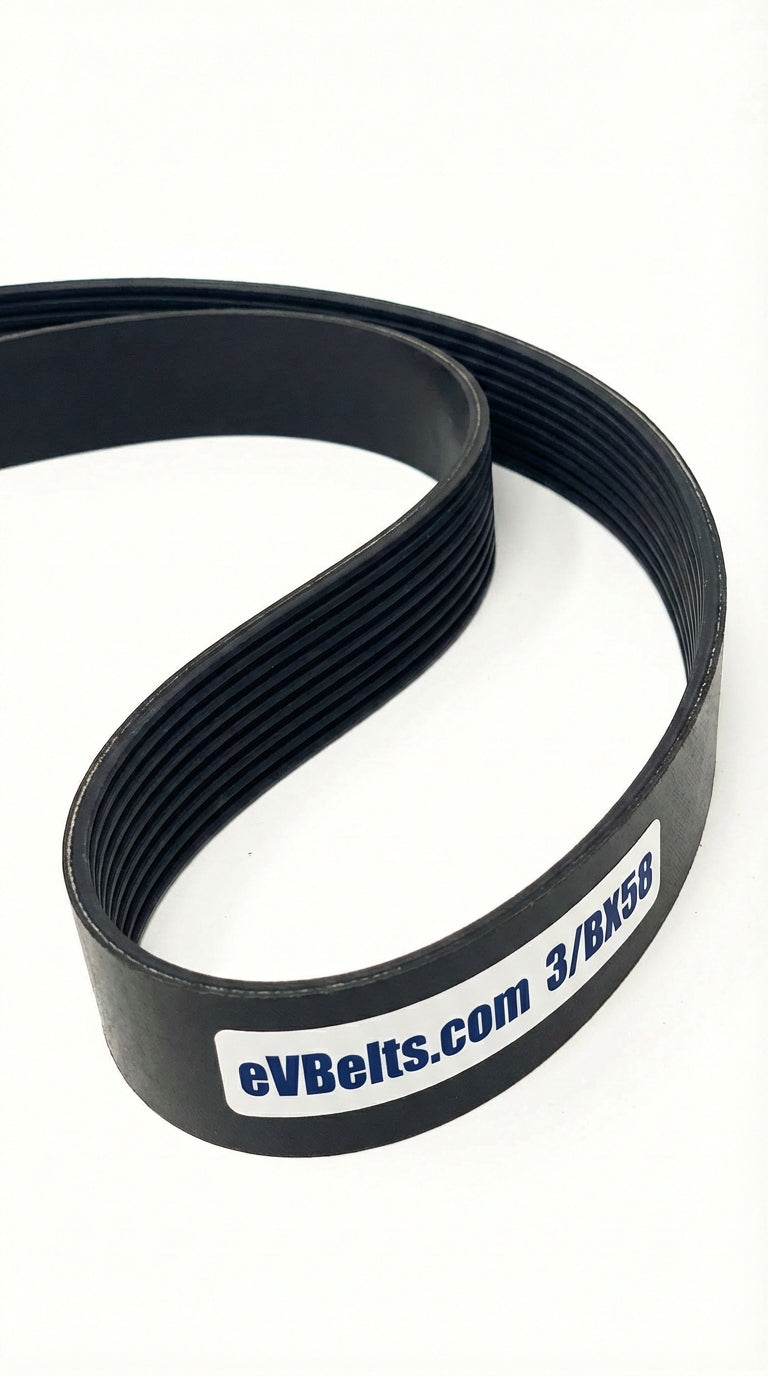

The 3/BX58 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 59.8" long, offering improved flexibility around smaller pulleys.

3/BX58 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 59.8" (1518.9mm)
• Inside Length: 58" (1473.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX58 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX60 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 61.8" long, offering improved flexibility around smaller pulleys.

3/BX60 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 61.8" (1569.7mm)
• Inside Length: 60" (1524mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX60 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

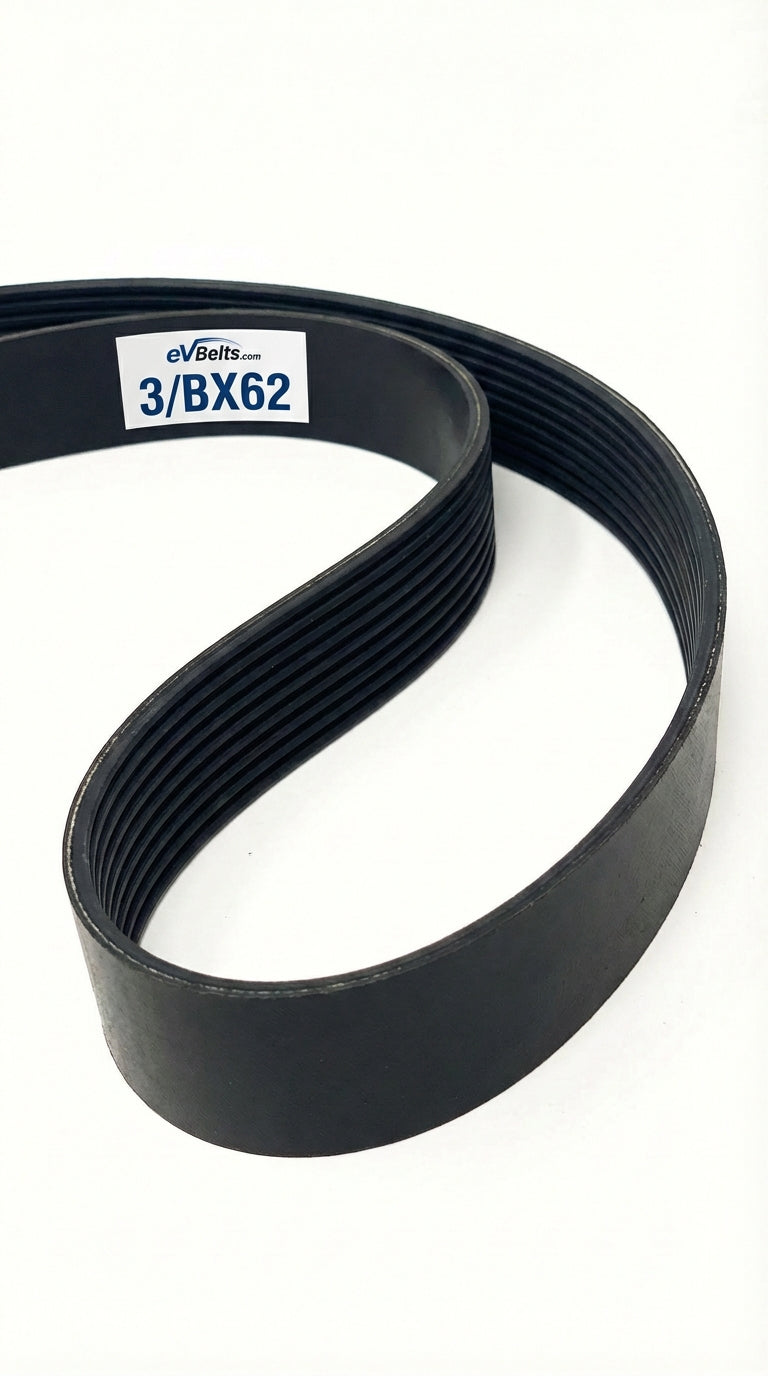

The 3/BX62 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 63.8" long, offering improved flexibility around smaller pulleys.

3/BX62 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 63.8" (1620.5mm)
• Inside Length: 62" (1574.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX62 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

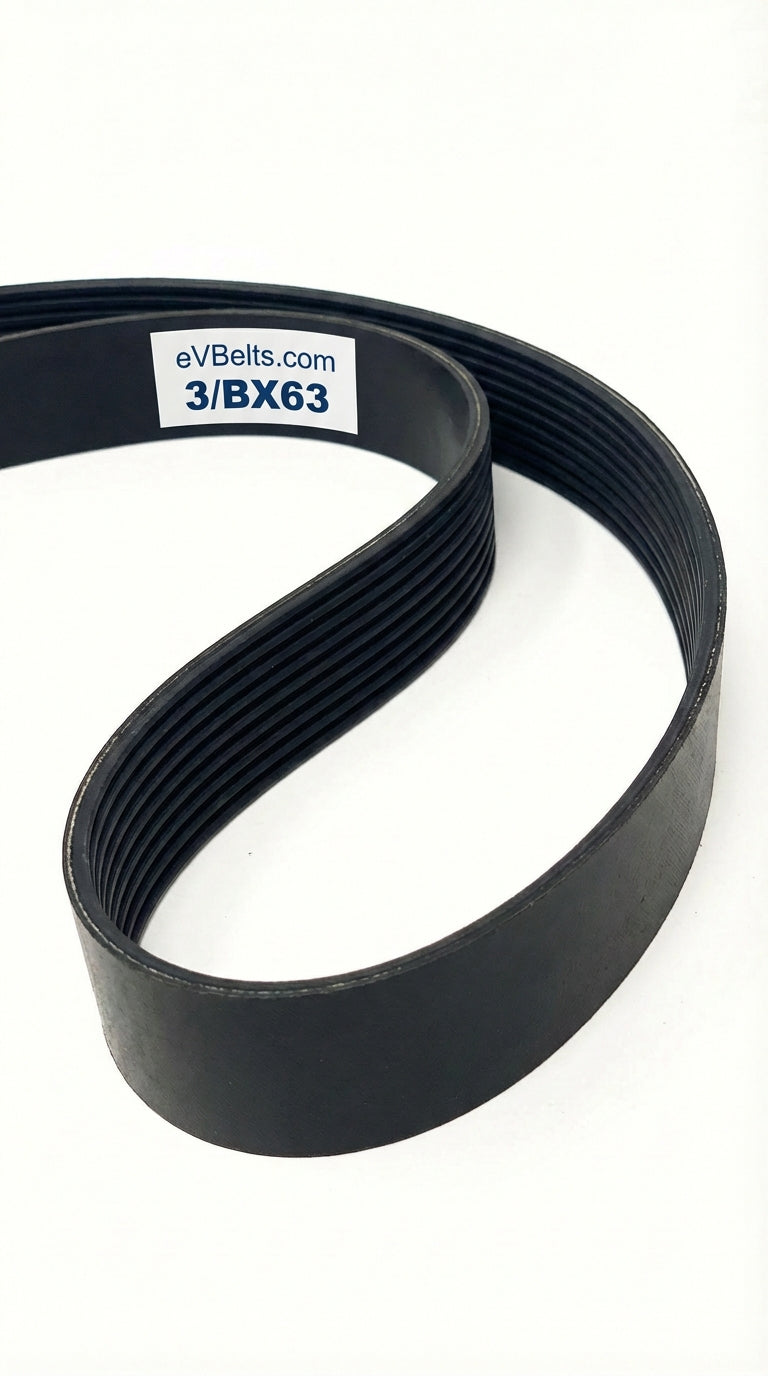

The 3/BX63 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 64.8" long, offering improved flexibility around smaller pulleys.

3/BX63 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 64.8" (1645.9mm)
• Inside Length: 63" (1600.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX63 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX64 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 65.8" long, offering improved flexibility around smaller pulleys.

3/BX64 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 65.8" (1671.3mm)
• Inside Length: 64" (1625.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX64 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX66 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 67.8" long, offering improved flexibility around smaller pulleys.

3/BX66 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 67.8" (1722.1mm)
• Inside Length: 66" (1676.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX66 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/BX65 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 66.8" long, offering improved flexibility around smaller pulleys.

3/BX65 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 66.8" (1696.7mm)
• Inside Length: 65" (1651mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX65 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

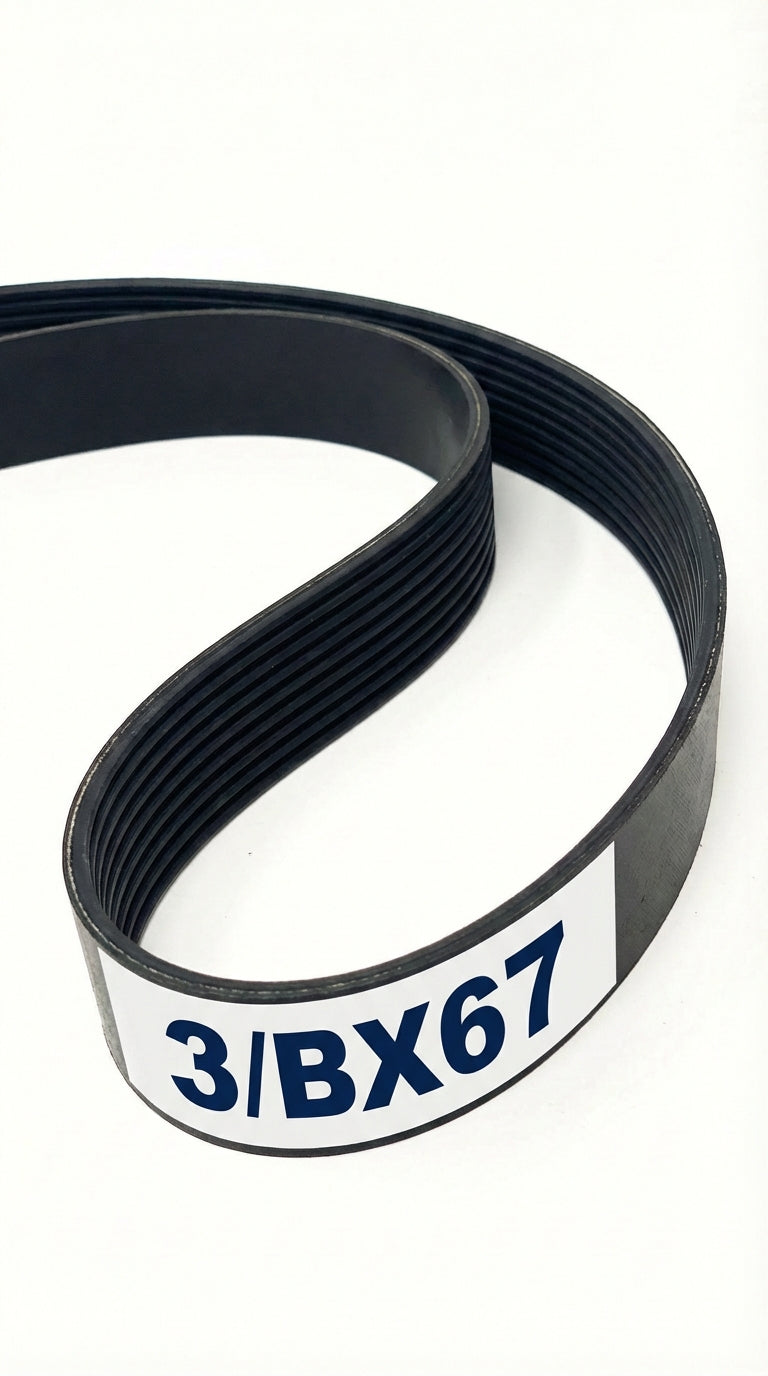

The 3/BX67 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 68.8" long, offering improved flexibility around smaller pulleys.

3/BX67 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 68.8" (1747.5mm)
• Inside Length: 67" (1701.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX67 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

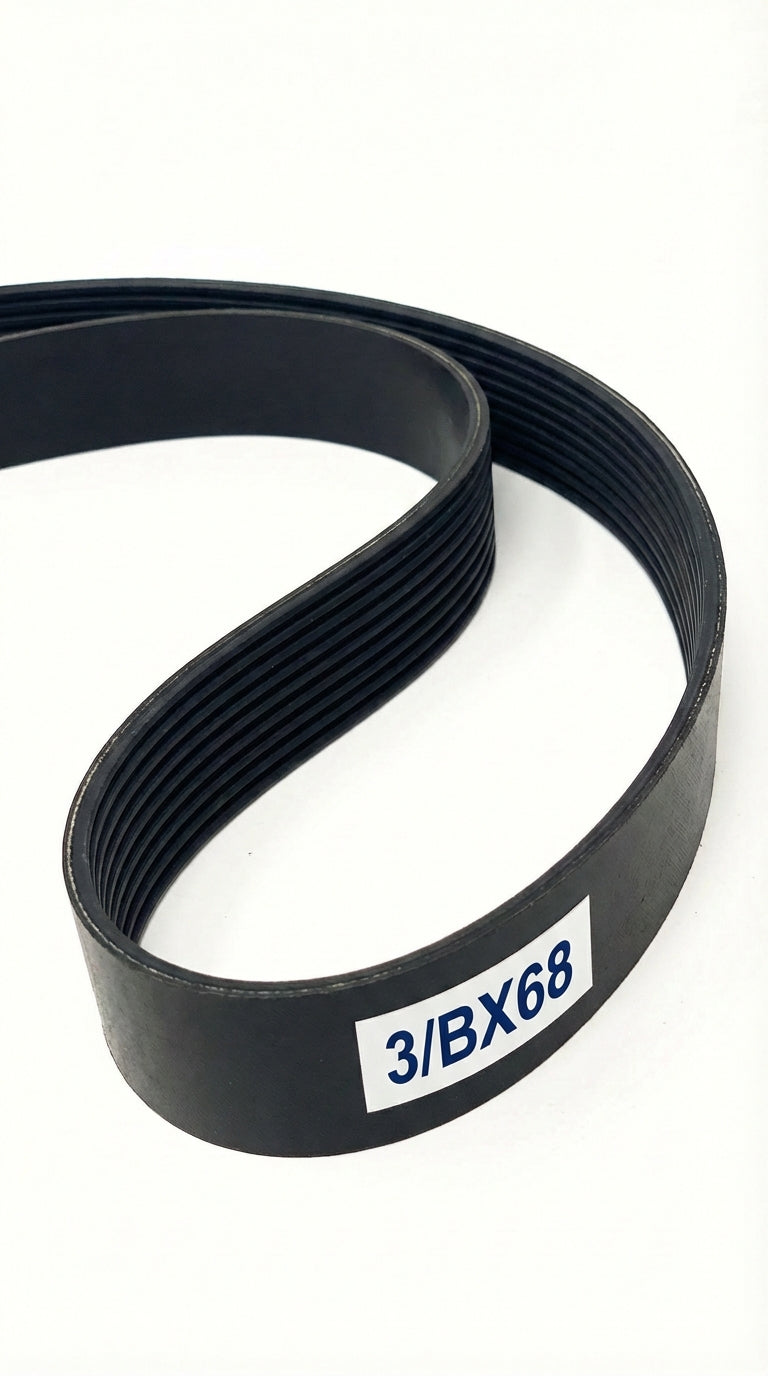

The 3/BX68 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 69.8" long, offering improved flexibility around smaller pulleys.

3/BX68 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 69.8" (1772.9mm)
• Inside Length: 68" (1727.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX68 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
