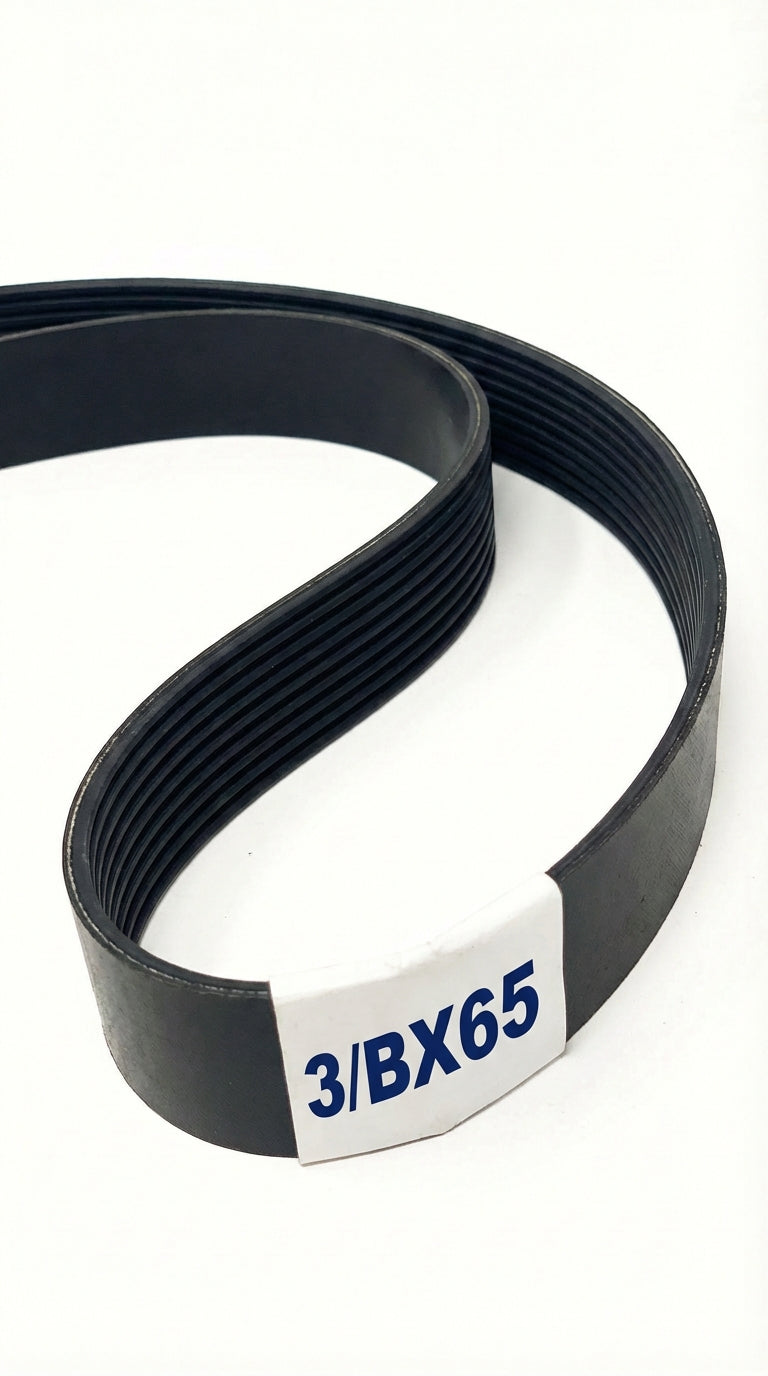

3/BX65

Top Width: 2.028" (51.51mm)
Outside Length: 66.8" (1696.7mm)
Inside Length: 65" (1651mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/BX65 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 66.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216450

$68.11

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	3/BX65
Top Width	2.028 in / 51.51 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	65.0 in / 1651.0 mm
Outside Length	66.8 in / 1696.7 mm
Effective Length	66.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	3
Cogged	Yes
