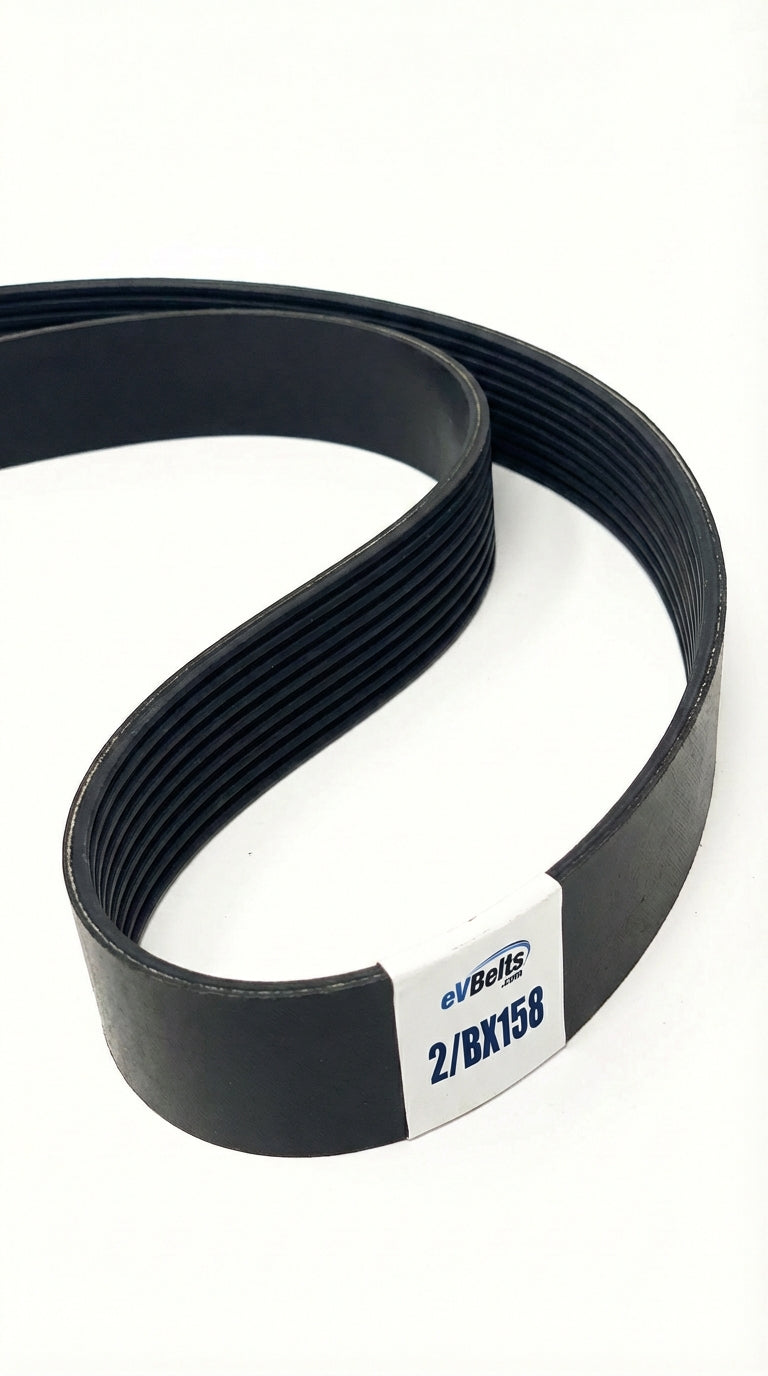

2/BX158

Top Width: 1.342" (34.09mm)
Outside Length: 159.8" (4058.9mm)
Inside Length: 158" (4013.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 2-Band Set

The 2/BX158 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 159.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216438

$90.64

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/BX158
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	158.0 in / 4013.2 mm
Outside Length	159.8 in / 4058.9 mm
Effective Length	159.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	2
Cogged	Yes
