The 12/BX56 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 57.8" long, offering improved flexibility around smaller pulleys.

12/BX56 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 57.8" (1468.1mm)
• Inside Length: 56" (1422.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX56 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

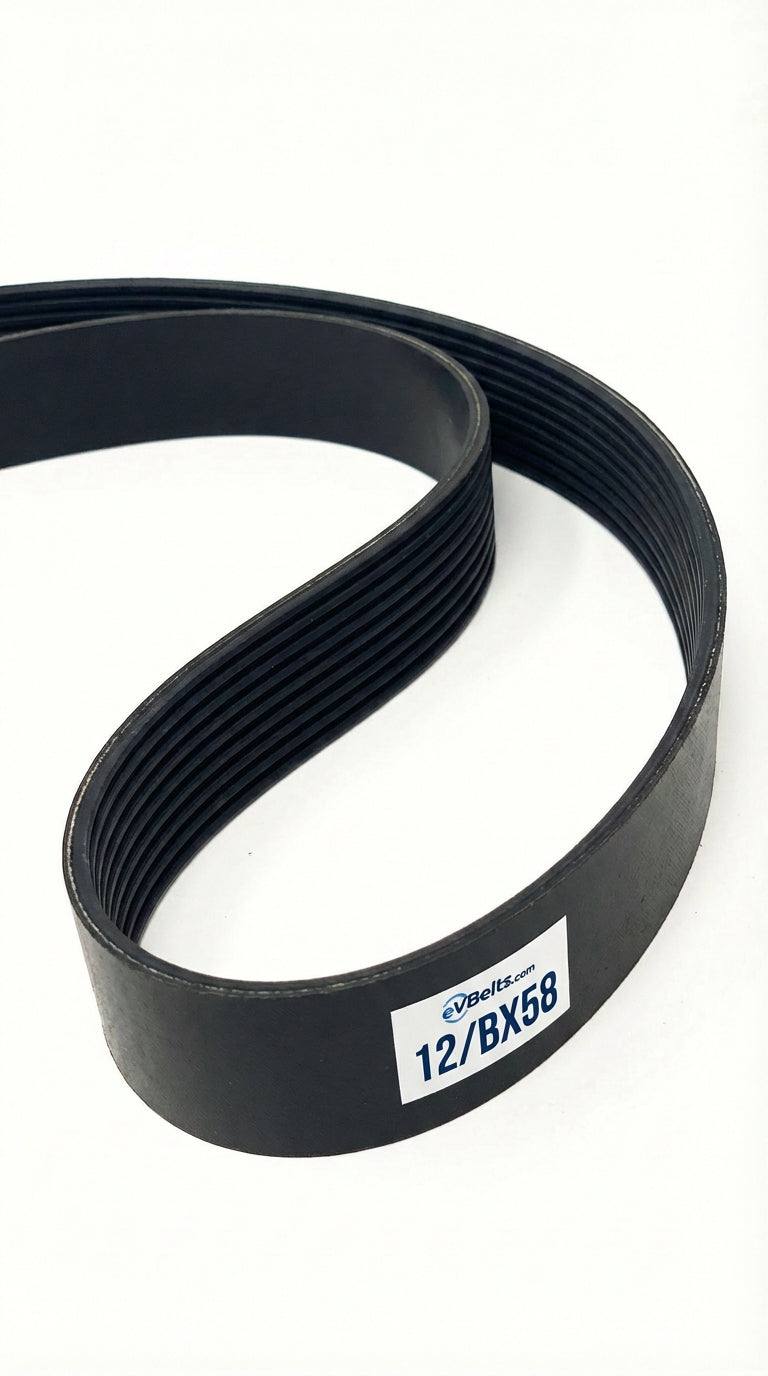

The 12/BX58 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 59.8" long, offering improved flexibility around smaller pulleys.

12/BX58 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 59.8" (1518.9mm)
• Inside Length: 58" (1473.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX58 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

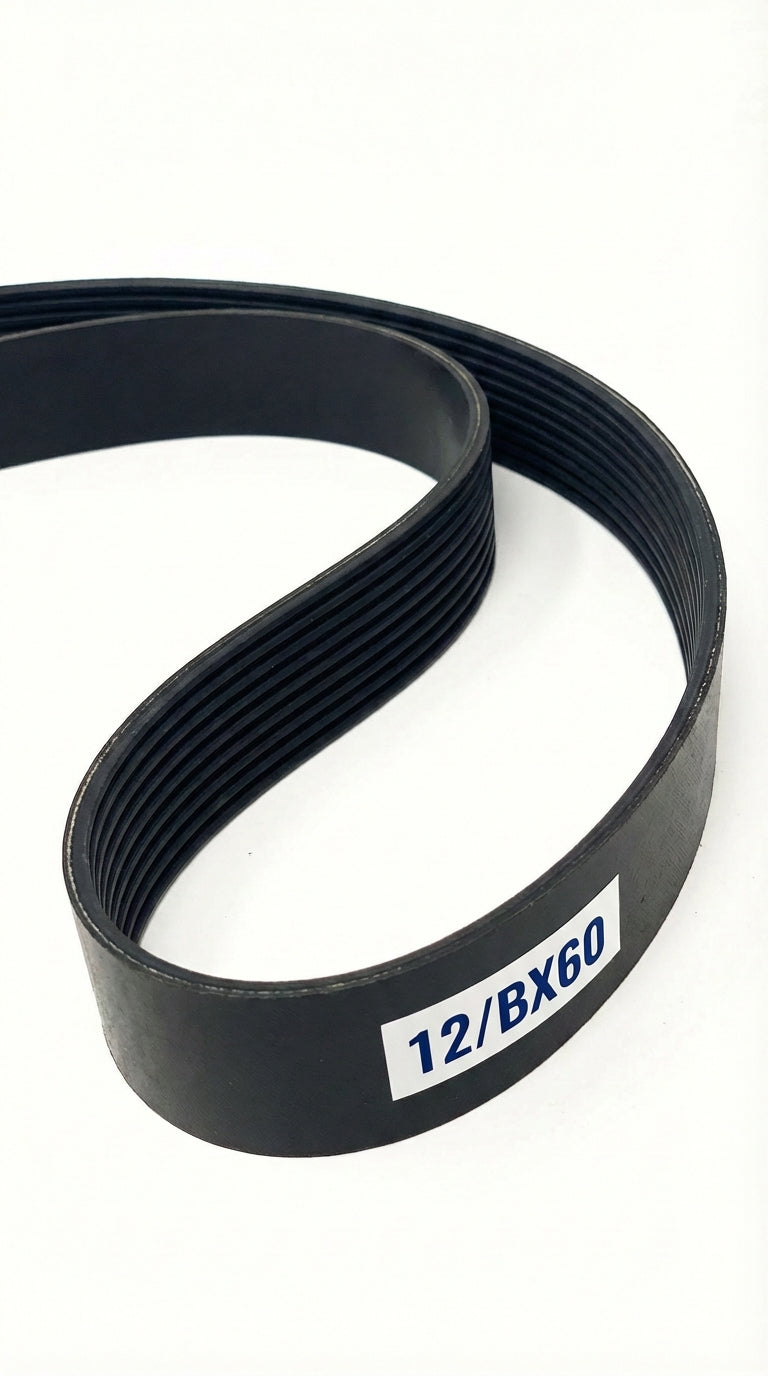

The 12/BX60 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 61.8" long, offering improved flexibility around smaller pulleys.

12/BX60 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 61.8" (1569.7mm)
• Inside Length: 60" (1524mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX60 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

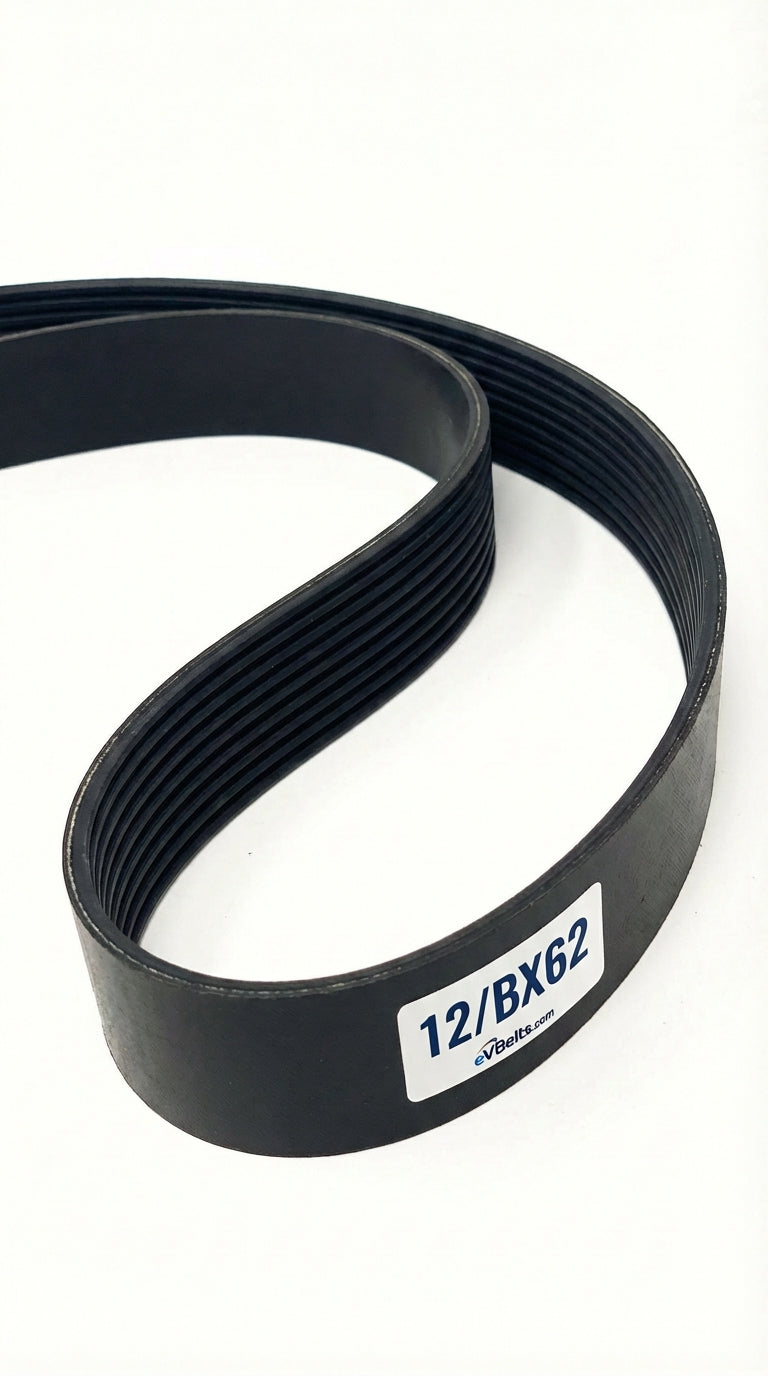

The 12/BX62 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 63.8" long, offering improved flexibility around smaller pulleys.

12/BX62 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 63.8" (1620.5mm)
• Inside Length: 62" (1574.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX62 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

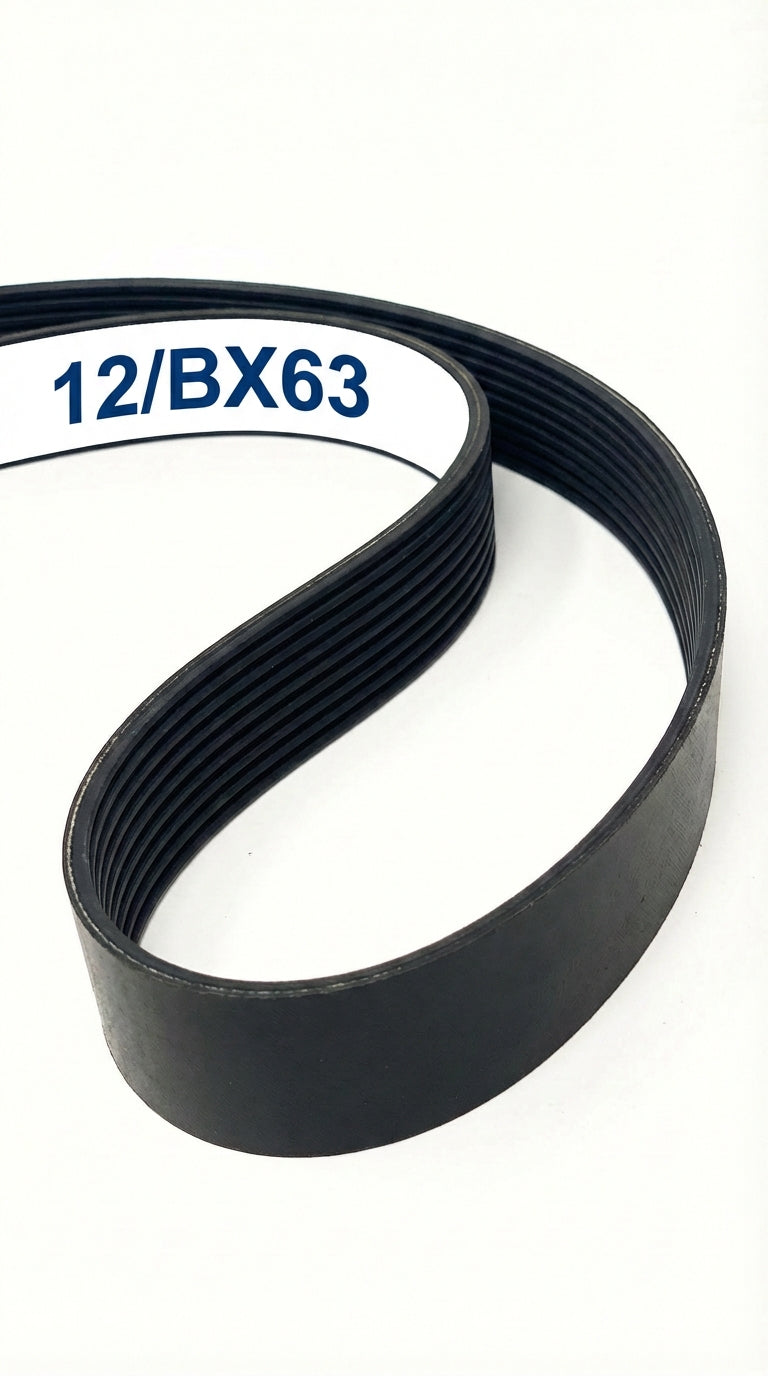

The 12/BX63 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 64.8" long, offering improved flexibility around smaller pulleys.

12/BX63 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 64.8" (1645.9mm)
• Inside Length: 63" (1600.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX63 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX64 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 65.8" long, offering improved flexibility around smaller pulleys.

12/BX64 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 65.8" (1671.3mm)
• Inside Length: 64" (1625.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX64 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

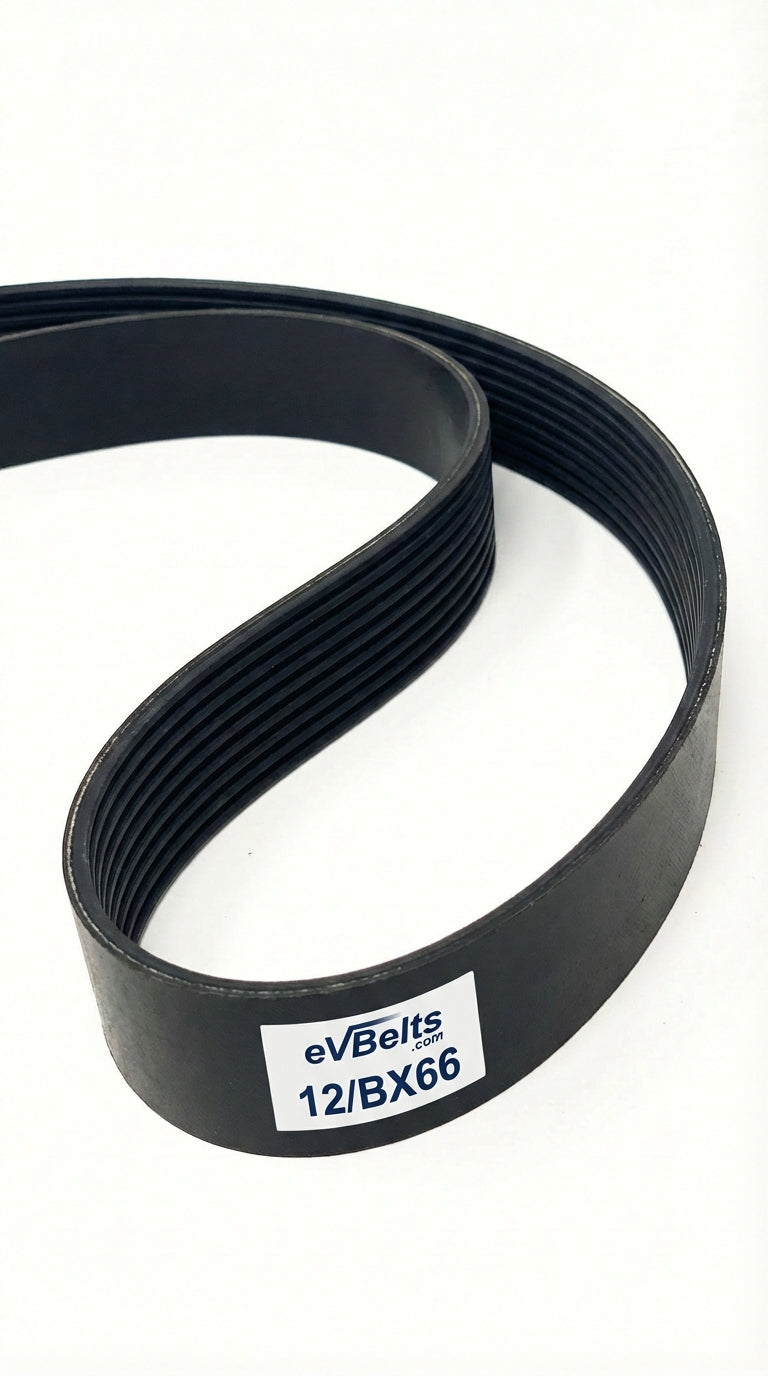

The 12/BX66 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 67.8" long, offering improved flexibility around smaller pulleys.

12/BX66 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 67.8" (1722.1mm)
• Inside Length: 66" (1676.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX66 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX65 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 66.8" long, offering improved flexibility around smaller pulleys.

12/BX65 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 66.8" (1696.7mm)
• Inside Length: 65" (1651mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX65 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

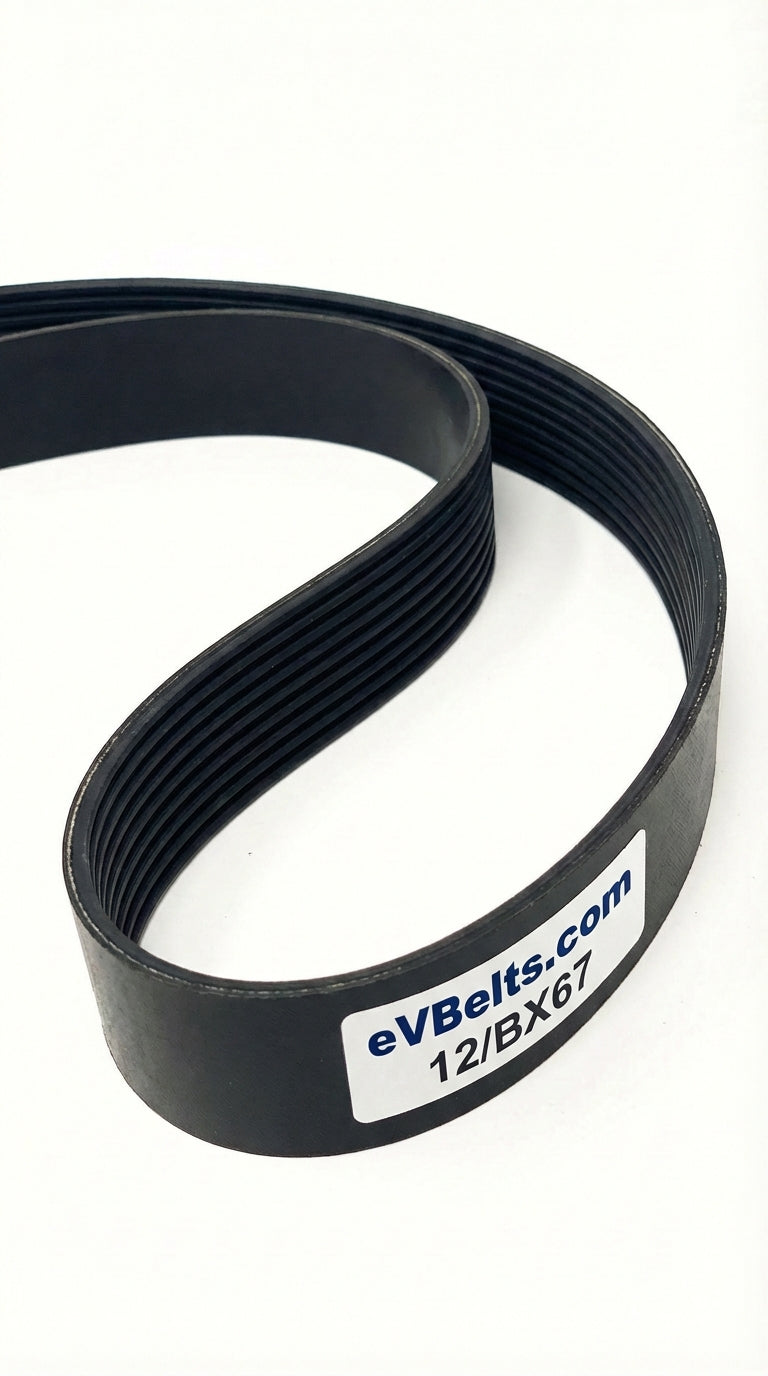

The 12/BX67 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 68.8" long, offering improved flexibility around smaller pulleys.

12/BX67 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 68.8" (1747.5mm)
• Inside Length: 67" (1701.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX67 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

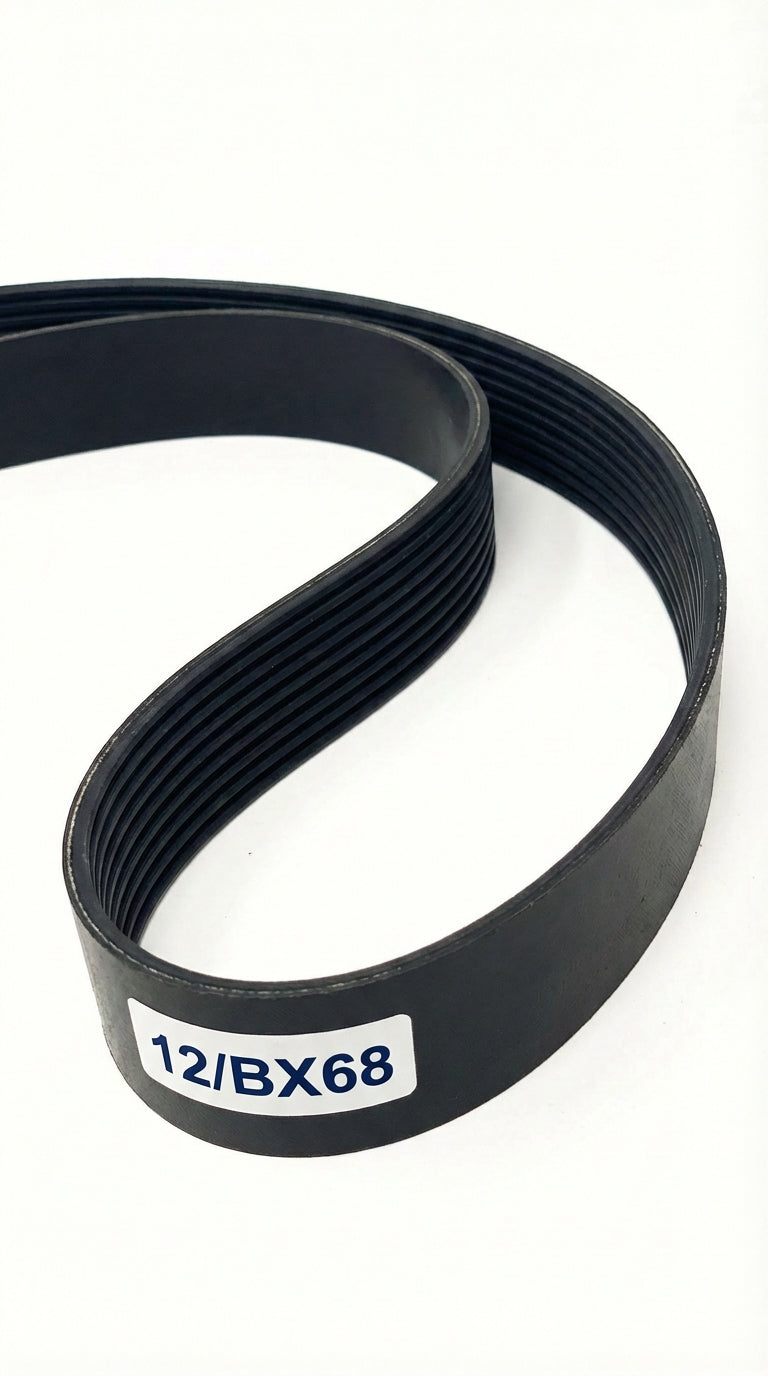

The 12/BX68 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 69.8" long, offering improved flexibility around smaller pulleys.

12/BX68 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 69.8" (1772.9mm)
• Inside Length: 68" (1727.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX68 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX71 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 72.8" long, offering improved flexibility around smaller pulleys.

12/BX71 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 72.8" (1849.1mm)
• Inside Length: 71" (1803.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX71 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX70 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 71.8" long, offering improved flexibility around smaller pulleys.

12/BX70 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 71.8" (1823.7mm)
• Inside Length: 70" (1778mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX70 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX74 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 75.8" long, offering improved flexibility around smaller pulleys.

12/BX74 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 75.8" (1925.3mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX74 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX75 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 76.8" long, offering improved flexibility around smaller pulleys.

12/BX75 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 76.8" (1950.7mm)
• Inside Length: 75" (1905mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX75 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

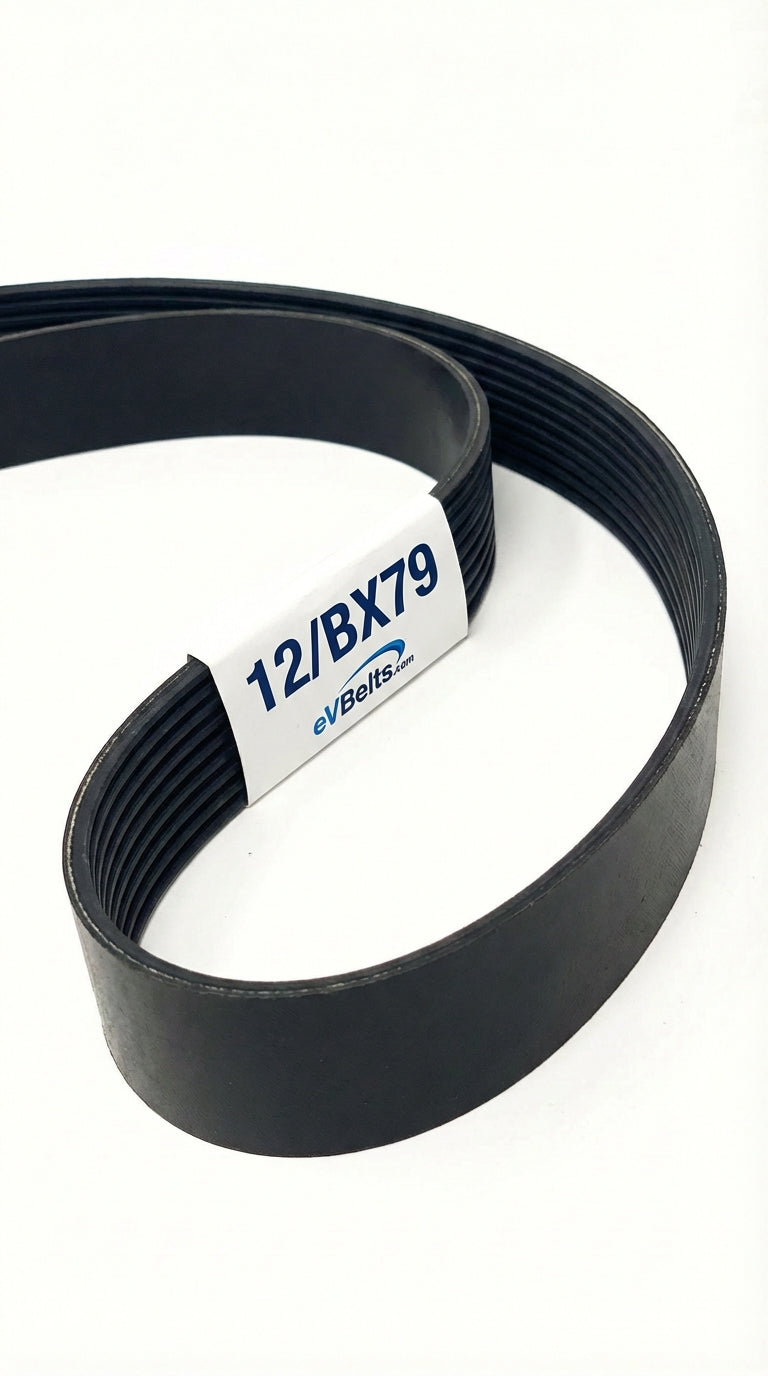

The 12/BX79 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 80.8" long, offering improved flexibility around smaller pulleys.

12/BX79 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 80.8" (2052.3mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX79 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

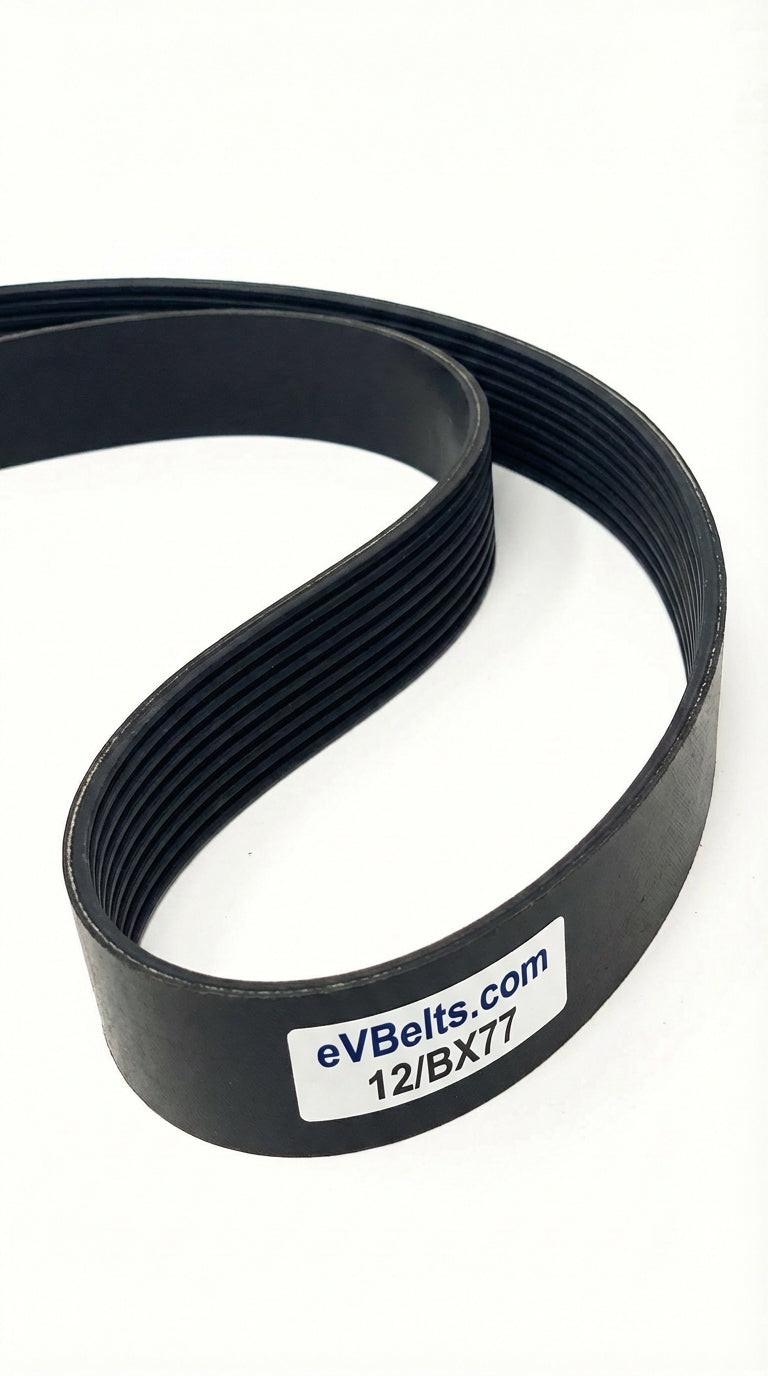

The 12/BX77 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 78.8" long, offering improved flexibility around smaller pulleys.

12/BX77 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 78.8" (2001.5mm)
• Inside Length: 77" (1955.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX77 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

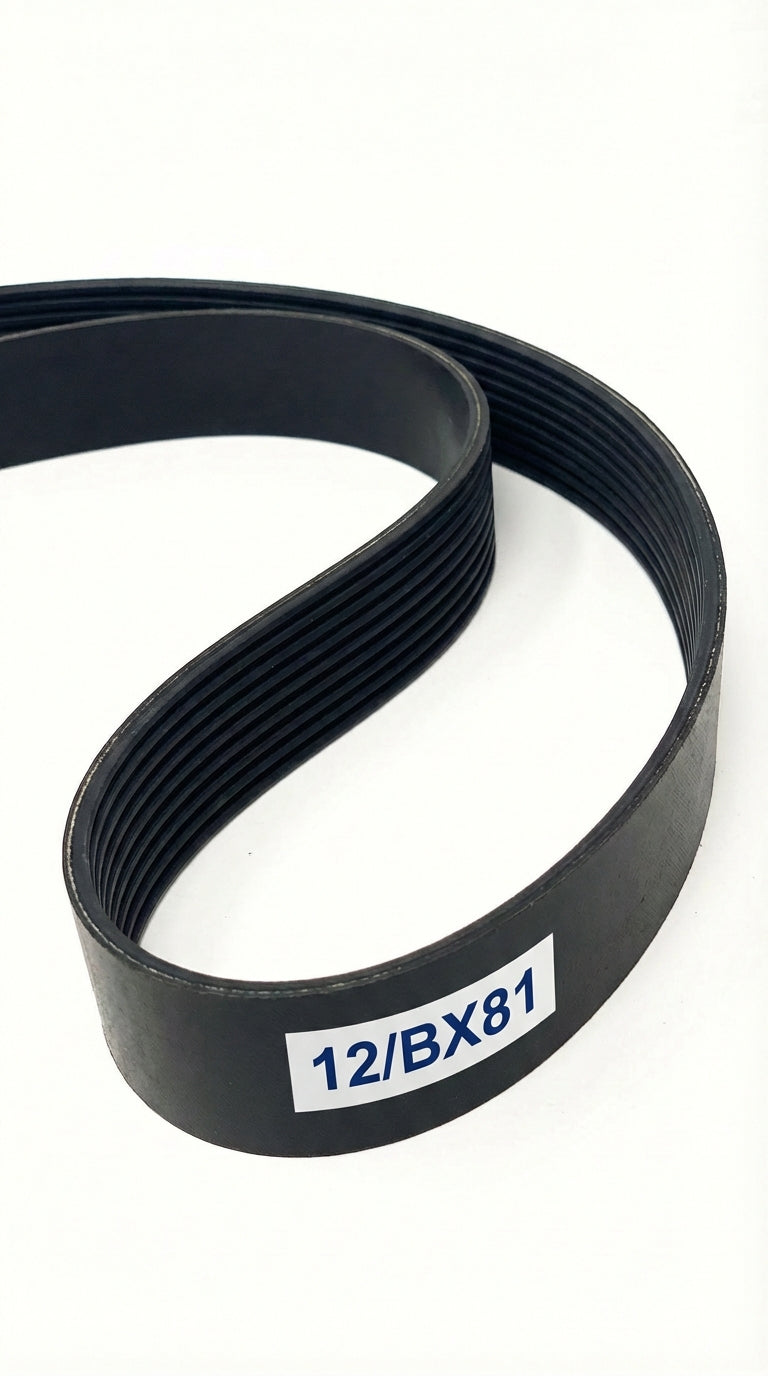

The 12/BX81 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 82.8" long, offering improved flexibility around smaller pulleys.

12/BX81 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 82.8" (2103.1mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX81 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX83 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 84.8" long, offering improved flexibility around smaller pulleys.

12/BX83 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 84.8" (2153.9mm)
• Inside Length: 83" (2108.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX83 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX84 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 85.8" long, offering improved flexibility around smaller pulleys.

12/BX84 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 85.8" (2179.3mm)
• Inside Length: 84" (2133.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX84 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 12/BX85 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 86.8" long, offering improved flexibility around smaller pulleys.

12/BX85 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 86.8" (2204.7mm)
• Inside Length: 85" (2159mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX85 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

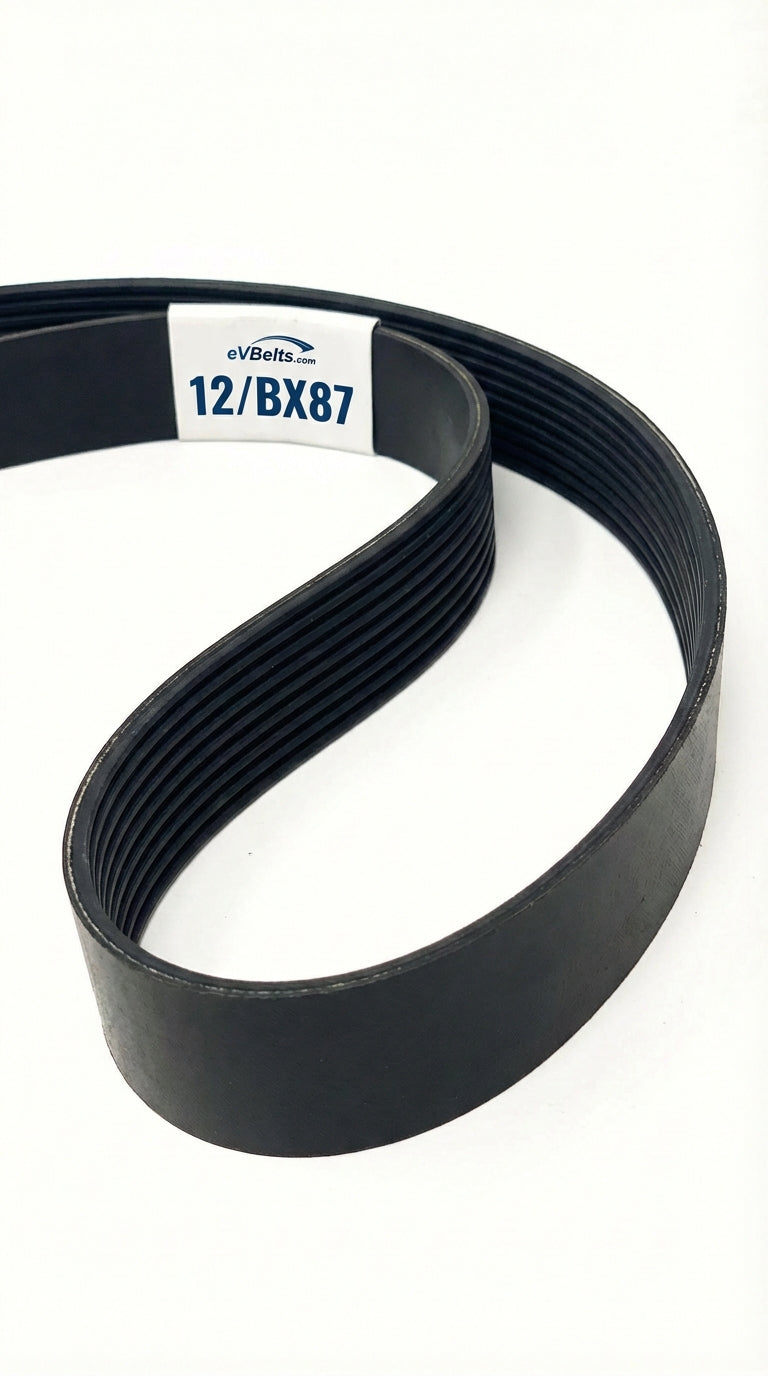

The 12/BX87 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 88.8" long, offering improved flexibility around smaller pulleys.

12/BX87 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 88.8" (2255.5mm)
• Inside Length: 87" (2209.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX87 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

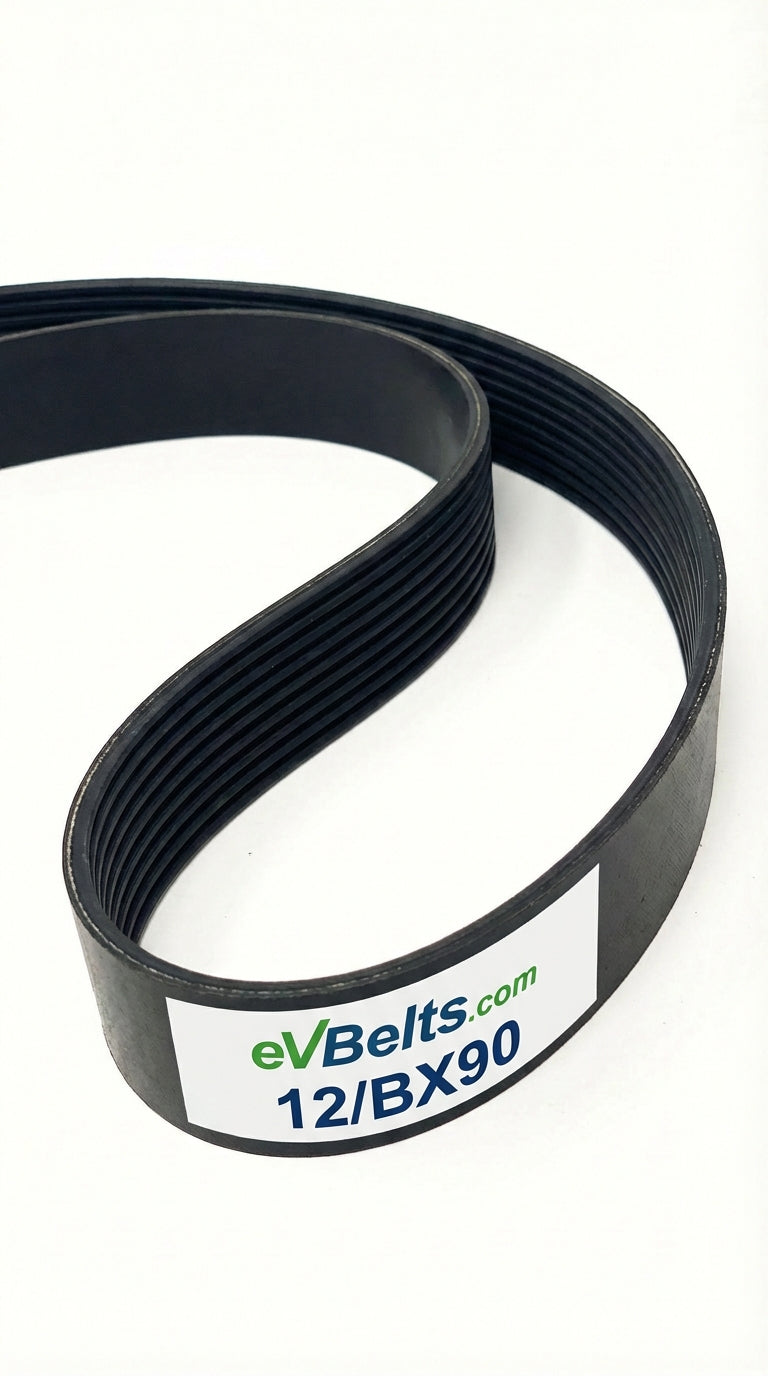

The 12/BX90 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 91.8" long, offering improved flexibility around smaller pulleys.

12/BX90 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 91.8" (2331.7mm)
• Inside Length: 90" (2286mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX90 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

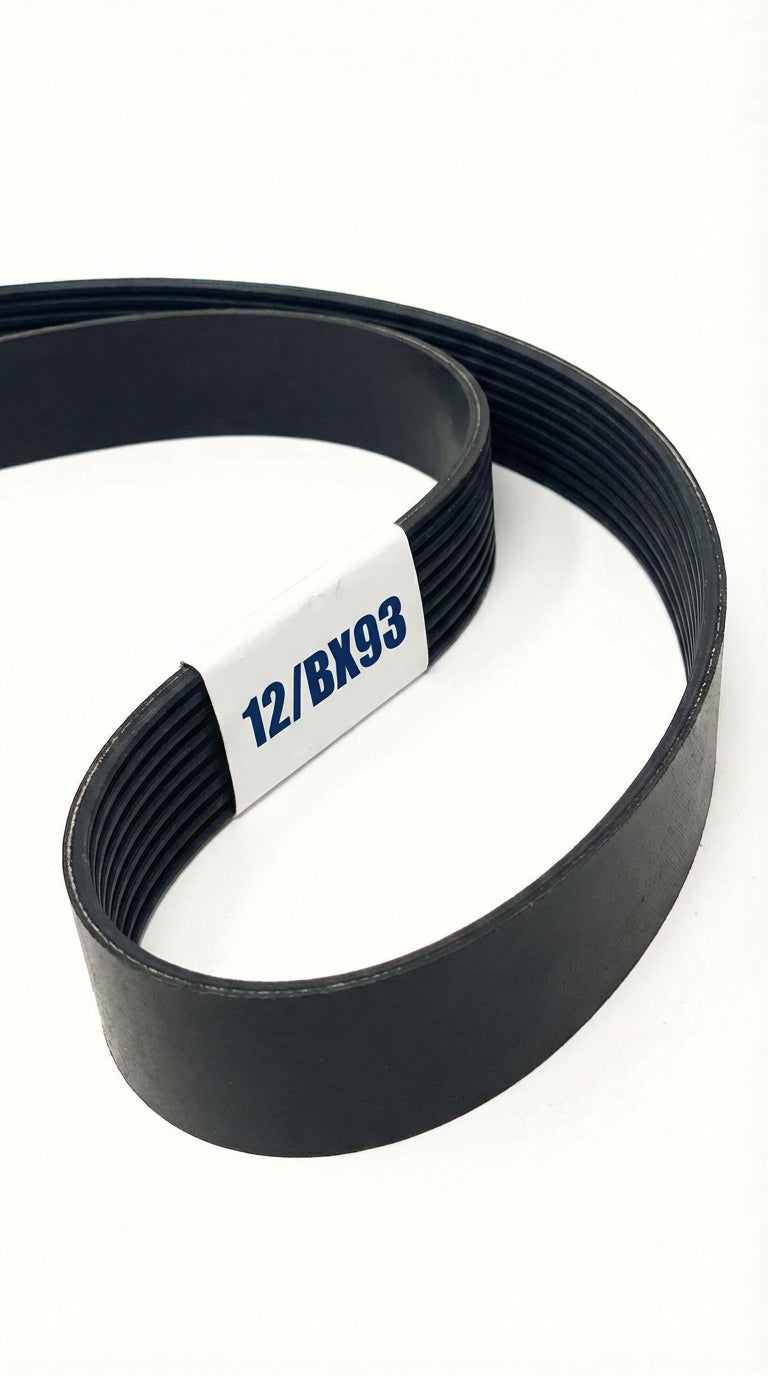

The 12/BX93 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 94.8" long, offering improved flexibility around smaller pulleys.

12/BX93 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 94.8" (2407.9mm)
• Inside Length: 93" (2362.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX93 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

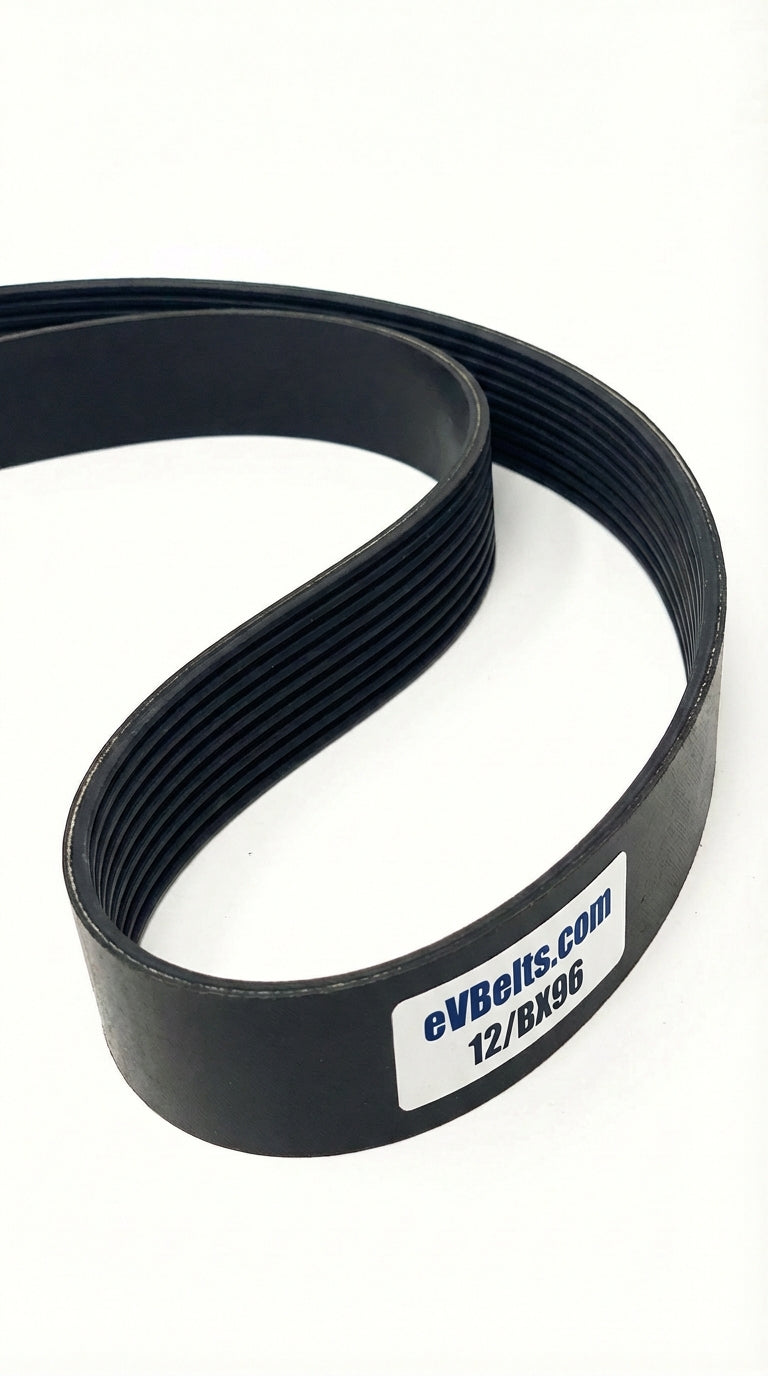

The 12/BX96 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 97.8" long, offering improved flexibility around smaller pulleys.

12/BX96 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 97.8" (2484.1mm)
• Inside Length: 96" (2438.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX96 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

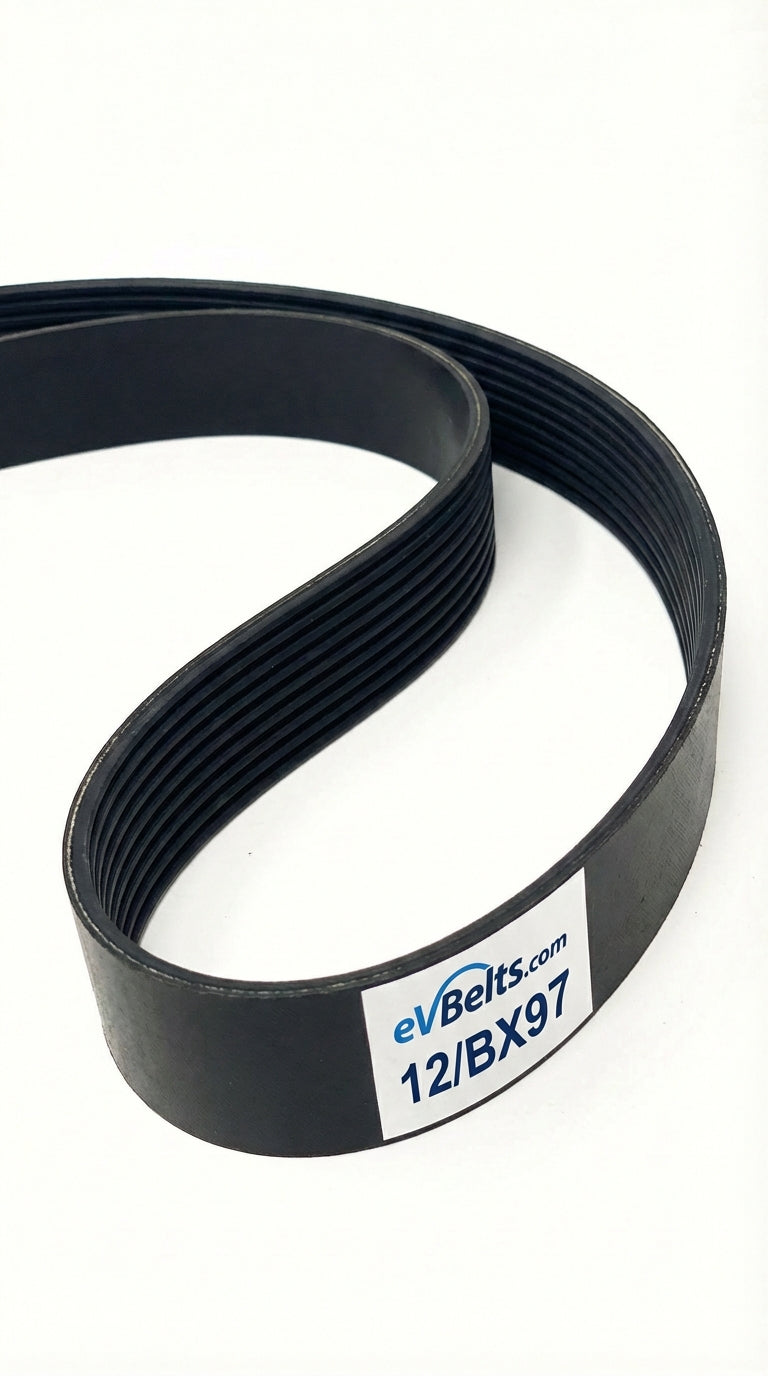

The 12/BX97 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 98.8" long, offering improved flexibility around smaller pulleys.

12/BX97 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 98.8" (2509.5mm)
• Inside Length: 97" (2463.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX97 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

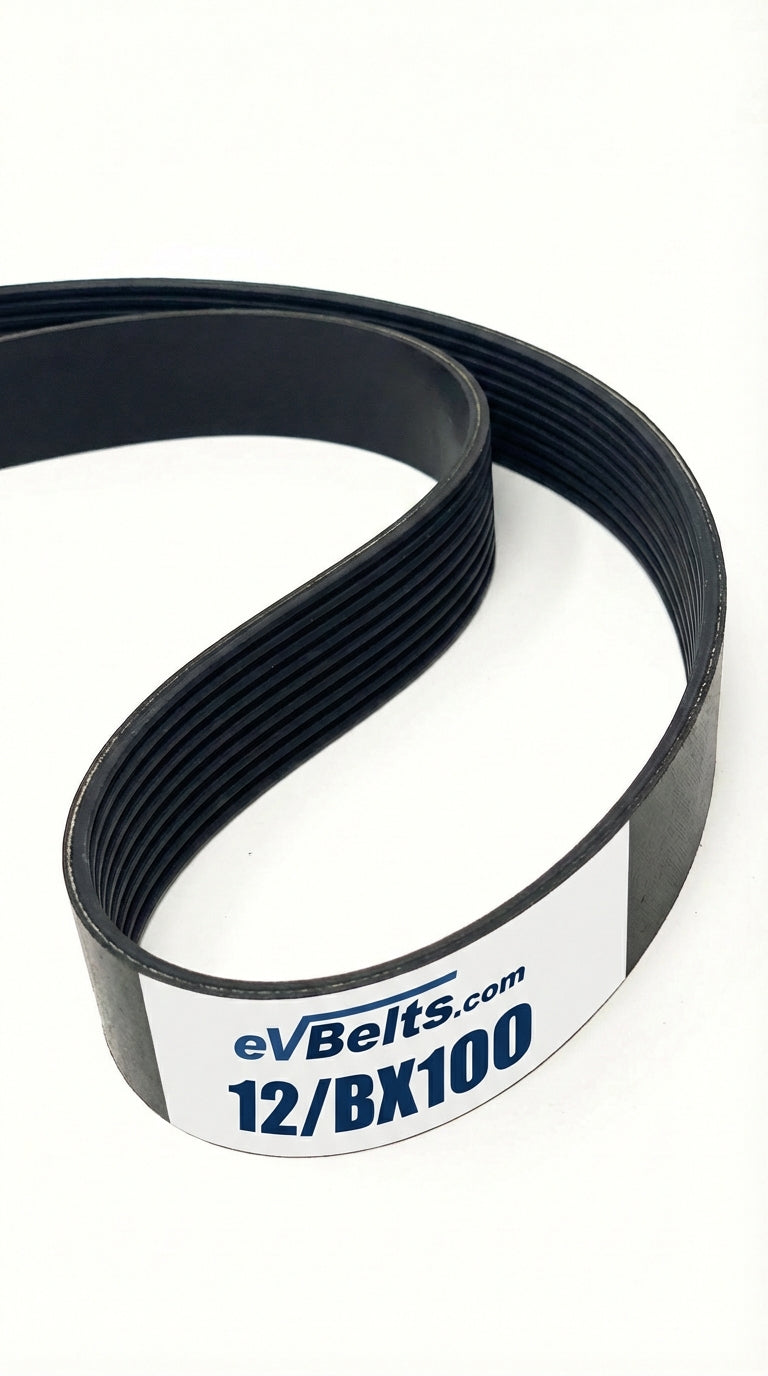

The 12/BX100 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 101.8" long, offering improved flexibility around smaller pulleys.

12/BX100 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 101.8" (2585.7mm)
• Inside Length: 100" (2540mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX100 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

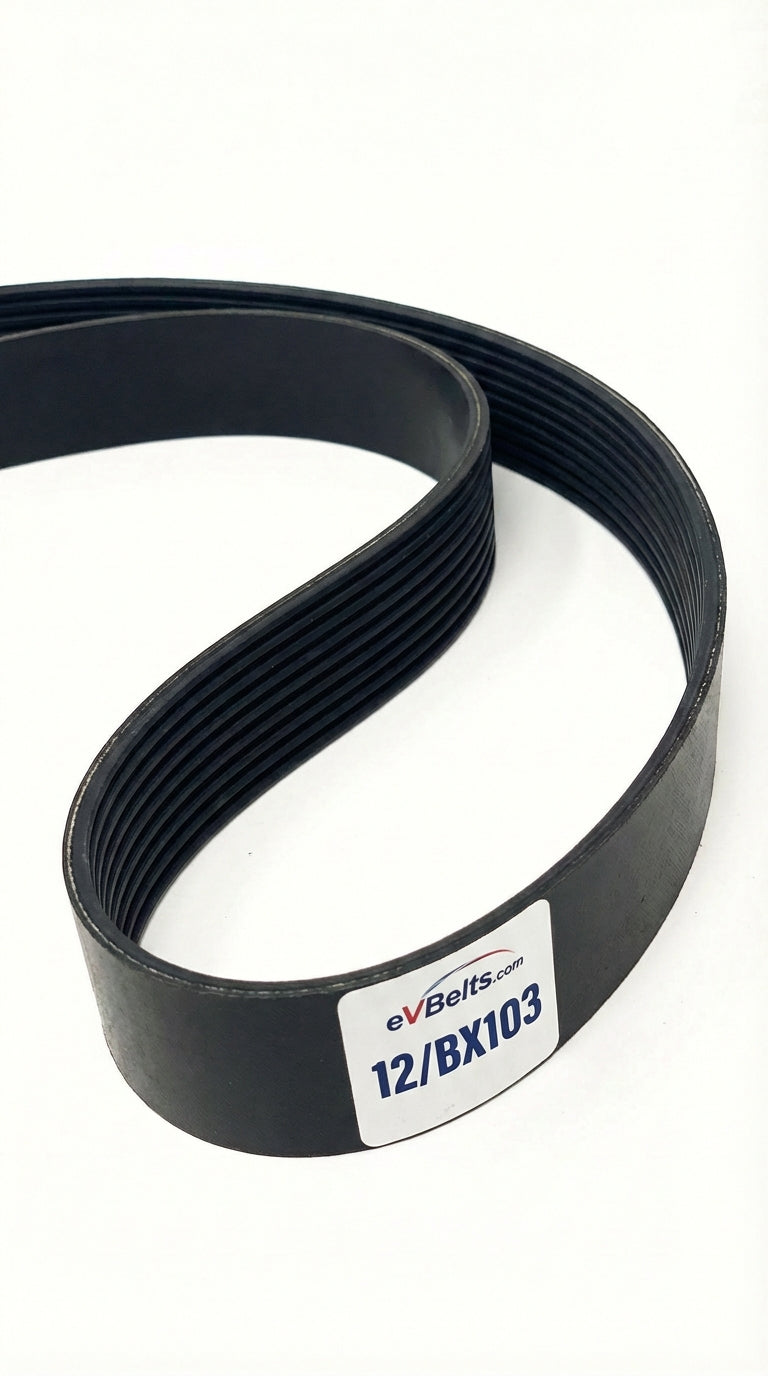

The 12/BX103 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 104.8" long, offering improved flexibility around smaller pulleys.

12/BX103 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 104.8" (2661.9mm)
• Inside Length: 103" (2616.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX103 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

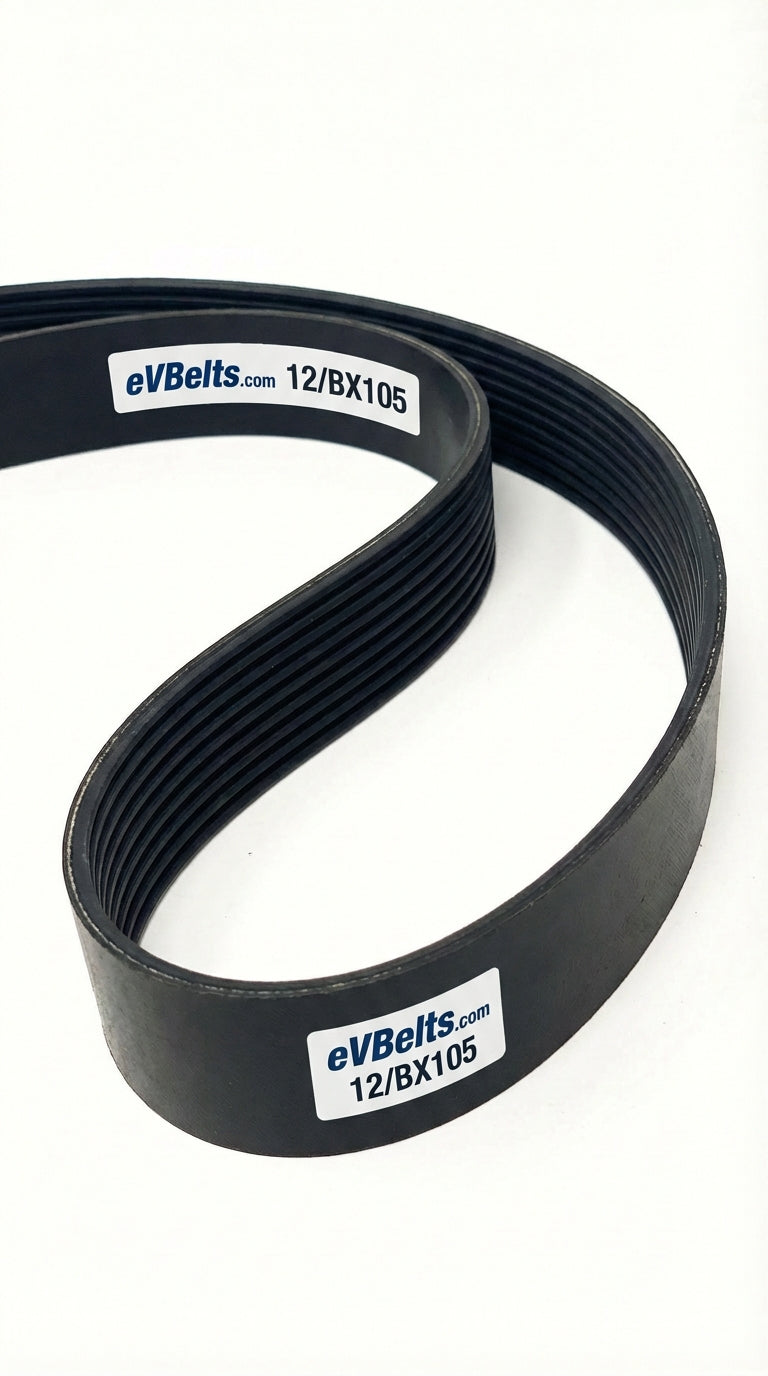

The 12/BX105 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 106.8" long, offering improved flexibility around smaller pulleys.

12/BX105 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 106.8" (2712.7mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX105 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

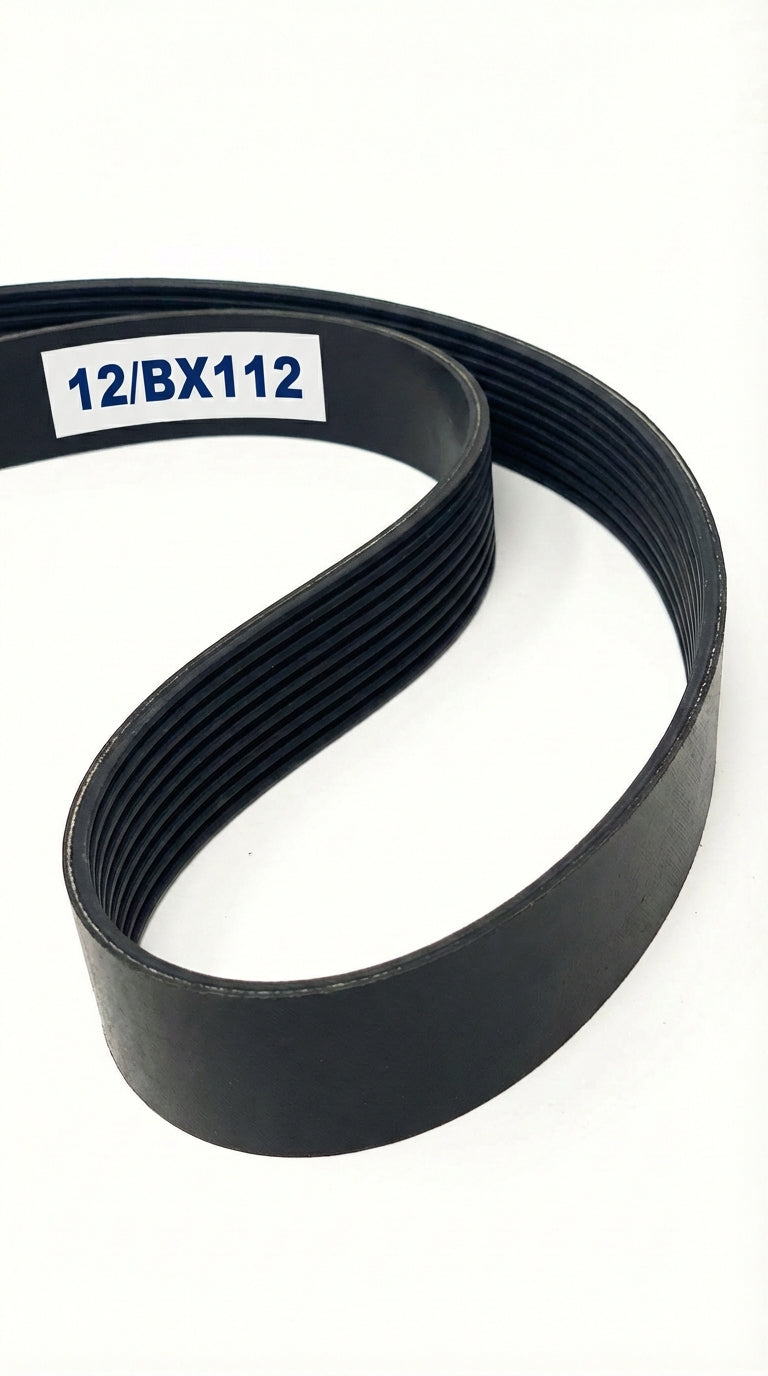

The 12/BX112 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 113.8" long, offering improved flexibility around smaller pulleys.

12/BX112 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 113.8" (2890.5mm)
• Inside Length: 112" (2844.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX112 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

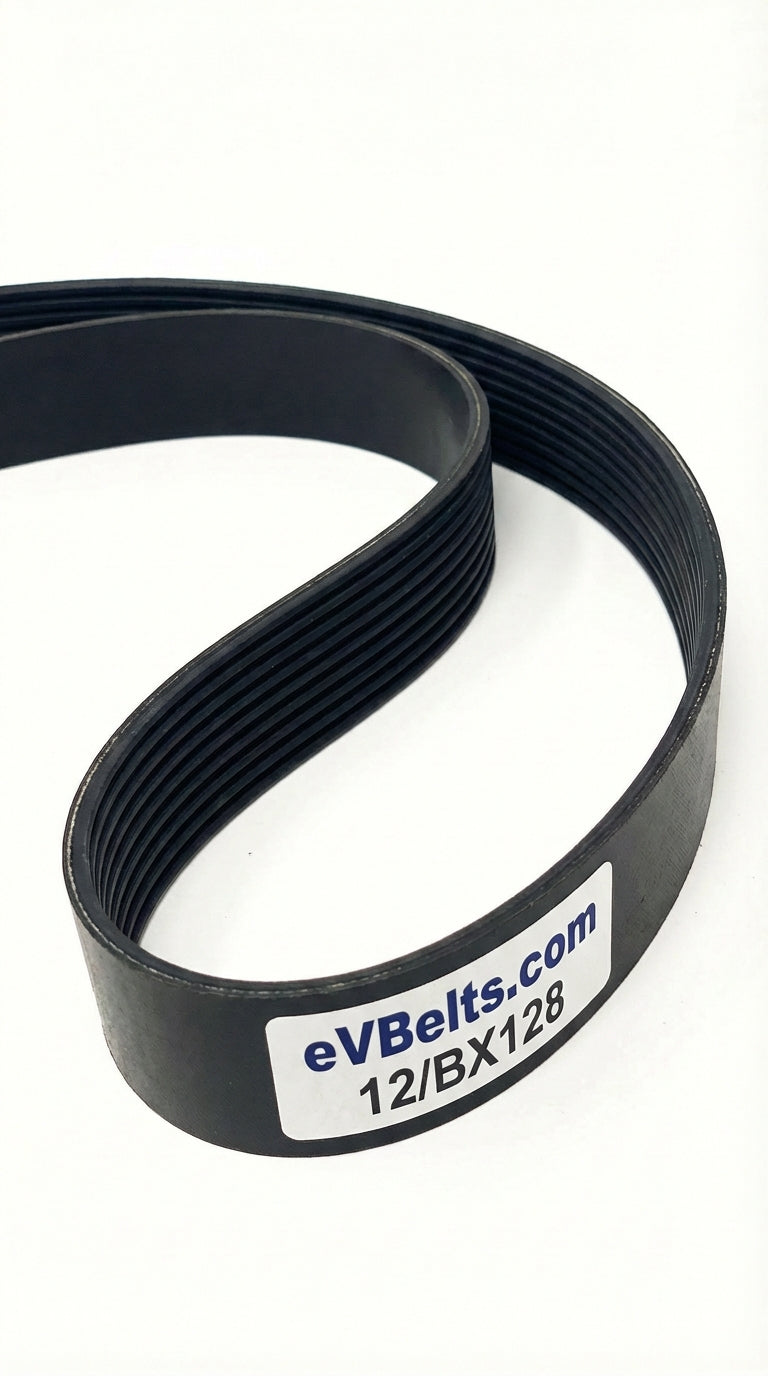

The 12/BX128 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 129.8" long, offering improved flexibility around smaller pulleys.

12/BX128 Specifications

• Top Width: 8.202" (208.33mm)
• Outside Length: 129.8" (3296.9mm)
• Inside Length: 128" (3251.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 12-Band Set

The 12/BX128 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
