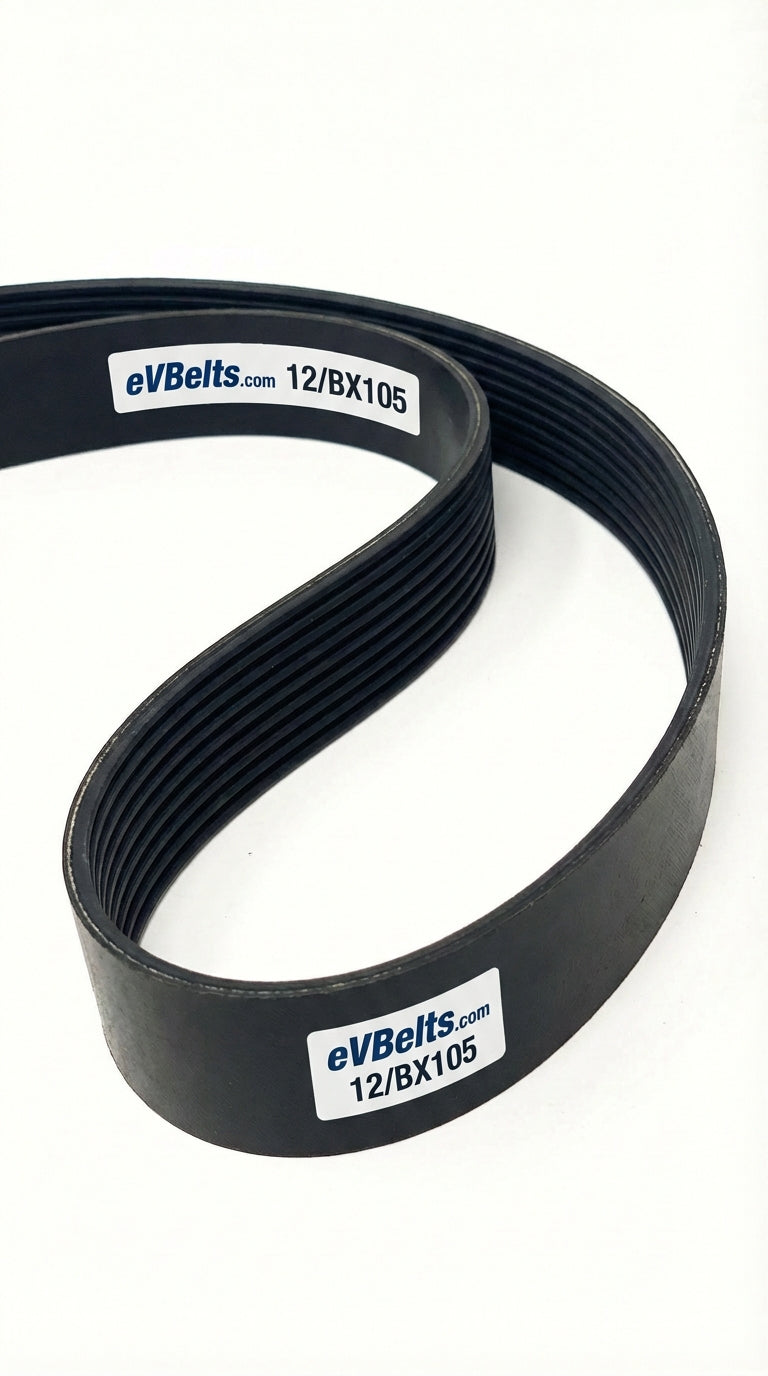

12/BX105

Top Width: 8.202" (208.33mm)
Outside Length: 106.8" (2712.7mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 12-Band Set

The 12/BX105 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 106.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216390

$559.54

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	12/BX105
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	106.8 in / 2712.7 mm
Effective Length	106.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	12
Cogged	Yes
