12/BX66

Top Width: 8.202" (208.33mm)
Outside Length: 67.8" (1722.1mm)
Inside Length: 66" (1676.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 12-Band Set

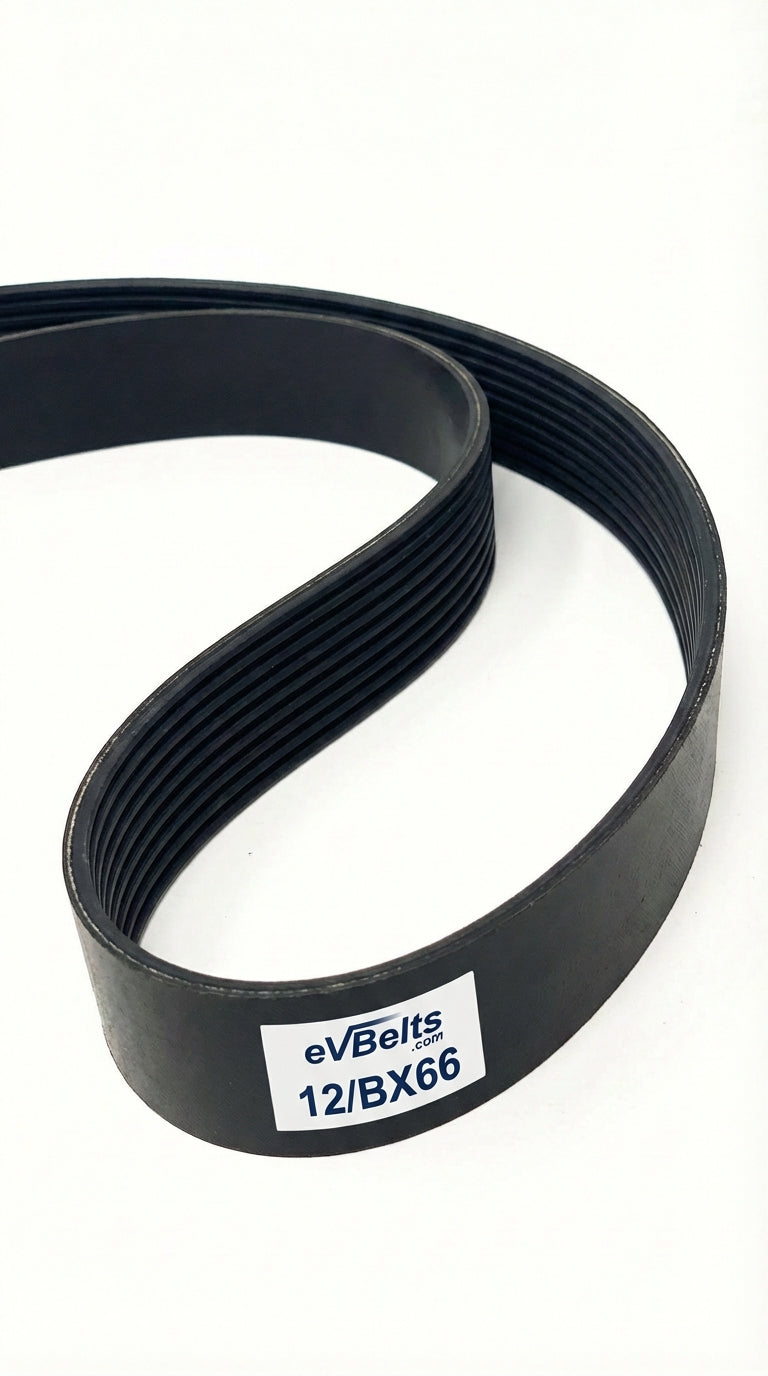

The 12/BX66 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 67.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216369

$362.46

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	12/BX66
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	66.0 in / 1676.4 mm
Outside Length	67.8 in / 1722.1 mm
Effective Length	67.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	12
Cogged	Yes
