The AX19 is a cogged (notched) V-belt measuring 0.5" wide x 20.3" long, offering improved flexibility around smaller pulleys.

AX19 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 20.3" (515.6mm)
• Inside Length: 19" (482.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by AX19

• 1108455
• 1526
• 9040B
• BE116
• PA8408

The AX19 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

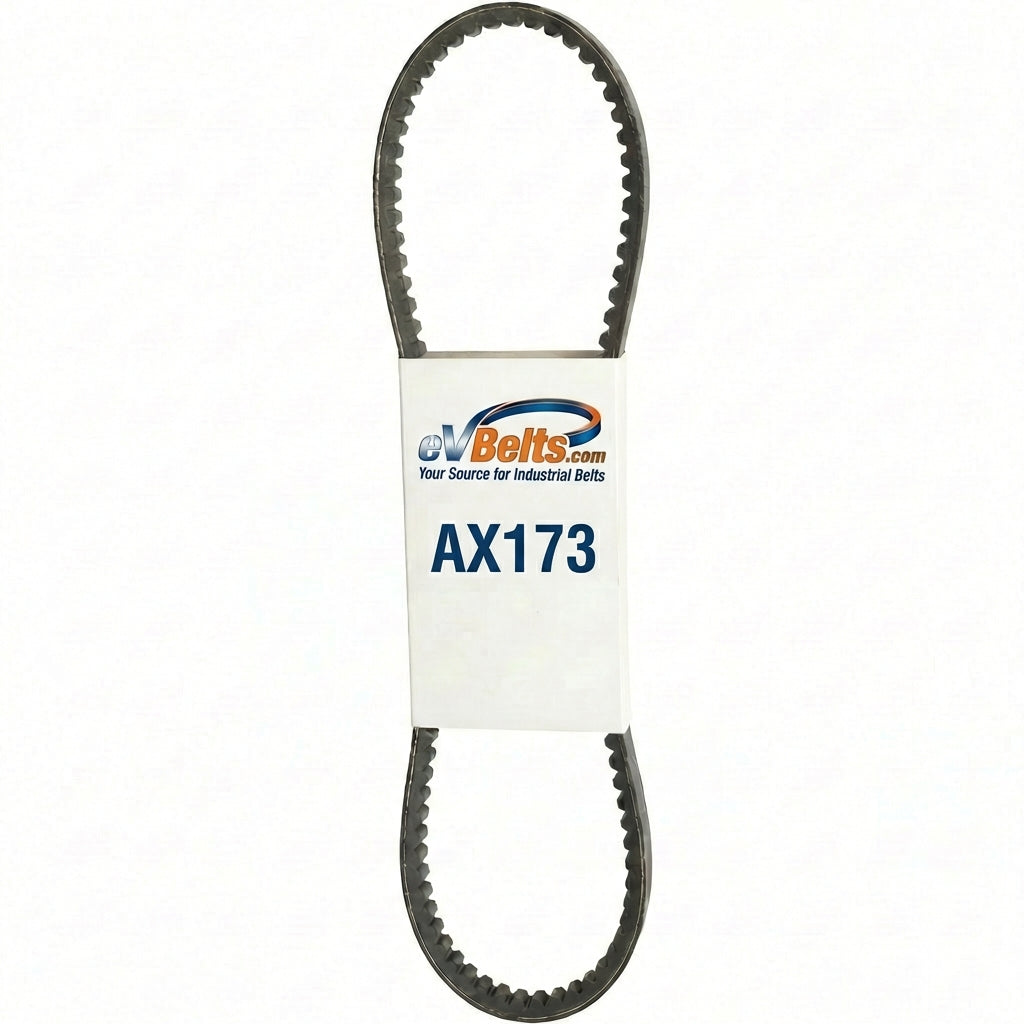

The AX173 is a cogged (notched) V-belt measuring 0.5" wide x 174.3" long, offering improved flexibility around smaller pulleys.

AX173 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 174.3" (4427.2mm)
• Inside Length: 173" (4394.2mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX173 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX100 is a cogged (notched) V-belt measuring 0.5" wide x 101.3" long, offering improved flexibility around smaller pulleys.

AX100 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 101.3" (2573mm)
• Inside Length: 100" (2540mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX100 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX103 is a cogged (notched) V-belt measuring 0.5" wide x 104.3" long, offering improved flexibility around smaller pulleys.

AX103 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 104.3" (2649.2mm)
• Inside Length: 103" (2616.2mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX103 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX105 is a cogged (notched) V-belt measuring 0.5" wide x 106.3" long, offering improved flexibility around smaller pulleys.

AX105 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 106.3" (2700mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX105 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX110 is a cogged (notched) V-belt measuring 0.5" wide x 111.3" long, offering improved flexibility around smaller pulleys.

AX110 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 111.3" (2827mm)
• Inside Length: 110" (2794mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX110 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX112 is a cogged (notched) V-belt measuring 0.5" wide x 113.3" long, offering improved flexibility around smaller pulleys.

AX112 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 113.3" (2877.8mm)
• Inside Length: 112" (2844.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX112 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX120 is a cogged (notched) V-belt measuring 0.5" wide x 121.3" long, offering improved flexibility around smaller pulleys.

AX120 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 121.3" (3081mm)
• Inside Length: 120" (3048mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX120 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

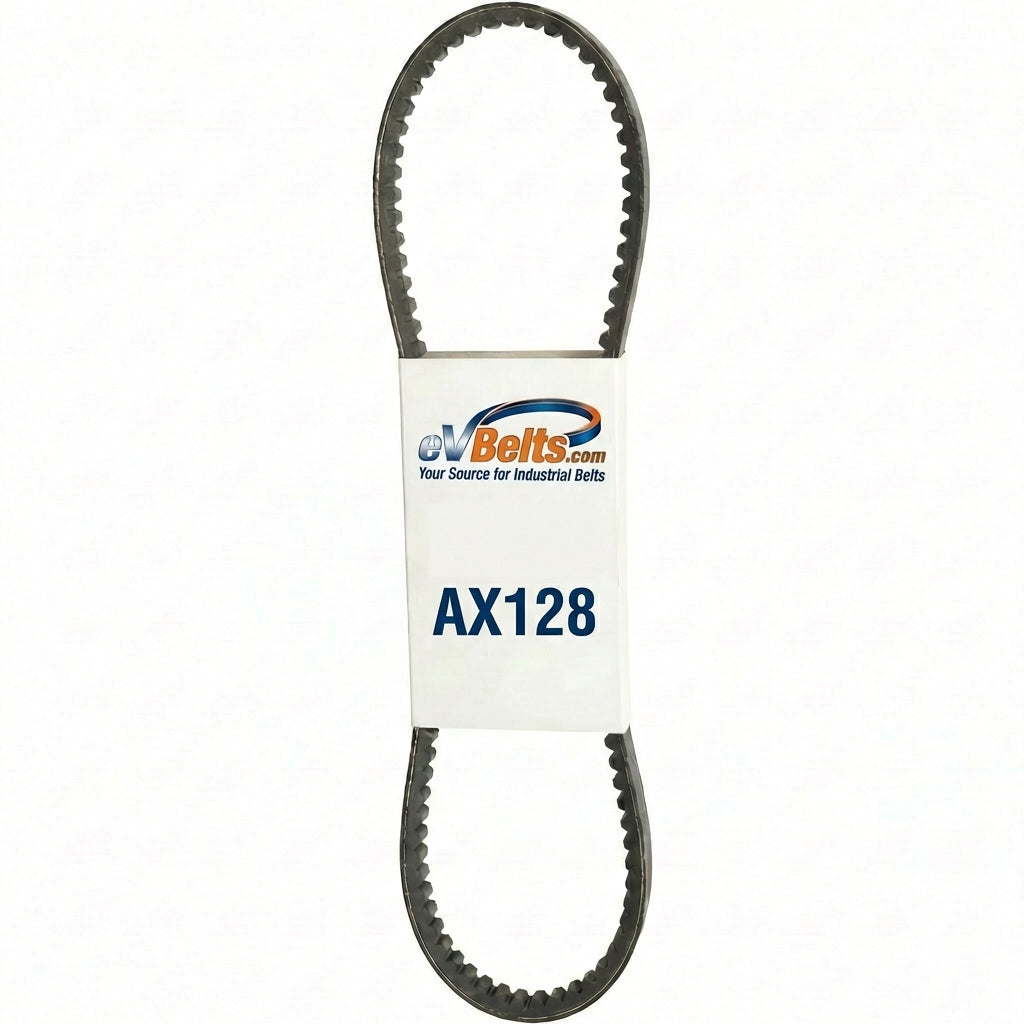

The AX128 is a cogged (notched) V-belt measuring 0.5" wide x 129.3" long, offering improved flexibility around smaller pulleys.

AX128 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 129.3" (3284.2mm)
• Inside Length: 128" (3251.2mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX128 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX144 is a cogged (notched) V-belt measuring 0.5" wide x 145.3" long, offering improved flexibility around smaller pulleys.

AX144 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 145.3" (3690.6mm)
• Inside Length: 144" (3657.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX144 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX21 is a cogged (notched) V-belt measuring 0.5" wide x 22.3" long, offering improved flexibility around smaller pulleys.

AX21 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 22.3" (566.4mm)
• Inside Length: 21" (533.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX21 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX29 is a cogged (notched) V-belt measuring 0.5" wide x 30.3" long, offering improved flexibility around smaller pulleys.

AX29 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 30.3" (769.6mm)
• Inside Length: 29" (736.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX29 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

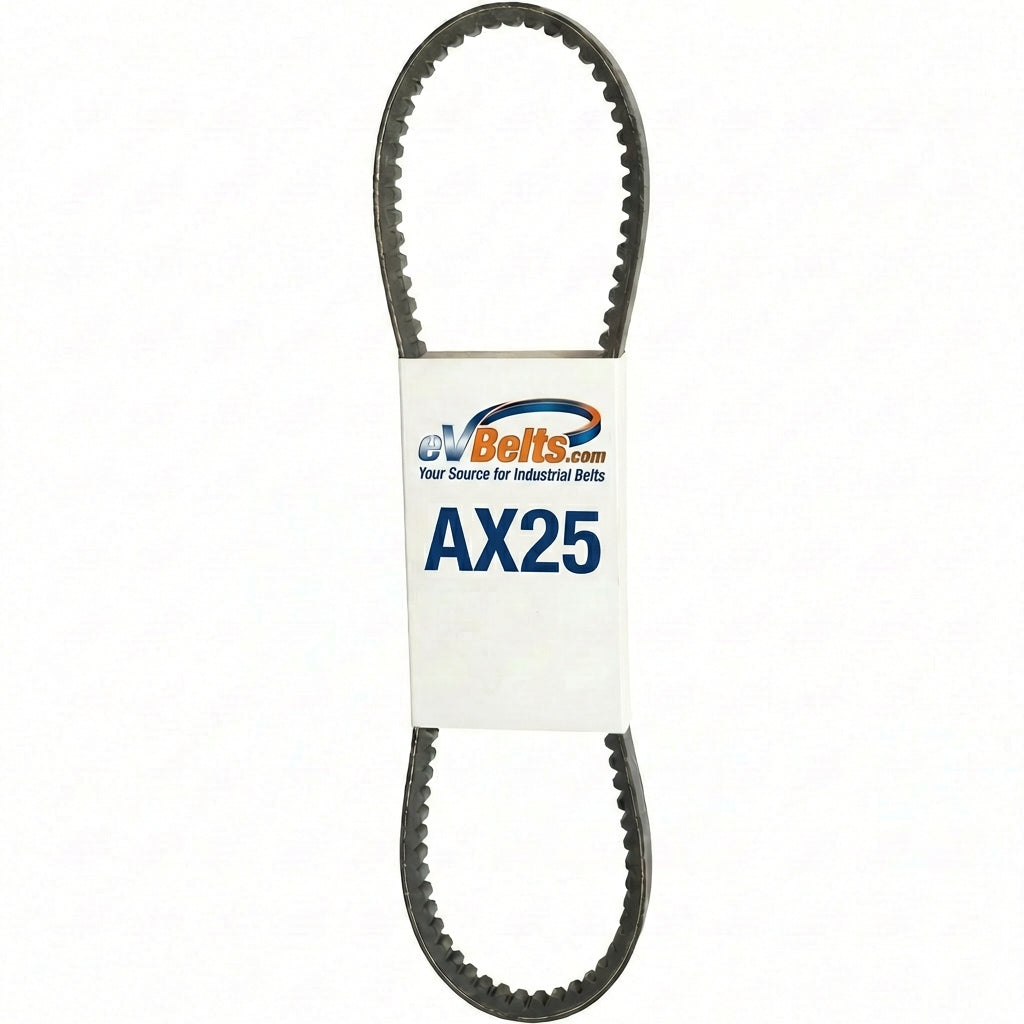

The AX25 is a cogged (notched) V-belt measuring 0.5" wide x 26.3" long, offering improved flexibility around smaller pulleys.

AX25 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 26.3" (668mm)
• Inside Length: 25" (635mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX25 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX47 is a cogged (notched) V-belt measuring 0.5" wide x 48.3" long, offering improved flexibility around smaller pulleys.

AX47 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 48.3" (1226.8mm)
• Inside Length: 47" (1193.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX47 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX30 is a cogged (notched) V-belt measuring 0.5" wide x 31.3" long, offering improved flexibility around smaller pulleys.

AX30 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 31.3" (795mm)
• Inside Length: 30" (762mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX30 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX61 is a cogged (notched) V-belt measuring 0.5" wide x 62.3" long, offering improved flexibility around smaller pulleys.

AX61 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 62.3" (1582.4mm)
• Inside Length: 61" (1549.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX61 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX67 is a cogged (notched) V-belt measuring 0.5" wide x 68.3" long, offering improved flexibility around smaller pulleys.

AX67 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 68.3" (1734.8mm)
• Inside Length: 67" (1701.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX67 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

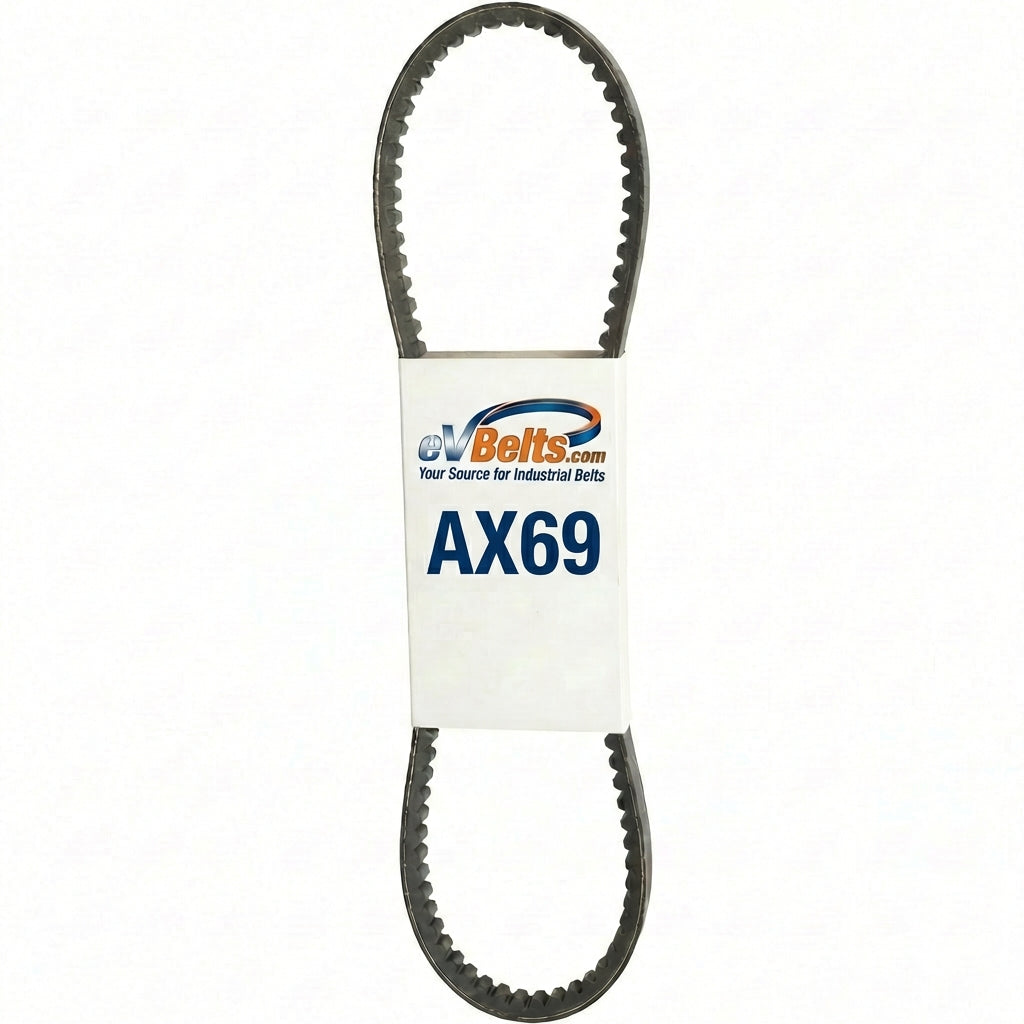

The AX69 is a cogged (notched) V-belt measuring 0.5" wide x 70.3" long, offering improved flexibility around smaller pulleys.

AX69 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 70.3" (1785.6mm)
• Inside Length: 69" (1752.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX69 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX71 is a cogged (notched) V-belt measuring 0.5" wide x 72.3" long, offering improved flexibility around smaller pulleys.

AX71 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 72.3" (1836.4mm)
• Inside Length: 71" (1803.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX71 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX72 is a cogged (notched) V-belt measuring 0.5" wide x 73.3" long, offering improved flexibility around smaller pulleys.

AX72 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 73.3" (1861.8mm)
• Inside Length: 72" (1828.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX72 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX73 is a cogged (notched) V-belt measuring 0.5" wide x 74.3" long, offering improved flexibility around smaller pulleys.

AX73 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 74.3" (1887.2mm)
• Inside Length: 73" (1854.2mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX73 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX74 is a cogged (notched) V-belt measuring 0.5" wide x 75.3" long, offering improved flexibility around smaller pulleys.

AX74 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 75.3" (1912.6mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX74 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX77 is a cogged (notched) V-belt measuring 0.5" wide x 78.3" long, offering improved flexibility around smaller pulleys.

AX77 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 78.3" (1988.8mm)
• Inside Length: 77" (1955.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX77 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX81 is a cogged (notched) V-belt measuring 0.5" wide x 82.3" long, offering improved flexibility around smaller pulleys.

AX81 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 82.3" (2090.4mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX81 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

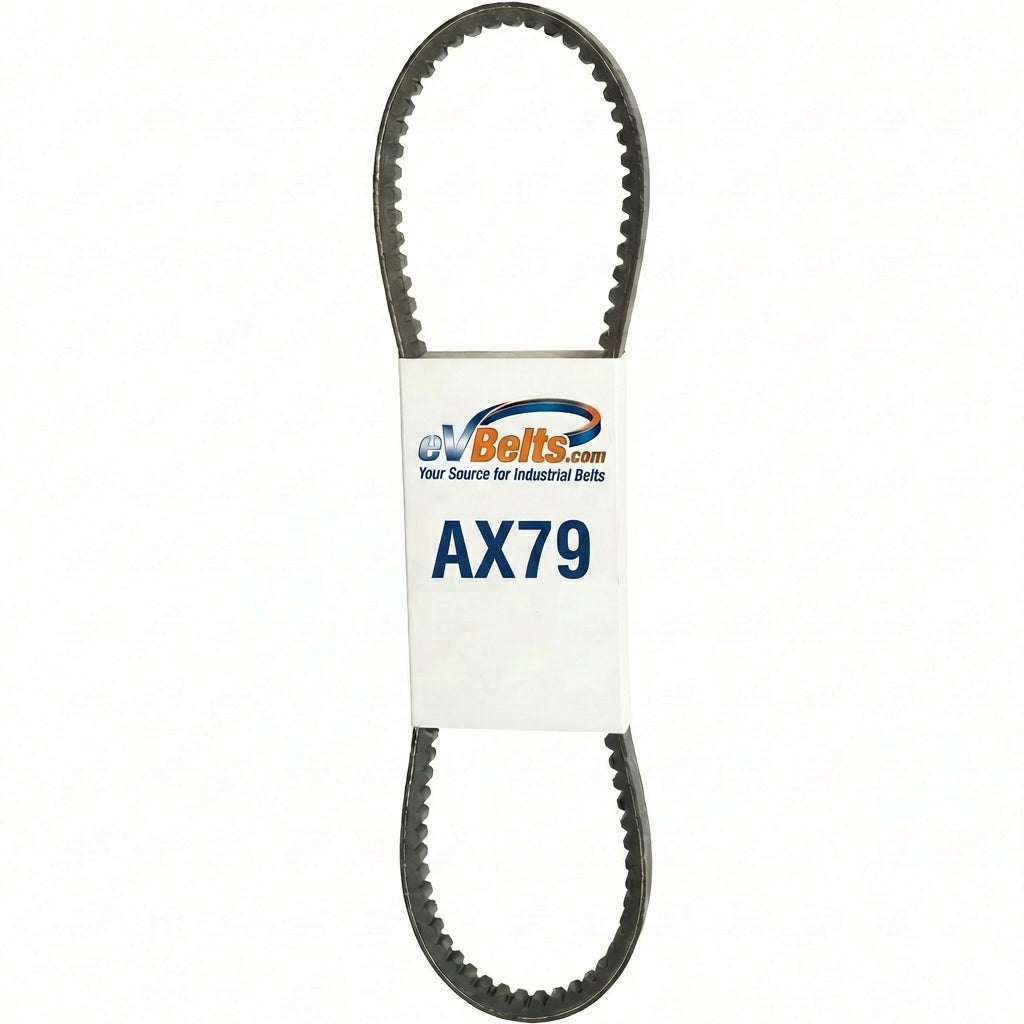

The AX79 is a cogged (notched) V-belt measuring 0.5" wide x 80.3" long, offering improved flexibility around smaller pulleys.

AX79 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 80.3" (2039.6mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX79 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX83 is a cogged (notched) V-belt measuring 0.5" wide x 84.3" long, offering improved flexibility around smaller pulleys.

AX83 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 84.3" (2141.2mm)
• Inside Length: 83" (2108.2mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX83 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX82 is a cogged (notched) V-belt measuring 0.5" wide x 83.3" long, offering improved flexibility around smaller pulleys.

AX82 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 83.3" (2115.8mm)
• Inside Length: 82" (2082.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX82 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX84 is a cogged (notched) V-belt measuring 0.5" wide x 85.3" long, offering improved flexibility around smaller pulleys.

AX84 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 85.3" (2166.6mm)
• Inside Length: 84" (2133.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX84 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX86 is a cogged (notched) V-belt measuring 0.5" wide x 87.3" long, offering improved flexibility around smaller pulleys.

AX86 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 87.3" (2217.4mm)
• Inside Length: 86" (2184.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX86 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The AX87 is a cogged (notched) V-belt measuring 0.5" wide x 88.3" long, offering improved flexibility around smaller pulleys.

AX87 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 88.3" (2242.8mm)
• Inside Length: 87" (2209.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The AX87 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
