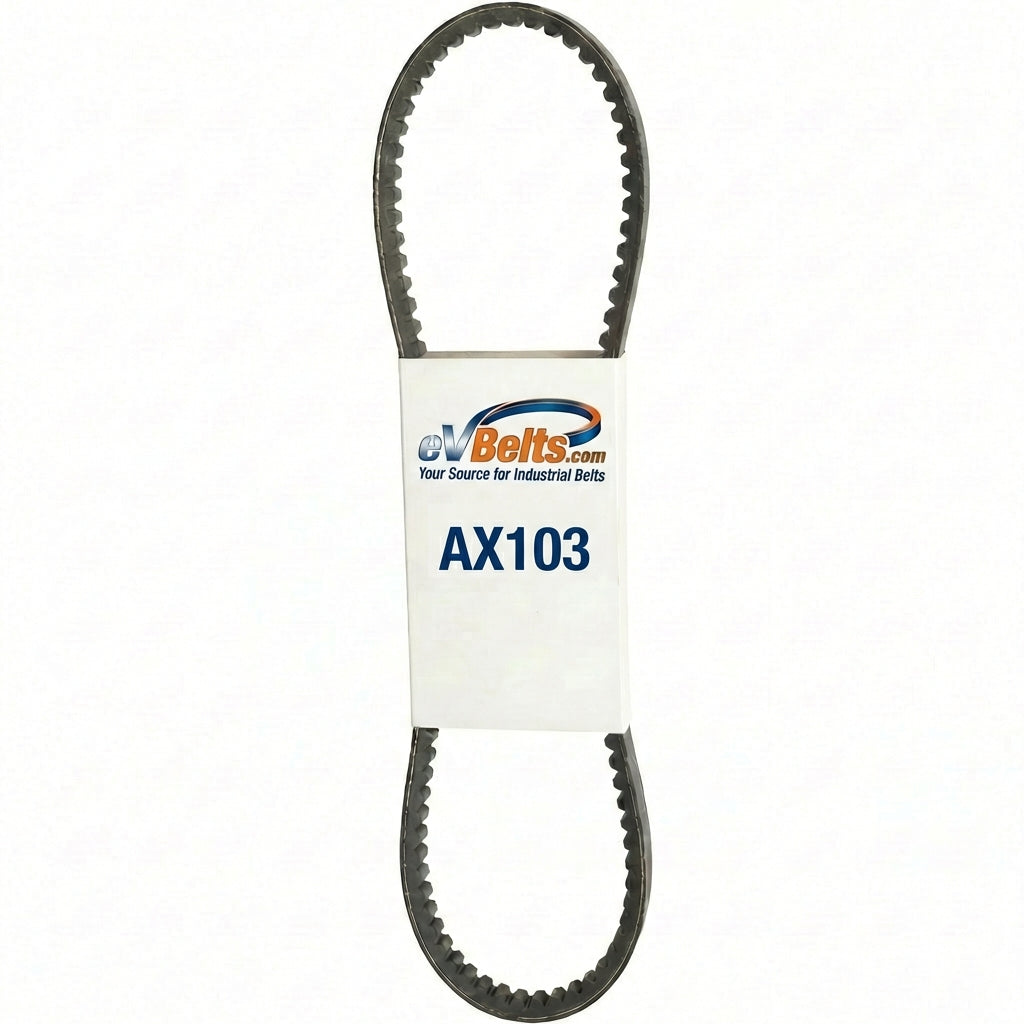

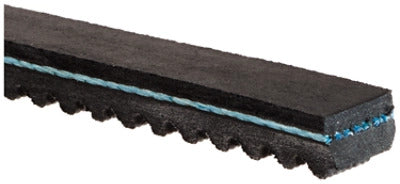

The AX103 is a cogged (notched) V-belt measuring 0.5" wide x 104.3" long, offering improved flexibility around smaller pulleys.

SKU: 1250374

$15.09

253 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications
Part Number AX103
Top Width 0.5 in / 12.7 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 103.0 in / 2616.2 mm
Outside Length 104.3 in / 2649.2 mm
Effective Length 104.0 in
Min Sheave Diameter 2.2 in / 55.9 mm
Cogged Yes
