AX19

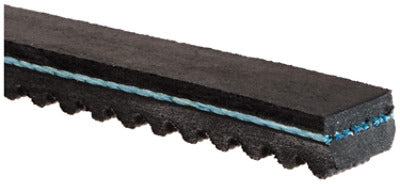

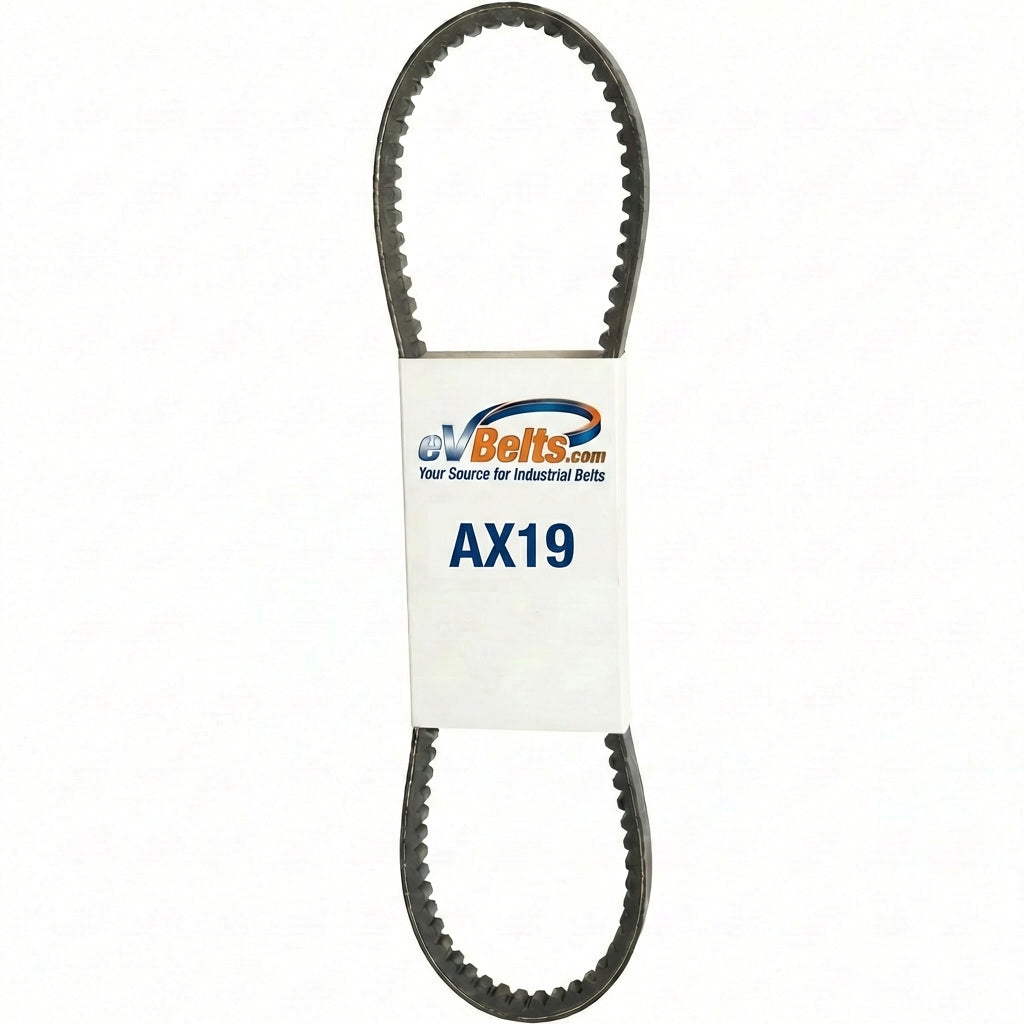

The AX19 is a cogged (notched) V-belt measuring 0.5" wide x 20.3" long, offering improved flexibility around smaller pulleys.
SKU: 1213234
$5.28
528
1044 In Stock
Estimated delivery between June 16 and June 18.
Technical Specifications
| Part Number | AX19 |
| Top Width | 0.5 in / 12.7 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 19.0 in / 482.6 mm |
| Outside Length | 20.3 in / 515.6 mm |
| Effective Length | 20.0 in |
| Min Sheave Diameter | 2.2 in / 55.9 mm |
| Cogged | Yes |
Replaces These OEM Part Numbers (5)
This belt replaces the following OEM part numbers:
1108455
1526
9040B
BE116
PA8408
AX19
$5.28
528
$5.28
528
