The 9/8V2500 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 251" long, featuring oil and heat resistant rubber construction.

9/8V2500 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 251" (6375.4mm)
• Inside Length: 248.5" (6311.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V2500 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V2360 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 237" long, featuring oil and heat resistant rubber construction.

9/8V2360 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 237" (6019.8mm)
• Inside Length: 234.5" (5956.3mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V2360 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V2650 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 266" long, featuring oil and heat resistant rubber construction.

9/8V2650 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 266" (6756.4mm)
• Inside Length: 263.5" (6692.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V2650 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V2800 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 281" long, featuring oil and heat resistant rubber construction.

9/8V2800 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 281" (7137.4mm)
• Inside Length: 278.5" (7073.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V2800 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V3000 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 301" long, featuring oil and heat resistant rubber construction.

9/8V3000 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 301" (7645.4mm)
• Inside Length: 298.5" (7581.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V3000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

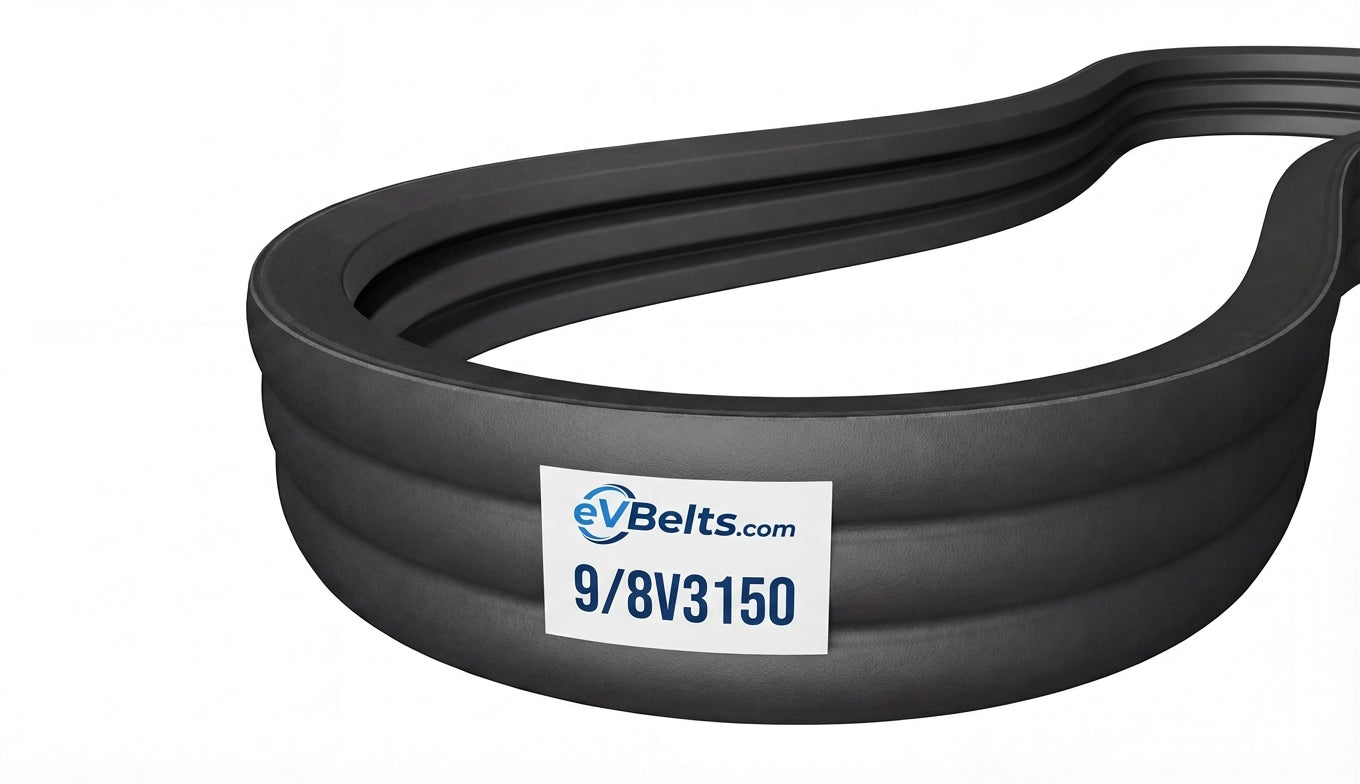

The 9/8V3150 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 316" long, featuring oil and heat resistant rubber construction.

9/8V3150 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 316" (8026.4mm)
• Inside Length: 313.5" (7962.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V3150 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V3550 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 356" long, featuring oil and heat resistant rubber construction.

9/8V3550 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 356" (9042.4mm)
• Inside Length: 353.5" (8978.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V3550 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V3350 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 336" long, featuring oil and heat resistant rubber construction.

9/8V3350 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 336" (8534.4mm)
• Inside Length: 333.5" (8470.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V3350 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V4000 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 401" long, featuring oil and heat resistant rubber construction.

9/8V4000 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 401" (10185.4mm)
• Inside Length: 398.5" (10121.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V4000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V3750 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 376" long, featuring oil and heat resistant rubber construction.

9/8V3750 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 376" (9550.4mm)
• Inside Length: 373.5" (9486.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V3750 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

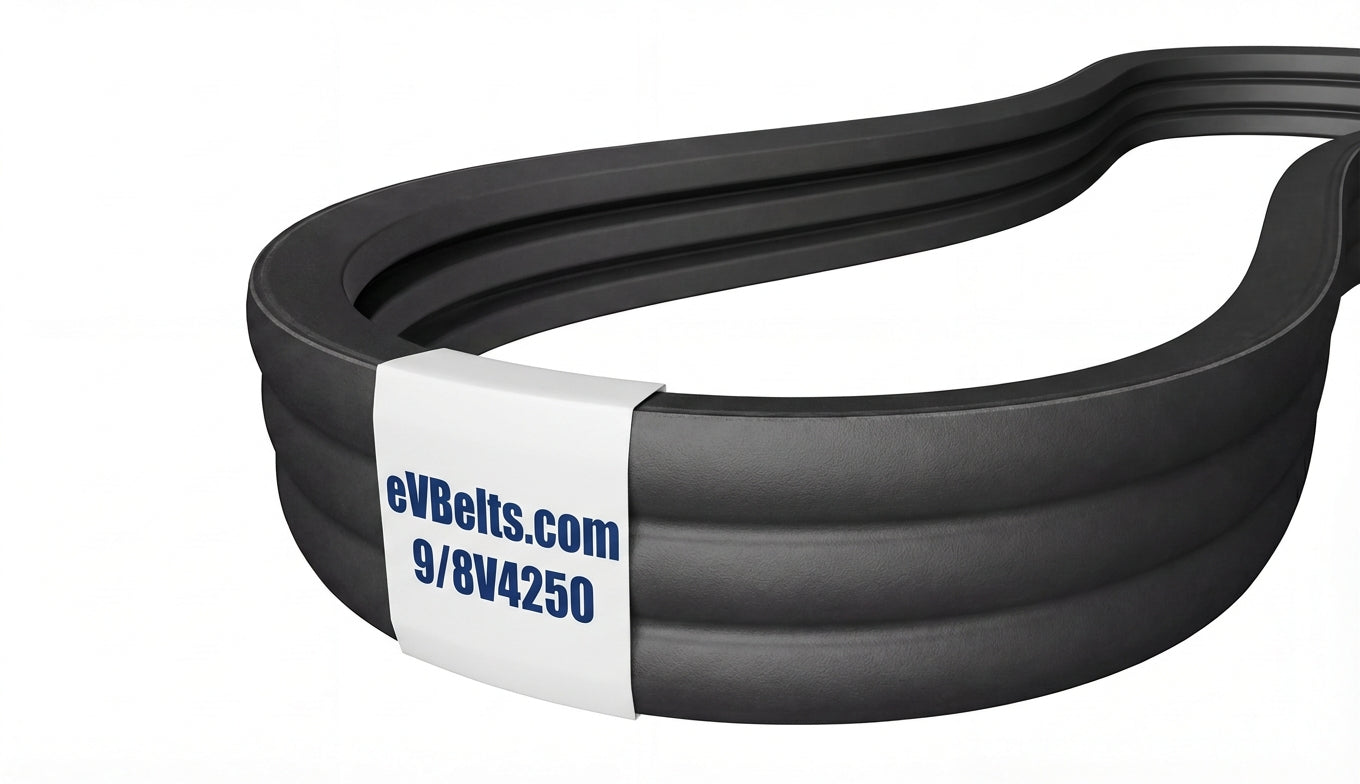

The 9/8V4250 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 426" long, featuring oil and heat resistant rubber construction.

9/8V4250 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 426" (10820.4mm)
• Inside Length: 423.5" (10756.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V4250 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V4500 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 451" long, featuring oil and heat resistant rubber construction.

9/8V4500 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 451" (11455.4mm)
• Inside Length: 448.5" (11391.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V4500 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V4750 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 476" long, featuring oil and heat resistant rubber construction.

9/8V4750 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 476" (12090.4mm)
• Inside Length: 473.5" (12026.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V4750 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V5000 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 501" long, featuring oil and heat resistant rubber construction.

9/8V5000 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 501" (12725.4mm)
• Inside Length: 498.5" (12661.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V5000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V6000 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 601" long, featuring oil and heat resistant rubber construction.

9/8V6000 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 601" (15265.4mm)
• Inside Length: 598.5" (15201.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V6000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/8V5600 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 561" long, featuring oil and heat resistant rubber construction.

9/8V5600 Specifications

• Top Width: 9.24" (234.7mm)
• Outside Length: 561" (14249.4mm)
• Inside Length: 558.5" (14185.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 9-Band Set

The 9/8V5600 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 8V1000 is a premium Narrow Wedge V-belt measuring 1" wide x 101" long, featuring oil and heat resistant rubber construction.

8V1000 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 101" (2565.4mm)
• Inside Length: 98.5" (2501.9mm)
• Min Pulley Diameter: 12.5"

The 8V1000 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V1120 is a premium Narrow Wedge V-belt measuring 1" wide x 113" long, featuring oil and heat resistant rubber construction.

8V1120 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 113" (2870.2mm)
• Inside Length: 110.5" (2806.7mm)
• Min Pulley Diameter: 12.5"

The 8V1120 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V1180 is a premium Narrow Wedge V-belt measuring 1" wide x 119" long, featuring oil and heat resistant rubber construction.

8V1180 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 119" (3022.6mm)
• Inside Length: 116.5" (2959.1mm)
• Min Pulley Diameter: 12.5"

The 8V1180 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V1250 is a premium Narrow Wedge V-belt measuring 1" wide x 126" long, featuring oil and heat resistant rubber construction.

8V1250 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 126" (3200.4mm)
• Inside Length: 123.5" (3136.9mm)
• Min Pulley Diameter: 12.5"

The 8V1250 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V1500 is a premium Narrow Wedge V-belt measuring 1" wide x 151" long, featuring oil and heat resistant rubber construction.

8V1500 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 151" (3835.4mm)
• Inside Length: 148.5" (3771.9mm)
• Min Pulley Diameter: 12.5"

The 8V1500 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V1600 is a premium Narrow Wedge V-belt measuring 1" wide x 161" long, featuring oil and heat resistant rubber construction.

8V1600 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 161" (4089.4mm)
• Inside Length: 158.5" (4025.9mm)
• Min Pulley Diameter: 12.5"

The 8V1600 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V1900 is a premium Narrow Wedge V-belt measuring 1" wide x 191" long, featuring oil and heat resistant rubber construction.

8V1900 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 191" (4851.4mm)
• Inside Length: 188.5" (4787.9mm)
• Min Pulley Diameter: 12.5"

The 8V1900 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V2500 is a premium Narrow Wedge V-belt measuring 1" wide x 251" long, featuring oil and heat resistant rubber construction.

8V2500 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 251" (6375.4mm)
• Inside Length: 248.5" (6311.9mm)
• Min Pulley Diameter: 12.5"

The 8V2500 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V2650 is a premium Narrow Wedge V-belt measuring 1" wide x 266" long, featuring oil and heat resistant rubber construction.

8V2650 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 266" (6756.4mm)
• Inside Length: 263.5" (6692.9mm)
• Min Pulley Diameter: 12.5"

The 8V2650 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

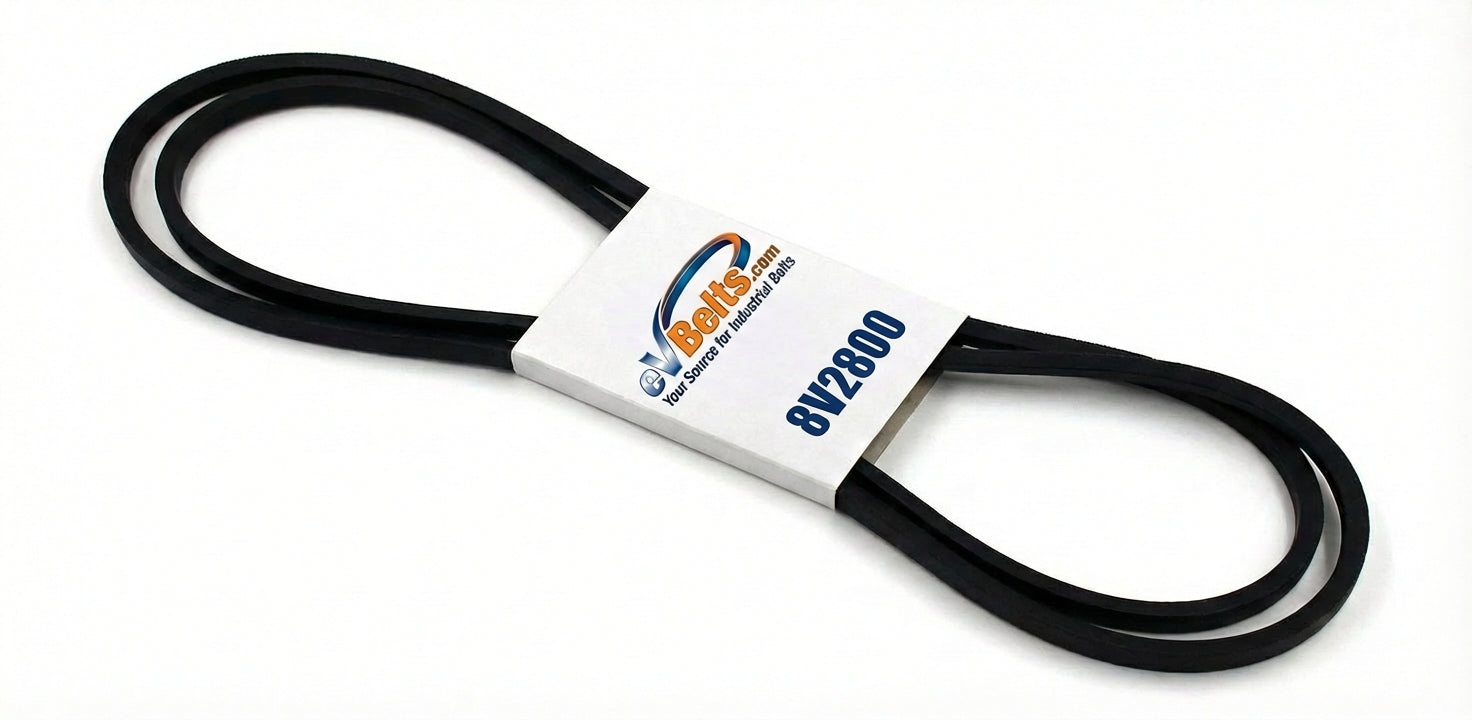

The 8V2800 is a premium Narrow Wedge V-belt measuring 1" wide x 281" long, featuring oil and heat resistant rubber construction.

8V2800 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 281" (7137.4mm)
• Inside Length: 278.5" (7073.9mm)
• Min Pulley Diameter: 12.5"

The 8V2800 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V3150 is a premium Narrow Wedge V-belt measuring 1" wide x 316" long, featuring oil and heat resistant rubber construction.

8V3150 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 316" (8026.4mm)
• Inside Length: 313.5" (7962.9mm)
• Min Pulley Diameter: 12.5"

The 8V3150 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

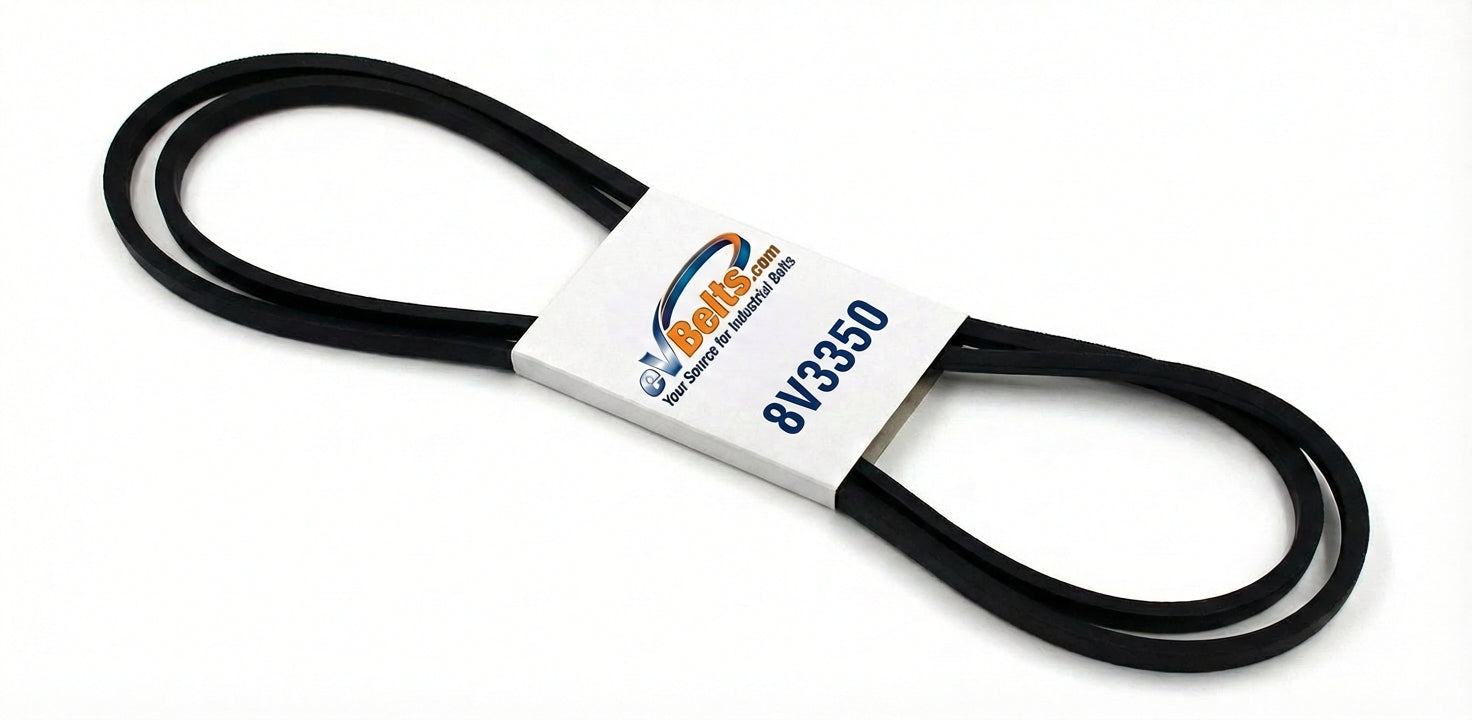

The 8V3350 is a premium Narrow Wedge V-belt measuring 1" wide x 336" long, featuring oil and heat resistant rubber construction.

8V3350 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 336" (8534.4mm)
• Inside Length: 333.5" (8470.9mm)
• Min Pulley Diameter: 12.5"

The 8V3350 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

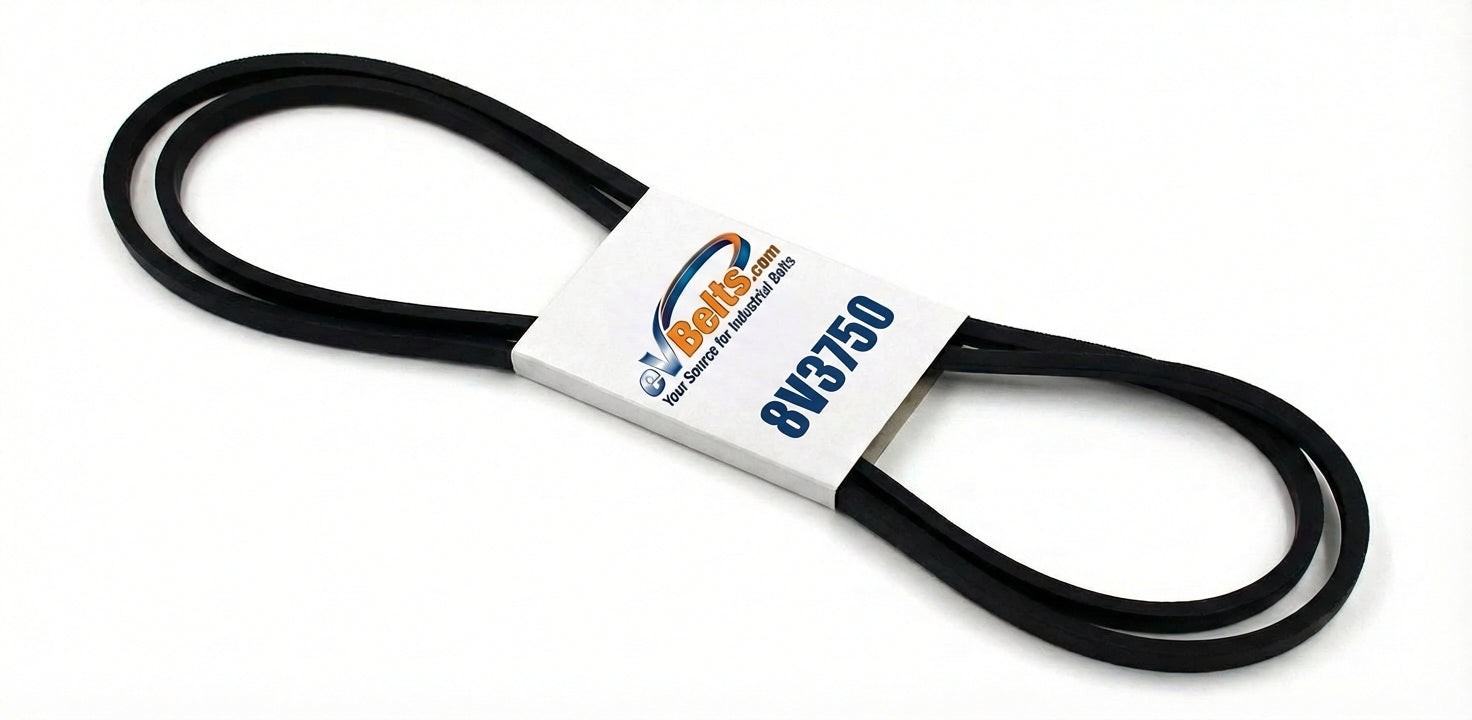

The 8V3750 is a premium Narrow Wedge V-belt measuring 1" wide x 376" long, featuring oil and heat resistant rubber construction.

8V3750 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 376" (9550.4mm)
• Inside Length: 373.5" (9486.9mm)
• Min Pulley Diameter: 12.5"

The 8V3750 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 8V4000 is a premium Narrow Wedge V-belt measuring 1" wide x 401" long, featuring oil and heat resistant rubber construction.

8V4000 Specifications

• Top Width: 1" (25.4mm)
• Outside Length: 401" (10185.4mm)
• Inside Length: 398.5" (10121.9mm)
• Min Pulley Diameter: 12.5"

The 8V4000 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
