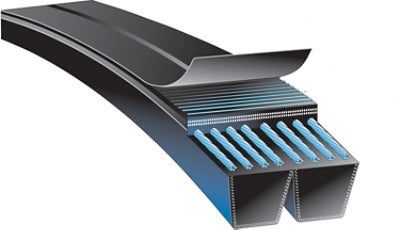

9/8V5000

Top Width: 9.24" (234.7mm)
Outside Length: 501" (12725.4mm)
Inside Length: 498.5" (12661.9mm)
Min Pulley Diameter: 12.5"
Configuration: 9-Band Set

The 9/8V5000 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 501" long, featuring oil and heat resistant rubber construction.

SKU: 1225145

$3,831.42

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/8V5000
Top Width	9.24 in / 234.7 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	498.5 in / 12661.9 mm
Outside Length	501.0 in / 12725.4 mm
Effective Length	500.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	9
