9/8V4250

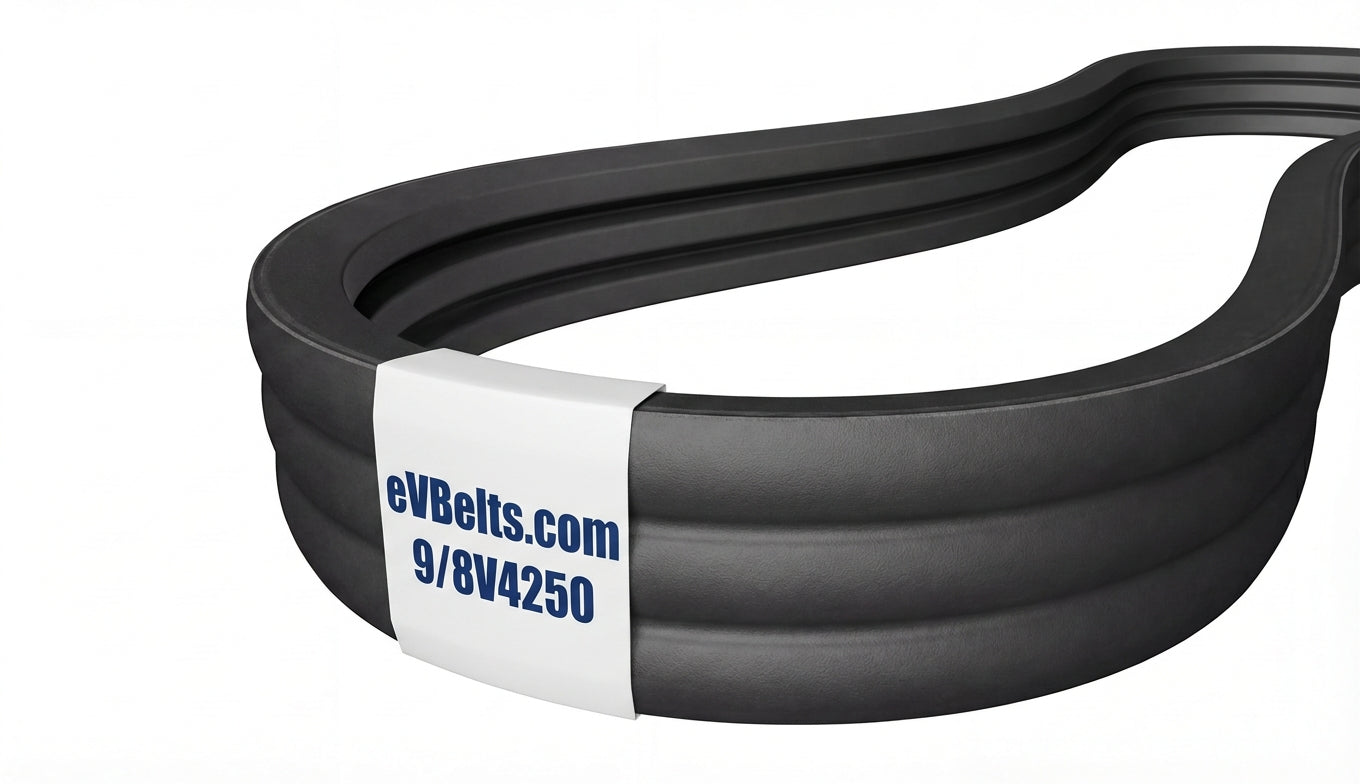

The 9/8V4250 is a factory-joined 9-band 8V banded belt assembly measuring 9.24" wide x 426" long, featuring oil and heat resistant rubber construction.
SKU: 1225142
$3,240.04
324004
0 In Stock
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 9/8V4250 |
| Top Width | 9.24 in / 234.7 mm |
| Belt Depth | 0.875 in / 22.22 mm |
| Inside Length | 423.5 in / 10756.9 mm |
| Outside Length | 426.0 in / 10820.4 mm |
| Effective Length | 425.0 in |
| Min Sheave Diameter | 12.5 in / 317.5 mm |
| Ribs | 9 |
