The 9/B130 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 131.8" long, featuring oil and heat resistant rubber construction.

9/B130 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 131.8" (3347.7mm)
• Inside Length: 130" (3302mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B130 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B133 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 134.8" long, featuring oil and heat resistant rubber construction.

9/B133 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 134.8" (3423.9mm)
• Inside Length: 133" (3378.2mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B133 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B136 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 137.8" long, featuring oil and heat resistant rubber construction.

9/B136 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 137.8" (3500.1mm)
• Inside Length: 136" (3454.4mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B136 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B138 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 139.8" long, featuring oil and heat resistant rubber construction.

9/B138 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 139.8" (3550.9mm)
• Inside Length: 138" (3505.2mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B138 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B139 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 140.8" long, featuring oil and heat resistant rubber construction.

9/B139 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 140.8" (3576.3mm)
• Inside Length: 139" (3530.6mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B139 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B140 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 141.8" long, featuring oil and heat resistant rubber construction.

9/B140 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 141.8" (3601.7mm)
• Inside Length: 140" (3556mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B140 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B141 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 142.8" long, featuring oil and heat resistant rubber construction.

9/B141 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 142.8" (3627.1mm)
• Inside Length: 141" (3581.4mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B141 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B144 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 145.8" long, featuring oil and heat resistant rubber construction.

9/B144 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 145.8" (3703.3mm)
• Inside Length: 144" (3657.6mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B144 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B148 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 149.8" long, featuring oil and heat resistant rubber construction.

9/B148 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 149.8" (3804.9mm)
• Inside Length: 148" (3759.2mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B148 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B150 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 151.8" long, featuring oil and heat resistant rubber construction.

9/B150 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 151.8" (3855.7mm)
• Inside Length: 150" (3810mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B150 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

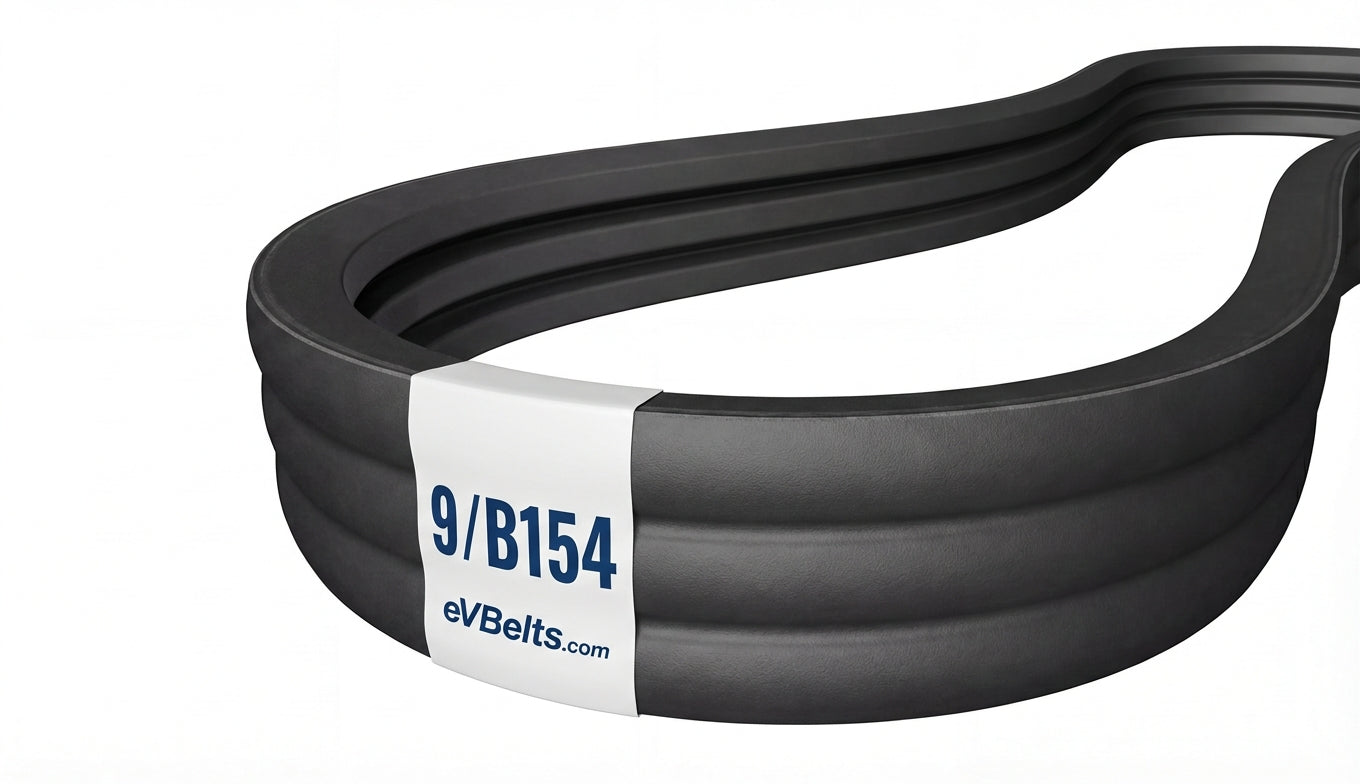

The 9/B154 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 155.8" long, featuring oil and heat resistant rubber construction.

9/B154 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 155.8" (3957.3mm)
• Inside Length: 154" (3911.6mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B154 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

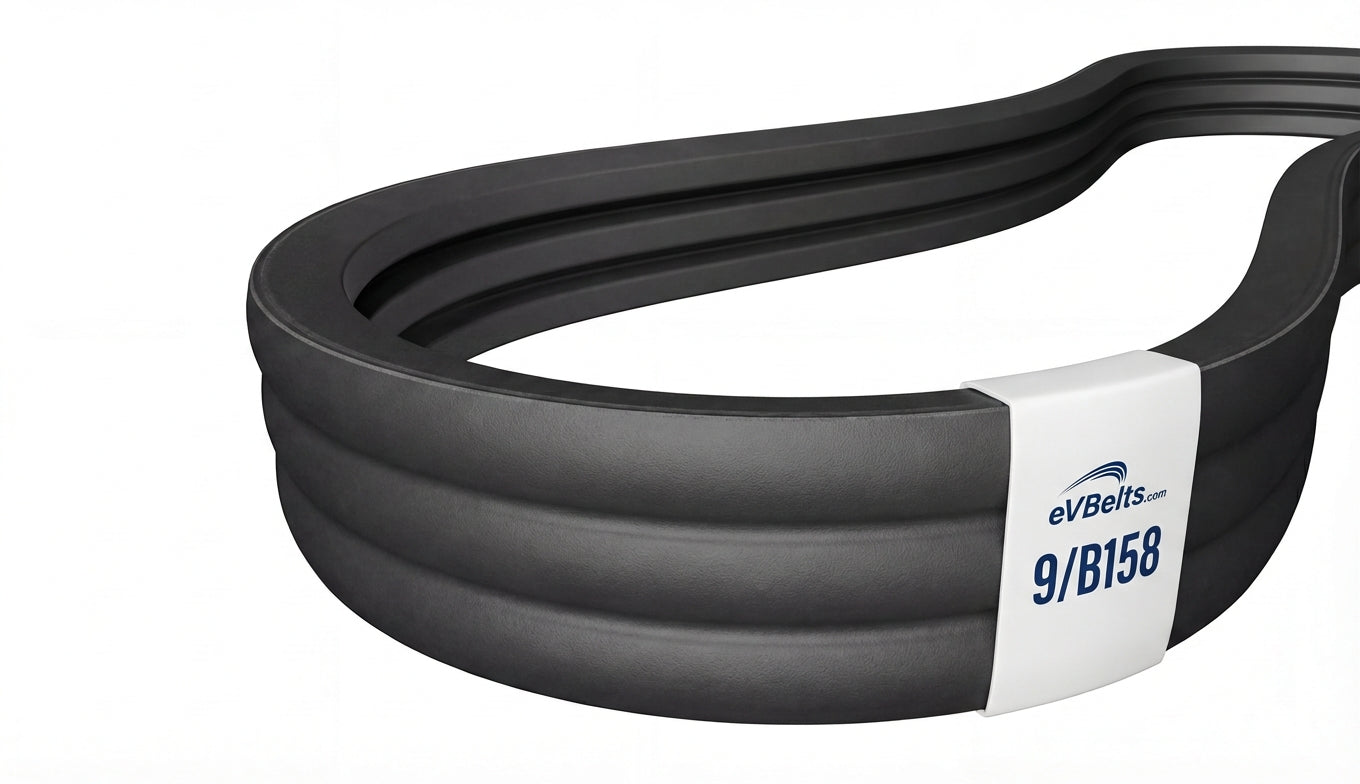

The 9/B158 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 159.8" long, featuring oil and heat resistant rubber construction.

9/B158 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 159.8" (4058.9mm)
• Inside Length: 158" (4013.2mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B158 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

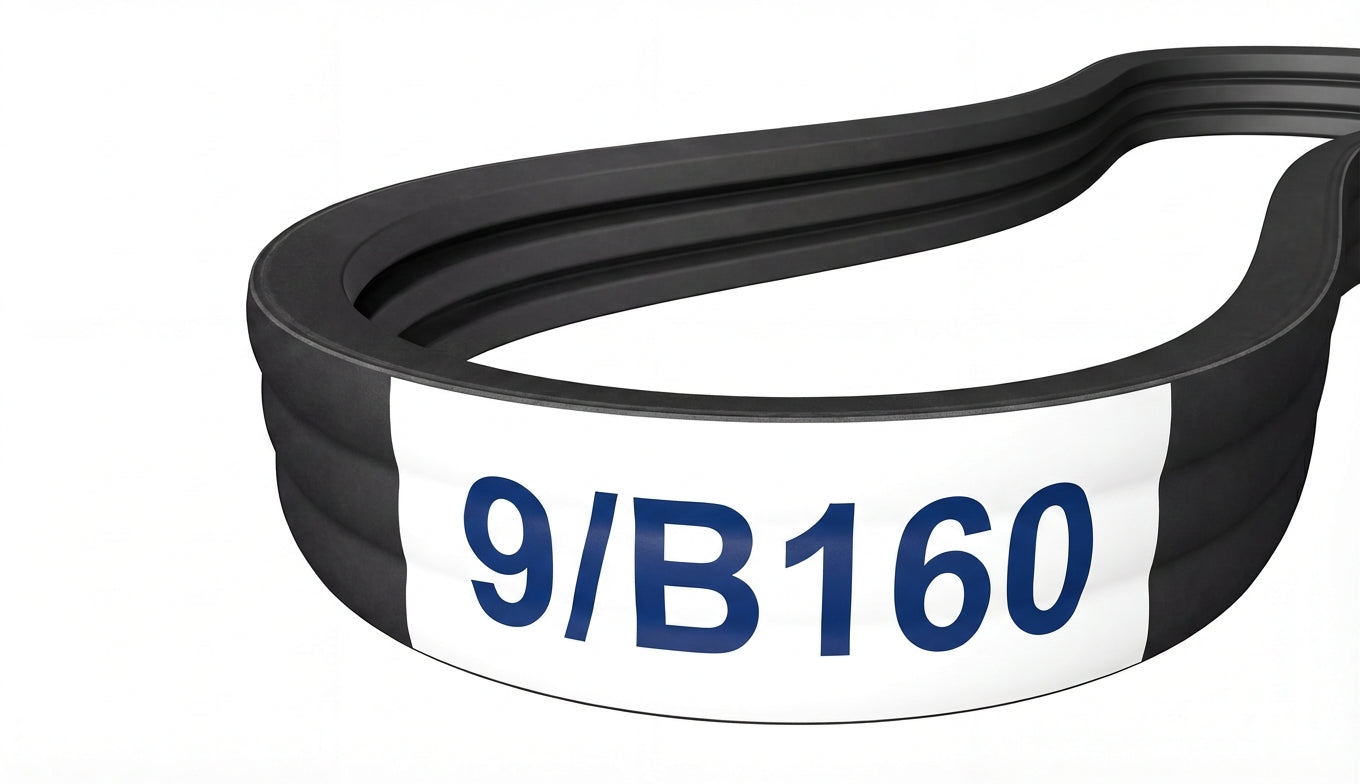

The 9/B160 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 161.8" long, featuring oil and heat resistant rubber construction.

9/B160 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 161.8" (4109.7mm)
• Inside Length: 160" (4064mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B160 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B162 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 163.8" long, featuring oil and heat resistant rubber construction.

9/B162 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 163.8" (4160.5mm)
• Inside Length: 162" (4114.8mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B162 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

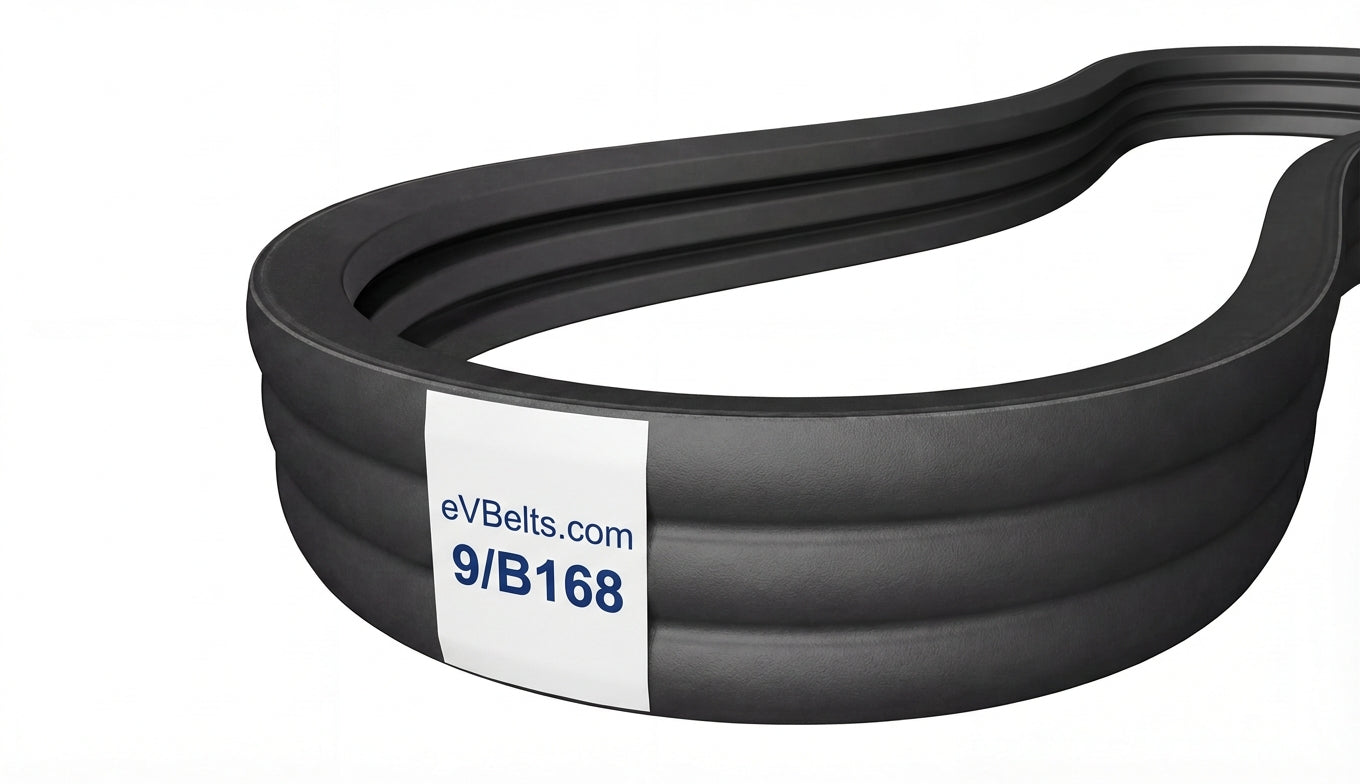

The 9/B168 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 169.8" long, featuring oil and heat resistant rubber construction.

9/B168 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 169.8" (4312.9mm)
• Inside Length: 168" (4267.2mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B168 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

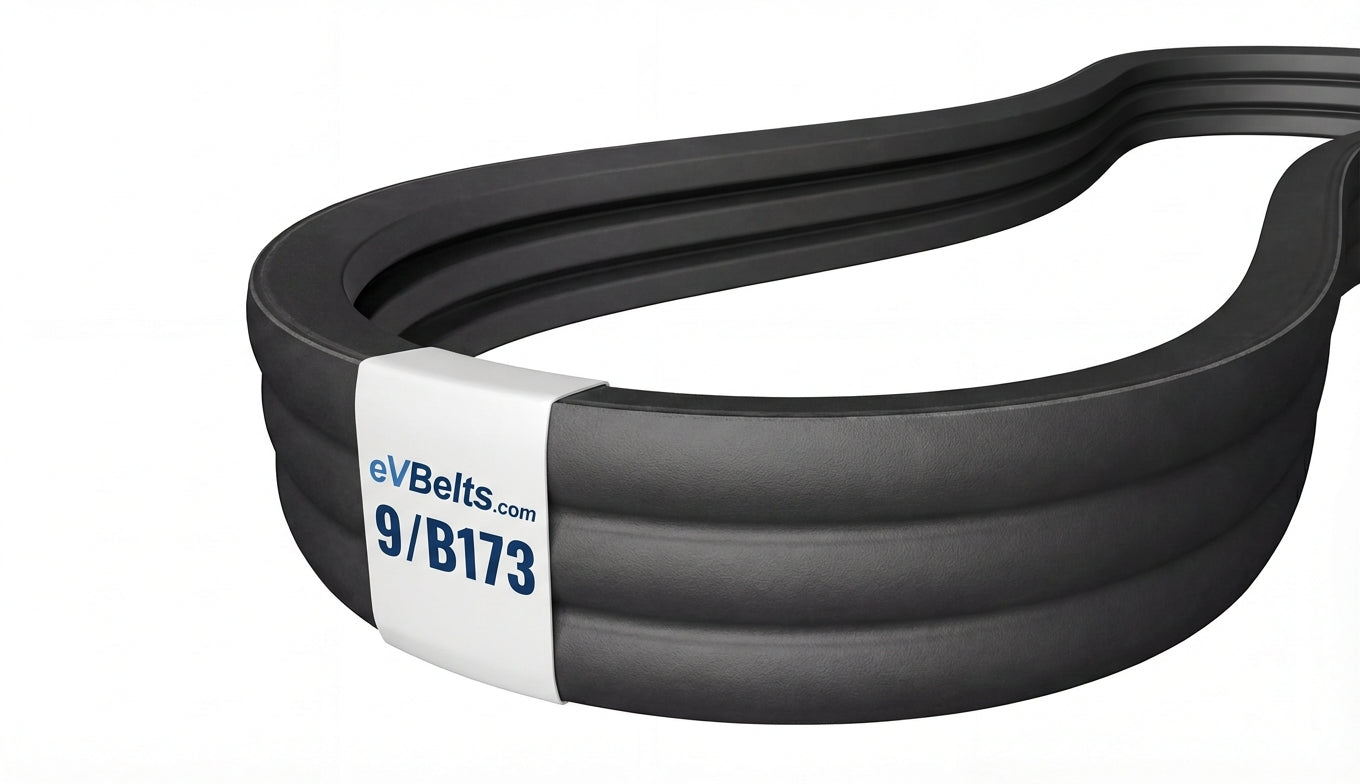

The 9/B173 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 174.8" long, featuring oil and heat resistant rubber construction.

9/B173 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 174.8" (4439.9mm)
• Inside Length: 173" (4394.2mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B173 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B180 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 181.8" long, featuring oil and heat resistant rubber construction.

9/B180 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 181.8" (4617.7mm)
• Inside Length: 180" (4572mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B180 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B185 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 186.8" long, featuring oil and heat resistant rubber construction.

9/B185 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 186.8" (4744.7mm)
• Inside Length: 185" (4699mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B185 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B190 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 191.8" long, featuring oil and heat resistant rubber construction.

9/B190 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 191.8" (4871.7mm)
• Inside Length: 190" (4826mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B190 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B195 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 196.8" long, featuring oil and heat resistant rubber construction.

9/B195 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 196.8" (4998.7mm)
• Inside Length: 195" (4953mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B195 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

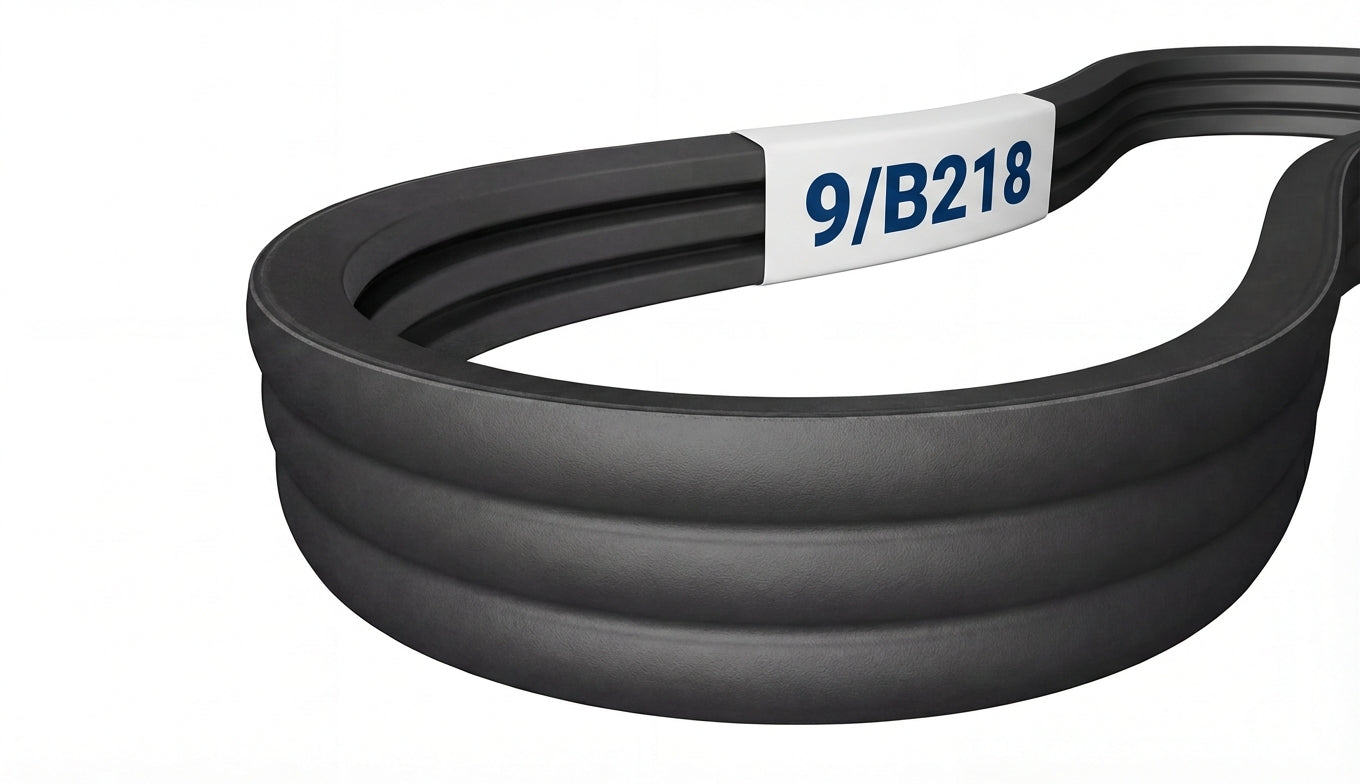

The 9/B218 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 219.8" long, featuring oil and heat resistant rubber construction.

9/B218 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 219.8" (5582.9mm)
• Inside Length: 218" (5537.2mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B218 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B210 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 211.8" long, featuring oil and heat resistant rubber construction.

9/B210 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 211.8" (5379.7mm)
• Inside Length: 210" (5334mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B210 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B240 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 241.8" long, featuring oil and heat resistant rubber construction.

9/B240 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 241.8" (6141.7mm)
• Inside Length: 240" (6096mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B240 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B225 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 226.8" long, featuring oil and heat resistant rubber construction.

9/B225 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 226.8" (5760.7mm)
• Inside Length: 225" (5715mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B225 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B270 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 271.8" long, featuring oil and heat resistant rubber construction.

9/B270 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 271.8" (6903.7mm)
• Inside Length: 270" (6858mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B270 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

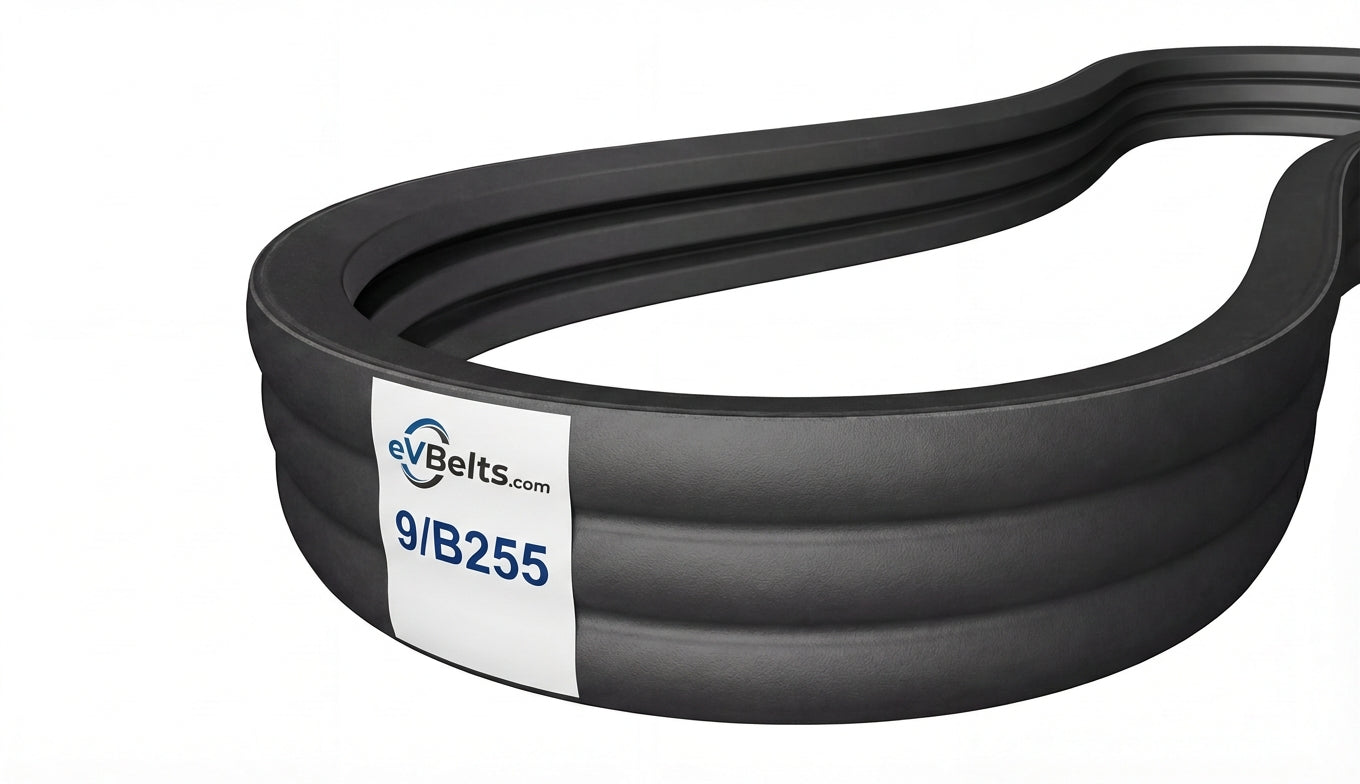

The 9/B255 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 256.8" long, featuring oil and heat resistant rubber construction.

9/B255 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 256.8" (6522.7mm)
• Inside Length: 255" (6477mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B255 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 9/B300 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 301.8" long, featuring oil and heat resistant rubber construction.

9/B300 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 301.8" (7665.7mm)
• Inside Length: 300" (7620mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B300 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

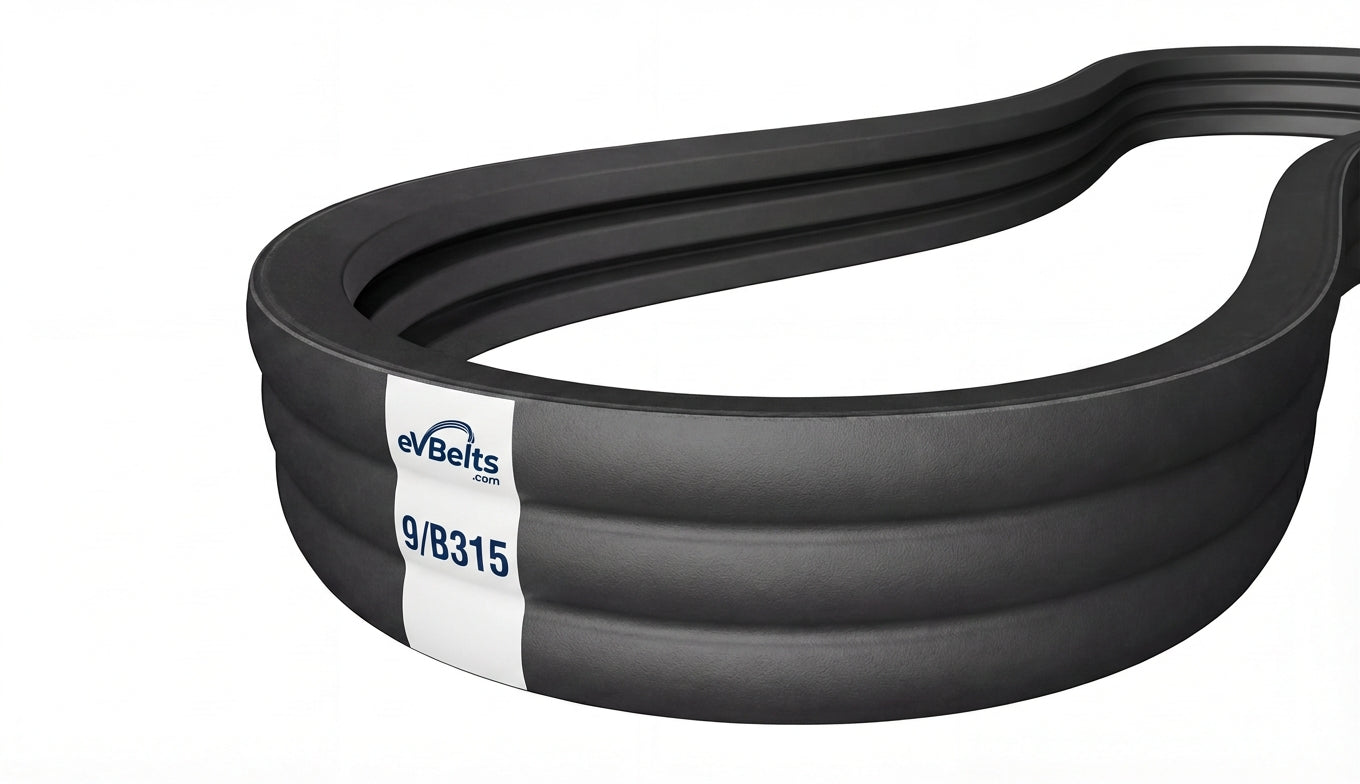

The 9/B315 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 316.8" long, featuring oil and heat resistant rubber construction.

9/B315 Specifications

• Top Width: 6.144" (156.06mm)
• Outside Length: 316.8" (8046.7mm)
• Inside Length: 315" (8001mm)
• Min Pulley Diameter: 5.4"
• Configuration: 9-Band Set

The 9/B315 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The B105 is a premium Classical V-belt measuring 0.656" wide x 106.8" long, featuring oil and heat resistant rubber construction.

B105 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 106.8" (2712.7mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 5.4"

The B105 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The B117 is a premium Classical V-belt measuring 0.656" wide x 118.8" long, featuring oil and heat resistant rubber construction.

B117 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 118.8" (3017.5mm)
• Inside Length: 117" (2971.8mm)
• Min Pulley Diameter: 5.4"

The B117 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
