9/B315

Top Width: 6.144" (156.06mm)
Outside Length: 316.8" (8046.7mm)
Inside Length: 315" (8001mm)
Min Pulley Diameter: 5.4"
Configuration: 9-Band Set

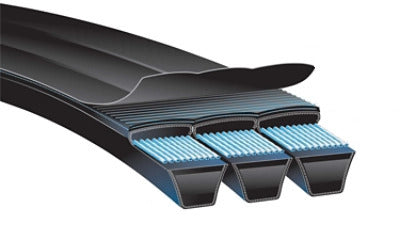

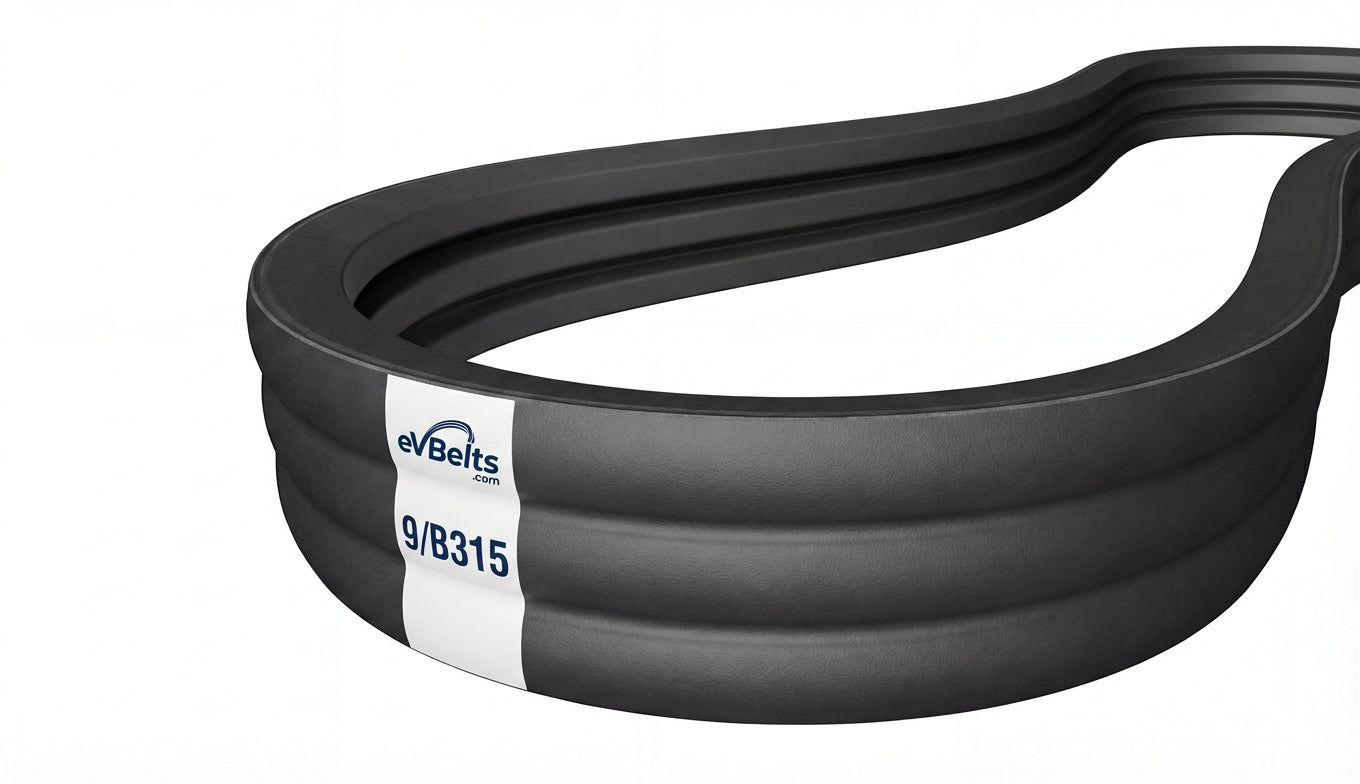

The 9/B315 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 316.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215604

$558.90

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	9/B315
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	315.0 in / 8001.0 mm
Outside Length	316.8 in / 8046.7 mm
Effective Length	316.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	9
