AX23
AX23
/
/

AX23

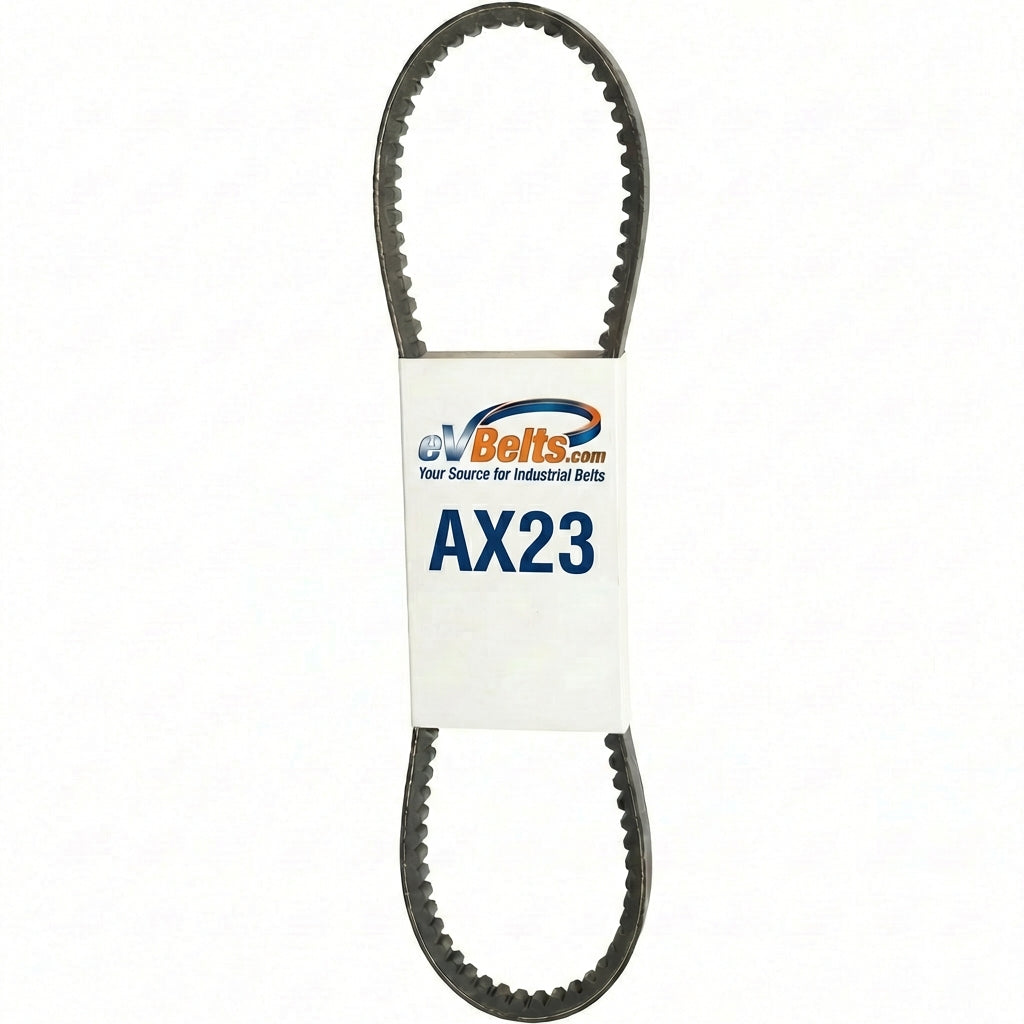

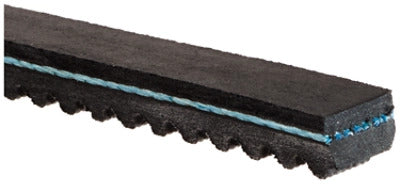

The AX23 is a cogged (notched) V-belt measuring 0.5" wide x 24.3" long, offering improved flexibility around smaller pulleys.

SKU: 1251183

$4.72

16 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications
Part Number AX23
Top Width 0.5 in / 12.7 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 23.0 in / 584.2 mm
Outside Length 24.3 in / 617.2 mm
Effective Length 24.0 in
Min Sheave Diameter 2.2 in / 55.9 mm
Cogged Yes
