The 4/7M825JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 32.48" long, featuring oil and heat resistant rubber construction.

4/7M825JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 32.48" (825mm)
• Inside Length: 32.28" (820mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M825JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M800JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 31.5" long, featuring oil and heat resistant rubber construction.

4/7M800JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 31.5" (800mm)
• Inside Length: 31.3" (795mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M800JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M775JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 30.51" long, featuring oil and heat resistant rubber construction.

4/7M775JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 30.51" (775mm)
• Inside Length: 30.31" (770mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M775JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M750JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 29.53" long, featuring oil and heat resistant rubber construction.

4/7M750JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 29.53" (750mm)
• Inside Length: 29.33" (745mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M750JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M730JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 28.74" long, featuring oil and heat resistant rubber construction.

4/7M730JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 28.74" (730mm)
• Inside Length: 28.54" (725mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M730JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M710JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 27.95" long, featuring oil and heat resistant rubber construction.

4/7M710JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 27.95" (710mm)
• Inside Length: 27.76" (705mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M710JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M690JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 27.17" long, featuring oil and heat resistant rubber construction.

4/7M690JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 27.17" (690mm)
• Inside Length: 26.97" (685mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M690JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M670JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 26.38" long, featuring oil and heat resistant rubber construction.

4/7M670JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 26.38" (670mm)
• Inside Length: 26.18" (665mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M670JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M650JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 25.59" long, featuring oil and heat resistant rubber construction.

4/7M650JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 25.59" (650mm)
• Inside Length: 25.39" (645mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M650JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M630JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 24.8" long, featuring oil and heat resistant rubber construction.

4/7M630JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 24.8" (630mm)
• Inside Length: 24.61" (625mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M630JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M615JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 24.21" long, featuring oil and heat resistant rubber construction.

4/7M615JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 24.21" (615mm)
• Inside Length: 24.02" (610mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M615JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M600JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 23.62" long, featuring oil and heat resistant rubber construction.

4/7M600JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 23.62" (600mm)
• Inside Length: 23.43" (595mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M600JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M560JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 22.05" long, featuring oil and heat resistant rubber construction.

4/7M560JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 22.05" (560mm)
• Inside Length: 21.85" (555mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M560JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

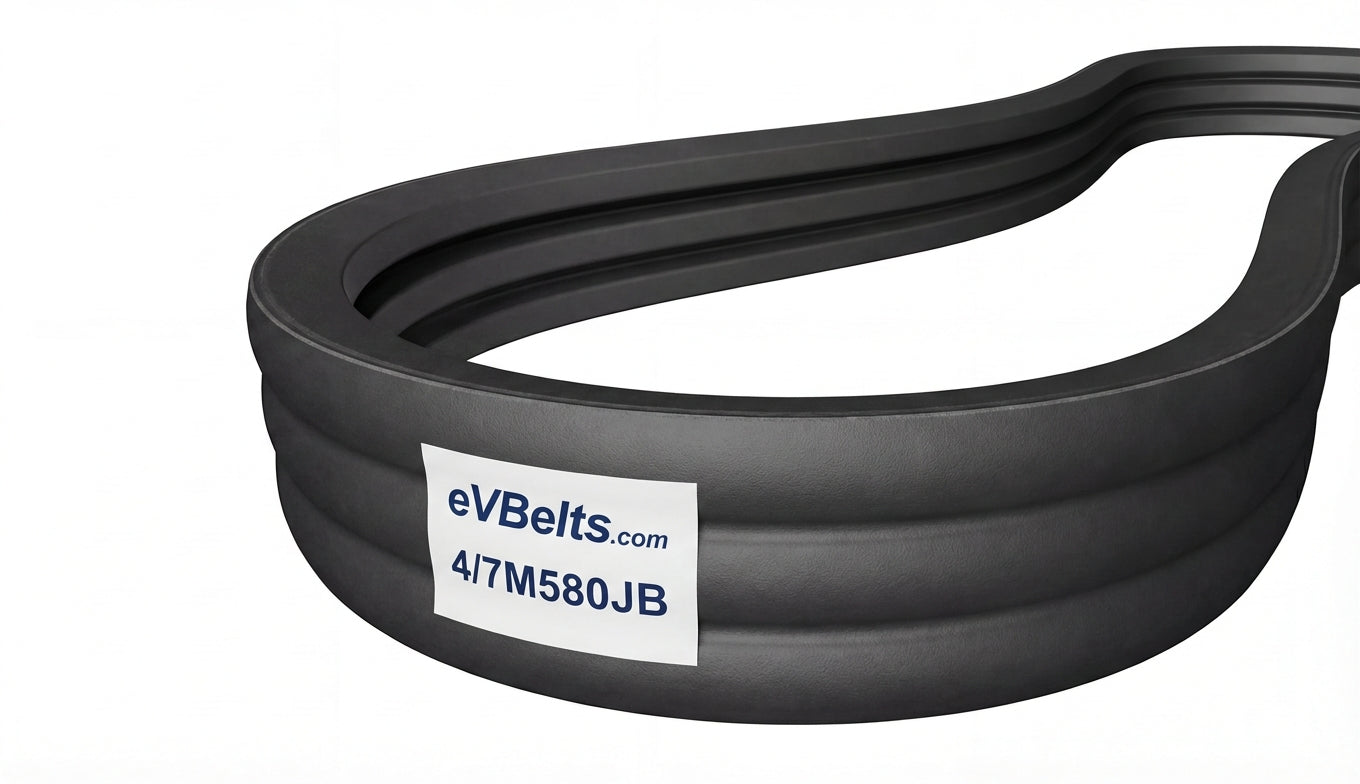

The 4/7M580JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 22.83" long, featuring oil and heat resistant rubber construction.

4/7M580JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 22.83" (580mm)
• Inside Length: 22.64" (575mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M580JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M545JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 21.46" long, featuring oil and heat resistant rubber construction.

4/7M545JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 21.46" (545mm)
• Inside Length: 21.26" (540mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M545JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

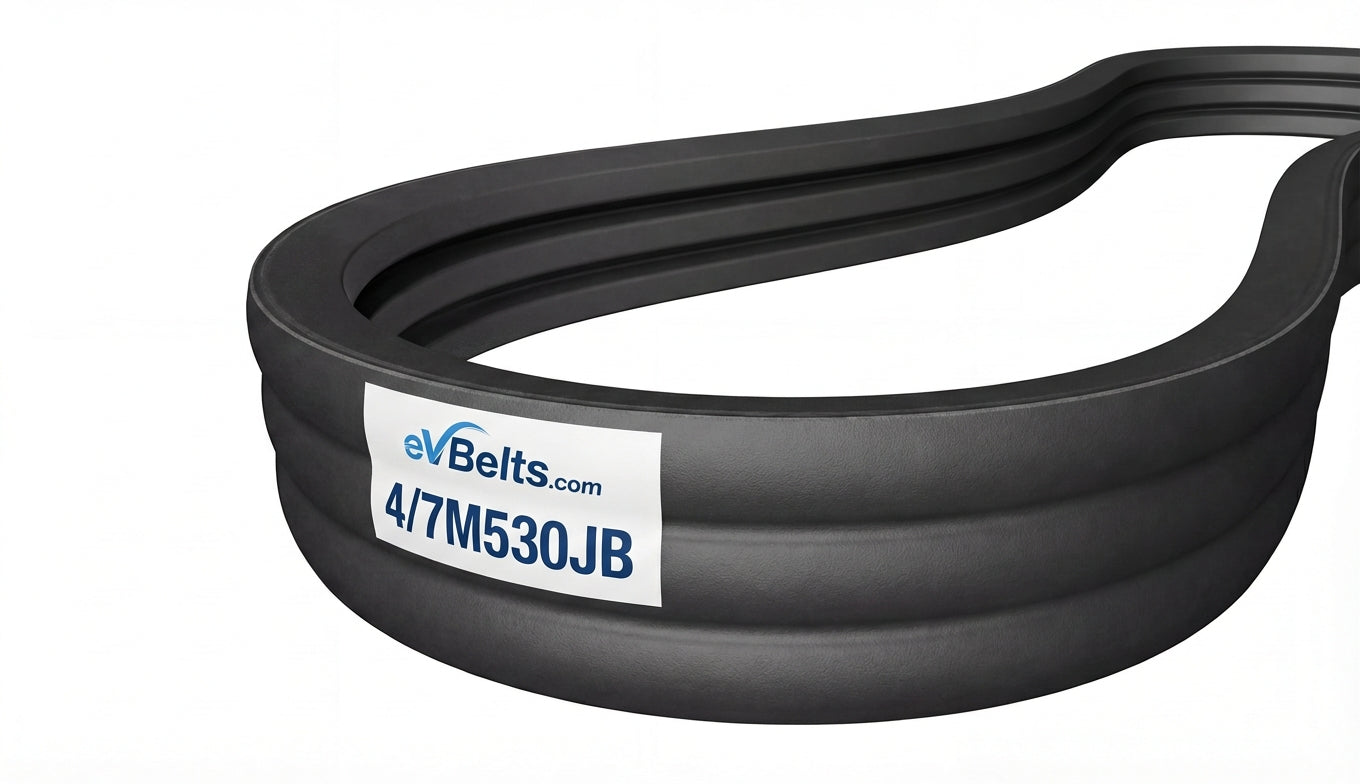

The 4/7M530JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 20.87" long, featuring oil and heat resistant rubber construction.

4/7M530JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 20.87" (530mm)
• Inside Length: 20.67" (525mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M530JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

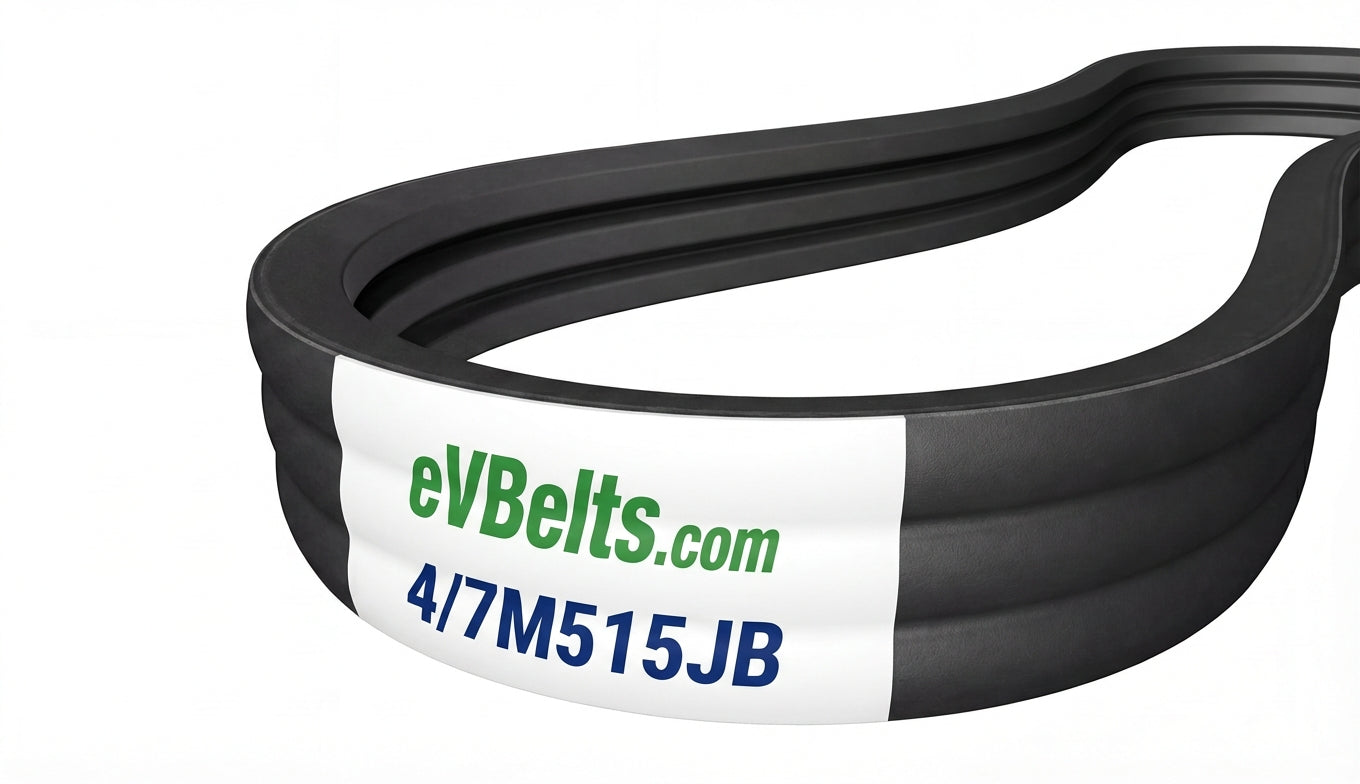

The 4/7M515JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 20.28" long, featuring oil and heat resistant rubber construction.

4/7M515JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 20.28" (515mm)
• Inside Length: 20.08" (510mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M515JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

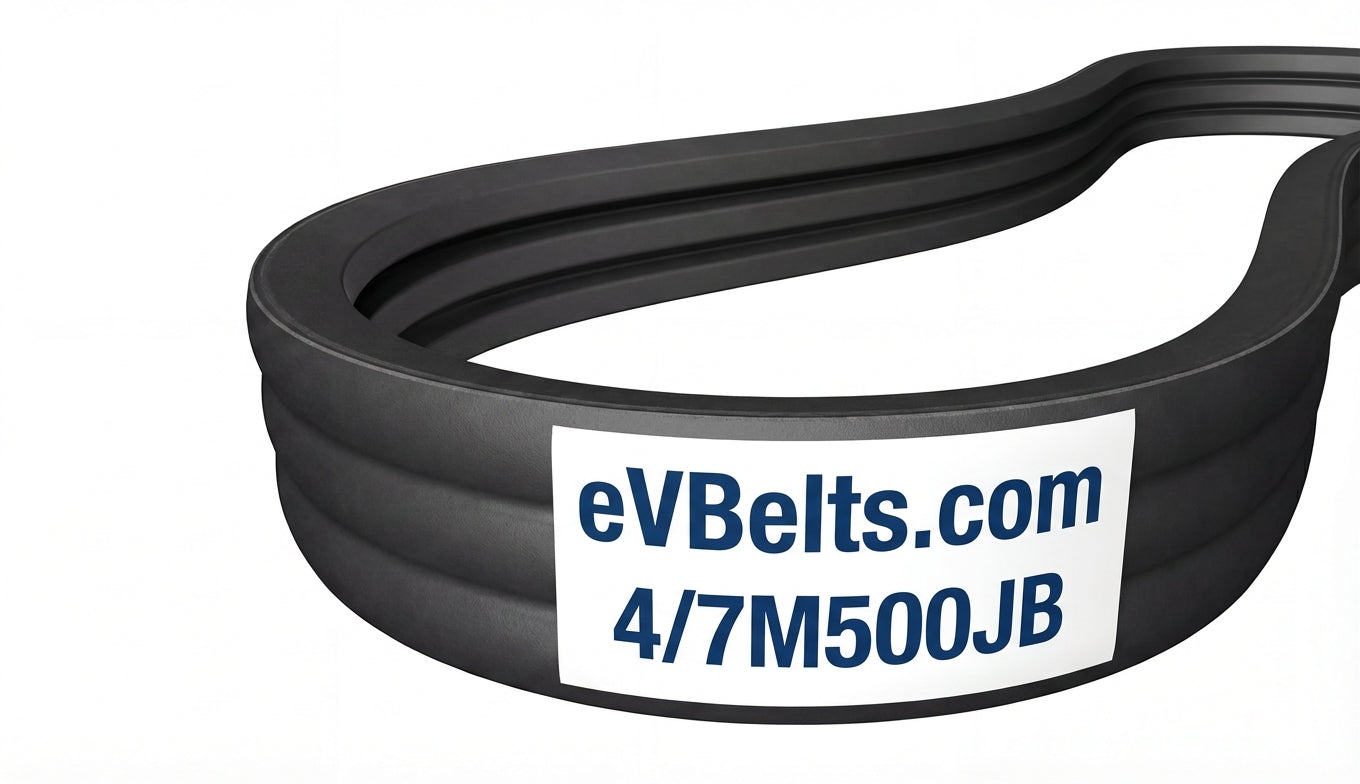

The 4/7M500JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 19.69" long, featuring oil and heat resistant rubber construction.

4/7M500JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 19.69" (500mm)
• Inside Length: 19.49" (495mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M500JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M2300JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 90.55" long, featuring oil and heat resistant rubber construction.

4/7M2300JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 90.55" (2300mm)
• Inside Length: 90.35" (2295mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M2300JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M2240JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 88.19" long, featuring oil and heat resistant rubber construction.

4/7M2240JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 88.19" (2240mm)
• Inside Length: 87.99" (2235mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M2240JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M2180JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 85.83" long, featuring oil and heat resistant rubber construction.

4/7M2180JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 85.83" (2180mm)
• Inside Length: 85.63" (2175mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M2180JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

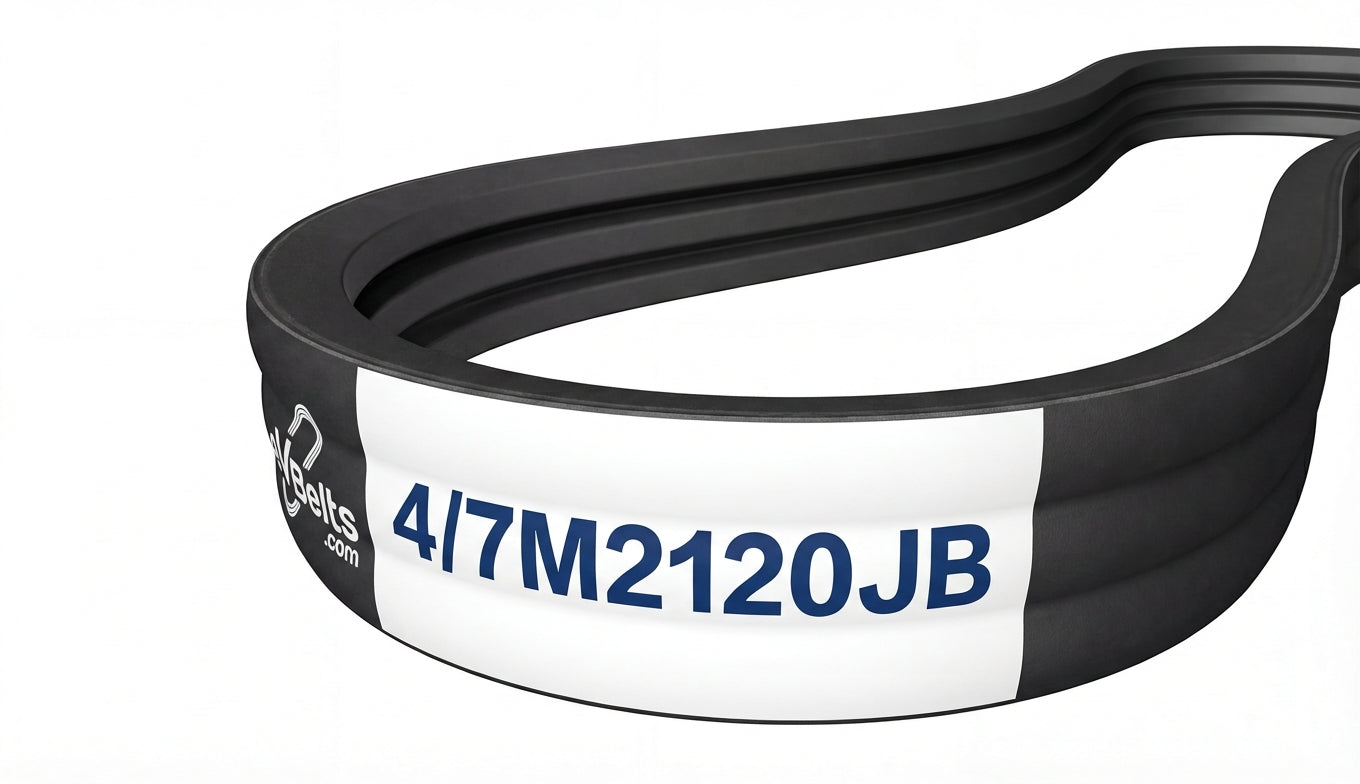

The 4/7M2120JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 83.46" long, featuring oil and heat resistant rubber construction.

4/7M2120JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 83.46" (2120mm)
• Inside Length: 83.27" (2115mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M2120JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M2000JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 78.74" long, featuring oil and heat resistant rubber construction.

4/7M2000JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 78.74" (2000mm)
• Inside Length: 78.54" (1995mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M2000JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M2060JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 81.1" long, featuring oil and heat resistant rubber construction.

4/7M2060JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 81.1" (2060mm)
• Inside Length: 80.91" (2055mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M2060JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M1950JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 76.77" long, featuring oil and heat resistant rubber construction.

4/7M1950JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 76.77" (1950mm)
• Inside Length: 76.57" (1945mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M1950JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M1900JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 74.8" long, featuring oil and heat resistant rubber construction.

4/7M1900JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 74.8" (1900mm)
• Inside Length: 74.61" (1895mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M1900JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

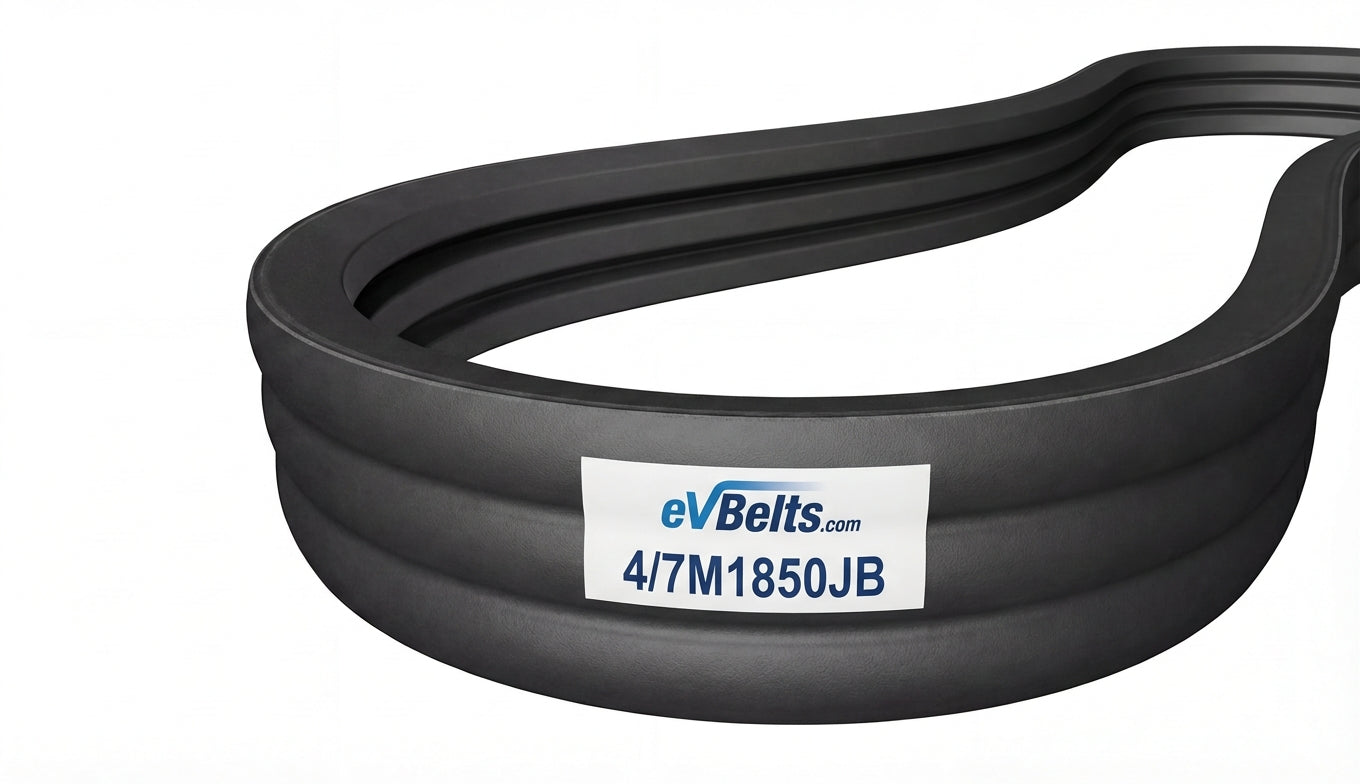

The 4/7M1850JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 72.83" long, featuring oil and heat resistant rubber construction.

4/7M1850JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 72.83" (1850mm)
• Inside Length: 72.64" (1845mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M1850JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M1800JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 70.87" long, featuring oil and heat resistant rubber construction.

4/7M1800JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 70.87" (1800mm)
• Inside Length: 70.67" (1795mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M1800JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/7M1750JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 68.9" long, featuring oil and heat resistant rubber construction.

4/7M1750JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 68.9" (1750mm)
• Inside Length: 68.7" (1745mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M1750JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

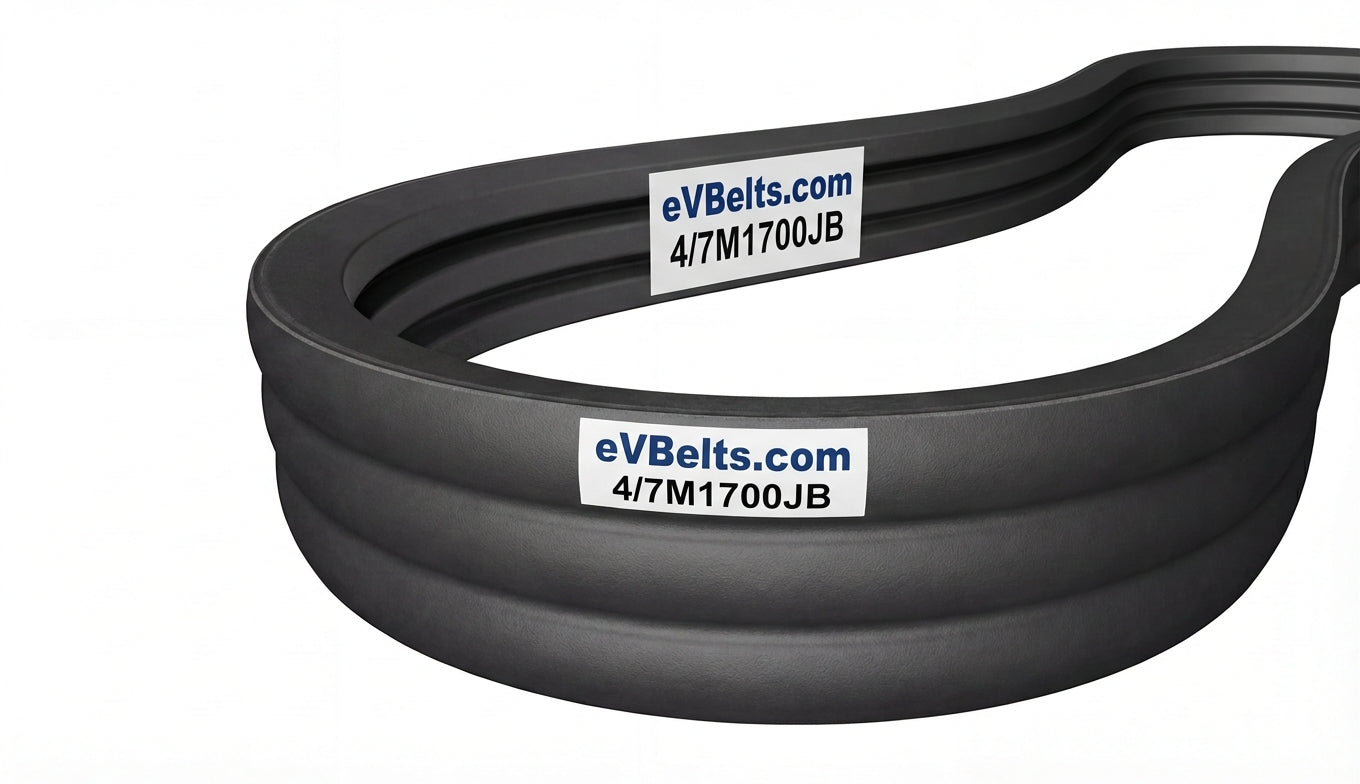

The 4/7M1700JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 66.93" long, featuring oil and heat resistant rubber construction.

4/7M1700JB Specifications

• Top Width: 0.74" (18.8mm)
• Outside Length: 66.93" (1700mm)
• Inside Length: 66.73" (1695mm)
• Min Pulley Diameter: 2.48"
• Configuration: 4-Band Set

The 4/7M1700JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.
