4/7M500JB

Top Width: 0.74" (18.8mm)
Outside Length: 19.69" (500mm)
Inside Length: 19.49" (495mm)
Min Pulley Diameter: 2.48"
Configuration: 4-Band Set

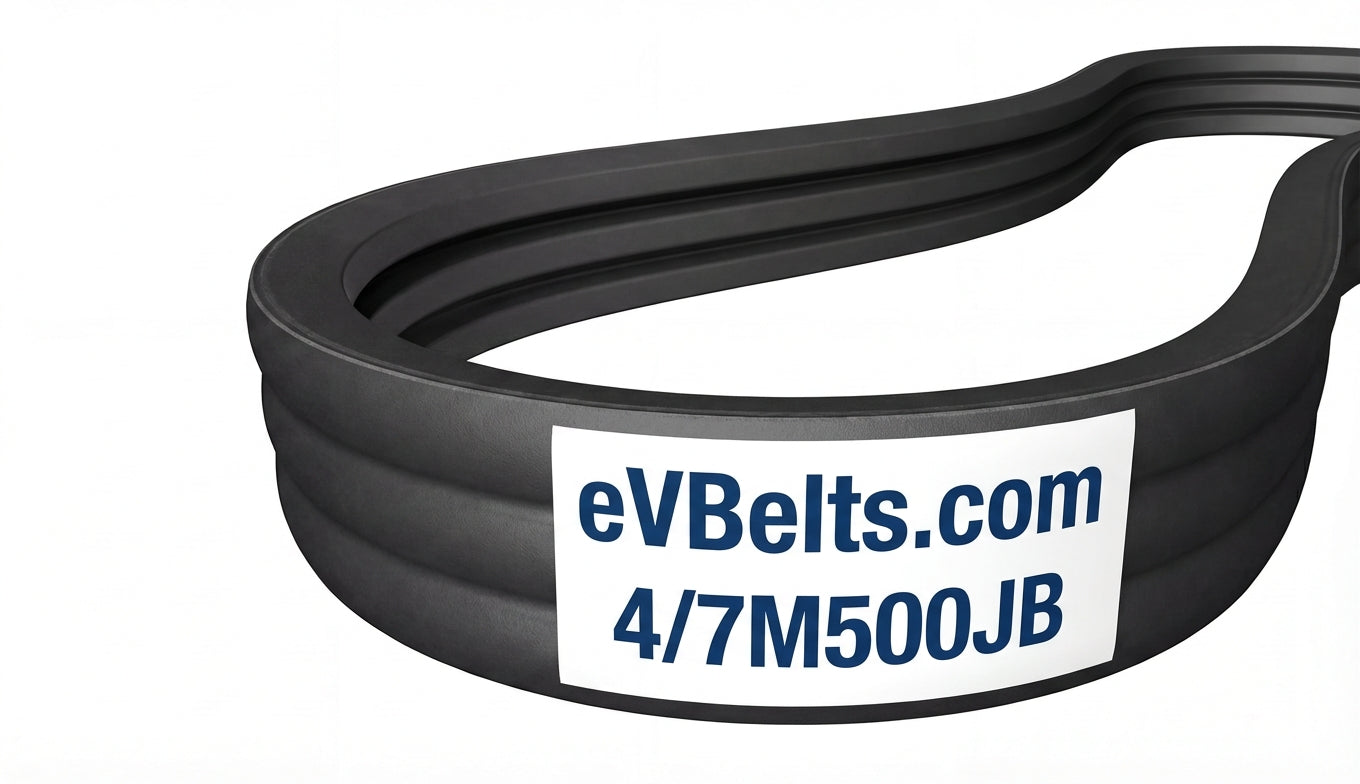

The 4/7M500JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 19.69" long, featuring oil and heat resistant rubber construction.

SKU: 1212706

$155.19

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/7M500JB
Top Width	0.74 in / 18.8 mm
Belt Depth	0.2165 in / 5.5 mm
Inside Length	19.49 in / 495.0 mm
Outside Length	19.69 in / 500.0 mm
Effective Length	19.69 in
Min Sheave Diameter	2.48 in / 63.0 mm
Ribs	4
