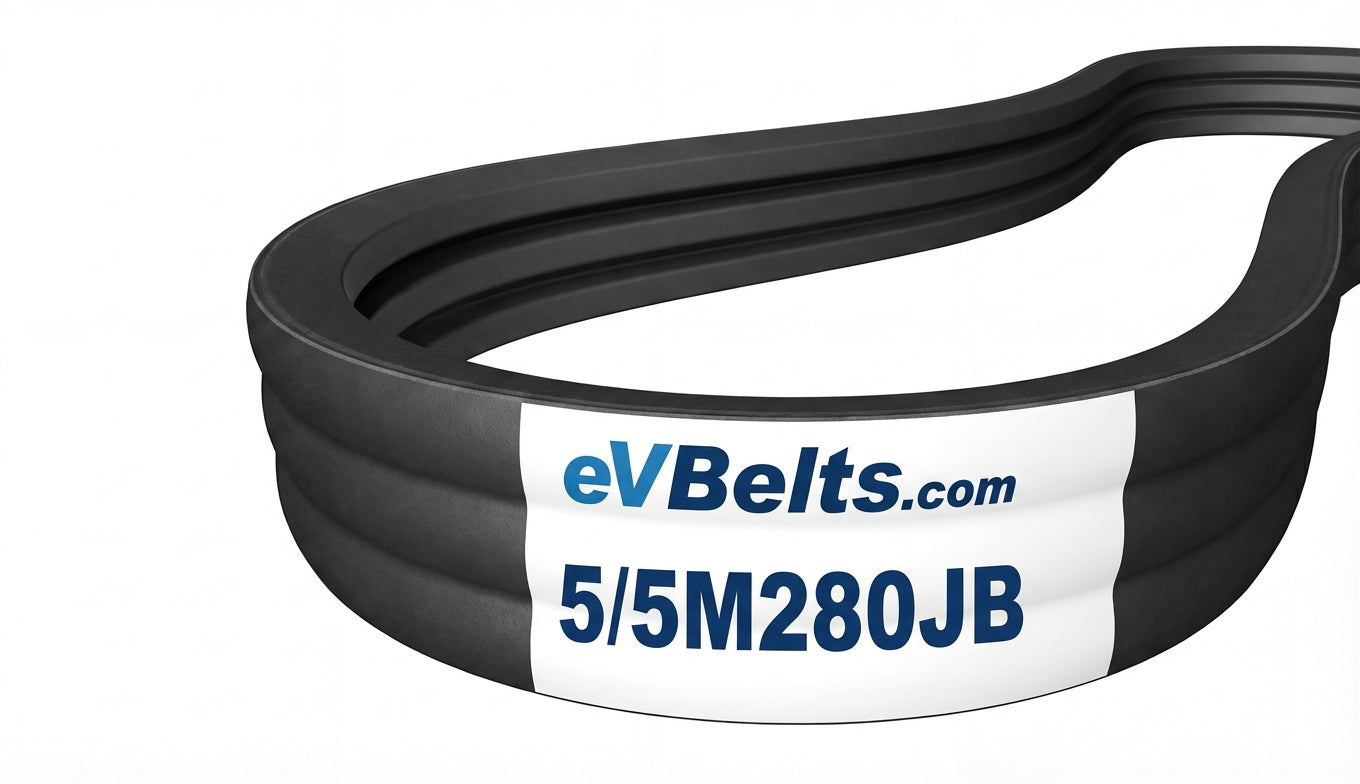

5/5M280JB

Top Width: 0.701" (17.8mm)
Outside Length: 11.02" (280mm)
Inside Length: 10.83" (275mm)
Min Pulley Diameter: 1.77"
Configuration: 5-Band Set

The 5/5M280JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 11.02" long, featuring oil and heat resistant rubber construction.

SKU: 1212524

$99.37

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	5/5M280JB
Top Width	0.701 in / 17.8 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	10.83 in / 275.0 mm
Outside Length	11.02 in / 280.0 mm
Effective Length	11.02 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	5
