5/5M1250JB

Top Width: 0.701" (17.8mm)
Outside Length: 49.21" (1250mm)
Inside Length: 49.02" (1245mm)
Min Pulley Diameter: 1.77"
Configuration: 5-Band Set

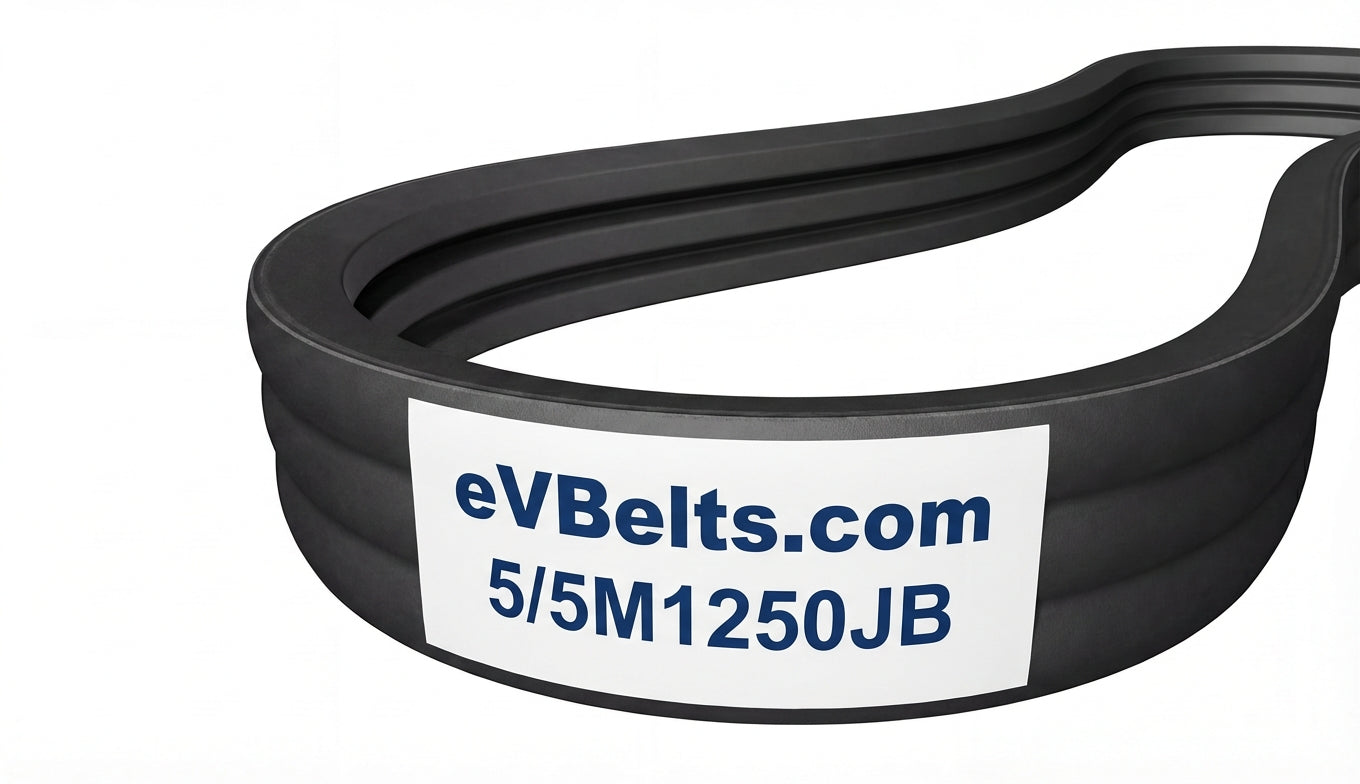

The 5/5M1250JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 49.21" long, featuring oil and heat resistant rubber construction.

SKU: 1212517

$285.48

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/5M1250JB
Top Width	0.701 in / 17.8 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	49.02 in / 1245.0 mm
Outside Length	49.21 in / 1250.0 mm
Effective Length	49.21 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	5
