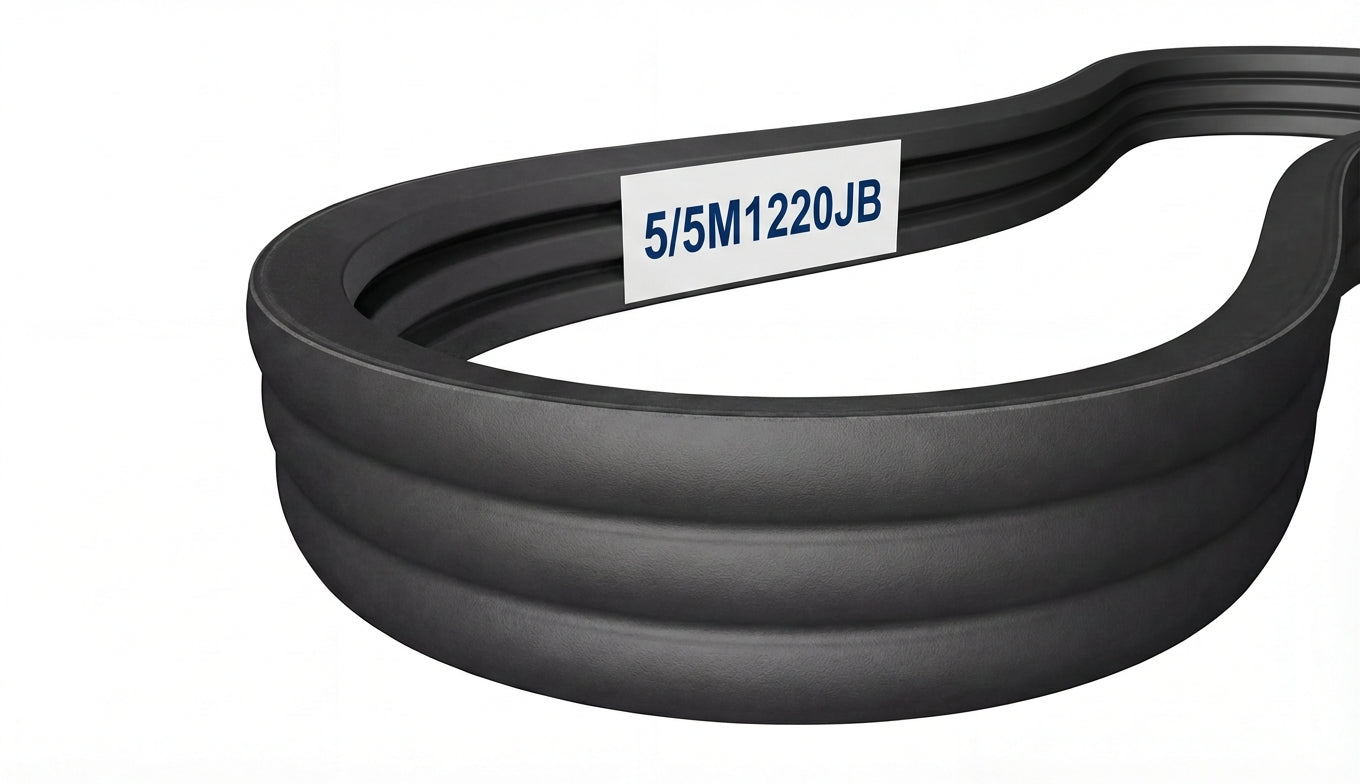

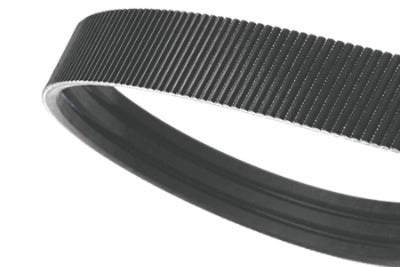

5/5M1220JB

Top Width: 0.701" (17.8mm)
Outside Length: 48.03" (1220mm)
Inside Length: 47.83" (1215mm)
Min Pulley Diameter: 1.77"
Configuration: 5-Band Set

The 5/5M1220JB is a factory-joined 5-band 5M banded belt assembly measuring 0.701" wide x 48.03" long, featuring oil and heat resistant rubber construction.

SKU: 1212516

$280.28

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	5/5M1220JB
Top Width	0.701 in / 17.8 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	47.83 in / 1215.0 mm
Outside Length	48.03 in / 1220.0 mm
Effective Length	48.03 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	5
