4/5M925JB

Top Width: 0.561" (14.24mm)
Outside Length: 36.42" (925mm)
Inside Length: 36.22" (920mm)
Min Pulley Diameter: 1.77"
Configuration: 4-Band Set

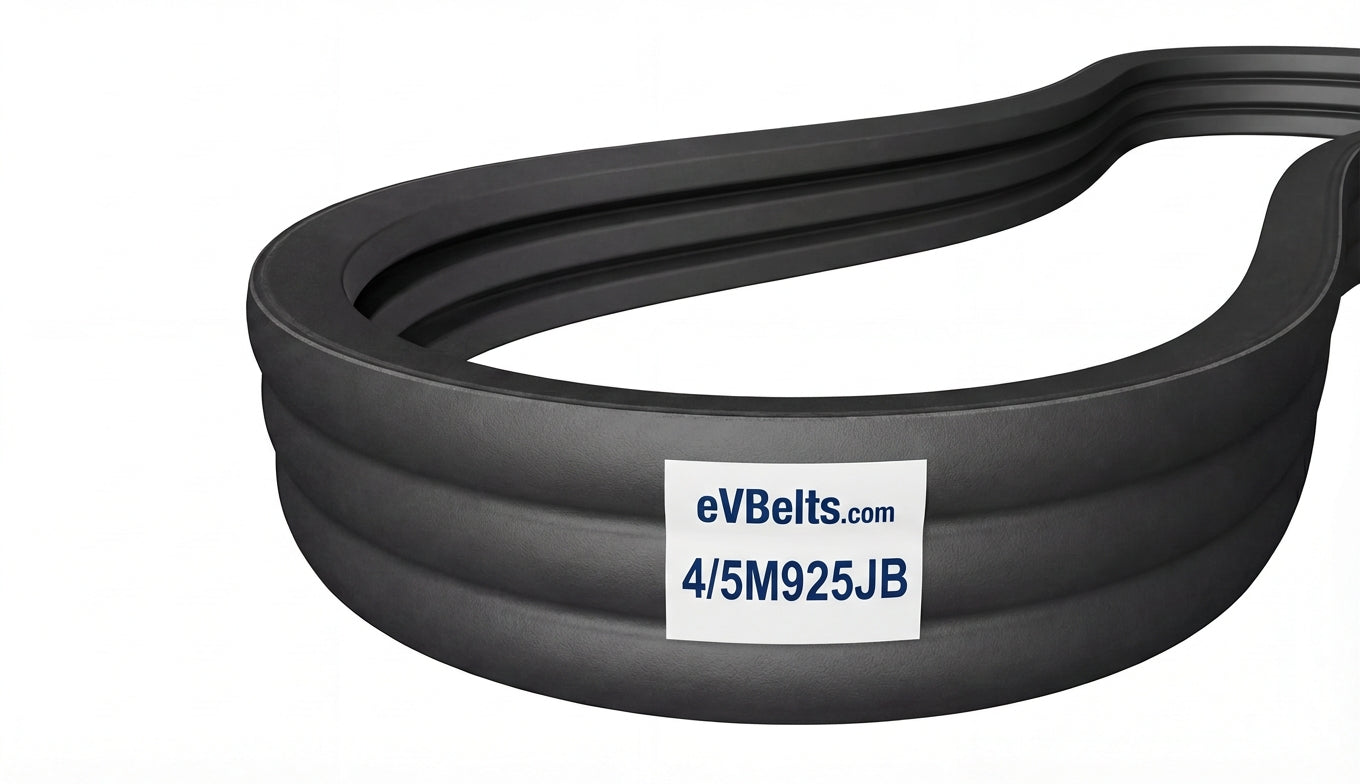

The 4/5M925JB is a factory-joined 4-band 5M banded belt assembly measuring 0.561" wide x 36.42" long, featuring oil and heat resistant rubber construction.

SKU: 1212506

$161.87

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/5M925JB
Top Width	0.561 in / 14.24 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	36.22 in / 920.0 mm
Outside Length	36.42 in / 925.0 mm
Effective Length	36.42 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	4
