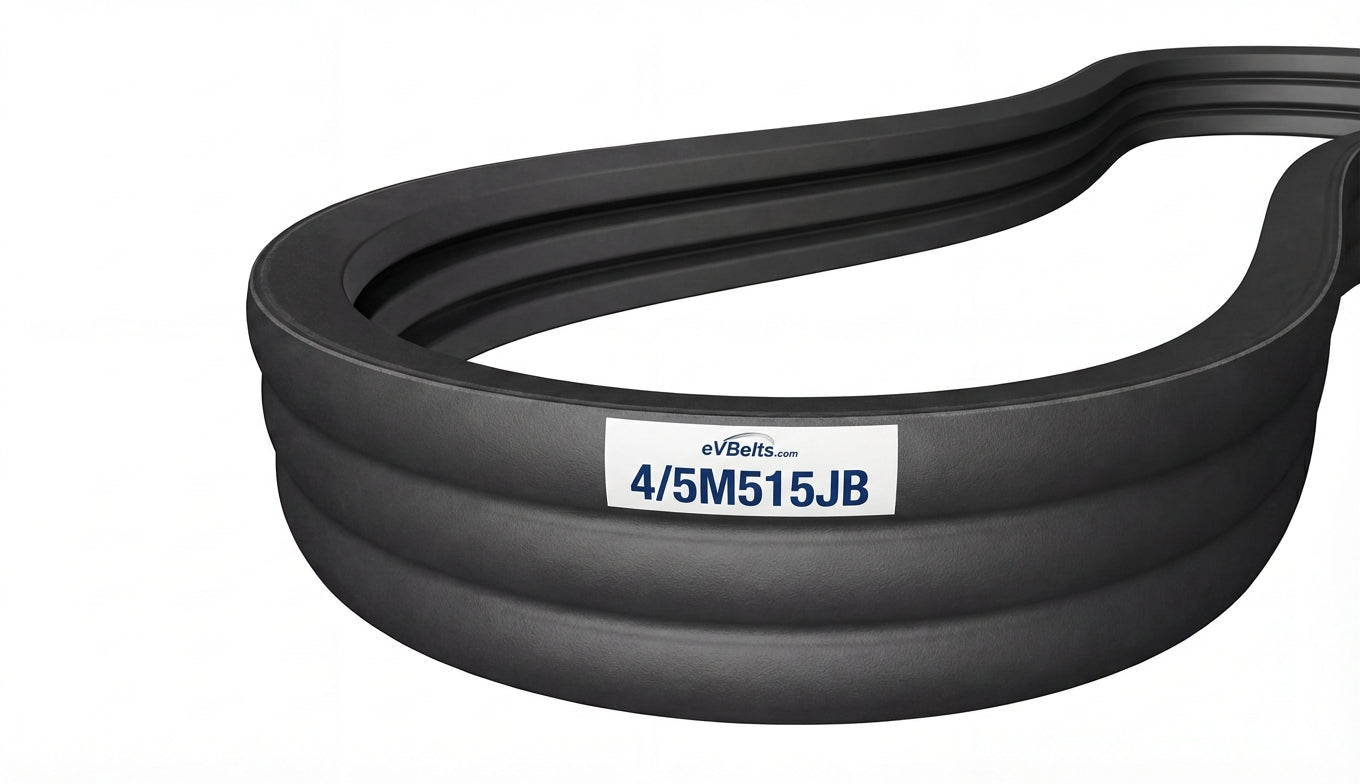

4/5M515JB
The 4/5M515JB is a factory-joined 4-band 5M banded belt assembly measuring 0.561" wide x 20.28" long, featuring oil and heat resistant rubber construction.
SKU: 1212486
$80.25
8025
0 In Stock
Estimated delivery between June 22 and June 24.
Technical Specifications
| Part Number | 4/5M515JB |
| Top Width | 0.561 in / 14.24 mm |
| Belt Depth | 0.1575 in / 4.0 mm |
| Inside Length | 20.08 in / 510.0 mm |
| Outside Length | 20.28 in / 515.0 mm |
| Effective Length | 20.28 in |
| Min Sheave Diameter | 1.77 in / 45.0 mm |
| Ribs | 4 |
