4/5M290JB

Top Width: 0.561" (14.24mm)
Outside Length: 11.42" (290mm)
Inside Length: 11.22" (285mm)
Min Pulley Diameter: 1.77"
Configuration: 4-Band Set

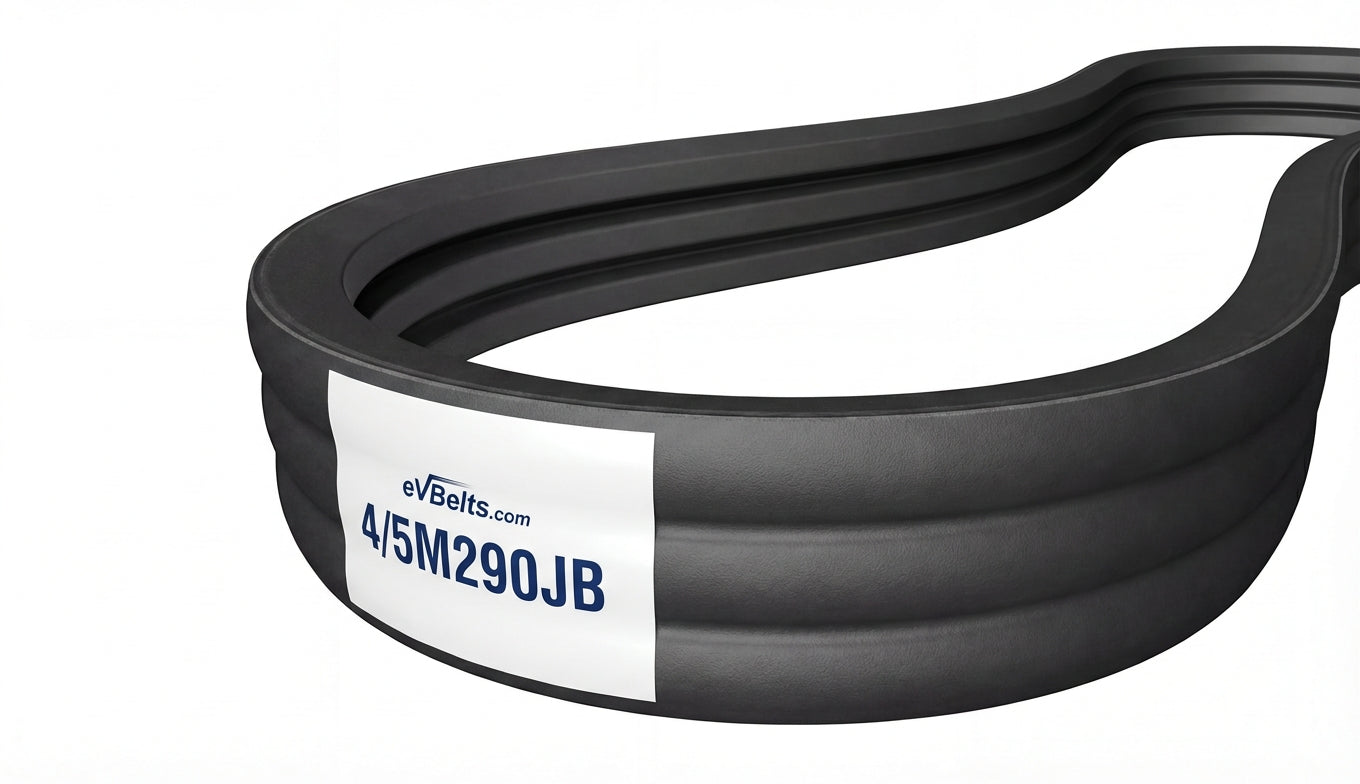

The 4/5M290JB is a factory-joined 4-band 5M banded belt assembly measuring 0.561" wide x 11.42" long, featuring oil and heat resistant rubber construction.

SKU: 1212466

$128.66

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/5M290JB
Top Width	0.561 in / 14.24 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	11.22 in / 285.0 mm
Outside Length	11.42 in / 290.0 mm
Effective Length	11.42 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	4
