4/5M1060JB

Top Width: 0.561" (14.24mm)
Outside Length: 41.73" (1060mm)
Inside Length: 41.54" (1055mm)
Min Pulley Diameter: 1.77"
Configuration: 4-Band Set

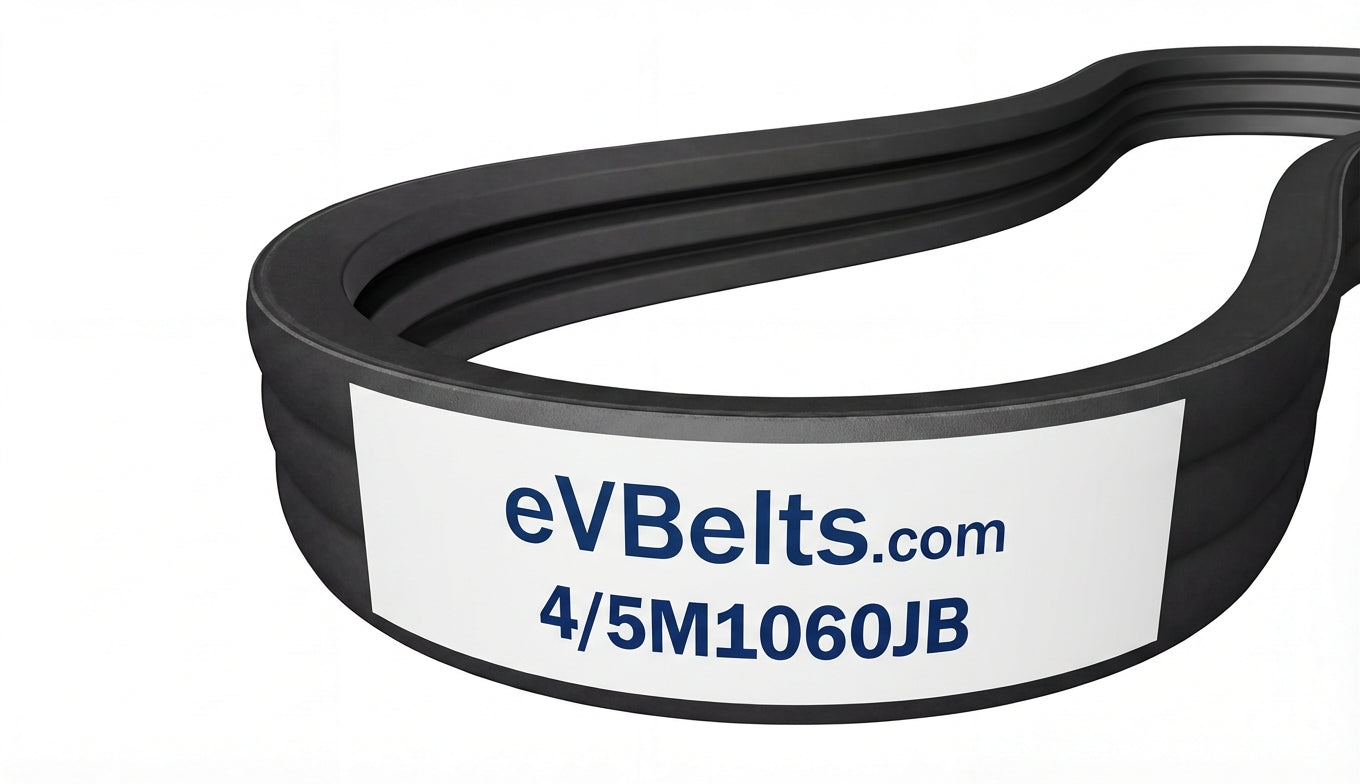

The 4/5M1060JB is a factory-joined 4-band 5M banded belt assembly measuring 0.561" wide x 41.73" long, featuring oil and heat resistant rubber construction.

SKU: 1212453

$201.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/5M1060JB
Top Width	0.561 in / 14.24 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	41.54 in / 1055.0 mm
Outside Length	41.73 in / 1060.0 mm
Effective Length	41.73 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	4
