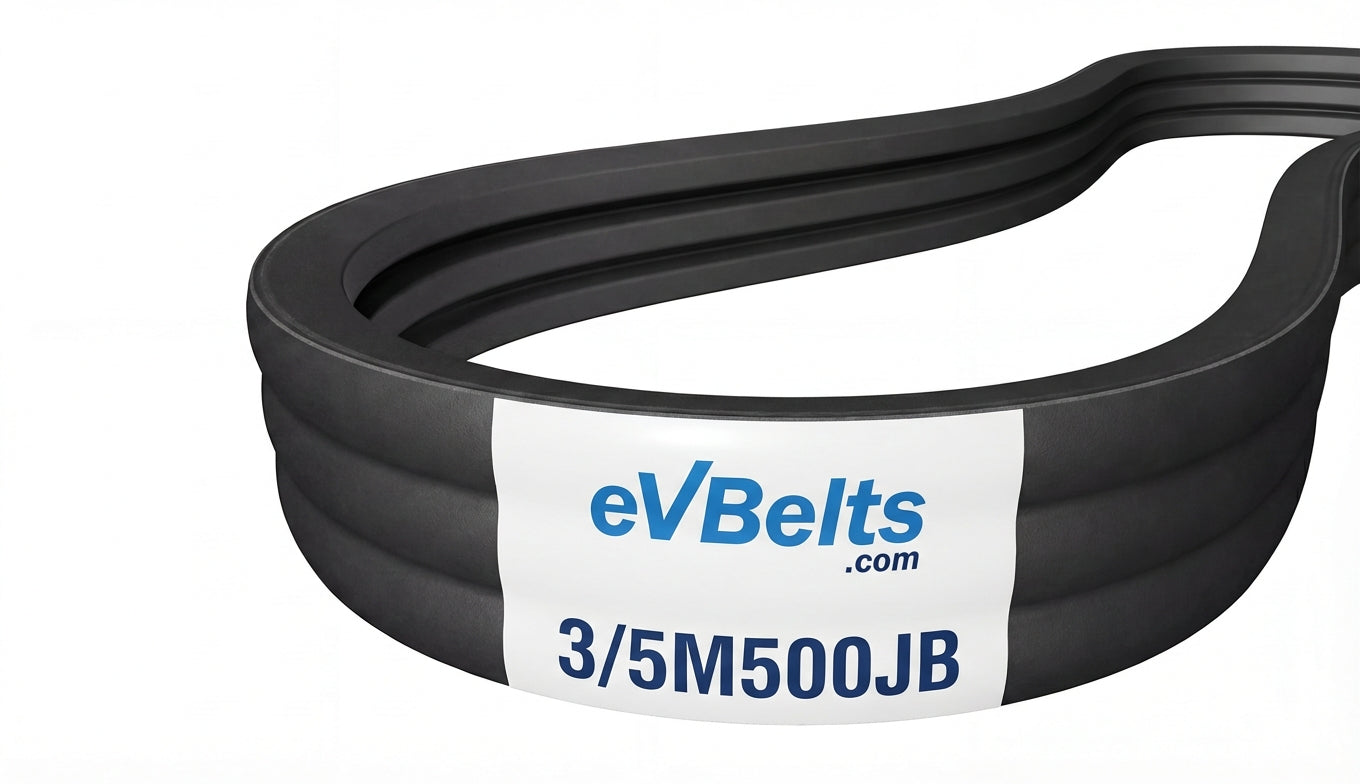

3/5M500JB

Top Width: 0.42" (10.68mm)
Outside Length: 19.69" (500mm)
Inside Length: 19.49" (495mm)
Min Pulley Diameter: 1.77"
Configuration: 3-Band Set

The 3/5M500JB is a factory-joined 3-band 5M banded belt assembly measuring 0.42" wide x 19.69" long, featuring oil and heat resistant rubber construction.

SKU: 1212427

$83.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/5M500JB
Top Width	0.42 in / 10.68 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	19.49 in / 495.0 mm
Outside Length	19.69 in / 500.0 mm
Effective Length	19.69 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	3
