3/5M450JB

Top Width: 0.42" (10.68mm)
Outside Length: 17.72" (450mm)
Inside Length: 17.52" (445mm)
Min Pulley Diameter: 1.77"
Configuration: 3-Band Set

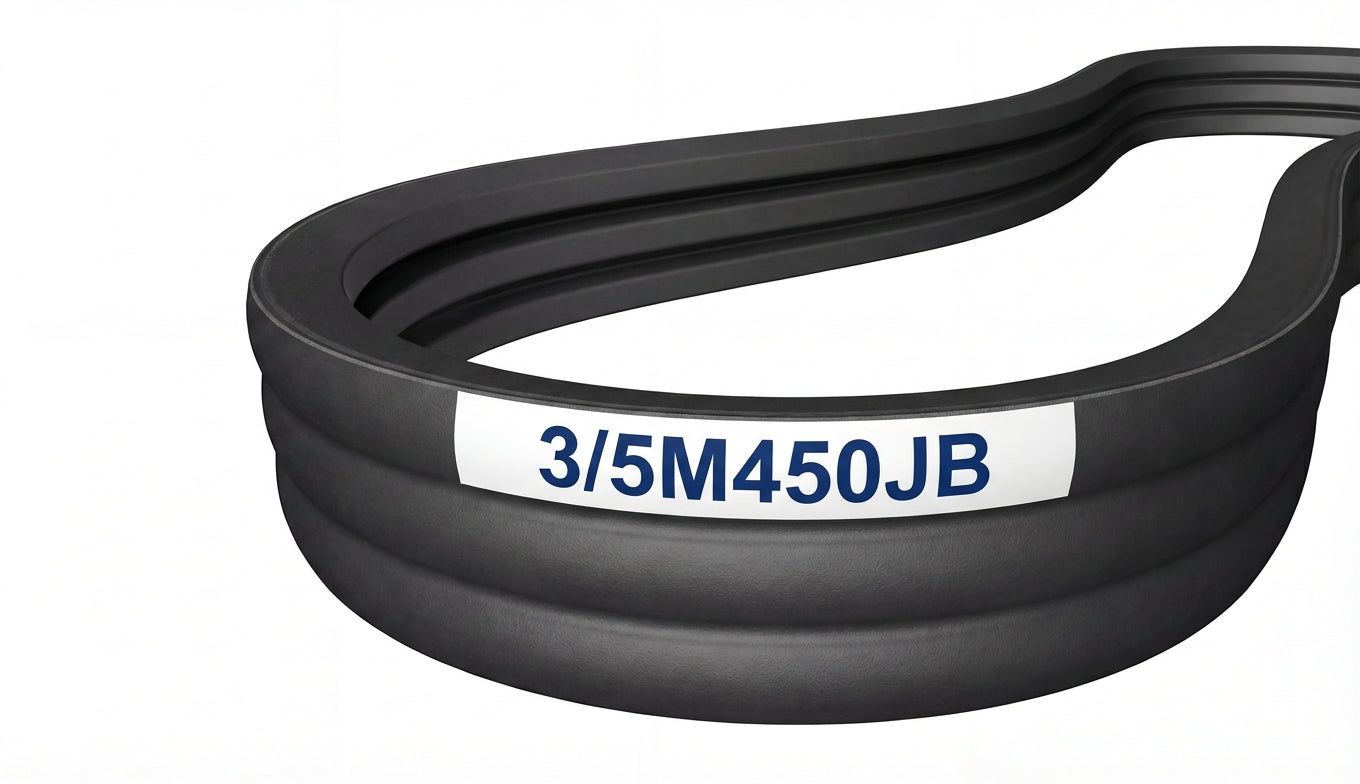

The 3/5M450JB is a factory-joined 3-band 5M banded belt assembly measuring 0.42" wide x 17.72" long, featuring oil and heat resistant rubber construction.

SKU: 1212423

$80.40

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/5M450JB
Top Width	0.42 in / 10.68 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	17.52 in / 445.0 mm
Outside Length	17.72 in / 450.0 mm
Effective Length	17.72 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	3
