3/5M315JB

Top Width: 0.42" (10.68mm)
Outside Length: 12.4" (315mm)
Inside Length: 12.2" (310mm)
Min Pulley Diameter: 1.77"
Configuration: 3-Band Set

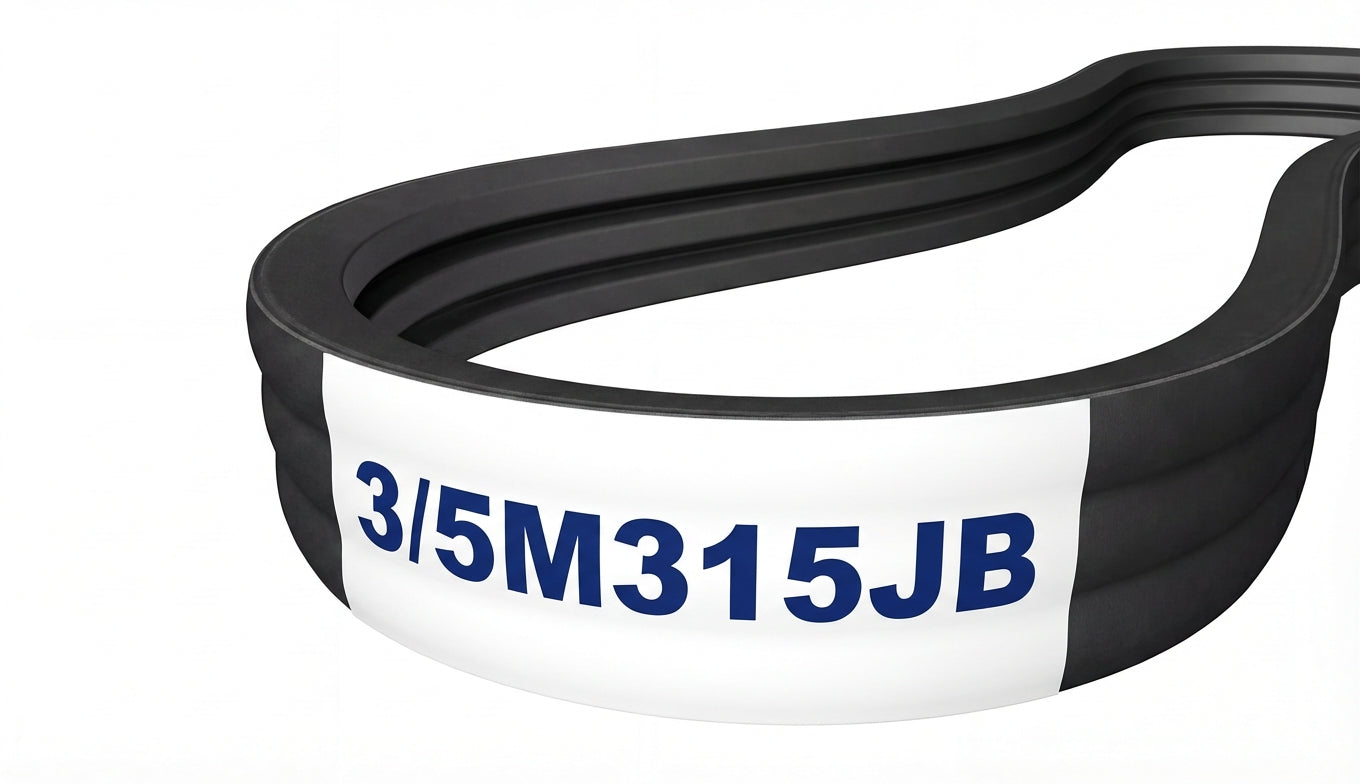

The 3/5M315JB is a factory-joined 3-band 5M banded belt assembly measuring 0.42" wide x 12.4" long, featuring oil and heat resistant rubber construction.

SKU: 1212411

$96.49

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/5M315JB
Top Width	0.42 in / 10.68 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	12.2 in / 310.0 mm
Outside Length	12.4 in / 315.0 mm
Effective Length	12.4 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	3
