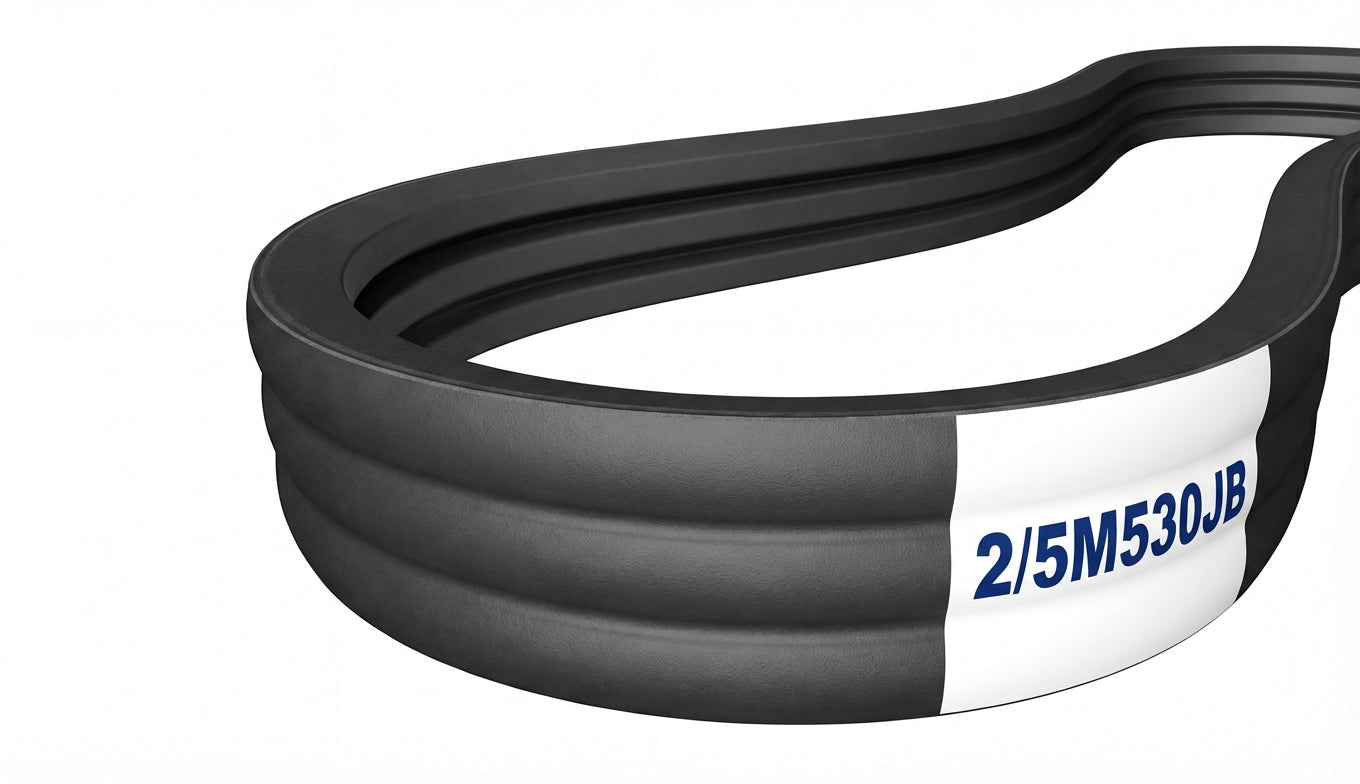

2/5M530JB

Top Width: 0.28" (7.12mm)
Outside Length: 20.87" (530mm)
Inside Length: 20.67" (525mm)
Min Pulley Diameter: 1.77"
Configuration: 2-Band Set

The 2/5M530JB is a factory-joined 2-band 5M banded belt assembly measuring 0.28" wide x 20.87" long, featuring oil and heat resistant rubber construction.

SKU: 1212370

$57.16

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/5M530JB
Top Width	0.28 in / 7.12 mm
Belt Depth	0.1575 in / 4.0 mm
Inside Length	20.67 in / 525.0 mm
Outside Length	20.87 in / 530.0 mm
Effective Length	20.87 in
Min Sheave Diameter	1.77 in / 45.0 mm
Ribs	2
