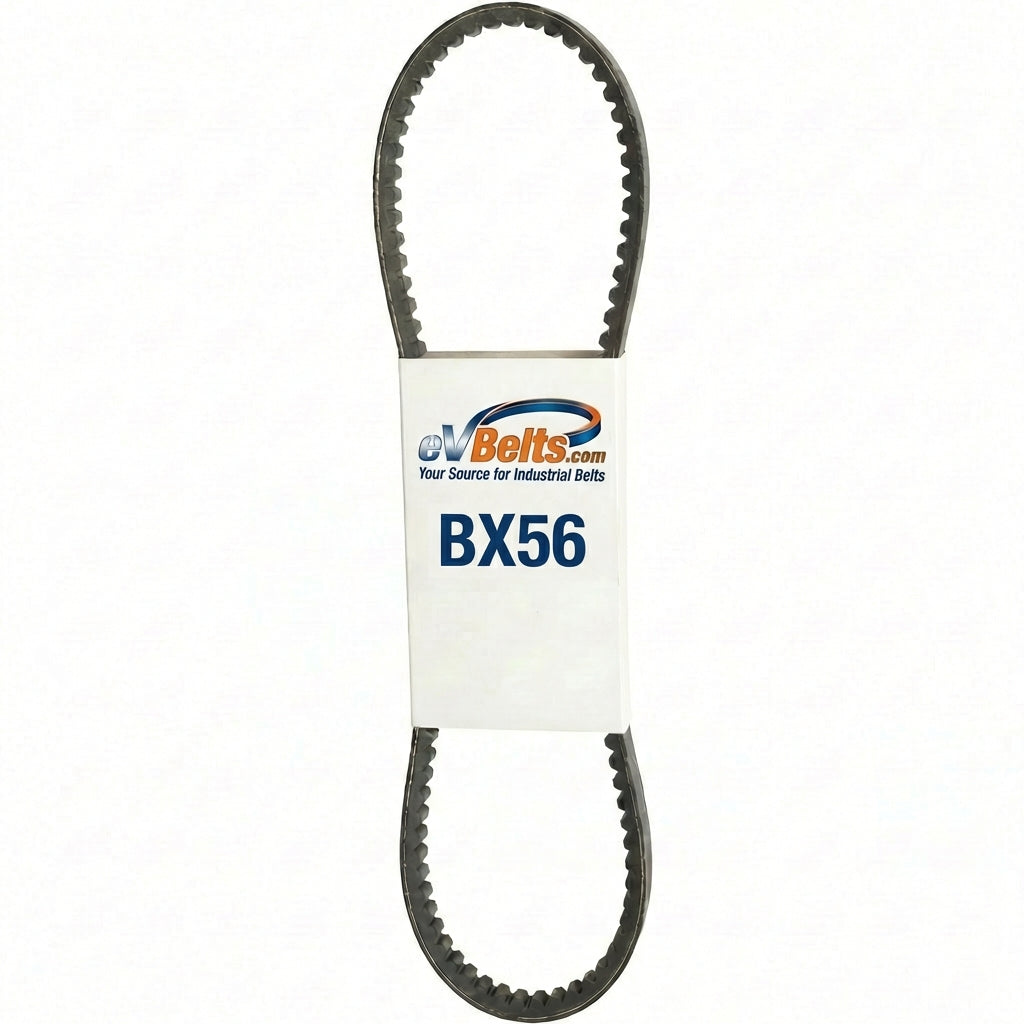

BX56
The BX56 is a cogged (notched) V-belt measuring 0.656" wide x 57.8" long, offering improved flexibility around smaller pulleys.
SKU: 1251249
$12.38
1238
26 In Stock
Estimated delivery between June 16 and June 18.
Technical Specifications
| Part Number | BX56 |
| Top Width | 0.656 in / 16.66 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 56.0 in / 1422.4 mm |
| Outside Length | 57.8 in / 1468.1 mm |
| Effective Length | 57.4 in |
| Min Sheave Diameter | 4.0 in / 101.6 mm |
| Cogged | Yes |
Replaces These OEM Part Numbers (3)
This belt replaces the following OEM part numbers:
JOHN DEERE M77672
LESCO 18352
P904
BX56
