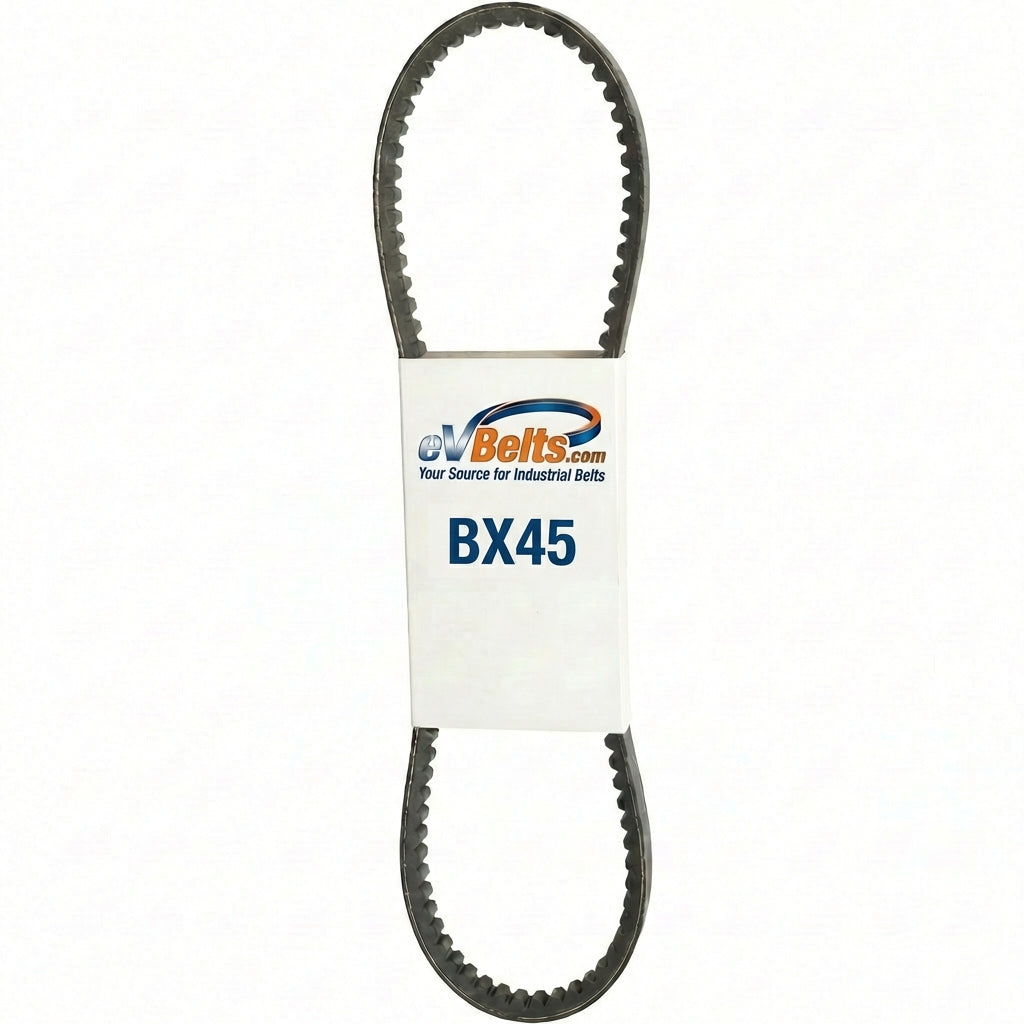

BX45
The BX45 is a cogged (notched) V-belt measuring 0.656" wide x 46.8" long, offering improved flexibility around smaller pulleys.
SKU: 1251245
$9.91
991
1344 In Stock
Estimated delivery between June 16 and June 18.
Technical Specifications
| Part Number | BX45 |
| Top Width | 0.656 in / 16.66 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 45.0 in / 1143.0 mm |
| Outside Length | 46.8 in / 1188.7 mm |
| Effective Length | 46.4 in |
| Min Sheave Diameter | 4.0 in / 101.6 mm |
| Cogged | Yes |
Replaces These OEM Part Numbers (2)
This belt replaces the following OEM part numbers:
F650
FORD 234594
BX45
