What belt replaces SNAPPER 12524?

The SNAPPER 12524 is replaced by the 5L900K V-belt. This is a direct dimensional replacement that fits SNAPPER equipment requiring the original 12524 belt.

What belt replaces SNAPPER 62065?

The SNAPPER 62065 is replaced by the 5L900K V-belt. This is a direct dimensional replacement that fits SNAPPER equipment requiring the original 62065 belt.

sales@evbelts.com
+1 (888) 301-6840

+1 (888) 301-6840
sales@evbelts.com

	__ __
Vendor	Vendor - __
SKU	SKU - __
Description	Description - __
Customizable title	Customizable title - __
Variant name	Variant name - __
	View full details

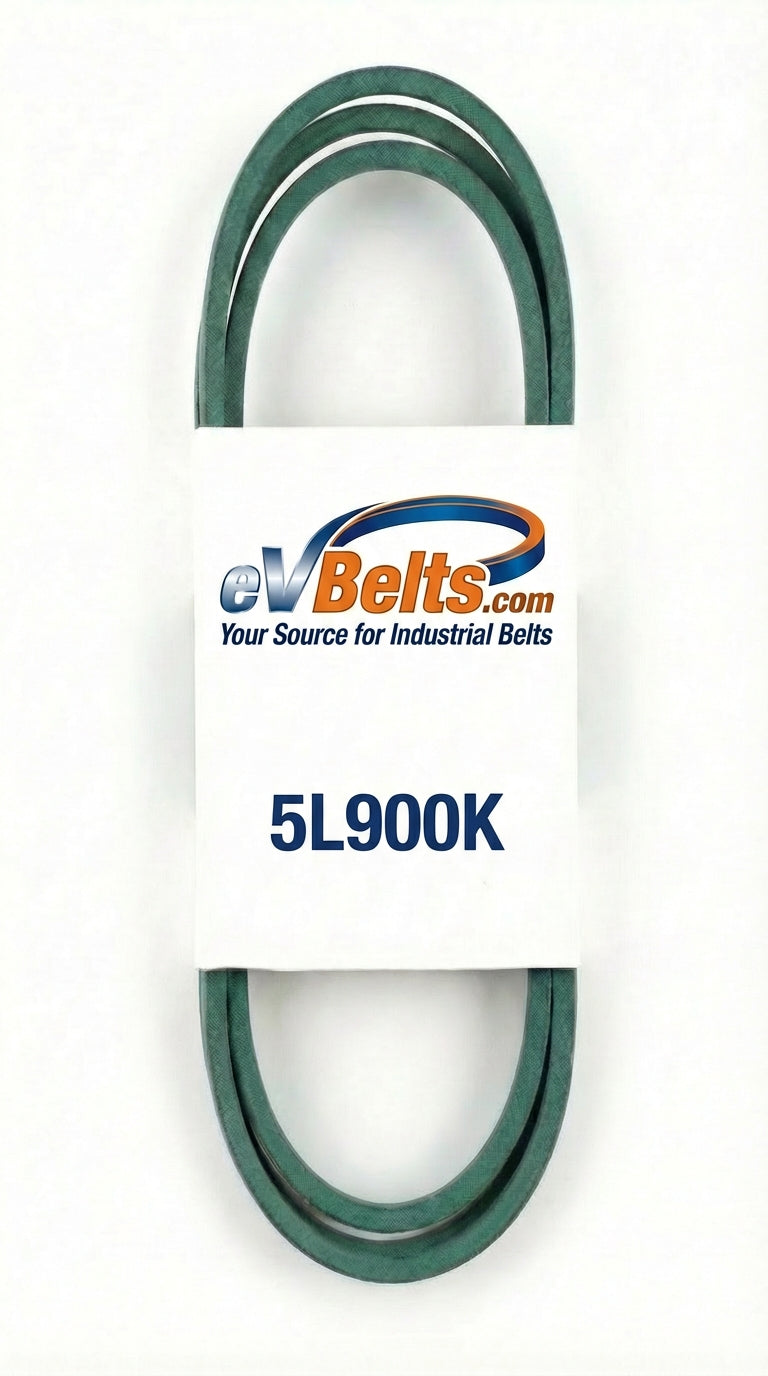

5L900K

Name: 5L900K
Brand: eVBelts
SKU: 1211457
Price: 16.56 USD
Availability: InStock

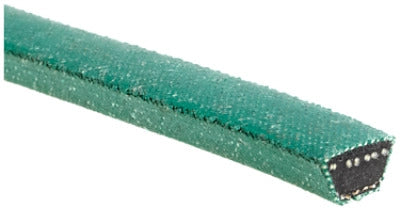

The 5L900K is a heavy-duty aramid fiber reinforced V-belt measuring 0.656" wide x 90" long, featuring aramid fiber reinforced cords for superior tensile strength.

SKU: 1211457

$16.56

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	5L900K
Top Width	0.656 in / 16.66 mm
Belt Depth	0.375 in / 9.52 mm
Inside Length	87.0 in / 2209.8 mm
Outside Length	90.0 in / 2286.0 mm
Effective Length	88.5 in
Min Sheave Diameter	2.5 in / 63.5 mm
Kevlar Reinforced	Yes
