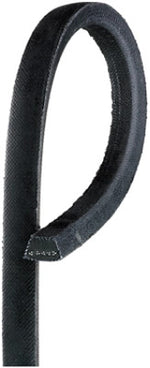

The 5L690 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 69" long, featuring oil and heat resistant rubber construction.

5L690 Specifications

  • Top Width: 0.656" (16.66mm)
  • Outside Length: 69" (1752.6mm)
  • Inside Length: 66" (1676.4mm)
  • Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L690

  • DYNAMARK 39456
  • GAMBLE SKOGMO 39456
  • NOMA 39456

The 5L690 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

In stock and ready to ship
Technical Specifications
Part Number 5L690
Top Width 0.656 in / 16.66 mm
Belt Depth 0.375 in / 9.52 mm
Inside Length 66.0 in / 1676.4 mm
Outside Length 69.0 in / 1752.6 mm
Effective Length 67.5 in
Min Sheave Diameter 2.5 in / 63.5 mm
Replaces These OEM Part Numbers (3)

This belt replaces the following OEM part numbers:

DYNAMARK 39456
GAMBLE SKOGMO 39456
NOMA 39456
