What belt replaces 48285?

The 48285 is replaced by the 5L560K V-belt. This is a direct dimensional replacement that fits equipment requiring the original 48285 belt.

What belt replaces CASE, J.I. C11988?

The CASE, J.I. C11988 is replaced by the 5L560K V-belt. This is a direct dimensional replacement that fits CASE, J.I. equipment requiring the original C11988 belt.

What belt replaces GRAZER C44241?

The GRAZER C44241 is replaced by the 5L560K V-belt. This is a direct dimensional replacement that fits GRAZER equipment requiring the original C44241 belt.

What belt replaces MONTGOMERY WARD 165140?

The MONTGOMERY WARD 165140 is replaced by the 5L560K V-belt. This is a direct dimensional replacement that fits MONTGOMERY WARD equipment requiring the original 165140 belt.

What belt replaces SEARS ROEBUCK 8200M?

The SEARS ROEBUCK 8200M is replaced by the 5L560K V-belt. This is a direct dimensional replacement that fits SEARS ROEBUCK equipment requiring the original 8200M belt.

What belt replaces SIMPLICITY 1674899?

The SIMPLICITY 1674899 is replaced by the 5L560K V-belt. This is a direct dimensional replacement that fits SIMPLICITY equipment requiring the original 1674899 belt.

	__ __
Vendor	Vendor - __
SKU	SKU - __
Description	Description - __
Customizable title	Customizable title - __
Variant name	Variant name - __
	View full details

5L560K

Name: 5L560K
Brand: eVBelts
SKU: 1211424
Price: 75.33 USD
Availability: InStock

SKU: 1211424

$75.33

(0)

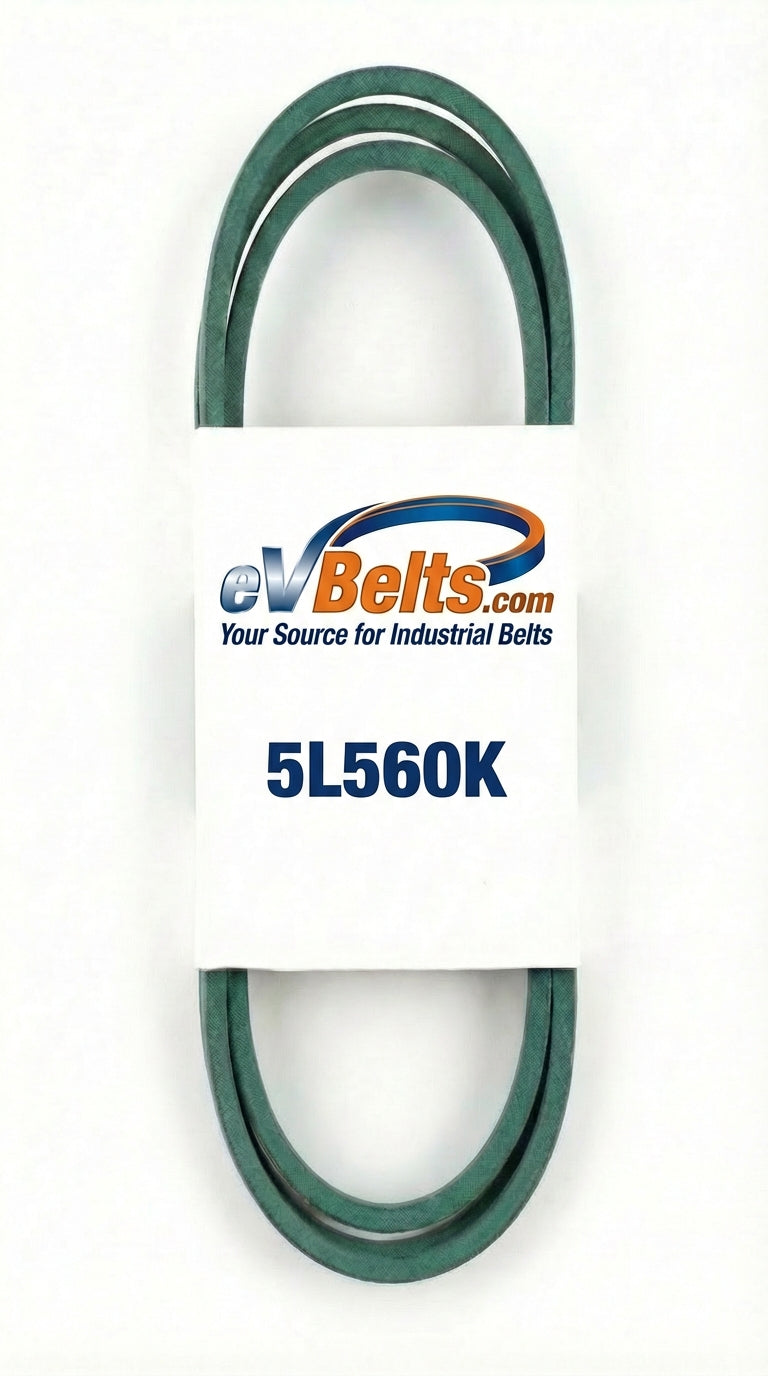

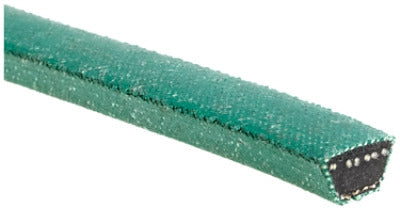

The 5L560K is a heavy-duty aramid fiber reinforced V-belt measuring 0.656" wide x 56" long, featuring aramid fiber reinforced cords for superior tensile strength.

5L560K Specifications

Top Width: 0.656" (16.66mm)
Outside Length: 56" (1422.4mm)
Inside Length: 53" (1346.2mm)
Min Pulley Diameter: 2.5"
Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 5L560K

48285
CASE, J.I. C11988
GRAZER C44241
MONTGOMERY WARD 165140
SEARS ROEBUCK 8200M
SIMPLICITY 1674899

The 5L560K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

In stock and ready to ship

Technical Specifications

Part Number	5L560K
Top Width	0.656 in / 16.66 mm
Belt Depth	0.375 in / 9.52 mm
Inside Length	53.0 in / 1346.2 mm
Outside Length	56.0 in / 1422.4 mm
Effective Length	54.5 in
Min Sheave Diameter	2.5 in / 63.5 mm
Kevlar Reinforced	Yes

Replaces These OEM Part Numbers (6)

This belt replaces the following OEM part numbers:

48285

CASE, J.I. C11988

GRAZER C44241

MONTGOMERY WARD 165140

SEARS ROEBUCK 8200M

SIMPLICITY 1674899
