4L940K
4L940K
/
/

4L940K

SKU: 1211386

$66.93

(0)

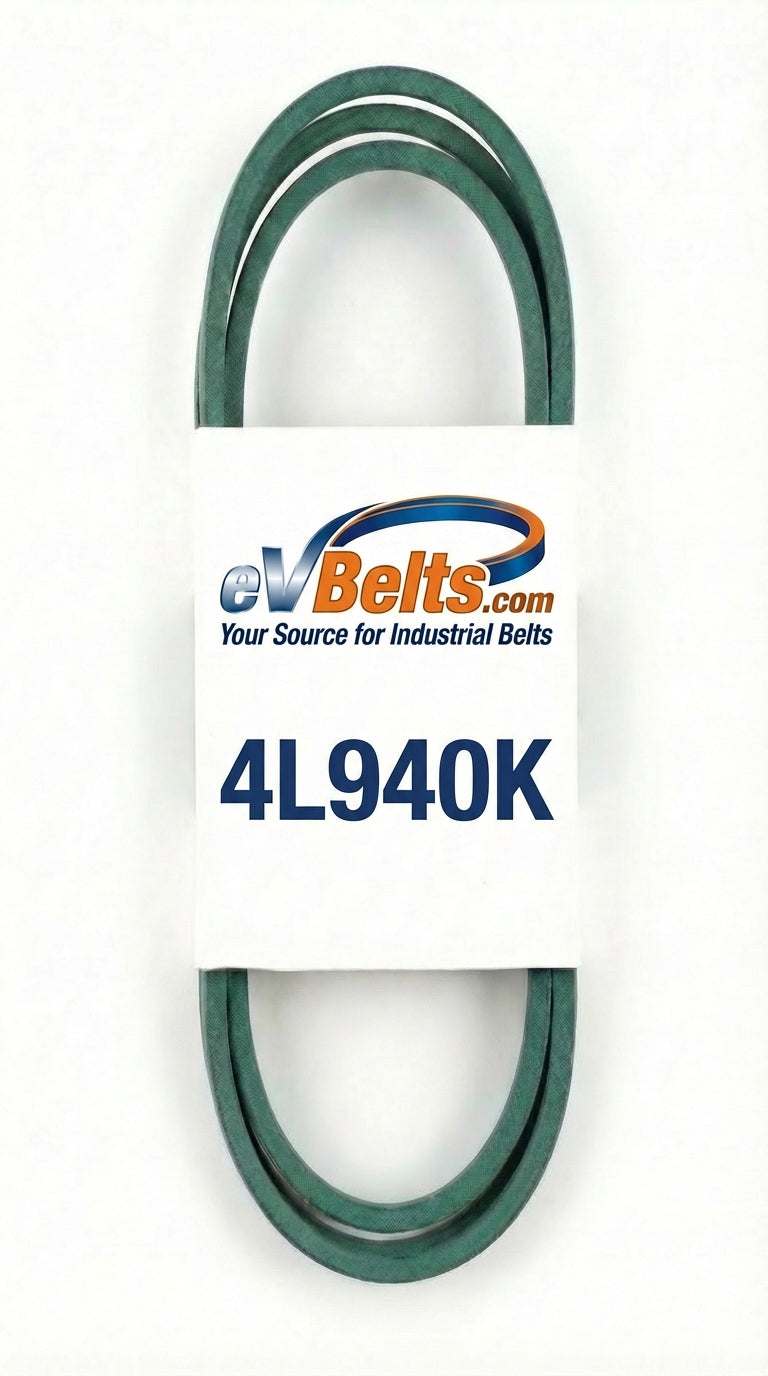

The 4L940K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 94" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L940K Specifications

  • Top Width: 0.5" (12.7mm)
  • Outside Length: 94" (2387.6mm)
  • Inside Length: 92" (2336.8mm)
  • Min Pulley Diameter: 1.5"
  • Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L940K

  • SNAPPER 28334

The 4L940K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

In stock and ready to ship
Technical Specifications
Part Number 4L940K
Top Width 0.5 in / 12.7 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 92.0 in / 2336.8 mm
Outside Length 94.0 in / 2387.6 mm
Effective Length 93.0 in
Min Sheave Diameter 1.5 in / 38.1 mm
Kevlar Reinforced Yes
Replaces These OEM Part Numbers (1)

This belt replaces the following OEM part numbers:

SNAPPER 28334
